Product Details:
Payment & Shipping Terms:
|
| Brand: | ISUZU,FOTON,JMC,HOWO,Dongfeng,JAC,SHACMAN,CAMC | Passenger: | 2~3 Person |
|---|---|---|---|
| Engine: | Dongfeng Brand | Front Leg: | H Shape |
| Rear Leg: | H Type | Height: | 32M, 32 Meters |
| Bucket Capacity: | 200kg | Boom Type: | Five Section Telescopic Arm |
| Delivery Time: | 30 Days | Warranty: | 1 Year |
| Logo: | As Per Customer's Request | User Manual: | Yes |
| Operation Video: | Yes | Truck Purpose: | Street Light Repair,cherry Picker,cleaning/setting Signboard, Landscaping Trees |
| High Light: | Hydraulic Aerial Boom Lift Bucket Truck,32M Telescopic Boom Lift Bucket Truck |
||
2.Product advantages:
The aerial work vehicle can overhang work, cross certain obstacles or carry out multi-point work in one lift.
The platform has a large load capacity, which can be used by two people to work at the same time and can carry certain equipment;
The lifting platform has good mobility and is convenient to transfer the site;
Beautiful appearance, suitable for indoor and outdoor operation and storage
The working arm adopts a new type of high-quality steel, which has high strength and light weight. High strength can ensure stable lifting without shaking, and light weight can ensure flexible and safe operation.
The worktable can be raised and extended, and can be rotated 360 degrees on both sides, which is easy to cross obstacles to reach the working position. It is an ideal aerial work equipment.The technical reversing valve and hydraulic cylinder are used to ensure stable reversal and flexible and convenient operation to ensure stable and safe operation.
3. Product parameters:
| Parameter | Overall dimension (Length*width*high) | (mm) | 8790*2500x28400 |
| Total Mass | (kg) | 16000 | |
| Kerb Mass | (kg) | 5000 | |
| Wheel base | (mm) | 5000 | |
| Approach/rear angle | (°) | 20/12 | |
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
| Engine | Displacement standard | EURO 3 | |
| Chassis | Chassis type | Dongfeng | |
| Drive system | 4x2 | ||
| Tire type | 10.00R20 | ||
| Number of tire | 6 | ||
| passengers | 3 | ||
| Cabin | one and half row cabin | ||
| Special parameter | Working platform rating loading | (kg) | 200 |
| Max operation height | (m) | 32 | |
| Max working radius | (m) | 14.8 | |
| Rotation speed | (r/min) | 0.15~0.20m/s | |
| Max hoisting height | (m) | 8 | |
| Rated hoisting capacity | (kg) | 1000-2000 | |
| Max rotation angle | (°) | 360 |
4.360-degree rotating aerial work bucket, forced balance to ensure safe operation

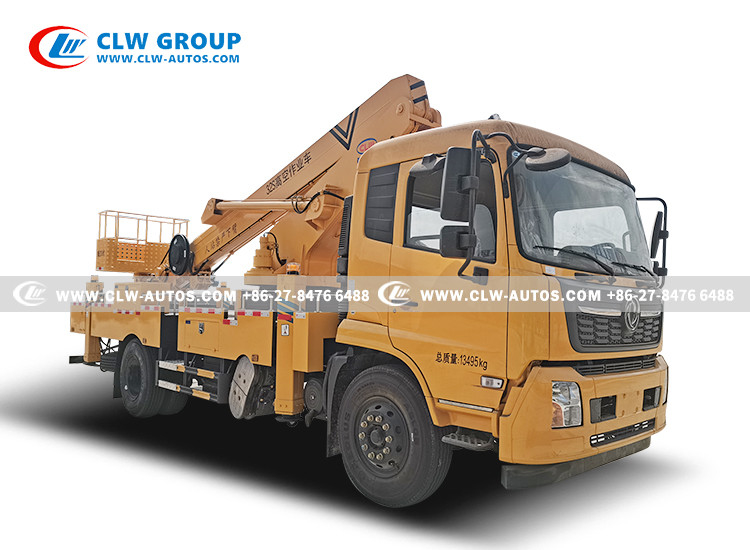

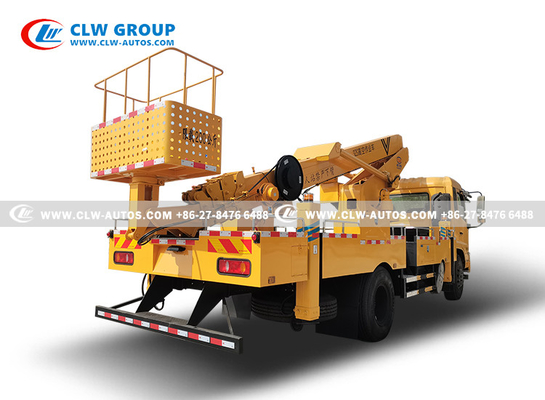

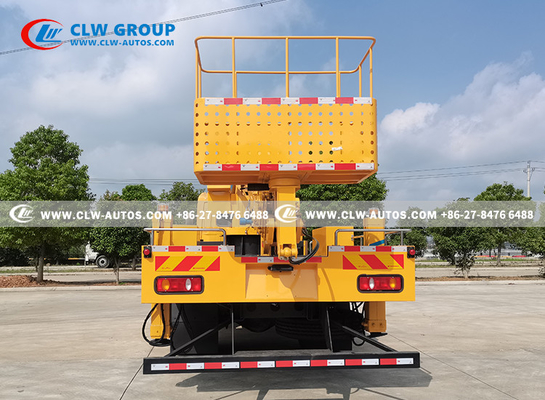

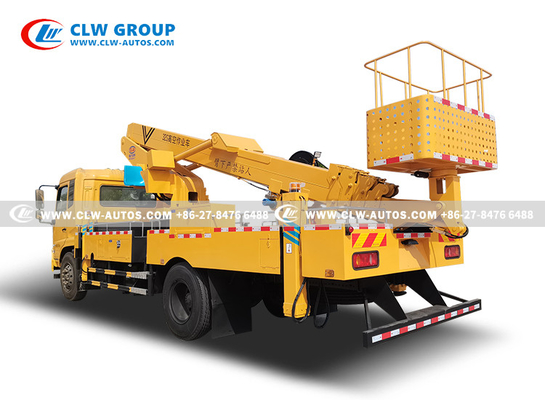

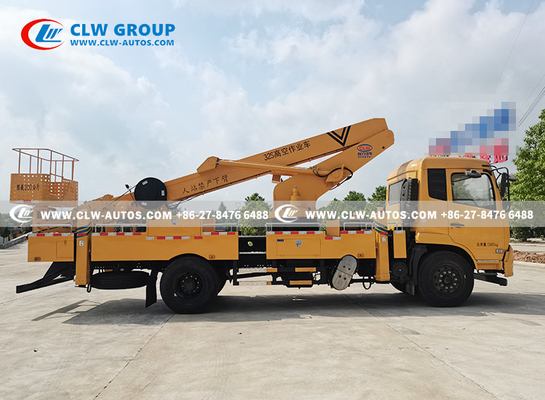

5. Aerial working platform Truck Working Show
Our advantages:
