Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vacuum Sewage Suction Truck | Driving Model: | LHD Vacuum Sewage Suction Truck |
|---|---|---|---|
| Engine: | Diesel Engine | Material: | Q235 Carbon Steel |
| Tanker Size: | 18000Liters 18Tonnes 18T 18m3 | Loading Capacity: | 18tonnes 18t |
| Thickness Of Tanker: | 5mm Fecal Suction Truck | Vacuum Pump: | Chinese Pump, BP, Jurop, Moro Kaiser |
| Suction Depth: | 8 Meters | Suction Distance: | DN50 Or DN100 2" Or 4” |
| Type: | Sewer/sludge/septic Suction Vacuum Sewage Suction Truck | Logo&Color: | Customized |
| High Light: | Shacman Automatic Vacuum Tanker Truck,18cbm Vacuum Tanker Truck |
||
Application range:
1. Cleaning and dredging sediments in sewers and various pipes in municipal, chemical, mechanical, metallurgical, electric power and other departments.
2. Carrying out sludge removal, shipping and dumping work in sewers, and also with functions like water transportation, drainage and emergency fire protection.
Main structures:
Rear door cylinder; ball valve-sewage drain; rear door lock device; ball valve-water drain; vacuum pump;
oil air separator; water air separator; vacuum pump; control handle; tank body; anti-overflow valve;
glass window; sewage line; tipping cylinder
Product descriptions:
The sewage tank is made of high-quality steel plate of WISCO, with a wall thickness of 5.
The middle of the tank is installed wave-proof board.
The vacuum tube is equipped with stainless steel filter.
It install DN100 shock-resistant pressure gauge in the position of the sewage suction four-way valve.
The tank body is equipped with lifting and self-unloading hydraulic system.
The rear door install locking device
There are platforms on both sides of the tank, which is convenient for placing tools and suction pipes.
Product descriptions:
| Complete Vehicle Parameter | |
| Vehicle | Shacman sewer vacuum truck |
| Overall dimension (mm) | 10550*2550*3750 |
| Sewage tank (m3) | 18 septic tanker truck |
| Gross vehicle weight (kg) | Appro*30000 |
| Curb weight (kg) | Appro*14000 |
| Payload (kg) | Appro*16000 |
| Wheel base (mm) | 4350+1300 |
| Max speed (km/h) | 90 |
| Chassis Parameter | |
| Cabin | Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive,with Air Conditioner |
| Drive form | 6X4 |
| Engine | Brand: cummins |
| 385HP | |
| Type: diesel, turbocharged, 6 cylinder. | |
| Displacement: 10.8L | |
| Emission standard: Euro 4/5 | |
| Transmission | 12 forward,2 reverse, manual operated |
| Tire model | 12R22.5 |
| No.of tires | 10 pcs, with 1pc spare tire |
| Superstructure Parameter | |
| Characteristic | 1. Sewage tank volume 18000 liter/18 cbm Sewer suction truck |
| 2. Sewage tank material is carbon steel,thickness 5mm. | |
| 3. Sewage suction pipe 1pcs, length 7m. | |
| 4. Hydraulic lifting sewage tank,rear cover can open. | |
| 5. Equipped with PTO. | |
| 6. Equipped with vacuum pump. | |
| 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. | |
| Performance | (1) Vertical suction ≥ 7m. |
| (2) Pumping speed : 45L/s. | |
| (3) Intake and exhaust diameter: 50mm. | |
| (4) Full tank pumping time ≤ 5min. | |
| (5) Sewage tank emptying time ≤ 4min. | |

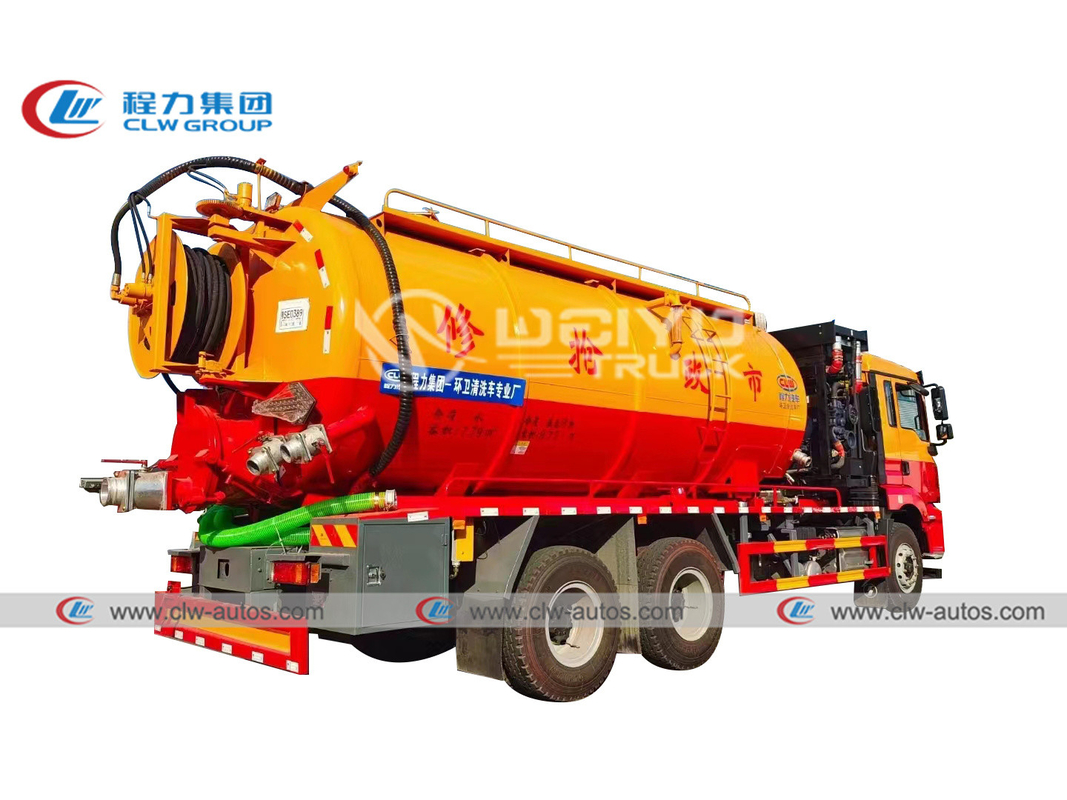

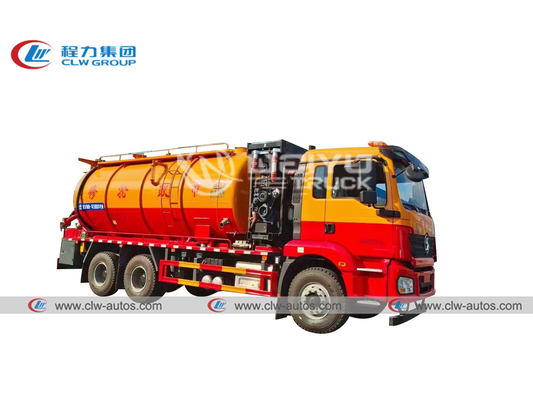

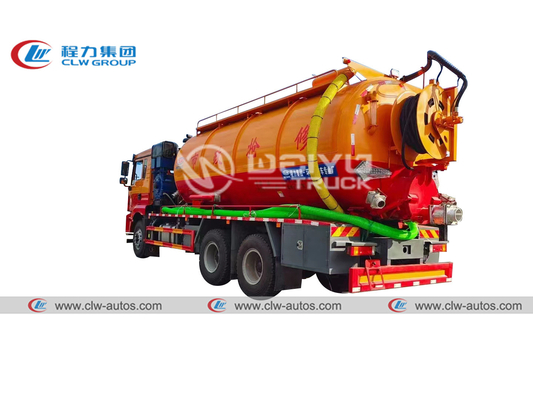

Detailed photos
Parts diagrams
Why choose us:
