SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

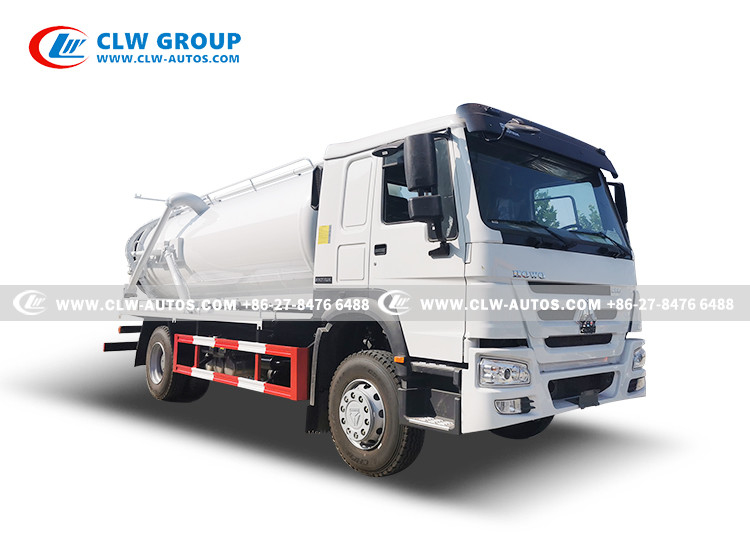

SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation

SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation
SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation

Large Image :  SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: BV, SGS, CCC
Model Number: CLW0581HJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Chassis Brand: Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. Drive Model: Right Hand Drive & Left Hand Drive
Engine Power: 180HP Wheelbase: 4500 Mm
Tire: 6 Tires With One Spare Tank Capacity: 10cbm 10m3 10cubic Meter 10000liters 10t 12t
Tank Material: 6mm Carbon Steel Vacuum Pump: Chinese Brand, Italy Brand Or Other Imported Brand
Sewage Suction Pipe: 8m Suction Time: <5min
Effective Suction: >8m Logo And Pattern: As Customer's Request
Warranty: 1 Year
High Light:

SINOTRUK HOWO Sewage Suction Truck 12CBM

,

Vacuum Suction Truck 12CBM

SINOTRUK HOWO 12CBM Sewage Suction Truck Vacuum Suction Truck For Sanitation

Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with
DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Body configuration:

  1. The tank shape of Sinotruk 12 cubic sewage suction truck is cylindrical,

  2. Made of 6mm thick high-quality carbon steel plate of Wuhan Iron and Steel Co., Ltd.

  3. The front of the tank has a sewage suction window, a hand washing device, a lifting device,

  4. The sewage suction pipe is 5 meters long, and the tank body can be selected in various colors,

  5. The rest are made according to the standard configuration in the factory.

  6. Equipped with high-power vacuum sewage pump and high-quality hydraulic system

  7. The head of the tank body is die-casting at one time, the tank body can be opened back, and the double top is self-unloading.

  8. The dirt in the tank can be dumped directly through the back cover, which has the characteristics of high vacuum (more suction than the suction truck), large tonnage, high efficiency and wider use.

SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 0

Product Specification:

Cabin Driving type 4x2, single row
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 7500*2300*2850
Wheel base (mm) 4500
Wheel track (front/rear) (mm) 1960/1860
Approach/Departure angle(°) 28/32
Weight in KGS Tare Weight 5340
payload 6025
Front axles loading capacity 2700
Rear axles loading capacity 5000
Max. driving speed(km/h) 95
Engine Brand Cummins
Horse Power(HP) 180HP
Emission standard Euro V
Gearbox 6 forwards & 1 reverse
Steering Left hand drive
Tire 9.00R20, 6 tires with one spare
Sewage Tank
Tank volume 11000Liters
Tank material 6mm carbon steel Q235
Tank size 4900x1600mm
Vacuum Pump Chinese Vacuum Pump or Italy Vacuum Pump
Sewage suction pipe 8M
Main Performance Suction time ≤ 5min,
effective suction range ≥ 8m
Other equipment Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
Painting Customized painting color and logo as required.


Referene photos:

SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 1

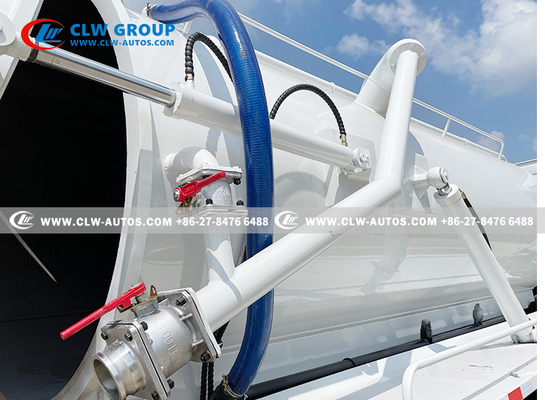

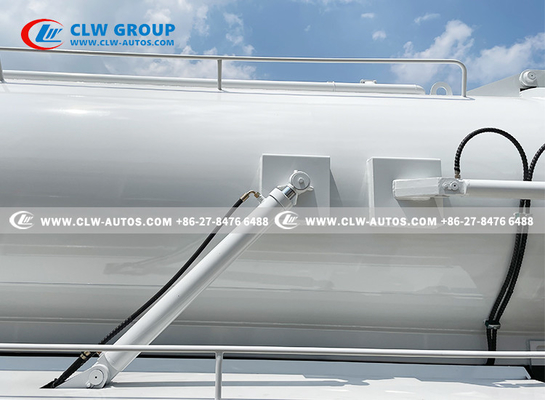

2.Hydraulic mid-top lift
Hydraulic opening of the rear cover




SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 2

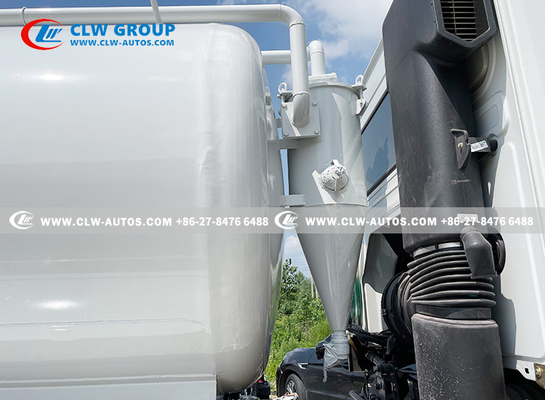

2.Secondary anti-overflow valve between cab and suction tank
Main function: automatic control of unloading and loading of the pump


SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 3

Main Structure:


SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 4

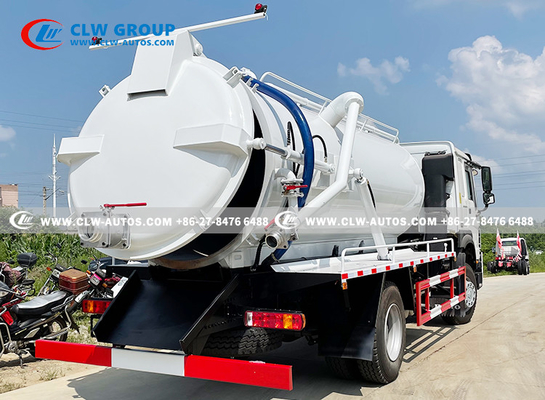

Working Scene

SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 5
SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 6
 SINOTRUK HOWO Sewage Suction Truck Vacuum Suction Truck 12CBM For Sanitation 7
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ


Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
