Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Sinotruk HOWO, FAW, Foton, Isuzu, Etc. | Engine Power: | 290HP |
|---|---|---|---|
| Tank Shape: | Horizontal Cylinder Shape | Tank Capacity: | 20cbm |
| Tank Loading Capacity: | 10ton | Tanker Material: | Q345R, Q370r, Q420r, SA516 |
| Tank Thickness: | 10mm | Design Pressure: | 1.61MPa, 16.1 Bar /Psi |
| Production Standard: | Hydraulic Pump With Pto Powered | Level Meter: | Rego Rochester Or Others |
| Flow Meter: | Displacement Flow Meter | Corrosion Allowance: | 1.0mm |
| Logo And Pattern: | As Customer's Request | Warranty: | 1 Year |
| High Light: | 10cbm LPG Bobtail Truck,HOWO LPG Bobtail Truck,Volume Flow Meter LPG Gas Tanker |
||
LPG bobtails (also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. lpg bobtails is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1) Truck Brand optional for lpg bobtails :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtails : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails
3) Function of lpg bobtails: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

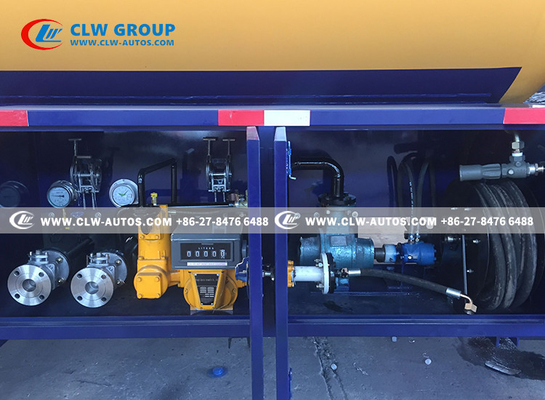

4) Refiling System of lpg bobtails : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtails : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
Product Specification
| Cab | Single half row cab, with power steering.,with a/c | |||||||
| Driving Type | 4*2 right hand driving | |||||||
| Max Speed (km/h) | 90 | |||||||
| Overall dimension(mm) | 7600x2462x2950mm | |||||||
| GVW( kg) | 11000 | |||||||
| Mass in working order ( kg) | 6800 | |||||||
| Wheelbase(mm) | 4500 | |||||||
| F/R track base (mm) | 1900/1800 | |||||||
| F/R overhang (mm) | 1205/2050 | |||||||
| Approach/Departure Angel | 22/23 | |||||||
| Tire | 8.25R16 (6+1) | |||||||
| Clutch | Single-plate dry diaphragm spring clutch | |||||||
| Steering | Hydraulic steering with power assistance | |||||||
| Gear box | 6-speed | |||||||
| Bridge | Front axle | 2.7T | ||||||
| Rear axle | 7.2T | |||||||
| Enging | Model | ISF3.8S3154 | ||||||
| Fuel Type | Diesel fuel | |||||||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |||||||
| Exhaust(ml) | 5700 | |||||||
| Max output power/rotate speed (hp /rpm ) | 170/2500 | |||||||
| Max torque/rotate speed(n.m/rpm) | 560/1300 | |||||||
| Braking system | Service Brake | Compressed air brake | ||||||
| Park Brake | Spring energy | |||||||
| Auxiliary brake | engine exhaust brake | |||||||
| Eletric system | 24v | |||||||
| LPG TANK specification | ||||||||
| Design specific gravity | 0.42 Kg/L | |||||||
| Tank material | Q345R | |||||||
| Tank Designed thickness | End cover | 9.35mm | ||||||
| Tank body | 9.37mm | |||||||
| Design temperature | 50 0C | |||||||
| working temperature | 20~50 0C | |||||||
| Corrosion allowance | 1.0mm | |||||||
| Designed pressure | 1.77Mpa | |||||||
| Hydraulic test pressure | 2.30MPa | |||||||
| Leak test pressure | 1.77Mpa | |||||||
| Heat treatment | Wholly get rid of stress | |||||||
| LPG dispenser | Function | Dispenser LPG to LPG cylinder or other LPG truck | ||||||
| Flow rate | 10 ~ 60L/min | |||||||
| Max working pressure | 2.5Mpa | |||||||
| LPG pump | Function | Delivery and pump LPG | ||||||
| Flow rate | 30-80L/min | |||||||
| Working pressure | 1.60Mpa | |||||||
| Liquid level meter | Type | Rotary | ||||||
| Model | YWG-2.5 | |||||||
| Nominal pressure | PN2.5Mpa | |||||||
| Surveying range | 50-2300mm | |||||||
| Precision | 2.5Grade | |||||||
| Emergency cutting valve | Type | Gas phase | QCJ43F-2.5-8 | |||||
| Liquid phase | QCJ43F-2.5-7 | |||||||
| Nominal pressure | PN2.5Mpa | |||||||
| Nominal diameter | Gas phase | DN25mm | ||||||
| Liquid phase | DN50mm | |||||||
| Operation way | Fluid pressure | |||||||
| Closing time | ≤10 Sec | |||||||
| Melting switch temperature | 70±5°C | |||||||
| Safe valve | Type | A412F-2.5-16 | ||||||
| Model | Inner full lift | |||||||
| Nominal pressure | PN2.5 MPa | |||||||
| Nominal diameter | DN50 | |||||||
| Opening pressure | 1.7MPa | |||||||
| Closing pressure | 1.86-1.94MPa | |||||||
| Complete opening pressure | <2.12 MPa | |||||||
| Loading and unloading device | Valve type | Gas phase | YKAG-3.3-6 | |||||
| Liquid phase | YKAG-3.3-7 | |||||||
| Model | Quick tie-in | |||||||
| Nominal Diameter | Gas phase | DN25mm | ||||||
| Liquid phase | DN50mm | |||||||
| Pressure meter | YN-100T | |||||||
| Temperature gauge | WTQ-280 | |||||||
| Other equipment | ||||||||
| 1.double tool box 2.double valve box 3.double Emergency Cut-off Valve 4.single pipe liquid out 5.both side loading and unloading |
||||||||

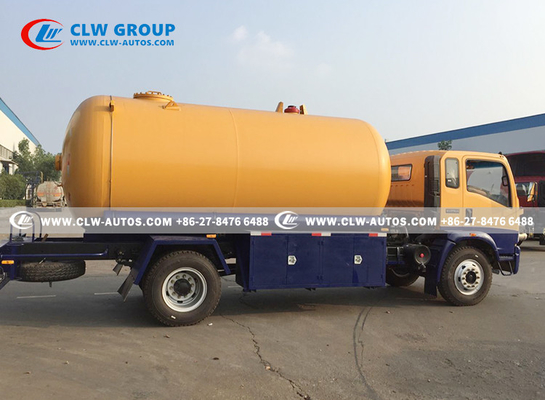

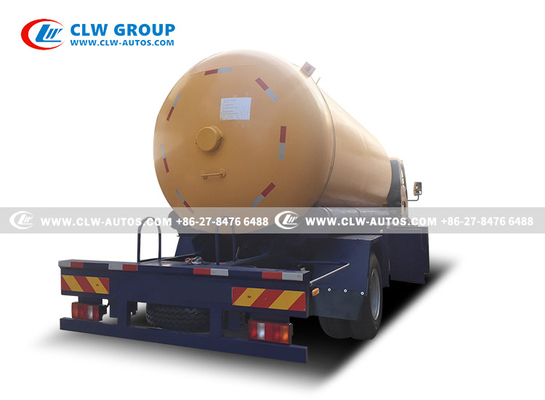

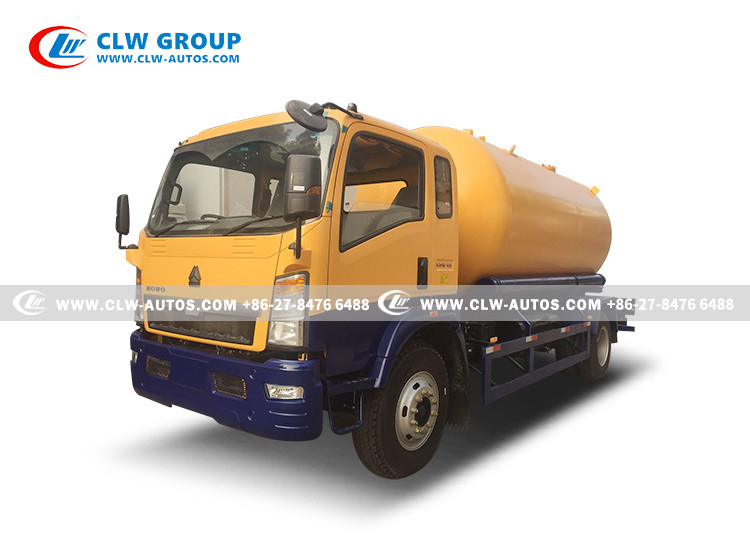

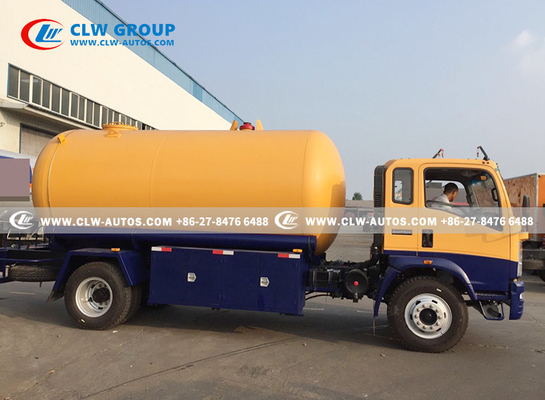

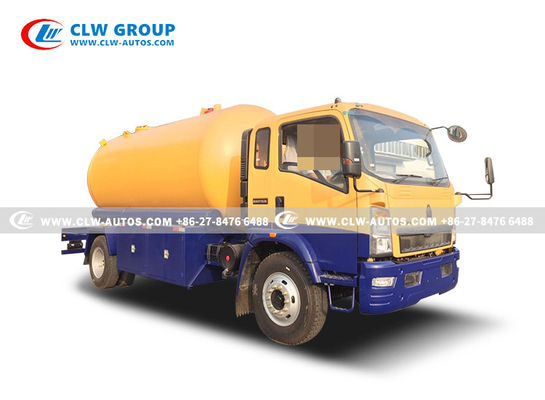

Reference Photos
Manufacturing Process
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
