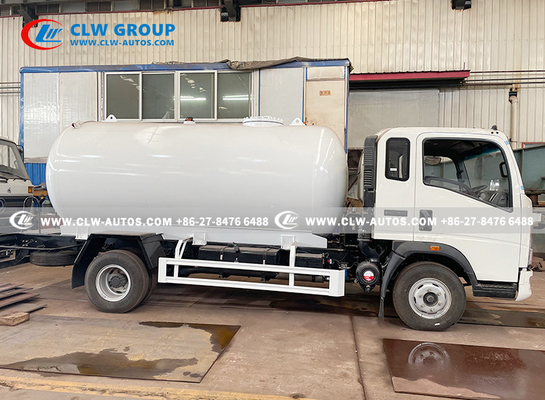

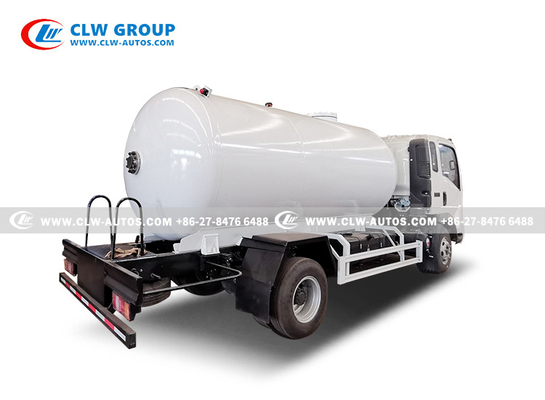

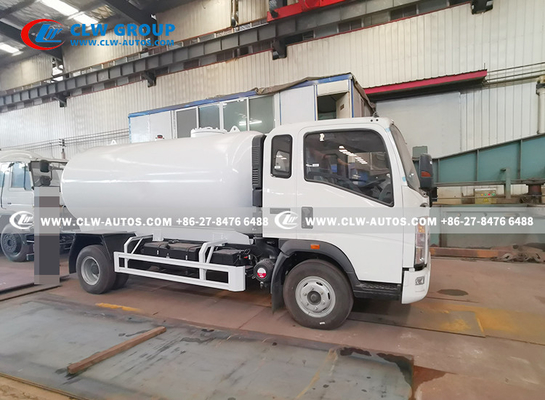

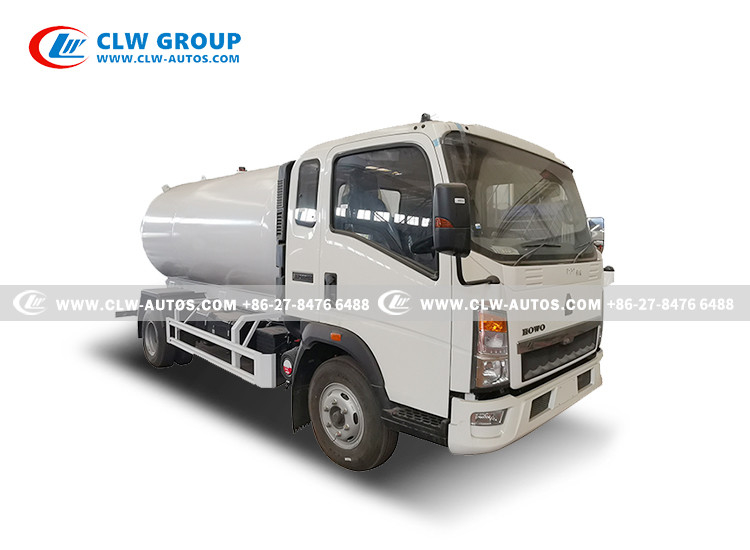

HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters

Large Image : HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters

Product Details:

Place of Origin:	SUIZHOU,CHINA
Brand Name:	CLW
Certification:	ASME,CCC,BV,SGS
Model Number:	CLW5077ZXS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiable
Packaging Details:	naked,waxed,bulk ship,ro-ro
Delivery Time:	30 days after receiving advanced deposit
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Truck Brand:	Sinotruk HOWO,ISUZU,Dongfeng,Shacman,FAW,JAC,JMC	Engine:	Yuchai, Chaochai, Cummins
Design Pressure:	1.61 Mpa	Tank Material:	Q345R
Tank Capacity:	5000Liters, 2.5tons, 2.5mt, 5cbm	Loading Weight:	2.5tons, 2.5mt, 2tons, 2mt
Flow Meter:	Displacement Flow Meter	Pump:	Hydraulic Pump With PTO Powered
Discharging Valve:	1", 2", 3"Flange Type	Service Time:	10 Years
Warranty:	One Year For Engine,gearbox, Axle	LOGO & Painting:	As Per Customer's Request
Usage:	Cylinder Refilling, Truck Gas Supply	Tank Size:	5000 Liters
Engine Type:	Cummins 141hp
Highlight:	2.5ton Propane Delivery Truck , 5000liters Propane Delivery Truck , Q345R HOWO LPG Bobtail Truck

HOWO 2.5ton 5000liters LPG Bobtail Propane Delivery Truck

Product Description

1) Truck Brand of LPG bobtail Truck : Howo,optional for dongfeng,faw,isuzu,foton and other brands

2) Tank Size of LPG bobtail Truck : 5,000liters,5000L,5cbm

3) Function of LPG bobtail Truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

4) Refiling System of LPG bobtail Truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

5) Truck Spec of LPG bobtail Truck : Cummins Engine 141HP, WLY651 Gearbox 6 Forward & 1 Revers, 7.50R16 Tires

Specification

1. Specification of 5000Liters Upper Tanker
Item	Unit	Parameter
Thickness of Shell	mm	10.0
Thickness of Endplate	mm	10.0
Corrosion Allowance	mm	1.0
Fact cubic meters	cbm	5cbm (5,000L)
Loading capacity	kg	2400/4200 kg
Working temperature	ºC	-40/+55 ^oC
Tank material	mm	Carbon Steel Q345R(Pressure Vessel Steel)
Manhole	mm	DN450(18 inch)
Safety Valve	mm	DN50(2 inch)
Liquid Line	mm	DN50(2 inch)
Gas Line	mm	DN50(2 inch)
2. Specification of Chassis
Condition	New condition/Right hand drive/4x2
Main details	Brand and Model		HOWO
	Wheelbase(mm)		3360
	Front/Rear overhang(mm)		1205/2310
	Approach/Departure angle(°)		18/12
	Max. driving speed(km/h)		90
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6pcs with one spare tire
		Specifications	7.50R16
Transmission	Manual type, 6 Forwards and 1 reverse
Cabin	It can accommodate three people, With Air conditioner
Engine	Brand and Model		Optional
	Fuel type		Diesel
	Emission standard		Optional
