Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Sinotruk HOWO, Dongfeng, FAW, Foton, Isuzu, Etc. | Engine Power: | 336HP |
|---|---|---|---|
| Tank Shape: | Horizontal Cylinder Shape | Tank Capacity: | 24cbm |
| Tank Loading Capacity: | 12ton | Tanker Material: | Q345R, Q370r, Q420r, SA516 |
| Tank Thickness: | 12mm | Design Pressure: | 1.61MPa, 16.1 Bar /Psi |
| Production Standard: | Hydraulic Pump With Pto Powered | Level Meter: | Rego Rochester Or Others |
| Flow Meter: | Displacement Flow Meter | Corrosion Allowance: | 1.0mm |
| Logo And Pattern: | As Customer's Request | Warranty: | 1 Year |
| High Light: | 24cbm Horizontal LPG Bobtail Truck,336HP LPG Bobtail Truck,ASME Propane Dispenser Delivery Truck |
||
1. LPG tank truck is a pressure vessel vehicle that combined with the chassis, 100% X-ray radiographic tested tanker, safe valve, emergency cutting valve, themometer, liquid level meter, pressure gauge, gas dispenser and gas pump, which used for transporting or filling the gas to different gas station.The cubage could be from 5cbm to 37cbm.
2.ASME and ISO manufacture standard are both available.
Description:
1. Chassis brand: Dongfeng, Howo, Foton, I-suzu, etc.
2. Tank volume available: 5000 liters, 5500 liters, 8000 liters , 10000 liters, 12cbm, 15cbm , 18cbm, 20cbm, 30cbm,etc
3. Material of the lpg tank: Q345R, Q370R, ASME material SA516, SA612
4. Refill system: lpg pump+ flow meter+ fiillin pipe +filling gun / lpg pump+ lpg dispenser+filling pipe+filling gun
5. Application: Fill gas for small lpg skid station or lpg cylinders
Product Specification:
| Item No. | Parameters | |||
| Overall Dimension | 10590* 2495* 3350mm | |||
| Gross Vehicle Weight | 25000kg | |||
| Curb Weight | 11120kg | |||
| Wheel Base | 4325+1350mm | |||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner | |||
| Engine | WD615.62 Diesel Engine, 6 Cylinder in line. Four Stroke.water-cooling,supercharged and mid-cooling,Direct injectio | |||
| Engine horsepower | 336HP Euro II | |||
| Max Driving Speed | 90 km/h | |||
| Gear Box | 10 Forward Gear & 2 Reverse Gear | |||
| Tire | 12R22.5 Tubeless Tire (10 pieces with one spare) | |||
| Tank Capacity | 24 CBM / 24,000 Liters | |||
| Filling Weight | 10000kg | |||
| Filling Content | Liquefied Petroleum Gas (Propane) | |||
| Tank Material | Q345R, 10mm Thickness for Tank Body & End plate. | |||
| Standard Equipment | 1 Safety Valves,1 Ball floating Level Gauge, 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes, |
|||
| Specification | Designed Pressure: 1.61Mpa / 16.1 Bar Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar Air Tightness Pressure: 1.61Mpa / 16.1Bar Medium Density: 500-590 kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm |
|||
| Filling System |
|
|||

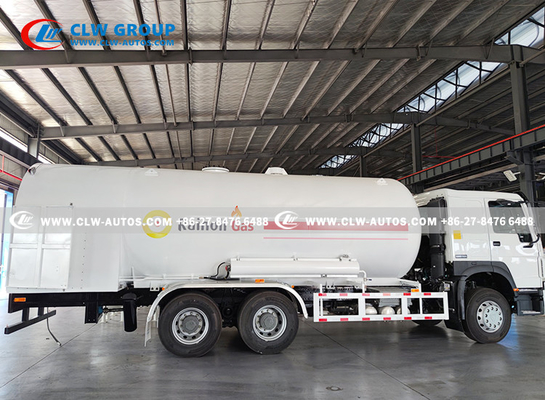

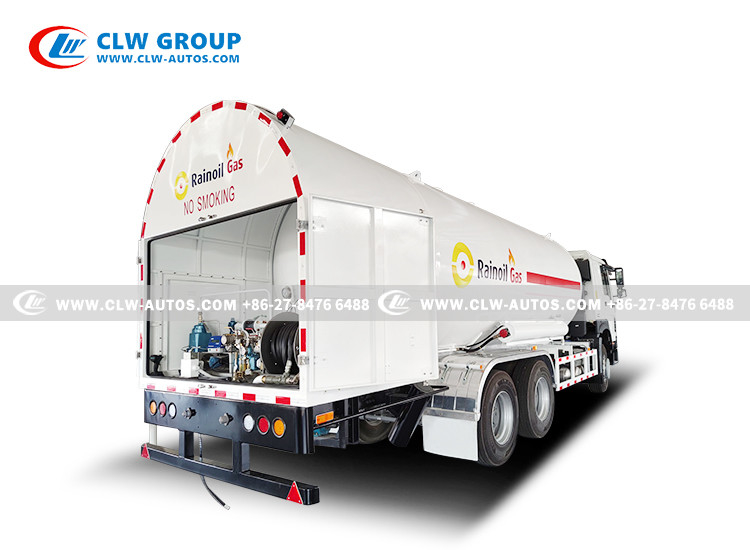

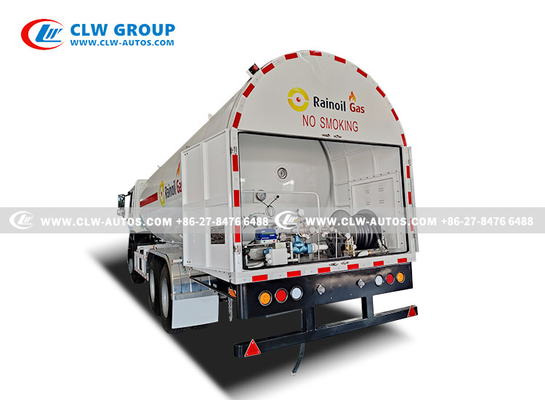

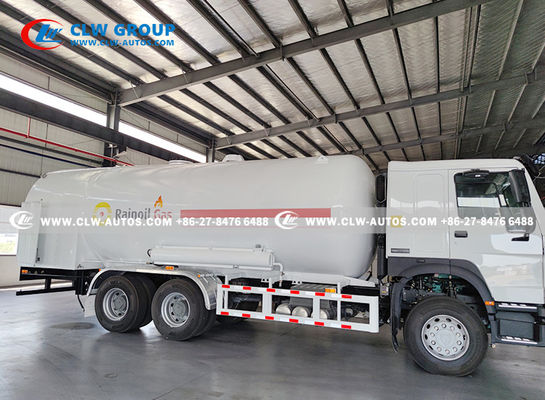

Reference Photos
Related Products:
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.
FAQ
Q1: What kinds of LPG bobtail truck I can order from your company?
A: We can supply different sizes LPG bobtail truck as client's request. Basically speaking, we can supply 5CBM to 38CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of LPG bobtail truck?
A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011
Q3: Can we adopts International brand parts or accessories for LPG bobtail truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
