Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | ISUZU | Tank Capacity: | 10tons, 10t, 10mt, 10tonnes |
|---|---|---|---|
| Tank Volume: | 20000Liters, 20000L, 20m3,20cbm | Flow Meter: | Displacement Flow Meter |
| Warranty: | One Year | Logo: | As Customer's Request |
| Engine: | 300HP | Tank Material: | Q345r |
| Thickness Of Tank: | 12mm 12mm | Cabin: | 2~3 Person With A/C |
| Tire: | 11.00R20, 10 PCS With One Spare | Design Pressure: | 1.61MPa 16.1bar |
| Hydraulic Pressure: | 2.21MPa 22.1bar | Steering: | LHD, Left Hand Drive |
| High Light: | 20cbm LPG Tanker Truck,Isuzu 20m3 LPG Tanker Truck,LPG Propane Butane Delivery Truck |
||
1. Truck Chassis Specification:
a. I-suzu Chassis, Left Hand Drive.
b. 300 HP Diesel Engine, Euro-5.
c. GearBox: Fast 9-speed gearbox
2. Tanker Main Specification:
a. Tank Size: 20000Liters, 20 cubic meters, Loading Capacity: 10tons.
b. Tank Material: Q345R for pressure, Q370R material for optional.
c. Tank thickness: 12mm. End Plate thickness: 12mm.
d. Liquid Phase & Vapor/Gas Phase
e. Float ball or Rotor tyoe level gauge, With Thermometer, pressure gauges.
Product descriptions
| Item No. | Parameters |
| Overall Dimension | 10100x2500x3350mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 10600 kg |
| Payload | 14,205 kg |
| F/R Axle Loading | 7000/18000*2 kg |
| Wheel Base | 5100+1300mm |
| Engine | 6HK1-TCH diesel engine |
| Engine horsepower | 300 HP Euro 5 |
| Max Driving Speed | 90 km/h |
| Gear Box | FAST 9-speed |
| Cabin | 2~3 Passenger allowed,with A/C |
| Tire | 10.00R20 (10 pc with 1 spare) |
| LPG tank | |
| Volume: | 20cbm |
| Tank material: | Q345R |
| Tank diameter: | 2100mm |
| Tank thickness: | 12mm |
| End plate | 12mm |
| Tank length: | As designed |
| Liquid Phase | DN50 or DN80 for option |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher holder | 2 |
| Exhaust shaft | At the front of truck for safety |

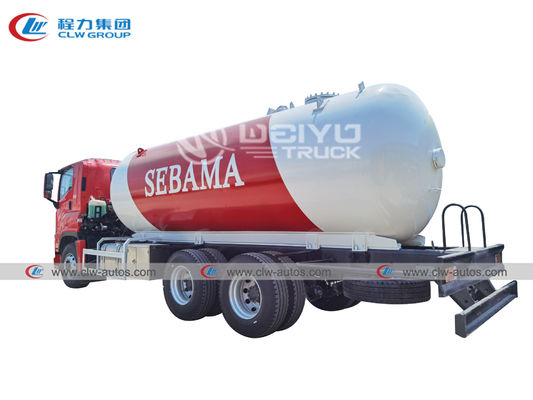

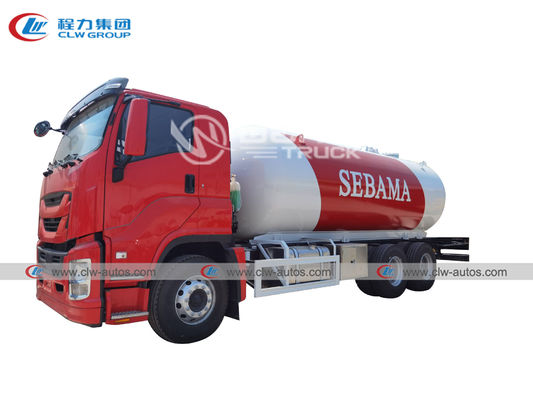

Reference photos:
It is designded and used for transporting and propane/lpg gas/liquid petroleum gas.
Factory information
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products list:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor head
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
After- sale service
a. Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
b. After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
c. After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
