Product Details:
Payment & Shipping Terms:
|
| Material: | Q345R,Q370R,Q420R | Standard: | GB150-2011,GB/T19905-2005,ASME VIII Section II |
|---|---|---|---|
| Tank Capacity: | 25MT, 25tons, 25MT, 25Ton | Tank Size: | 49600liters, 49600L, 49.6cbm, 49.6m3 |
| Axle Brand: | BPW, FUWA, YORK, HJ | Thickness: | 12mm For Tank Shell And 12mm For End Plate |
| Design Pressure: | 1.61mpa,16.1bar | Overall Size: | 12740*2480*3800 Mm |
| Tire: | 12R22.5,315R22.5,295R22.5 | Design Pressure: | 1.61MPa 16.1bar |
| Landing Leg: | Jost | Market: | Nigeria, Niger, Tanzania, Zambia, Uganda, Kenya |
| High Light: | 49600liter Gas Tank Trailer,250 PSI Gas Tank Trailer,Horizontal LPG Gas Tanker Truck |
||
Product Description:
1. 12740*2480*3800 overall dimensions
2. 25tonns tank volume with Q345 carbon steel tank material
3. 1.61 design pressure and 2.22 Hydraulic Test pressure
4. Jost outrigger, 3*13T BPW axles
5. lpg accessories: Manhole, Safety Valve, Level Gauge, Emergency Cut-off Valves, Ball Valve,Liquid Gauge,Thermometer, Pressure Gauge
Application range:
--It is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
--We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
--Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories: ROCHESTER level gauge, volume and mass flow meter(LC or Neptune brand), sun shelter, lpg pump, lpg dispenser machine, filling hose
--Quick in and flange type liquid or vapour phase
--FUWA, L1, YORK, BPW axles
Specification of LPG Tanker Semi Trailer
| Tanker Essential Information | ||
| Volume of Tank (cbm) | 49.6 | |
| Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 | |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12351 | |
| Estimated Tare Weight (kg) | 15300 | |
| Payload(kg) | 20832 | |
| Total Weight(kg) | 36132 | |
| Wheelbase(mm) | 6800+1310+1310 | |
| Shell of Tanker | ||
| Products | Liquefied Petroleum Gas (propane) | |
| Fluid Property | Flammable | |
| Design Temperature(ºC) | 50ºC | |
| Design Pressure(MPa) | 1.61 | |
| Corrosion Allowance(mm) | 1.00 | |
| Weld Joint Factor | 1 | |
| Major Materials of Bearing Pressure | Tanker body:Q345,12mm, | |
| End plate:Q345R,12mm | ||
| Main beam:16Mn | ||
| Detection | ||
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC | |
| Flaw Detection | 100% Flaw detection | |
| Test Pressure(MPa) | 1.61 | |
| Hydraulic Test(MPa) | 2.1 | |
| Magnaflux Inspection | Aim at welding place that flaw detection can not cover | |
| Manhole (As Customer's Requirement) | ||
| Quantity | 1;on top | |
| Size | DN450 | |
| Safety Valve(As Customer's Requirement) | ||
| Quantity | 2 | |
| Location | On the top of tanker | |
| Size | DN80 | |
| Level Gauge | ||
| Type | Manuel Switch type | |
| Location | At the rear of the end dish | |
| Running System | ||

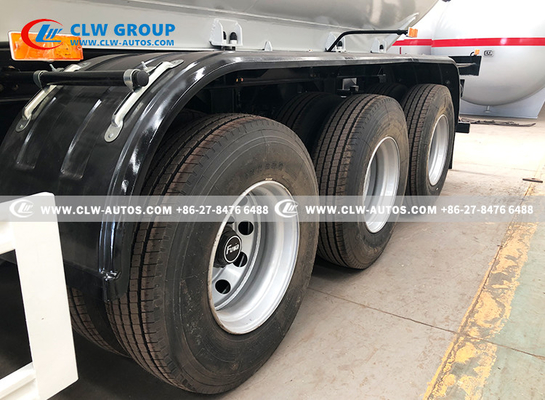

| Axles | 3*13T BPW | |
| Tire | 12R22.5 Tubeless tire ,8 with one spare tire | |
| Landing leg | JOST | |
| King Pin | #50 or #90 | |
| Control System | ||
| Emergency Cut-off Valves | 2 or 3 | |
| Ball Valve | 4 or 6 | |
| Liquid Gauge | 1 | |
| Pressure Indicating Thermometer | 1 | |
| Pressure Gage | 1 |
|

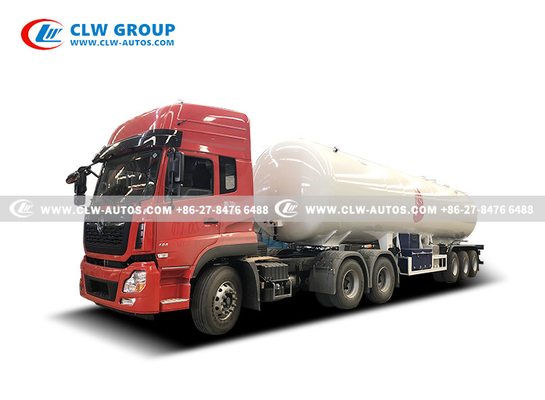

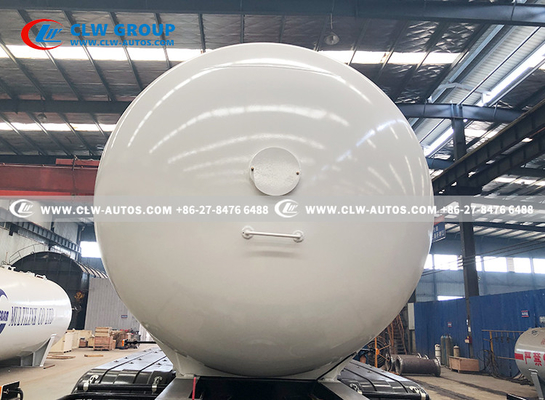

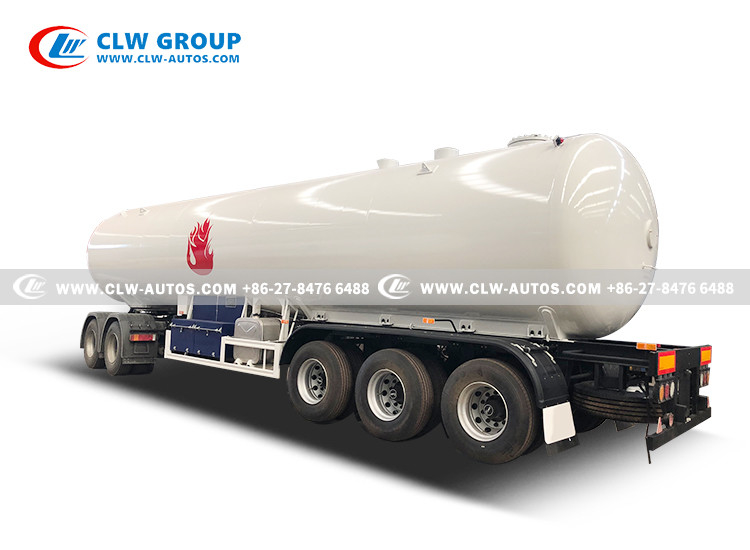

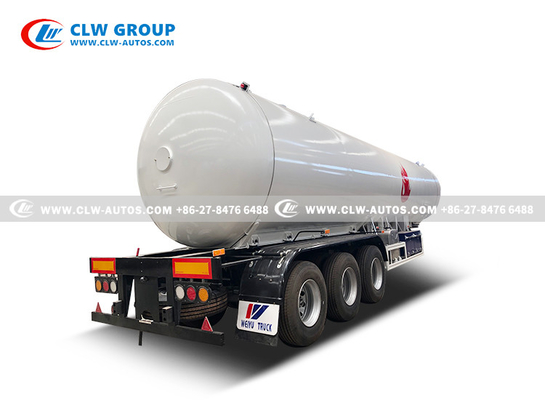

Reference picture of LPG Tanker Semi Trailer

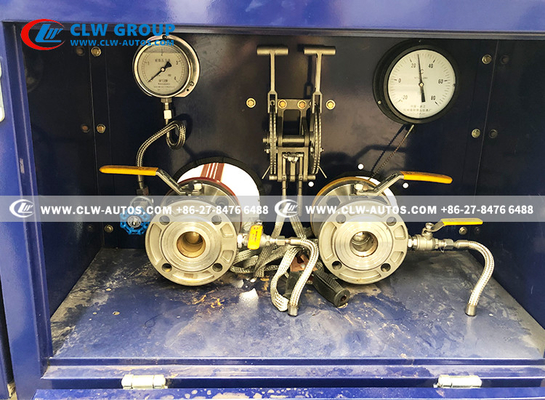

2" and 3" flange type liquid and vapor phase in stainless steel box for 25 tons lpg tank truck for mobile gas delivery business
Customzied logo and painting color for 25 tons lpg tank truck for mobile gas delivery business
Liquefied petroleum gas tankeris used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
