16 Ton Dust Material Transfer Tank Industrial Vacuum Truck

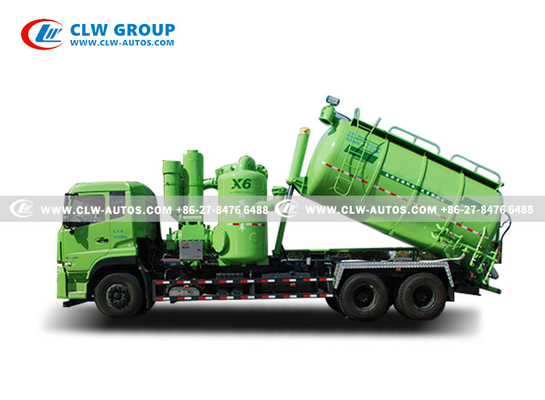

Large Image : 16 Ton Dust Material Transfer Tank Industrial Vacuum Truck

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	CLW525SQXWC

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	18520 usd/unit~59660 usd/unit
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	Within 30days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vacuum Sewer Suction Truck	Driving Model:	LHD,RHD Vacuum Sewer Suction Truck
Engine:	Diesel Engine Vacuum Sewer Suction Truck	Material:	Q235 Carbon Steel Vacuum Sewer Suction Truck
Tanker Size:	20000Liters 20Tons 20m3 5000 Gallons Septic Cleaning Truck	Loading Capacity:	15tons 16tons 18tons 20tons Septic Cleaning Truck
Thickness Of Tanker:	6mm Septic Cleaning Truck	Vacuum Pump:	Chinese Pump,BP,Jurop,Moro Kaiser Septic Cleaning Truck
Suction Depth:	8 Meters Septic Cleaning Truck	Suction Distance:	50~100m Septic Cleaning Truck
Medium:	Sewer/sludge/septic Suction Septic Cleaning Truck
High Light:	16Ton Dust Material Transfer Tank , 16Ton Industrial Vacuum Truck , Transfer Tank Industrial Vacuum Truck

16 Ton Dust Material Transfer Tank Industrial Vacuum Truck
Introduction of suction pressure feed truck/suction pressure feed tanker:

1. Definition: Suction pressure tanker is a combination of the principle of negative pressure pneumatic conveying and positive pressure pneumatic conveying of materials, and organically combines the two types of pneumatic conveying; air is used as the conveying carrier of materials, which is carried out in a closed space. Special production equipment for automatic suction (loading) of materials, closed transportation, and automatic discharge (unloading) of materials.

2. Scope of application: The suction pressure delivery tank truck is an in-plant transfer work for transporting dust materials such as ironmaking, steelmaking, sintering, coking, smelting desiliconization, desulfurization, dephosphorization, blast furnace and converter dust removal. When the vehicle reaches the feeding bin, start the vacuum suction system of the vehicle, and suck the material into the truck-loaded carrying tank through the feeding system of the ground facility; The material receiving system presses and discharges the material in the vehicle-mounted tank into the material receiving bin. The whole process of material suction, transportation, and discharge is carried out under closed conditions, and the dust does not leak and fly, which conforms to the national environmental protection standard.

3. Suction operation steps:
1) When the suction pressure feeding tank truck arrives at the ground storage bin, connect the suction interface of the vacuum suction system of the vehicle with the feeding interface of the ground device of the storage bin;
2) After the docking is completed, start the vacuum suction system of the vehicle, and use the negative pressure of the vehicle to suck the materials in the storage bin into the carrying tank of the suction pressure tanker through the ground device feeding system of the storage bin.

4. Nesting operation steps:
1) When the suction pressure tanker transports the material to the ground receiving bin, connect the positive pressure discharge system discharge interface of the vehicle with the receiving system input interface of the ground device of the receiving bin;
2) After the docking is completed, start the positive pressure pressure discharge system of the vehicle, and through the material receiving system of the ground device of the receiving bin, the suction pressure is used to send the materials in the tank truck to the ground receiving bin by using the compressed gas of the vehicle.

5. Main parameters: The suction pressure tanker is mainly used to carry the blast furnace gravity, dry method, front furnace, and under the tank of ironmaking in iron and steel plants; sintering; steelmaking; coking and other parts of the environment and process dust removal work. When the vehicle reaches the powder silo, start the vehicle vacuum suction system, and suck the material into the vehicle carrying tank through the feeding system of the ground facility; The system presses and discharges the material in the vehicle-mounted tank into the receiving bin. The whole process of material suction, transportation, and discharge is carried out under airtight conditions, and the dust does not leak and fly, saves energy, and meets international environmental protection standards.

Feature

- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Vacuum Sewer Suction Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;

---Quality chassis , perfect performance

---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

---Nice shape , rational structure

---Massive, durable ,perfect performance

---Prolonged service time

Reference photos

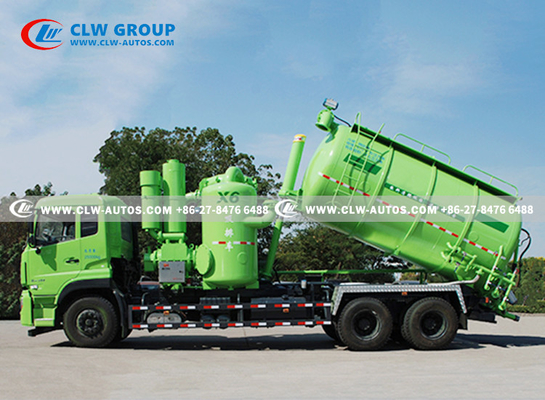

16 Ton Dust Material Transfer Tank Industrial Vacuum Truck 3

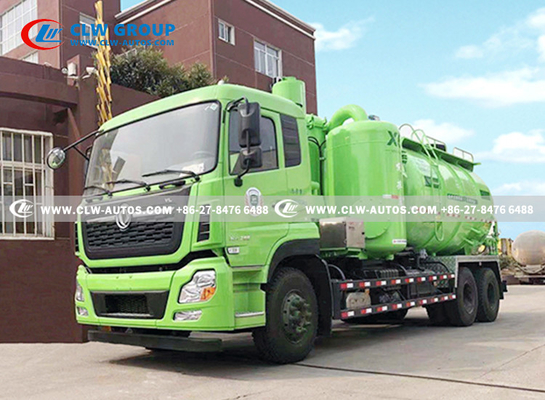

16 Ton Dust Material Transfer Tank Industrial Vacuum Truck 4

shacman f3000 6X4 vacuum sewer suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,

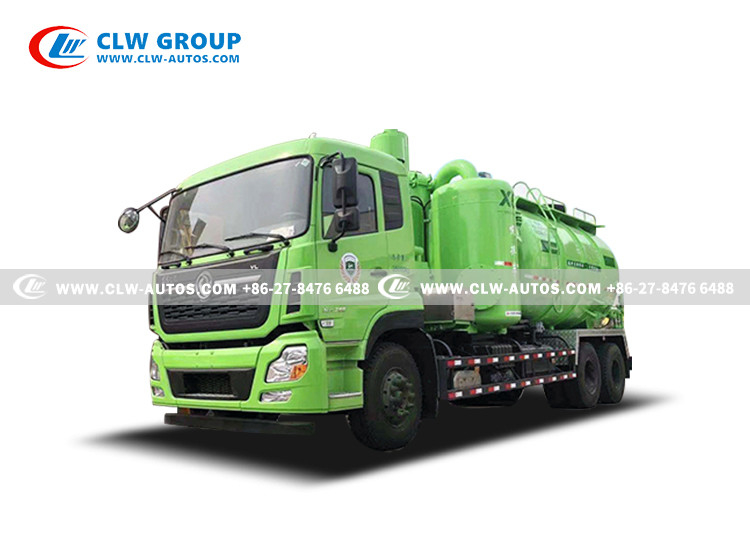

16 Ton Dust Material Transfer Tank Industrial Vacuum Truck 5

Specification

Product Technical Specifications
Body/Superstructure	Tank	Capacity	16 m³
		Material	5mm or 6mm high quality carbon steel
	Basic Equipments	Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose


	Paint	Tank color is according to client’s requirements.
Optional Equipments	Italy vacuum pumps
	Stainless steel tanker material
	Anti-rust coating inside tank

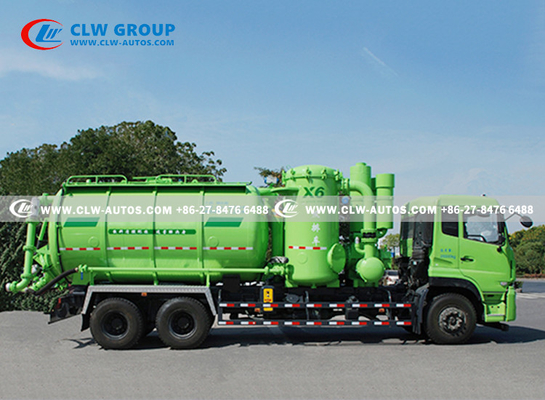

16 Ton Dust Material Transfer Tank Industrial Vacuum Truck 7

16 Ton Dust Material Transfer Tank Industrial Vacuum Truck 8

Why do you choose us for vacuum sewer suction truck?

1.well experienced truck production company to offer high quality and competitive-price vacuum sewer suction to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
