HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsLPG Gas Tanker Truck

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker
HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker

Large Image :  HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20211123

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 29800-39800USD/unit
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Material: Carbon Steel, Q345R, Q370R. Q420R Product Name: LPG Dispenser Truck. LPG Gas Cylinder Filling Truck
Drive Type: 116HP YUNNEI ENGINE 4X2 6 WHEELS 6 WHEELER Drive Model: Left Hand Drive, Or Right Hand Drive RHD
Loading Capacity: 2.5 Tons, 4 Tons, 5tons, 2.5T, 4T. 5T, Truck Brand: Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac
Tuck Type: LPG Bobtail, LPG Refilling Truck, LPG Tank Truck Other Equipment: With Pump, Motor, Flow Meter, LPG Filling Machine Etc.
Condition: Sinotruk HOWO Brand, Brand New Truck Tank Volume: 5000L, 5000 Liters, 5CBM, 5m3, 5 CUBIC METERS
High Light:

5CBM LP Gas Bobtail Truck

,

HOWO LP Gas Bobtail Truck

,

DRC Market Propane Transfer Tanker

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker

Product Description



LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.


1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,

3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.



CLW truck's advantages

1. Manufacturing and testing of the tanks are made under supervision of an independent inspection body.
2. Fine grain pressure vessel steels are used for manufacturing the tanks. Metallurgical and mechanical properties of the steels are tested and verified.
3. All welded joints are tested according to the manufacturing standard. A combination of X-ray, ultrasonic, dyepenetrant and magnetic particle tests is utilized.
4. After manufacturing. all tanks are subjected to hydrostatic pressure test. After this test, the connections of tank accessories are tested against leaks, using nitrogen.
5. Tanks are sand blasted and coated with premium quality paints. The right type and thickness combination of primer,undercoat and top coating are determined according to the above ground or underground service. CLW GROUP quality will offer highest performance during the whole service life of tank.
6. CLW GROUP 's transportation tank designs and assembly details conforms to international standards and the truck
manufacturer's procedures and guidelines.

Item No. Parameters for Sinotruk HOWO 6 wheeler 116hp mobile LPG tank gas cylinder filling truck 5000Liters LPG bobtail for Nigeria
Overall Dimension 7600x2300x2980 mm
Driving Model Left hand drive or right hand drive
Gross Vehicle Weight 11460 kg
Curb Weight 6460 kg
Payload 5000 kg
F/R Axle Loading 3200/8000 kg
Wheel Base 4200 mm
Front/rear Tread 1886/1845 mm
Approach/Departure Angle 27/20 degree
Engine Yuchai 4110,YC4E160-33
Engine horsepower 160 HP EUROIII
Displacement 4260mL (Diesel)
Max Driving Speed 95 km/h
Gear Box DC6J65TC,6 forward& 1 reverse
Cabin 2~3 Passenger allowed,with A/C
Tire 8.25R20 (6 pc with 1 spare)
LPG tank
Volume: 8~10cbm
Tank material: Q345R
Tank diameter: 1800mm
Tank thickness: 10mm
End plate 10mm
Tank length: As designed
Gas phase DN50
Liquid Phase DN50 or DN80 for option
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
Level Gauge Manual rotation type,at the rear of tank
Safety Valve 1,DN80
Tool and Valve Box 1
LPG pump 1
LPG Volume Flow Meter 1
Filling Hose 15 meters
Filling Nozzle 1pc,Standard for 12.5kg cylinder
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher holder 2



More detailed pictures for HOWO 4x2 RHD 5000 Liters 5000L 2.5Tonne LPG Gas Cylinder Filling Tank

Bobtail Truck With Dispenser:

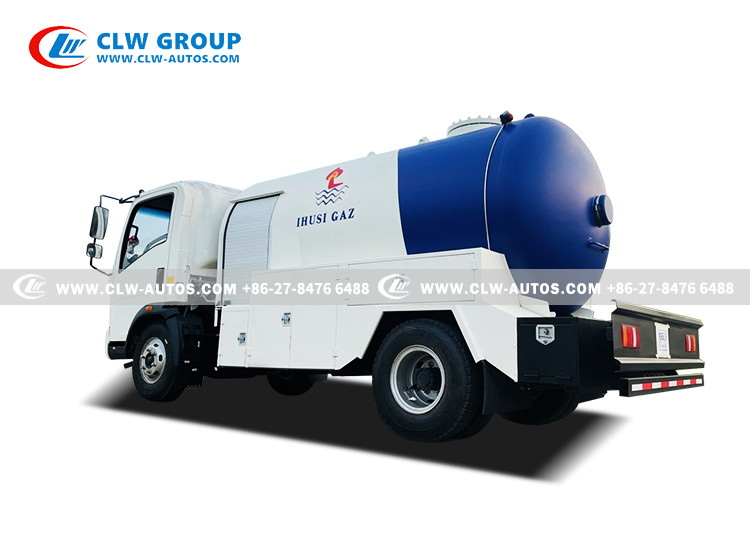

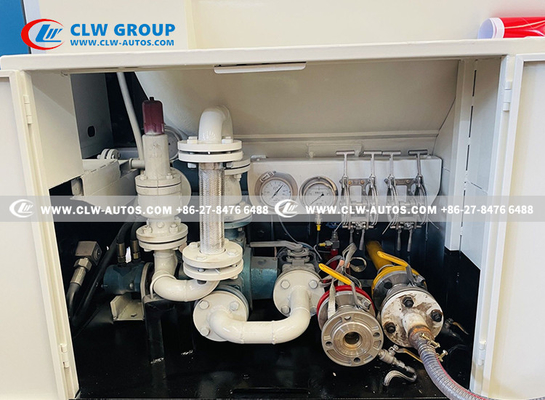

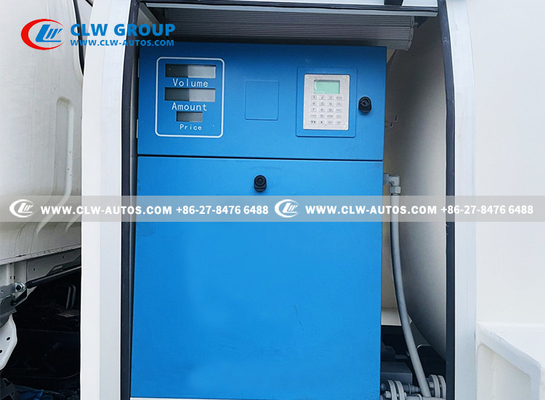

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker 0


HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker 1

Production Process of Propane Gas Storage Tank

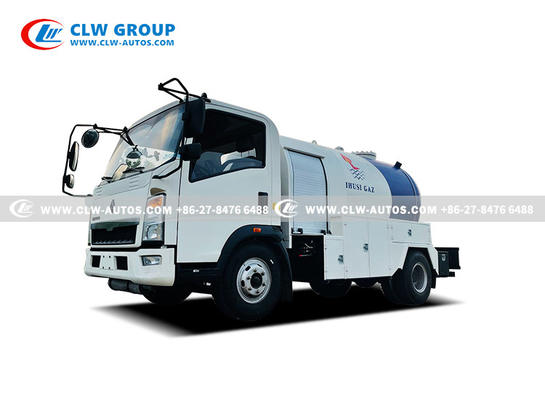

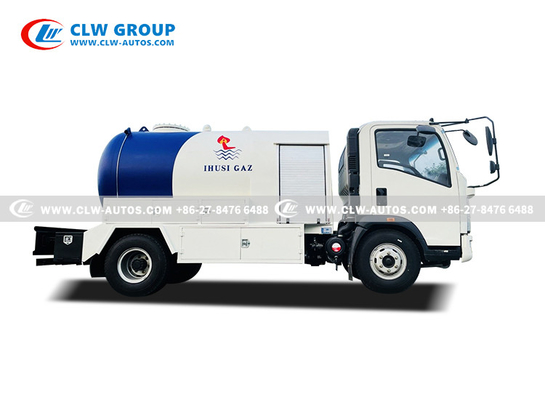

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker 2

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker 3

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker 4

FAQ



Q1: What kinds of lpg bobtail I can order from your company?

A: We can supply lpg bobtail from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.



Q2: What is your production standard of lpg bobtail? Whether your lpg bobtail exported to others countries?

A: lpg bobtail is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.



Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our salesmen are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.



HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker 5

HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker 6



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
