Description

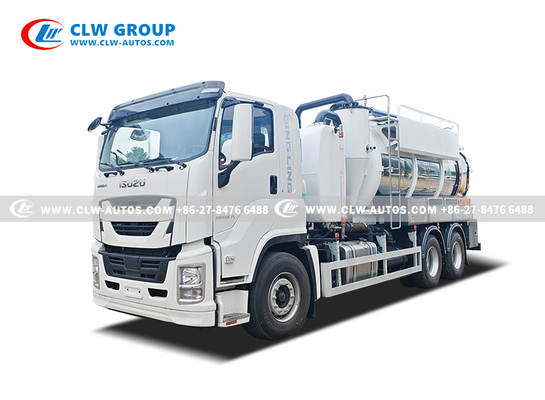

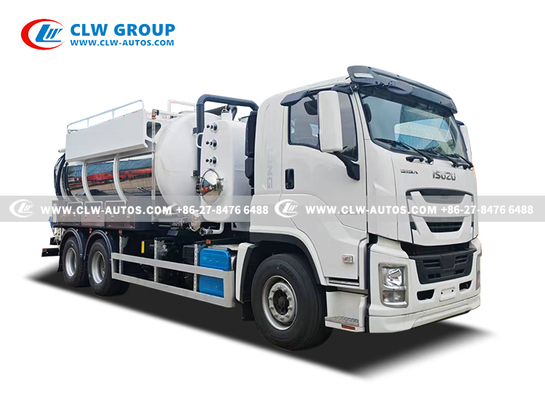

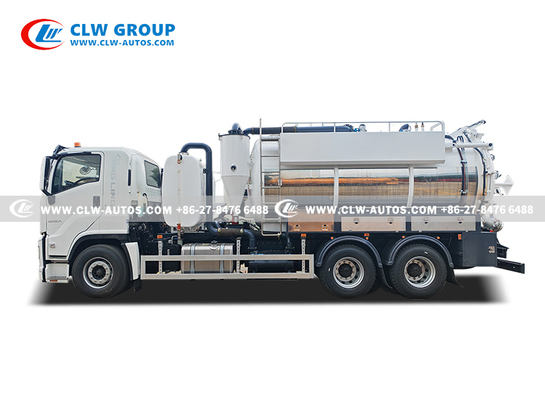

The Isuzu Giga 6x4 Stainless Steel Combination Sewer Cleaner is purpose-engineered for large-scale sewer maintenance, industrial waste removal, and infrastructure drainage operations. Built on the reliable Isuzu Giga 6x4 chassis, this model incorporates a 20m³ stainless steel tank, separating fresh water and sewage into 6m³ and 14m³ compartments to support long working cycles and enhanced corrosion resistance.

For flushing and blockage removal, the truck is equipped with a high-pressure Pinfu jetting pump capable of delivering 350 L/min at 180 bar. Power is transmitted through a stable and efficient sandwich PTO system, ensuring consistent jetting performance during continuous tasks. The unit’s suction capability comes from a Weilong vacuum pump generating 7000Pa absolute pressure and 68 L/s airflow, enabling fast extraction of sludge, wastewater, and debris.

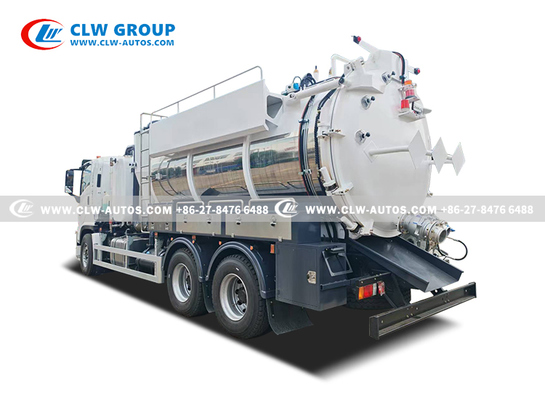

The rear hydraulic door provides complete tank access, accompanied by a dedicated 600mm service opening that allows operators to conduct quick checks or minor tasks without disturbing the primary seal. Large-diameter DN200 plumbing supports high-flow operations, while the hydraulic tipping mechanism facilitates rapid and clean discharge. Practical touches—such as anti-corrosion tank lining, monitoring instruments, rear working lights, and safety arrow boards—ensure smooth operation day and night. This model serves municipal pipelines, industrial facilities, mining operations, and busy logistics hubs with equal efficiency.

Advantages

1. Full Stainless Steel Tank for Long-Term Durability

The 20m³ tank is built entirely from thick stainless steel, ensuring dependable resistance against corrosive wastewater and chemical residues. This greatly enhances structural longevity and reduces the need for frequent tank maintenance or replacements.

2. High-Power Jetting Performance

The jetting system’s Pinfu pump delivers strong cleaning force at 350 L/min and 180 bar, enabling the truck to clear blockages, flush pipelines, and restore flow quickly in municipal and industrial drainage networks.

3. Reliable Domestic Vacuum System

Powered by a Weilong vacuum pump, the system generates solid suction strength with 7000Pa pressure and 68 L/s airflow. It handles sludge, sediment, and wastewater removal efficiently, even during extended working hours.

4. Practical Dual-Opening Tank Structure

A large hydraulic rear door allows thorough cleaning and full tank access, complemented by a 600mm auxiliary service hatch for convenient routine inspections. This intelligent setup minimizes disturbance to the main seal, extending its lifespan.

5. Optimized Workflow and Waste Discharge

With its combined fresh water and sewage tank, DN200 piping, and hydraulic tipping discharge system, the truck supports continuous cleaning operations and fast unloading, improving overall work efficiency.

6. Operator-Focused Controls & Safety Features

Monitoring gauges, sight windows, internal anti-corrosion lining, and well-positioned control points make operations straightforward. Rear work lighting and arrow indicators provide better visibility and safety during nighttime tasks.

7. Versatile Applications Across Multiple Sectors

Suitable for municipal sewer systems, industrial wastewater treatment, cleaning in mining areas, and utility maintenance at major transport locations, the truck adapts easily to routine maintenance, emergency cleaning, and heavy-duty sanitation work.
