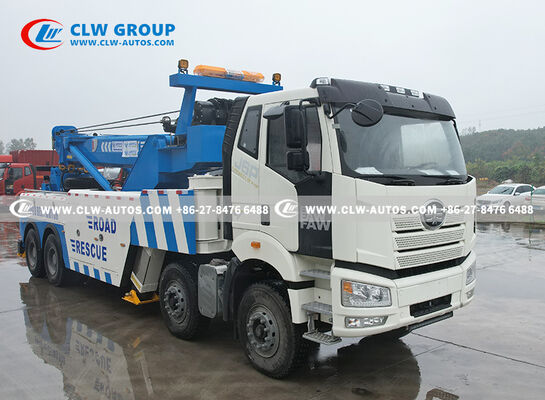

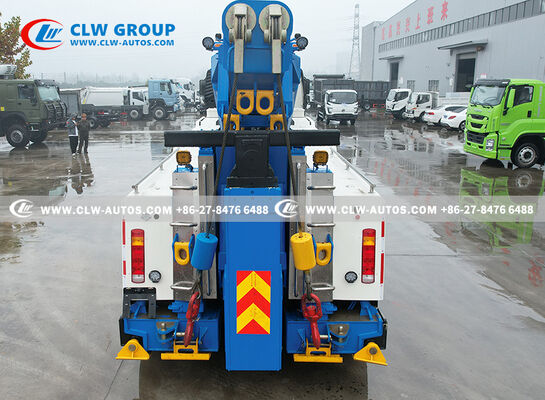

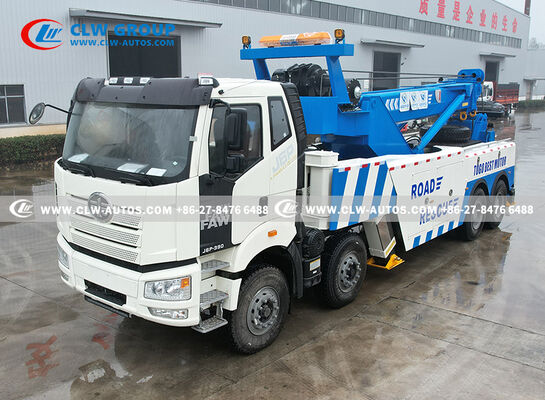

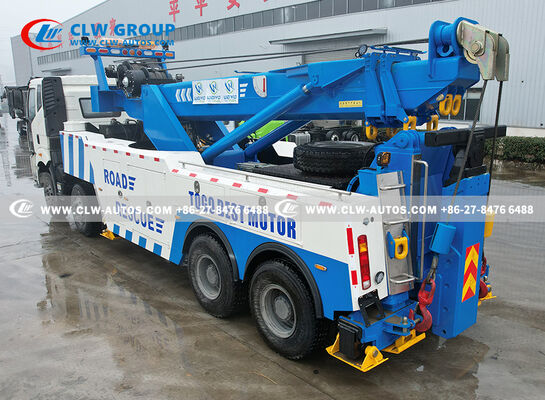

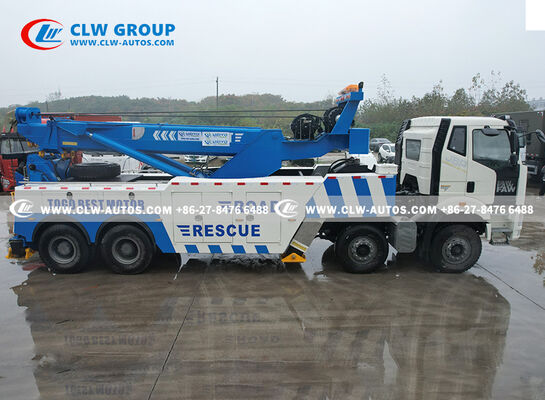

FAW J6P 8*4 Heavy-Duty Rotator Wrecker Tow Truck with 50-Ton Crane and 360° Rotation
The FAW J6P 8*4 50-ton rotator wrecker tow truck is a top-tier heavy recovery solution engineered for the most demanding towing, lifting, and accident recovery operations. Built on the proven FAW J6P heavy-duty chassis, this vehicle integrates a 360-degree rotating rotator wrecker with a 3-stage telescopic boom crane, delivering exceptional performance, stability, and operational flexibility.
Designed for highway emergency rescue, heavy equipment recovery, and industrial lifting tasks, this unit serves as a multi-functional heavy recovery command vehicle for professional towing companies and government rescue departments.
Product Overview
This heavy-duty recovery truck combines towing, lifting, rotating, and winching into a single powerful platform. The 8*4 drivetrain ensures outstanding load-bearing capacity and stability, while the integrated rotator and crane system allows operators to handle complex recovery scenarios without repositioning the truck.
Whether recovering overturned semi-trailers, disabled buses, or heavy construction machinery, this FAW J6P wrecker delivers reliable and efficient performance.
Key Specifications and Functional Systems
FAW J6P 8*4 Heavy-Duty Chassis
- Equipped with XICHAI CA6DM series diesel engine, up to 390HP
- High torque output ensures strong traction and hydraulic power supply
- Reinforced frame structure designed for extreme recovery loads
- 8*4 axle configuration provides superior balance and stability during lifting and winching
- Suitable for legal heavy payload and long-distance operations
50-Ton 360-Degree Rotator Wrecker System
The rear-mounted 50-ton rotator wrecker is the core recovery system of this vehicle.
Key Features:
- Rated recovery capacity: 50 tons
- Continuous 360° hydraulic rotation, enabling pulling from front, rear, or sides
- Ideal for confined spaces such as tunnels, urban roads, and accident scenes
- Eliminates the need to reposition the truck during complex recoveries
Main Components:
- Heavy-duty telescopic main boom with auxiliary jib
- Multiple hydraulic winches (main winch up to 50 tons, auxiliary winches optional)
- High-strength steel wire ropes with large capacity
- Front, rear, and side hydraulic outriggers for maximum operational safety
3-Stage Telescopic Boom Crane (360° Rotation)
Mounted behind the cab, the 3-stage boom crane adds powerful lifting capability.
- Three-section telescopic boom design for extended working radius
- Full 360-degree crane rotation for all-direction lifting
- Crane lifting capacity typically 10-20 tons, depending on boom extension
- Compact retracted length for easy transport
Crane Applications:
- Loading and unloading heavy equipment
- Lifting damaged vehicles during recovery
- Handling industrial machinery and infrastructure components
Integrated Multi-Point Recovery System
The true advantage of this vehicle lies in the combination of the rotator and crane:
- Crane lifts and stabilizes overturned vehicles
- Rotator applies controlled pulling force from optimal angles
- Enables precise, safe, and efficient multi-direction recovery
- Significantly reduces on-site operation time and risk
Typical Applications
- Highway accident recovery (semi-trucks, buses, multi-vehicle crashes)
- Emergency towing in tunnels and urban roads
- Heavy equipment recovery (excavators, bulldozers, loaders)
- Industrial and factory machinery relocation
- Utility and infrastructure lifting tasks
- Government and emergency rescue operations
Key Advantages
- All-in-One Heavy Recovery Solution - Combines crane and rotator wrecker in one vehicle
- 360° Operational Flexibility - Full rotation for complex recovery angles
- Extreme Recovery Power - Handles up to 50-ton recovery loads
- Outstanding Stability - 8*4 chassis with heavy-duty outriggers
- High Efficiency - Faster accident clearance and reduced manpower requirements
- Professional-Grade Safety - Designed for critical and high-risk operations
Conclusion
The FAW J6P 8*4 50-Ton Rotator Wrecker Tow Truck with 3-Stage Crane represents the highest level of heavy-duty recovery technology. More than just a tow truck, it functions as a mobile heavy rescue platform, capable of handling the toughest recovery challenges in highways, cities, tunnels, and industrial environments.
Technical Specifications
| Condition |
New condition/Left hand drive/8x4 |
| Chassis Brand |
FAW |
| Model |
J6P |
| Curb weight (kg) |
31750 kg |
| Wheelbase (mm) |
1950+4850+1350 mm |
| Dimensions (mm) |
11760*2500*3450 mm |
| Overhang (front/rear) (mm) |
1370/2120 mm |
| Approach/Departure angle (°) |
17/27° |
| Axle Load (kg) |
7500/7500/16000/16000 kg |
| Max. driving speed (km/h) |
80 km/h |
| Clutch |
Reinforced diaphragm clutch |
| Brakes |
Service brake: dual circuit compressed air brake
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire Number |
12 pcs with one spare tire |
| Tire Specifications |
12.00R20 |
| Transmission |
CA10TAX190M, 10 Forwards and 2 Reverses |
| Cabin |
It can accommodate three people, With Air conditioner, Central locking, electric windows, ABS |
| Engine Brand |
XICHAI |
| Engine Model |
CA6DM2-39E3F |
| Displacement (ml) |
11.040L |
| Power (kw)/Horsepower (HP) |
287 kw/390 HP |
| Emission standard |
Euro II |
Upper Wrecker Equipment Specifications
| Max. Towing Weight (kg) |
150,000 |
| Max. Lifting Weight (kg) |
28000 |
| Max. Lifting Weight under all extension (kg) |
8300 |
| Effective Length of Corbeling Arm (mm) |
3650 |
| Extend-retract of Corbeling Arm (mm) |
1750 |
| Folding angle under no load (°) |
-7~12 |
| Folding angle under load (°) |
-7~16 |
| Max. Ground Distance under all extension (mm) |
1835 |
| Max. Hoisting Weight (kg) |
50,000 |
| Max. Hoisting Weight under all extension with 30° Hoisting Angle (kg) |
7800 |
| Max. Hoisting Weight under all retraction with 30° Hoisting Angle (kg) |
18000 |
| Extension Distance of Oil Cylinder (mm) |
6000 |
| Length of Crane Arm (mm) |
5880 |
| Section No. Of Crane Arm |
3 |
| Max. Hoisting Height (mm) |
12300 |
| Max. Working radius (mm) |
10710 |
| Rotate Angle (°) |
360 |
| Winch No. |
2 |
| Capacity |
25,000 |
| Curb Traction/Per (KN) |
250 |
| DN of Steel Rope (mm) |
Φ26 |
| Length of Steel Rope (m) |
50*2 |
| Min. Line Speed (m/min) |
5 |
| Make of Winch |
Shandong Taian Yiqun Machinery Co.,ltd |
| Front Outrigger Type |
"H" type 6600mm |
| Rear Outrigger Type |
"L" type 4080mm |
| Jump-start cables |
12~24 Volts |
| Rear working lamp (stop, tail, turning) |
3 |
| Revolving beacon |
1 |
| Lamps for license plate |
1 set |
| Pneumatic hoses |
1 set |
| Remarks |
Color is optional |
