HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsWrecker Tow Truck

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck
FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

Large Image :  FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: CCC SGS BV
Model Number: CLW515GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units per month
Detailed Product Description
Chassis Brand: DONGFENG,ISUZU,FAW,HOWO,JAC,JMC Towing Capacity: 4t,4ton,6ton,7ton,8ton,6tons,7tons,8tons,6t,7t,8t
Color: White,yellow,Blue As Customized Steering: LHD,RHD,right Hand Drive,left Hand Drive
Engine: 170hp,185hp,160hp,210hp Wrecker Type: Wheel Lift,intergrated,flatbed,lift Flatbed
High Light:

4X2 Recovery Tow Truck

,

FAW Recovery Tow Truck

,

FAW Wrecker Tow Truck

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck



Description

1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton

5. The customers can choose to install the crane.



Specification

General Technical Parameters
Overall Dimension 5995x2300x2360(mm)
Gross Vehicle Weight 4495kg
Curb Weight 3795kg
Chassis Specification
Chassis Parameters Chassis Brand FAW
Cabin Single, Left/right Hand Driving
Engine Model WP2.3Q110E50, 4 Cylinders
Power 80KW/110HP
Emission Standard EURO 5
Displacement 2.290L
Fuel Type Diesel
Gearbox 5 Forward & 1 Reverse Gear
Front and Rear Axle Load 3T/6T
Wheel Base 3300(mm)
Overhang( Front/Rear) 1015/2450(mm)
Angle(Approach/departure) 24/9(°)
Brake System Air Brake
Steering Gear Power Assistant
Tire 7.00R16, 6 Pieces with 1 Spare Tire
Maximum Speed 100(km/h)
Superstructure
Flatbed Dimensions 4200x2300 (mm)
Max. Loading Weight 4000(kg)
Operating Stroke 2700 (mm)
Min. Angle of Slope 8(°)
Platform Height from the Ground 1070(mm)
Winch Quantity 1pc
Winch Rating Pulling Capacity 4000 (kg)
Length of Steel Cable 25 (m)
Hoisting Organ Rating Under-Pulling Capacity 6000 (kg)
Rating Under-Hoisting Capacity 2000 (kg)
Fully Extended Max Under-Hoisting Capacity 1600 (kg)
Max Under-Hoist Useful Length 1640 (mm)
Remarks 1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars

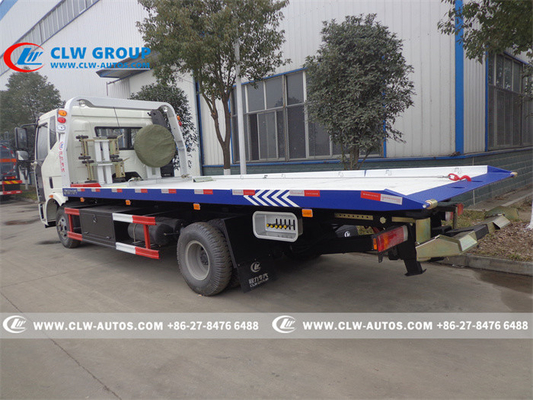

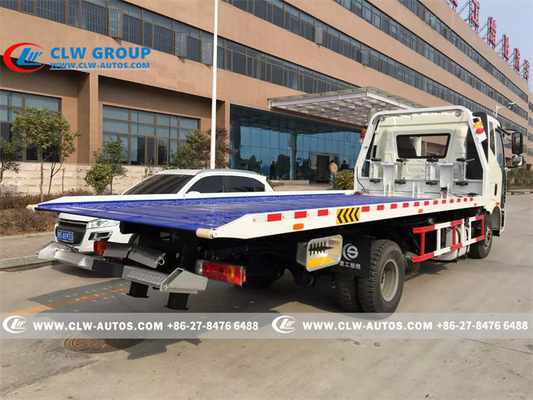

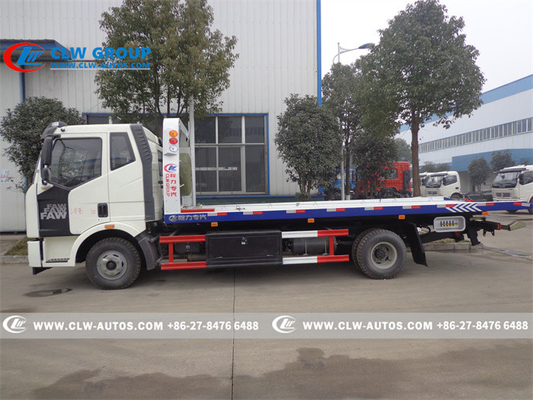

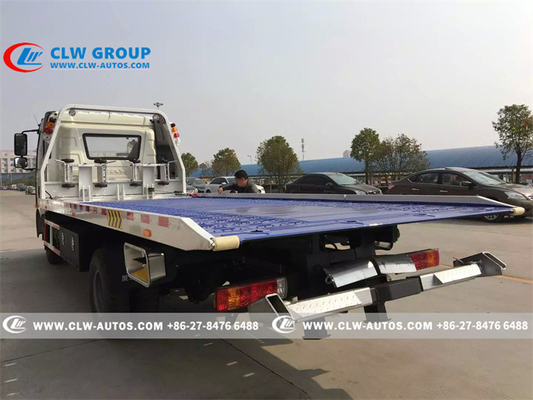

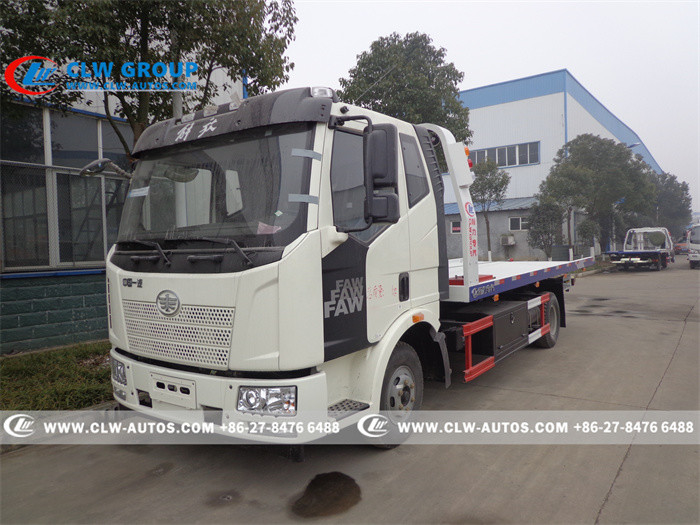

Reference photos

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 0FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 1FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 2



Structure

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 3

Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO

Certificates
FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 4
Factory overview
FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 5

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 6

FAW 4X2 Flatbed Wrecker Towing Truck Rollback tow truck 7

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of emergency towing truck I can order from your company?


A: There are various sizes of emergency towing truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied emergency towing truck to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
