Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery

Large Image : Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	i-SUZU

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35600
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Engine Power:	420 HP
Emission Standard:	Euro 5	Transmission Type:	12-speed Manual
Wheelbase:	1800+3200+1350 Mm	Tire Type:	12.00R20 Radial
Front Axle Load:	2×7,000 Kg	Rear Axle Load:	2×18,000 Kg
Fuel Capacity:	400 L	Max Speed:	90 Km/h
Gross Mass:	44 Tonnes
Highlight:	Shacman X3000 wrecker truck , 420HP heavy-duty recovery truck , 8x4 integrated tow truck

Shacman X3000 420HP 8x4 Integrated Wrecker Truck

Product Overview

Our Shacman X3000 8x4 integrated wrecker combines mechanical structure, hydraulic transmission, and intelligent control to perform heavy-duty road recovery. Its core principle relies on four synergistic systems: power take-off (PTO) unit, hydraulic system, integrated lift-tow superstructure, and dual control system — converting engine power into precise lifting, towing, and slewing actions for disabled vehicles.

Technical Specifications

Classification	Item	Technical Specification
Chassis Parameters	Vehicle Model	Shacman X3000 Heavy-duty Wrecker Truck
	Driving Form	8x4, Right Hand Drive (RHD)
	Engine Model	Weichai WP12.420E50
	Rated Power	420 HP, Euro 5 Emission Standard
	Transmission System	Fast 12-speed Manual Gearbox
	Wheelbase	1800+3200+1350 mm
	Tire Specification	12.00R20 Radial Heavy-duty Tires
	Front Axle Rated Load	2×7,000 kg
	Rear Axle Rated Load	2×18,000 kg
	Cab Configuration	X3000 Luxury Sleeper Cab, Equipped with Air Conditioning
	Maximum Driving Speed	90 km/h
	Fuel Tank Capacity	400 L
	Total Allowable Gross Mass	44 Tonnes
	Braking System	Air Brake System, Anti-lock Braking System (ABS)
Superstructure Parameters	Wrecker Type	Integrated Lift & Tow Type, 1+1 Towing Mode
	Main Body Material	High-strength Q345 Structural Steel
	Maximum Recovery Towing Capacity	50 Tonnes
	Boom Maximum Lifting Capacity	25 Tonnes (Working radius: 3.5m)
	Boom Rotation Angle	360° Continuous Unlimited Slewing
	Underlift Maximum Lifting Capacity	30 Tonnes
	Hydraulic Winch Configuration	2 sets of 20-tonne heavy-duty hydraulic winches
	Steel Wire Rope Specification	50m length high-tensile steel wire rope per winch
	Hydraulic System Pressure	Standard working pressure: 21MPa
	Control Mode	Dual control: Wireless remote control + Manual lever control
	Safe Towing Speed	≤40 km/h (rescue driving state)

Products Pictures

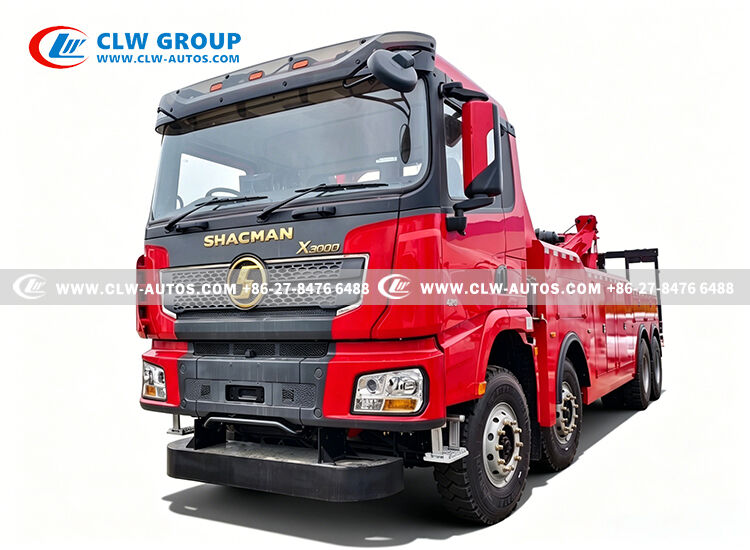

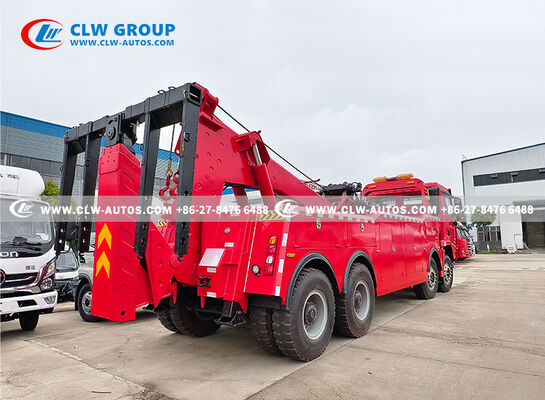

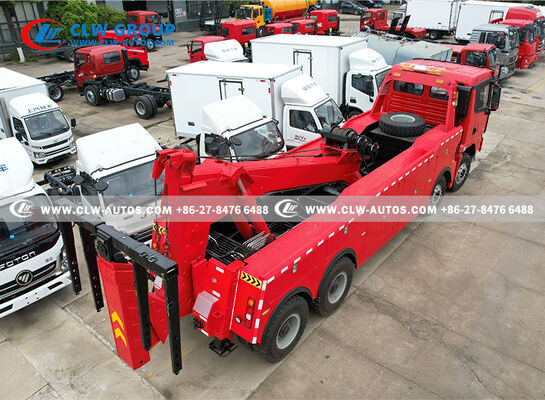

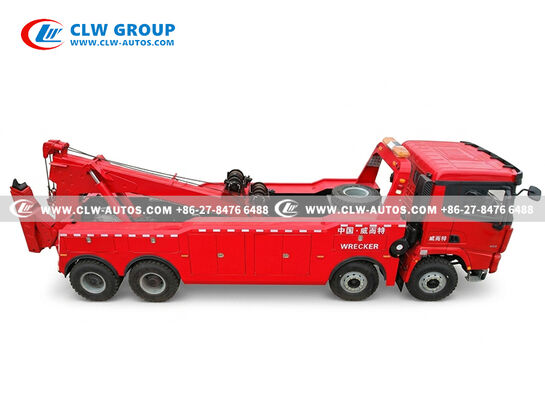

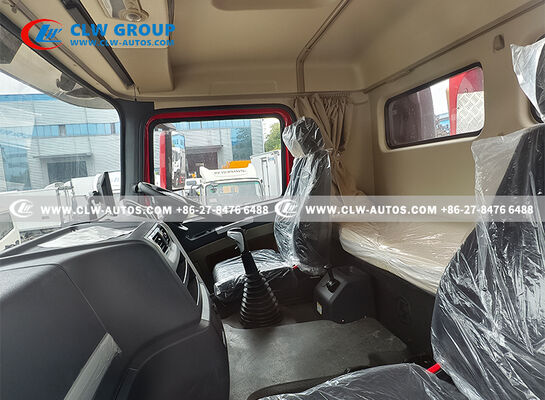

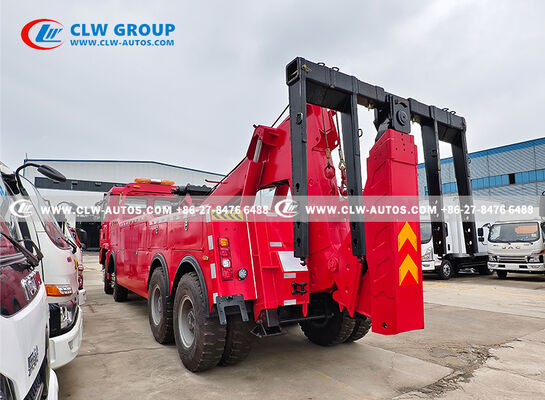

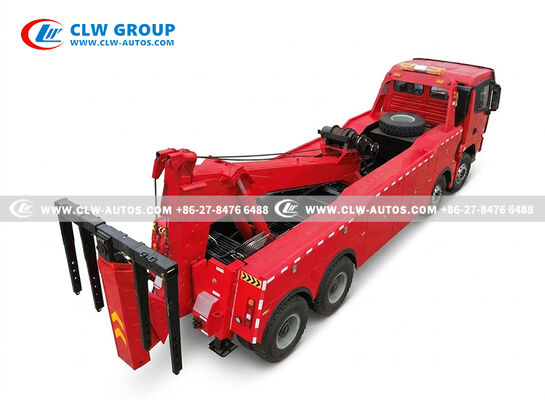

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery 0

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery 1

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery 2

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery 3

Configuration Advantages

8x4 Chassis: Four rear axles provide heavy load stability (total mass 44 tonnes) for lifting/towing 30-50 tonne vehicles without tipping.
RHD Design: Optimized for right-hand traffic regions (e.g., Southeast Asia, Australia), ensuring safe operation on local roads.

Recovery Workflow

Engage PTO → Start hydraulic system → Generate high-pressure oil
Use remote/manual control to slew/lower the lift boom (if needed for hoisting)
Extend/lower the underlift arms → Position tire cradles on the disabled vehicle's front wheels
Lift the underlift → Raise the disabled vehicle's front end off the ground → Secure with safety chains
Connect the 1+1 tow trailer/second vehicle → Activate winches for pulling if required
Drive the wrecker to tow the disabled vehicle at ≤ 40 km/h (safe towing speed)
