Isuzu KV100 4x2 Flatbed Wrecker Truck with 120HP Euro 6 Engine, 3,000kg Rear Underlift, and 5,800mm × 2,300mm Flatbed Platform

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Isuzu KV100 4x2 Flatbed Wrecker Truck with 120HP Euro 6 Engine, 3,000kg Rear Underlift, and 5,800mm × 2,300mm Flatbed Platform

Detailed Product Description
Engine Power: 120 HP Engine Displacement: 2999 Ml
Wheelbase: 3360 Mm Gross Weight: 4495 Kg
Curb Weight: 5280 Kg Max Speed: 105 Km/h
Fuel Tank Capacity: 100 L Flatbed Size: 5800×2300 Mm
Flatbed Capacity: 5000 Kg Winch Capacity: 4000 Kg

Isuzu KV100 4x2 4-Ton Flatbed Wrecker Truck – One-to-Two Tow Truck with 3,000kg Rear Underlift for Light Vehicle Recovery
Product Overview

The Isuzu KV100 Flatbed Wrecker is a professional-grade one-to-two vehicle recovery solution designed for towing companies, roadside assistance providers, and repair shops. Built on the reliable Isuzu KV100 4x2 chassis with 3,360mm wheelbase, this vehicle enables simultaneous rescue of two disabled vehicles - one carried on the flatbed while another is towed by the rear underlift.

The foldable/extendable underlift design improves maneuverability on narrow city streets and winding rural roads, while hydraulic support function provides self-rescue capability on muddy terrain. Ideal for Dominican Republic operating conditions including narrow city streets, winding rural roads, and challenging muddy conditions.

Key Features
  • Isuzu KV100 4x2 Chassis: 3,360mm wheelbase, 120HP Isuzu 4KH1CN6LB Euro 6 engine (2,999ml), 5-speed manual transmission, 7.00R16 tires (6+1 spare), 100L steel fuel tank
  • One-to-Two Simultaneous Recovery: Flatbed (5,000kg capacity) carries one disabled vehicle while rear underlift (3,000kg capacity) tows another, doubling operational efficiency
  • 5,800mm * 2,300mm Flatbed: 4mm patterned one-piece board for durability with 4,000kg winch for loading disabled vehicles

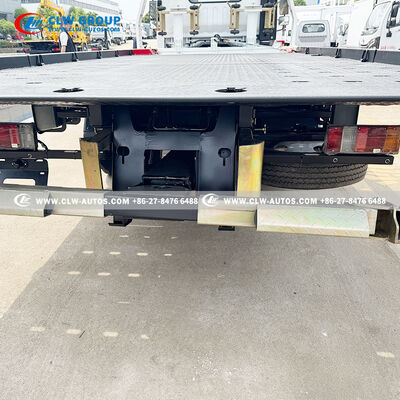

  • 3,000kg Rear Underlift (Foldable): Rated lifting force 3 tons with foldable design that doesn't increase overall length, adjustable lifting height/angle for low-chassis vehicles
  • Dual-Mode Lifting: For accident-damaged/disabled vehicles and low-chassis vehicles using "partial loading + rear wheel lifting" method
  • Comfortable Cab: LHD configuration with air conditioning, central lock, power steering, and electric windows
  • Optional Equipment: Backstop, remote control, valve, warning light, cylinder
Applications
  • Narrow city street vehicle recovery
  • Winding rural mountain road towing
  • Muddy/damaged road self-rescue and recovery
  • Accident scene clearance and breakdown assistance
  • Light vehicle towing (sedans, SUVs, minivans, light pickup trucks)
  • Municipal fleet and parking enforcement
Technical Specifications
Chassis Specification Details
Chassis model QL104
Driving model 4x2
Dimension 7600*2300*2300 mm
Cab Original ISUZU KV100 cabin, Single Row, Left Hand Driving, with air conditioner, Central lock, Steer Assistance, Electric Window
Wheelbase 3360 mm
Gross vehicle weight 4495 kg
Curb weight 5280 kg
Approach / Departure angle 23°/12°
Axle loading (front / rear) 2500 / 4800 kg
Axle number 2
Tire 7.00R16, 6 wheels, with one spare tire
Fuel tank 100 L / steel material
Engine ISUZU, diesel engine, 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. Model: 4KH1CN6LB, Horse power: 120 HP, Displacement: 2999 ml, Emission standard: Euro Ⅵ
Transmission Manual type, 5 forward and 1 reverse
Max. speed 105 km/h
Platform Parameters Details
Platform material 4 mm thickness patterned one-piece board
Platform size (L*W) 5800*2300 mm
Max loading capacity 5000 kg
Winch rating pulling capacity 4000 kg
Under lift capacity 3000 kg
Optional parts Backstop, Remote control, Valve, Warning light, Cylinder

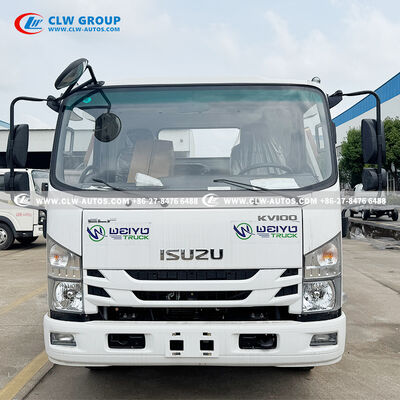

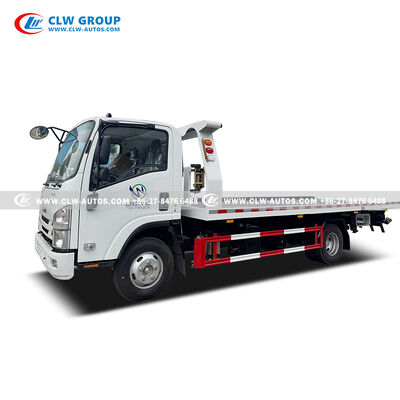

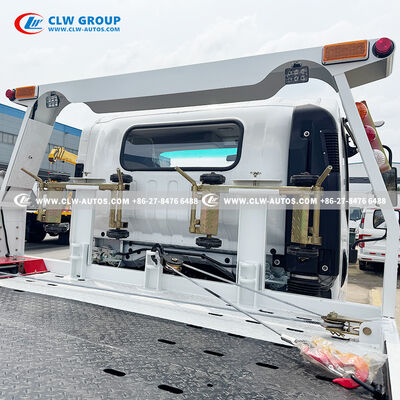

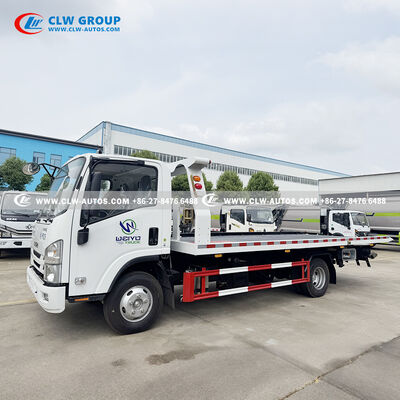

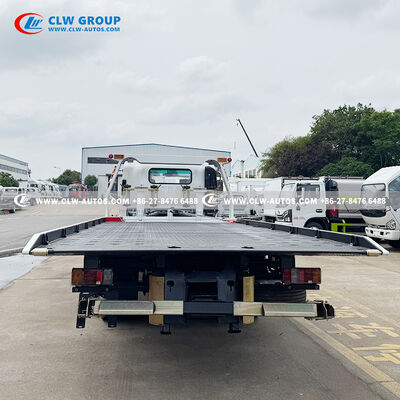

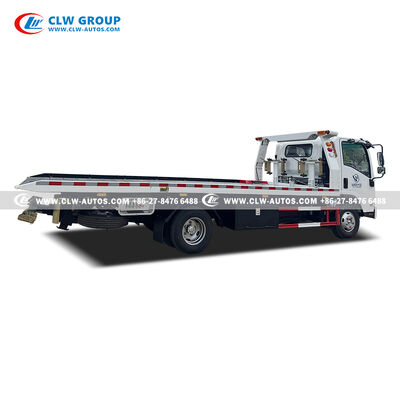

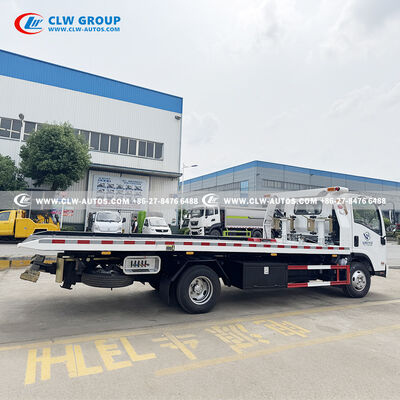

Product Gallery
