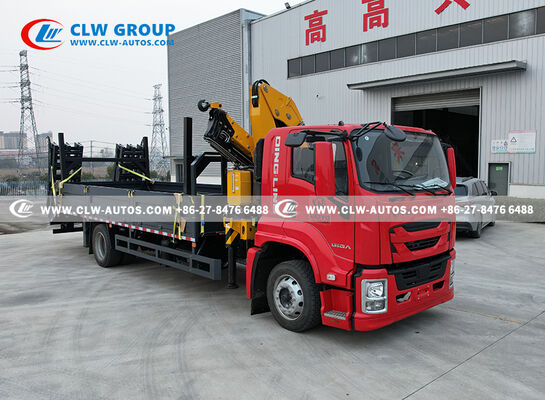

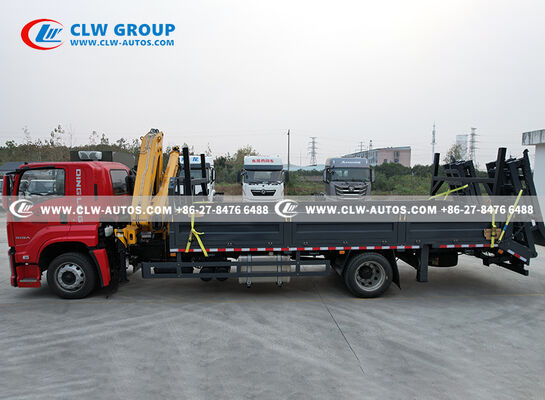

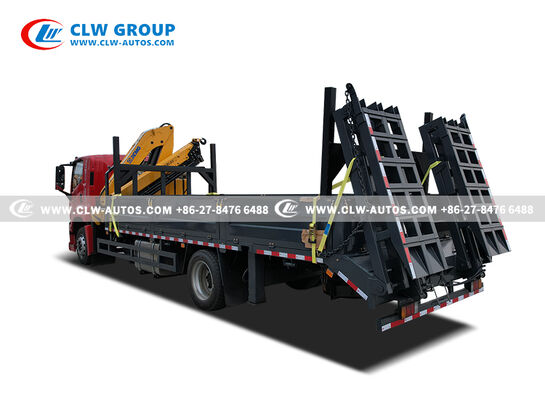

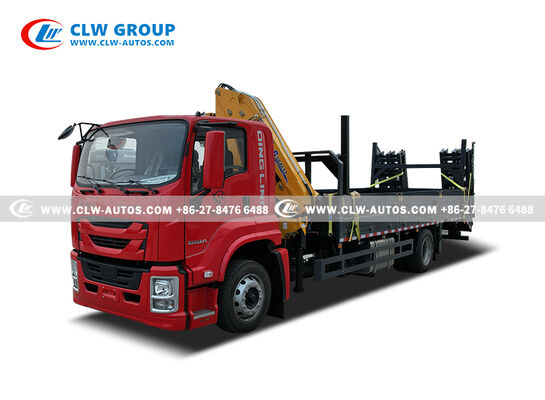

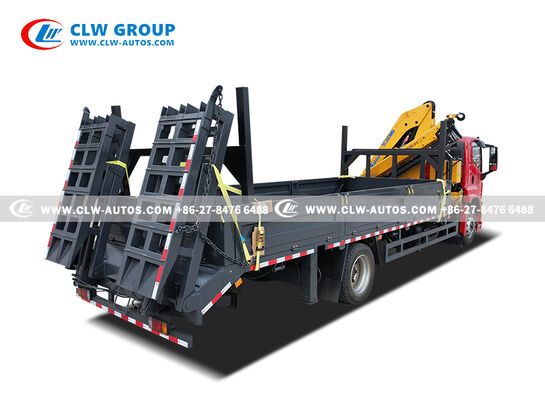

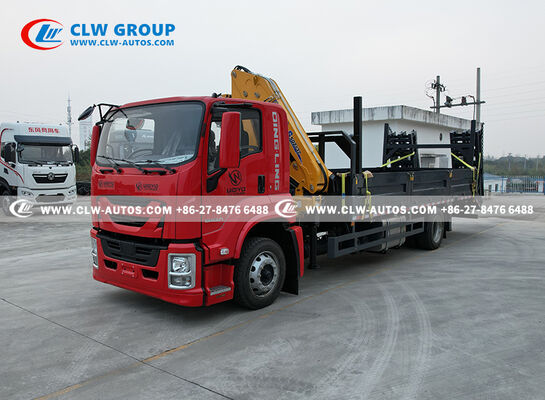

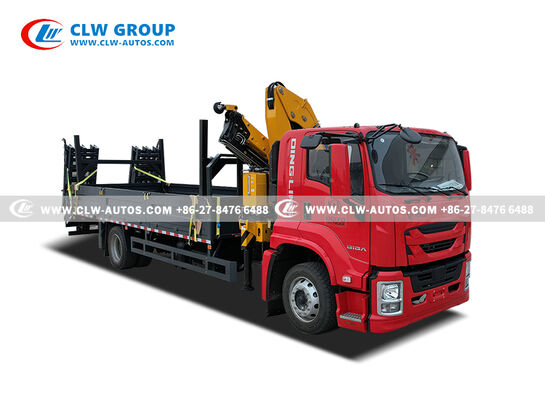

ISUZU FTR 4x2 Flatbed Truck with 6.3-Ton Knuckle Crane and 205HP Euro 6 Engine for 7,000mm Platform Transport

Name: ISUZU FTR 4x2 Flatbed Truck with 6.3-Ton Knuckle Crane and 205HP Euro 6 Engine for 7,000mm Platform Transport
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 54,740.00 USD
Availability: InStock

Large Image : ISUZU FTR 4x2 Flatbed Truck with 6.3-Ton Knuckle Crane and 205HP Euro 6 Engine for 7,000mm Platform Transport

Product Details:

Contact Now

Detailed Product Description

Chassis Type:	ISUZU FTR 4x2	Wheelbase:	5,800 Mm
Overall Dimensions:	11,000 × 2,500 × 3,500 Mm	GVW:	19,900 Kg
Engine Power:	205 HP	Engine Displacement:	5,193 Ml
Transmission Type:	6-speed Manual	Flatbed Dimensions:	7,000 × 2,500 Mm
Crane Capacity:	6,300 Kg @ 2.1m	Crane Outreach:	12.2m
Highlight:	ISUZU FTR flatbed truck with crane , 6.3-ton knuckle crane truck , 205HP Euro 6 engine tow truck

ISUZU FTR 4x2 Flatbed Truck with XCMG 6.3-Ton Knuckle Crane

Self-loading/unloading transport solution specifically designed for Russian small and medium enterprises.

Overview

The ISUZU FTR Flatbed Truck with XCMG 6.3-Ton Folding Boom Crane is a versatile model engineered for the Russian market. Built on the reliable ISUZU FTR 4x2 chassis with a 5,800mm wheelbase, this vehicle combines fuel efficiency with optimal stability and cargo capacity. The integrated XCMG crane enables self-loading and unloading operations, reducing operating costs and improving efficiency for SMEs and individual operators.

Key Features

ISUZU FTR 4x2 Chassis: 5,800mm wheelbase, 205HP ISUZU 4HK1-TCG60 Euro 6 engine, 6-speed manual transmission
7,000mm Flatbed Platform: 7,000×2,500mm dimensions with 6mm manganese checker plate, 10-15 ton capacity

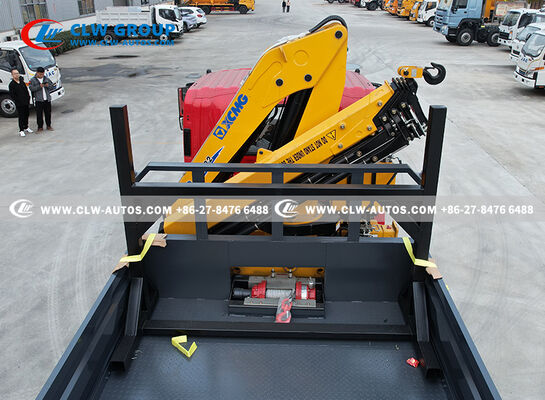

XCMG 6.3-Ton Folding Boom Crane: 6,300kg capacity at 2.1m, 12.2m outreach, 360° rotation with H-shape legs
Aluminum Alloy Cargo Box: Electrophoretic anti-corrosion treatment for extended service life
8-Ton Winch: Powerful traction for loading/unloading and recovery operations

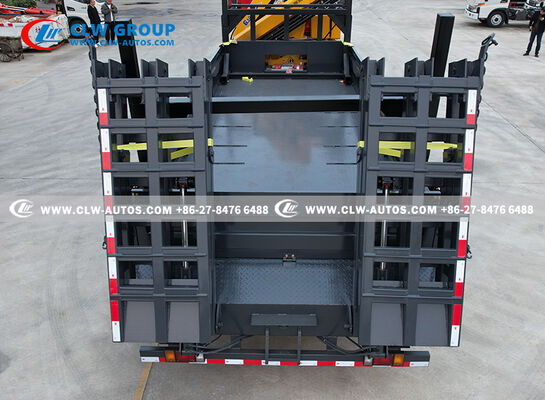

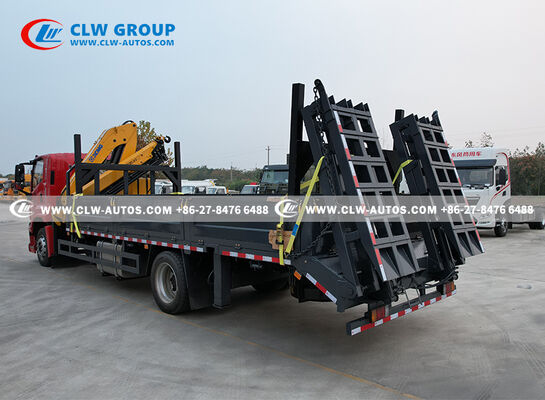

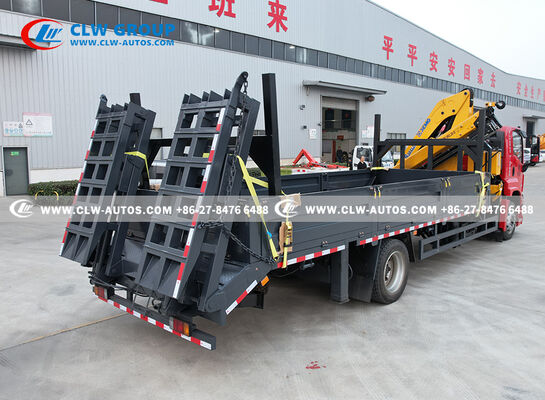

Two-Section Hydraulic Ramp: Adjustable angle for safe and efficient heavy-load handling
Movable Cargo Rack: Flexible securing system for steel materials during transport
ISUZU GIGA VC61 Cab: Left-hand drive, sleeper configuration, air conditioning, electric windows, pneumatic seat

Applications

Small to medium-sized enterprise logistics in Russia
Individual truck owner operations
Steel and construction material transport
Machinery and equipment hauling
Remote site logistics with limited infrastructure
Recovery and rescue operations

Specifications

Chassis	ISUZU FTR 4x2
Wheelbase	5,800 mm
Overall Size	11,000 × 2,500 × 3,500 mm
GVW / Loading	19,900 kg / 10,000 kg
Engine	ISUZU 4HK1-TCG60, 205 HP, 5,193 ml, Euro 6
Transmission	ISUZU 6-speed manual (6F+1R)
Tires	295/60R22.5 (6 + 1 spare)
Flatbed	7,000 × 2,500 mm (6mm manganese plate, 10-15 ton)
Crane	XCMG 6.3T folding boom
Crane Capacity	6,300 kg @ 2.1m
Crane Outreach	12.2m
Crane Rotation	360° (420° slewing)
Winch	8 tons
Cargo Box	Aluminum alloy, electrophoretic anti-corrosion
Ramp	Two-section hydraulic
Cargo Rack	Movable
Cab	ISUZU GIGA VC61, LHD, sleeper, A/C, electric windows, pneumatic seat
