MOBILE LED STAGE TRUCK | 4.2m Professional Hydraulic Platform
UNMATCHED FUNCTIONALITY
RAPID DEPLOYMENT CAPABILITY
The hydraulic expansion system enables complete stage setup in under 15 minutes. With dual-side panel expansion, roof elevation, and independent corner stabilization, the transformation from transport to performance mode is seamless and efficient. This rapid deployment capability allows for multiple events in a single day and maximizes operational flexibility.
PROFESSIONAL PERFORMANCE QUALITY
Every component meets professional entertainment industry standards. The LED display delivers high-brightness, high-contrast visuals even in daylight conditions. The audio system provides clear, powerful sound coverage for audiences up to 300 people. The lighting system offers full programmability for creating dynamic visual atmospheres appropriate for various performance types.
DURABLE & RELIABLE CONSTRUCTION
Built with heavy-duty rectangular tubing and 1.2mm cold-rolled steel panels, the structure withstands frequent transport and repeated setup/teardown cycles. The anti-rust treatment and professional-grade paint finish ensure longevity and visual appeal. All mechanical components undergo rigorous testing for reliability under continuous operation conditions.
USER-FOCUSED DESIGN
The intuitive layout includes clearly marked control points, accessible equipment storage, and logical workflow organization. The separate performance and backstage areas maintain professional separation while the integrated tool storage and accessory compartments keep everything organized. Safety features include non-slip surfaces, secure handholds, and fail-safe hydraulic controls.
PRACTICAL APPLICATIONS
COMMERCIAL & MARKETING EVENTS
Enhance brand visibility and audience engagement at product launches, shopping center promotions, and corporate roadshows. The integrated LED screen displays high-impact marketing content while the stage accommodates live demonstrations, spokesperson presentations, and interactive activities.
PUBLIC & COMMUNITY ENGAGEMENT
Support government initiatives, educational programs, and community development through mobile performances. This platform enables cultural departments to bring theater, music, and dance directly to neighborhoods without performance venues.
TOURISM & ENTERTAINMENT SERVICES
Provide consistent quality entertainment at resorts, tourist attractions, and event venues without permanent infrastructure. The self-contained nature eliminates venue preparation time and reduces dependency on local technical support.
CORPORATE & INSTITUTIONAL USE
Deliver professional presentations, training sessions, and corporate communications with full technical support. The mobile nature allows organizations to reach distributed teams, remote locations, and diverse stakeholder groups with consistent presentation quality.
PRODUCT SPECIFICATIONS
| Manufacturer's Standard Superstructure |
|
| Body Dimensions |
4200 × 2200 × 2300 mm |
| Deployment Method |
Hydraulic unfolding on both sides; hydraulic lifting roof; rear double doors |
| Body Material |
Rectangular tube frame; outer cladding with 1.2mm cold-rolled steel sheet; floor with 1.5mm anti-slip patterned plate; base anti-rust paint; exterior white special vehicle paint; body gray paint |
| Stage Material |
Rectangular tube grid structure; 1.2mm bamboo plywood base; covered with red carpet |
| Stage Dimensions |
Main stage: 4000 × 3000 mm; front/rear manually foldable extensions: 1700mm; total stage width: 7400mm
Backstage: 4000 × 1700 mm (for dressing, makeup, equipment operation) |
| Ladders |
Iron ladders, quantity: 2 |
| Toolbox |
Iron toolbox, quantity: 1 |
| Hydraulic Outriggers |
Hydraulic outriggers at four corners, independently controlled |
| Hydraulic Operation |
Power take-off (PTO) driven; manual hydraulic lever control |
| LED Display Screen |
Brand: Haijia Cailiang
Pixel pitch: 4mm
Type: Indoor full-color
Module size: 256 × 256mm
Configuration: One main screen + two side screens; top 768mm section manually foldable
Main screen: 3072 × 2304 mm; Side screens: 1024 × 2304 mm (2 pcs); Total screen area: 11.79 m² |
| Vehicle Decals |
Outdoor adhesive decals on both sides (design provided by customer) |
| External Electrical Equipment (Optional) |
|
| Control Equipment |
Laptop, Le novo I5 |
| Audio System |
Main speakers: 2 pcs; Brand: FONY (USA); Dual 15″; Front-ported; AES rated power: 1300W; peak power: 5200W
Main amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 2700W;
Monitor speakers: 2 pcs; Brand: FONY; Single 12″; Rated bridged power (8Ω): 2700W
Monitor amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 1300W
Mixer: 1 pc; Brand: FONY; 12 channels; USB/Bluetooth; 32 effect modes; ≤40W power
Feedback suppressor: 1 pc; Brand: FONY; Auto feedback suppression; Input: 220V±10%, 50Hz
Wireless microphones: 2 pcs; Brand: FONY; Battery: 2×AA alkaline |
| Power Sequencer |
1 pc Brand: FONY; 8 outputs; standard 3-pin sockets; Input: AC220V/50Hz; Total output: 6600W; Single output: 2200W |
| Lighting Equipment |
Beam lights: 4 pcs; Voltage: AC90V-240V; Power: 260W; Source: 260W; Dimming: 0-100%; Zoom: electronic; Strobe: dual-blade; Optics: high-precision lens; Pattern: 1 fixed pattern wheel (13 patterns + white); Color: 1 fixed color wheel (13 colors + white); Prism: two prism effects combinable; Pan: 540°; Tilt: 270°; Control: DMX512/auto/sound;
Par lights: 24 pcs; 54×3W LED; Voltage: AC110-240V; Power: 200W; Beam angle: 45°/60°;
LED work lights: 4 pcs; 100W; White light
Lighting console: 1 pc; 256 channels |
| Flight Cases |
Control console case: 1 pc (custom); Main speaker cases: 2 pcs (custom); Monitor speaker cases: 2 pcs (custom) |

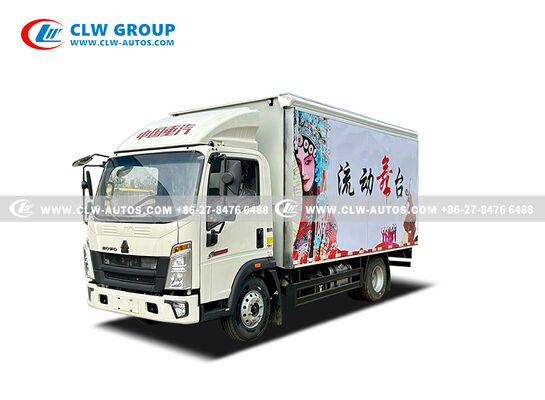

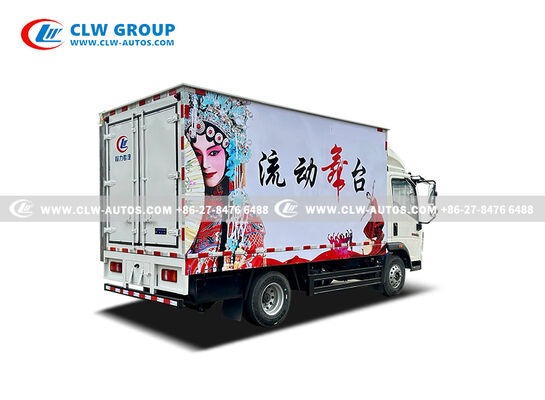

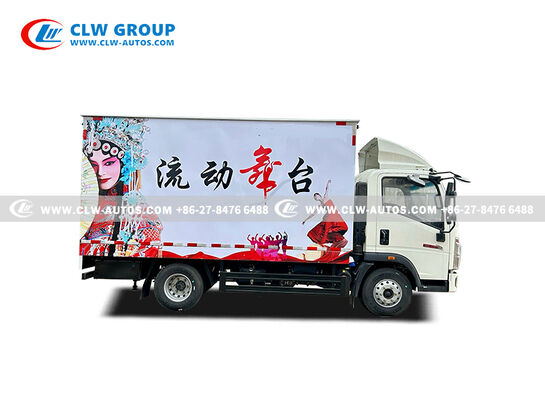

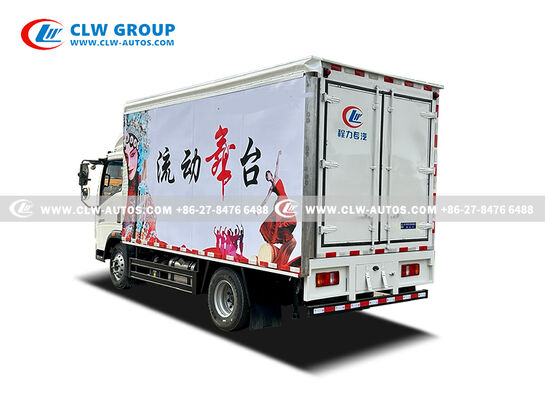

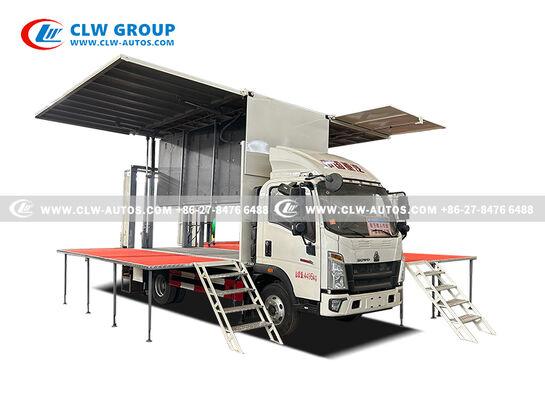

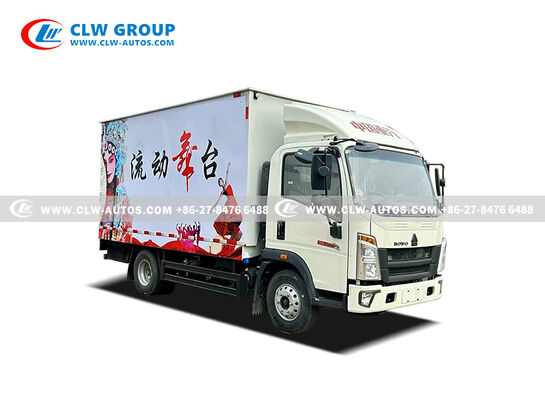

PRODUCT PHOTOS
