FAW 3-Side P4 Mobile LED Billboard Truck with Hydraulic Lifting Side Screens and Foldable Stage for Digital Advertising

Name: FAW 3-Side P4 Mobile LED Billboard Truck with Hydraulic Lifting Side Screens and Foldable Stage for Digital Advertising
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 135,963.00 USD
Availability: InStock

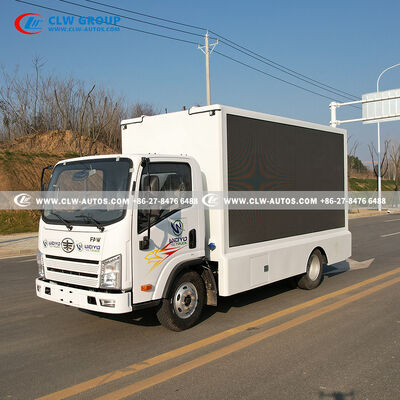

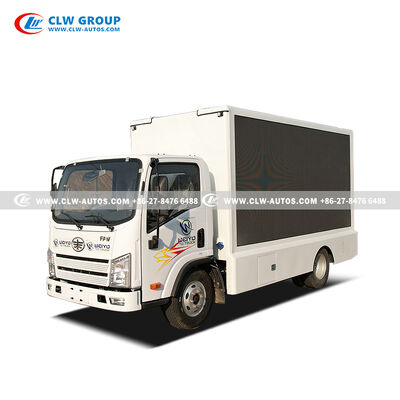

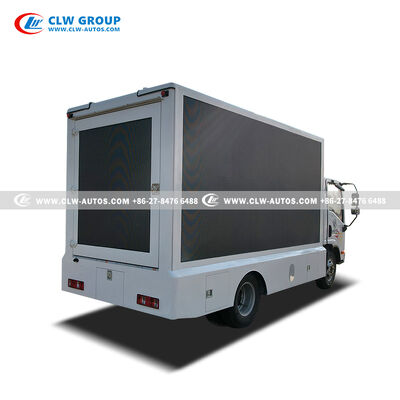

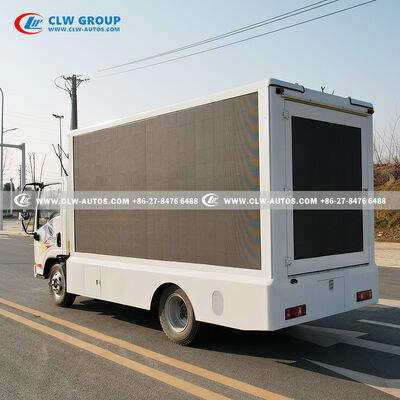

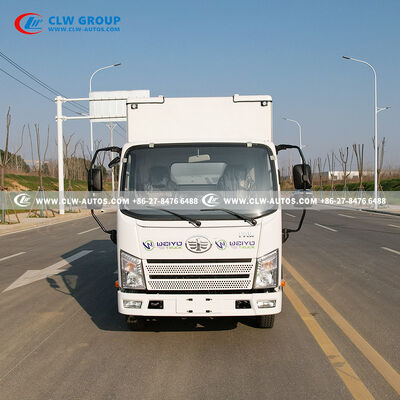

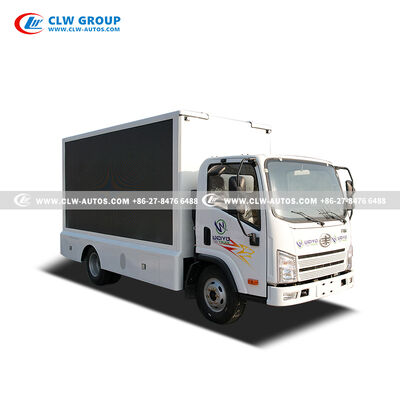

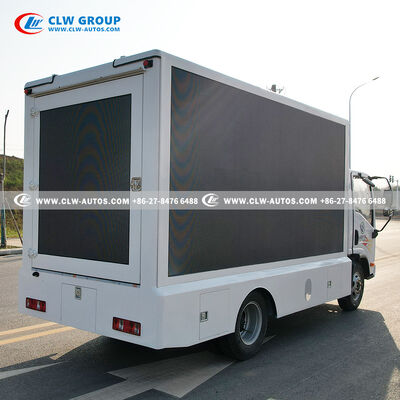

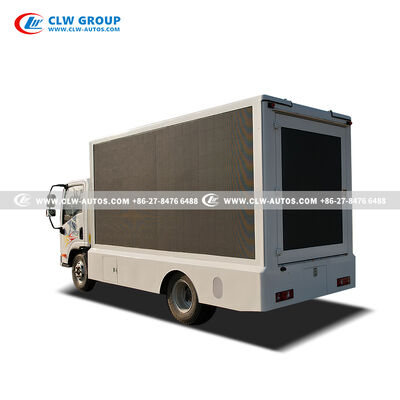

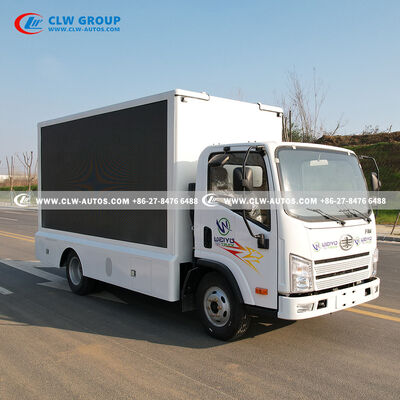

Large Image : FAW 3-Side P4 Mobile LED Billboard Truck with Hydraulic Lifting Side Screens and Foldable Stage for Digital Advertising

Product Details:

Contact Now

Detailed Product Description

Overall Dimension:	6000x2100x3100(mm)

FAW 3-Side P4 Mobile LED Billboard Truck – Self-Contained Digital Advertising Vehicle for African Markets

Maximize your campaign reach with the FAW 3-Side P4 Mobile LED Billboard Truck, a self-contained mobile advertising vehicle designed for high-impact visual marketing. Featuring three high-resolution P4 LED screens, hydraulic lifting side screens, integrated audio, onboard generator, and a foldable stage, this vehicle delivers complete promotional capability wherever you go. Built on a reliable FAW 4x2 chassis with a 110HP Weichai engine, it offers the maneuverability and autonomy needed for successful mobile campaigns.

Overview

The FAW 3-Side P4 Mobile LED Billboard Truck is a comprehensive mobile advertising solution engineered to bring high-impact visual and audio content directly to target audiences. Unlike static billboards, this vehicle allows advertisers to reach multiple locations in a single campaign, maximizing exposure and engagement. The three-side P4 LED screen configuration provides brilliant, daylight-visible content from all angles, while the hydraulic lifting side screens enable adjustable viewing angles for optimal crowd capture. The integrated audio system delivers clear sound to complement visual content, and the foldable stage provides a platform for live presentations or performances. With its own diesel generator and complete support systems, this vehicle operates autonomously at any location. Built on the reliable FAW light-duty chassis with a 110HP Weichai engine, it navigates urban environments with ease. Configured for Left-Hand Drive with optional Right-Hand Drive conversion, this vehicle is specifically designed for African markets including Benin, Tanzania, Kenya, and Uganda.

Key Features

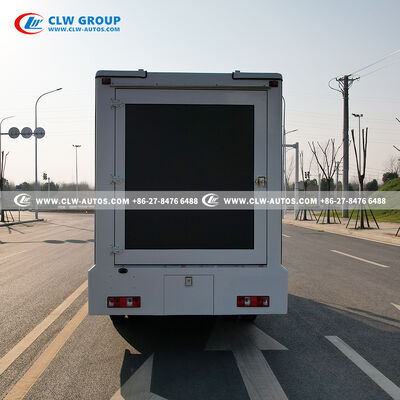

Three-Side P4 LED Display Configuration: The vehicle features high-resolution P4 full-color LED screens on three sides, providing 360-degree visual impact. The two side screens are hydraulically liftable, allowing operators to adjust viewing angles for optimal crowd capture in different locations and site conditions.
Self-Contained Operational Systems: All necessary systems are integrated into the vehicle, including a diesel generator for autonomous power, voltage stabilizer for electronics protection, control computer for content management, weatherproof audio system with amplifier, and ventilation fans with roof hatch for operator comfort.
Foldable Stage for Live Engagement: The integrated foldable side stage with stainless steel guardrails provides a secure platform for live hosts, performers, product demonstrations, or interactive presentations. This feature transforms the vehicle from a simple billboard into an immersive brand experience platform.
FAW Light-Duty 4x2 Chassis: Built on the reliable FAW platform with excellent urban maneuverability. The 110HP Weichai diesel engine provides sufficient power for city driving while maintaining fuel efficiency. Available in LHD configuration with optional RHD conversion for African market flexibility.
Weather-Resistant Construction: The LED screens, audio system, and electronic components are designed for outdoor operation, with weatherproof construction that protects against rain, dust, and temperature variations. This ensures reliable performance throughout the campaign regardless of weather conditions.
Complete Turnkey Solution: The vehicle arrives ready for immediate deployment. No additional equipment, external power, or setup infrastructure is required. Simply drive to the location, deploy the screens and stage, and begin your campaign.

Applications

Urban brand promotions and product launch events
Government public awareness and health campaigns
Political election outreach and voter education
Cultural festivals, concerts, and community events
Retail roadshows and shopping mall activations
High-traffic area commercial advertising

Technical Specifications

General Parameters

Overall Dimension	6000x2100x3100(mm)
Gross Vehicle Weight	4000(Kgs)
Curb Weight	3000(Kgs)

Chassis Specifications

Chassis Model	FAW Tiger VR
Cabin	Single row, Left Hand Driving, with A/C
Engine Model	Weichai WP2.3NQ110E20
Power	81KW/110HP
Emission Standard	Euro 3
Displacement	2.3L
Engine Type	4 cylinders, water cooled, turbocharged, after cooled, direct injection
Gearbox	Manual type WLY 5F and 1R gear
Axle Loading	Front axle: 2,000kgs Rear axle: 5,000kgs
Wheel Base	3300(mm)
Brake System	Air brake or Oil brake
Steering Gear	Power Assistant
Tire	7.00R16, 6 +1 pcs
Clutch	Reinforced diaphragm clutch
