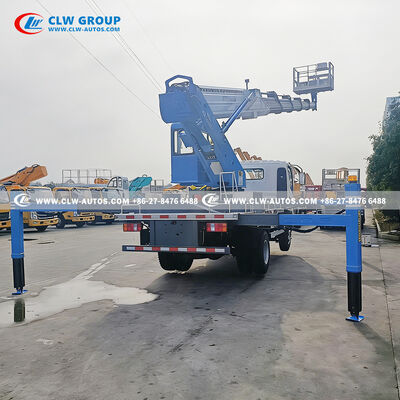

The 28m HOWO Aerial Work Platform Truck is a high-performance truck-mounted boom lift designed for safe and efficient elevated work. Featuring a Sinotruk HOWO chassis, a 7-section telescopic boom, and 360° rotation capability, it provides a maximum working height of 28 meters and a working radius of 14 meters.
Product Introduction
The HOWO 28m aerial platform truck is a versatile elevated work vehicle designed for high-altitude operations across construction, maintenance, and municipal sectors. Built on the reliable Sinotruk HOWO 4*2 chassis, the truck combines powerful driving performance with an advanced hydraulic lifting system. The aerial platform adopts a 7-section octagonal telescopic boom, which allows smooth extension and precise positioning during operation.
With a maximum working height of 28 meters and a horizontal reach of 14 meters, the truck provides excellent flexibility for operators working on buildings, power facilities, street lighting systems, and other elevated structures. To ensure safe operation, the vehicle is equipped with multiple safety protection systems including hydraulic outriggers, automatic leveling, overload monitoring, wind speed alarms, and emergency stop devices. The intelligent control system allows operators to monitor key parameters in real time through a remote controller or platform control panel.
This combination of powerful performance, reliable safety systems, and easy operation makes the HOWO aerial platform truck an ideal solution for professional aerial work.
Main Technical Highlights
Reliable Power System
The truck is equipped with a Yunnei YN4100QBZL diesel engine delivering 110 horsepower. The engine features a water-cooled inline 4-cylinder design that ensures reliable performance and stable power output.
Advanced Telescopic Boom Design
The aerial platform adopts a high-strength 7-section octagonal boom structure. The synchronized telescopic mechanism allows smooth extension and retraction while maintaining stability at maximum working height.
Large Working Range
- Maximum Working Height: 28 meters
- Maximum Working Radius: 14 meters
- Continuous Rotation: 360°
These specifications enable efficient operation across a wide working area.
Stainless Steel Working Basket
The working platform is made of high-strength stainless steel with a size of 1600 *700*1000 mm and a maximum loading capacity of 200 kg, providing sufficient space and safety for operators and tools.
Intelligent Control System
Operators can control the aerial platform through multiple control stations, including a remote controller, platform control panel, and cabin control system. Real-time data monitoring helps ensure precise and safe operation.
High Stability Outrigger System
The hydraulic V-type outriggers provide strong ground support during operation. The adjustable legs ensure stability even on uneven terrain.
Safety System
Safety is a key design priority of the 28m aerial work platform truck. The vehicle is equipped with several safety protection systems to ensure maximum protection for operators working at height.
- Overload monitoring system
- Emergency stop device
- Hydraulic cylinder safety locks
- Automatic interlock system between chassis and boom
- Wind speed alarm system
- Hydraulic automatic leveling system
Typical Applications
The HOWO 28m aerial platform truck is widely used in many industries, including:
- Urban construction projects
- Street lighting installation and maintenance
- Tree trimming and landscaping
- Power line maintenance
- Advertising board installation
- Bridge and facility inspection
Technical Specifications
| Overall Dimension (LxWxH) |
5998x2100x2950mm |
Cab |
Sinotruk HOWO, Single row cab, LHD, A/C |
| Engine |
Diesel, Yunnei YN4100QBZL, 110HP, Euro 2 |
Transmission |
Manual type, WLY6TS40, 6F&1R gear |
| Axle Loading |
Front axle 2000kgs; Rear axle 3500kgs |
Tire |
7.00R16, 6+1pcs |
| Boom Type |
Seven-section octagonal working arm with synchronous extension and retraction |
Max. Working Height |
28m |
| Max. Working Radius |
14m |
Basket Material |
High-strength stainless steel |
| Basket Size |
1600x700x1000mm |
Basket Max. Loading Capacity |
200kgs |
Safety Configurations:
Automatic Upper/Lower Vehicle Interlock: Prevents misoperation and overturning by interlocking controls during transitions.
Manual Emergency Pump: Provides backup power to return personnel to ground if the chassis engine or main hydraulic pump fails.
Platform Emergency Stop: Enables emergency stop and restricts boom operation. (Includes function on emergency hydraulic pump)
Automatic Working Range Limitation: Restricts operation in hazardous directions upon reaching set limits.
Engine Ignition/Shutdown Control: Controller allows remote engine start and stop.
Leveling System: Hydraulic automatic leveling system.
|

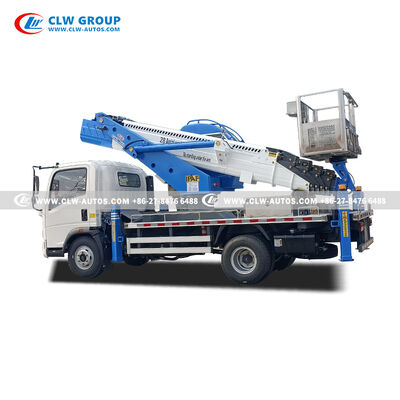

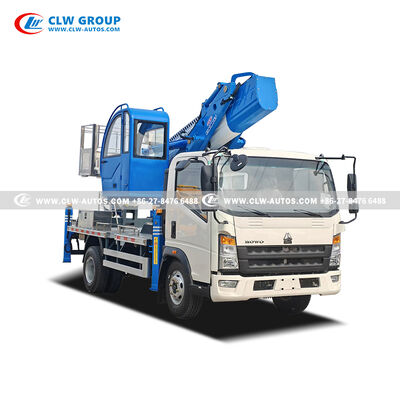

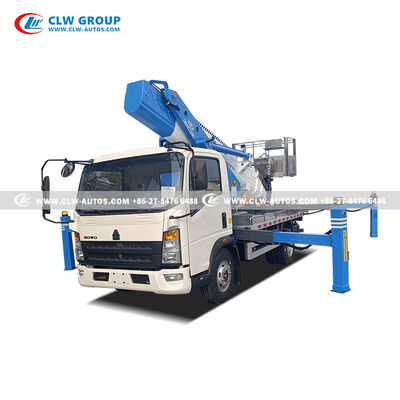

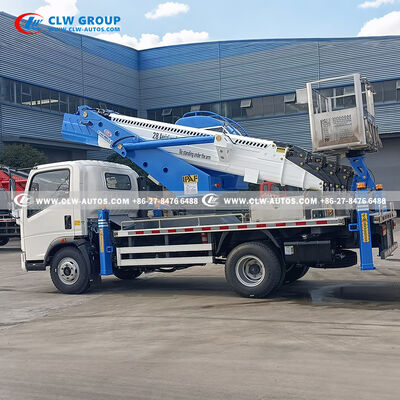

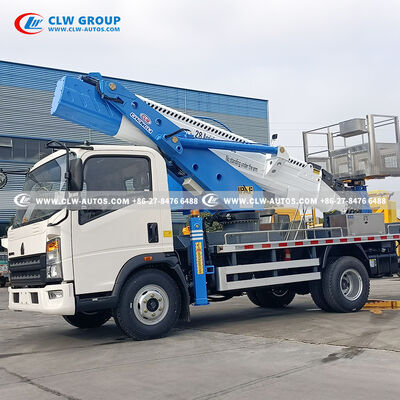

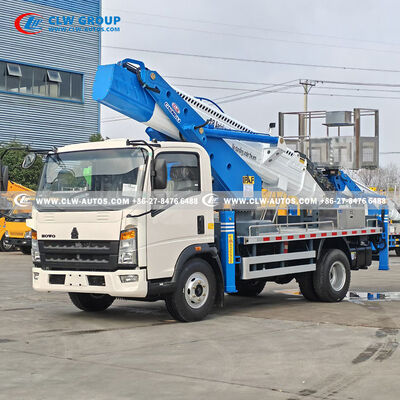

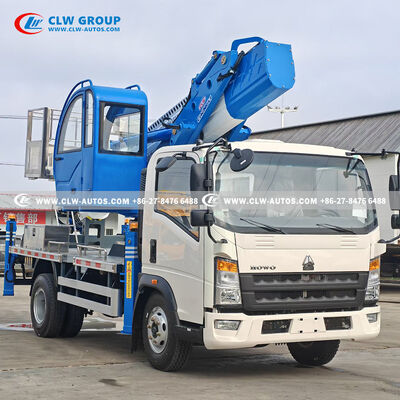

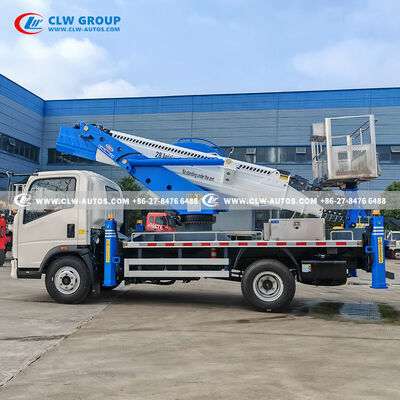

Product Gallery
