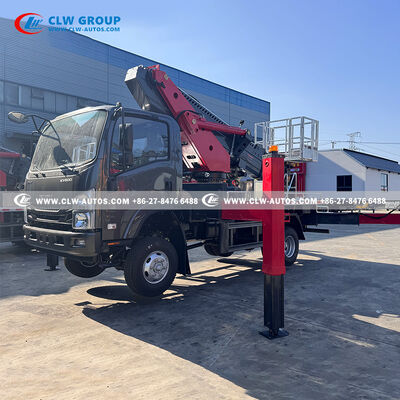

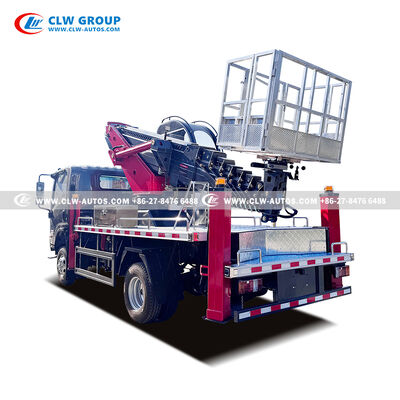

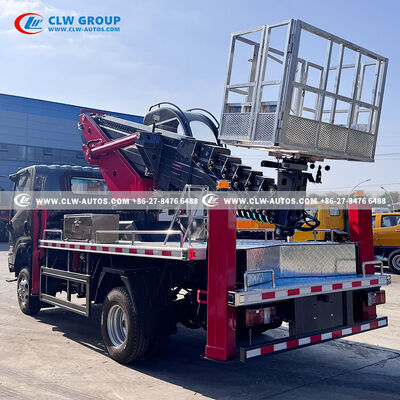

ISUZU KV600 30m Aerial Work Platform Truck with 7-Section Telescopic Boom and 360° Continuous Rotation

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

ISUZU KV600 30m Aerial Work Platform Truck with 7-Section Telescopic Boom and 360° Continuous Rotation

Detailed Product Description
Highlight:

30m Working Height Aerial Work Platform Truck

,

7-Section Telescopic Boom Bucket Truck

,

360° Continuous Rotation Man Lift Truck

ISUZU KV600 30m Aerial Work Platform Truck
The ISUZU KV600 30m Aerial Work Platform Truck combines ISUZU's reliable chassis with advanced hydraulic engineering to safely elevate personnel and equipment to working heights of up to 30 meters. Built on the robust KV600 4x2 light truck chassis, this versatile aerial platform features a heavy-duty 7-section synchronized telescopic boom with exceptional reach and stability for various industrial applications.
Key Features
Superior Boom Design & Reach Capabilities
This aerial platform delivers exceptional vertical and horizontal reach with its advanced 7-section synchronized telescopic boom. The polygonal arm design provides superior strength-to-weight ratio while minimizing operational sway for stable performance at height.
  • Maximum working height: 30 meters
  • Horizontal outreach: Up to 19 meters from turntable center
  • 7-section synchronized telescopic boom
  • Polygonal arm design for reduced operational sway
Precision Control & Operational Stability
Advanced control systems ensure safe and precise operation with multiple control options for maximum flexibility in various working conditions.

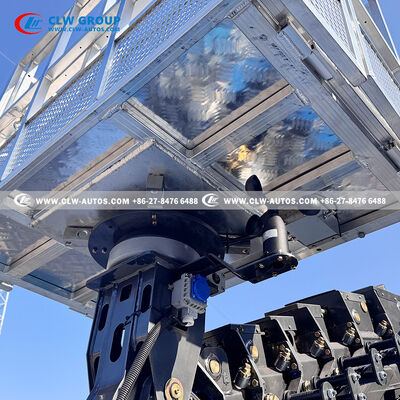

  • 360° continuous rotation for turntable and platform
  • Hydraulic auto-leveling system maintains horizontal platform
  • Stepless speed control for micro-precision positioning

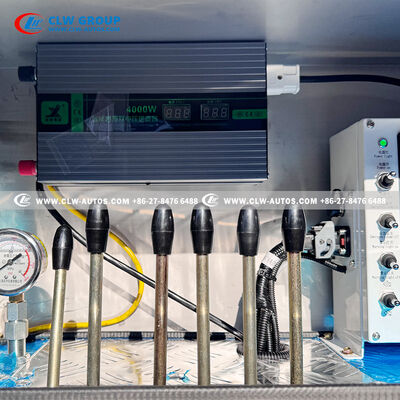

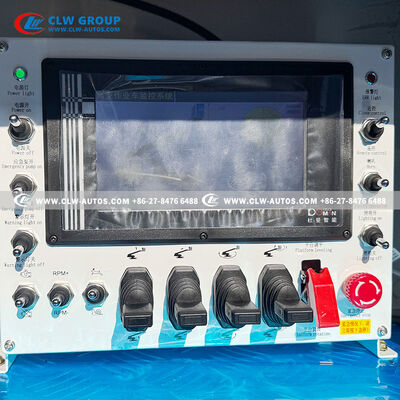

  • Triple-control system: wireless remote, turntable panel, and ground control
Advanced Outrigger System

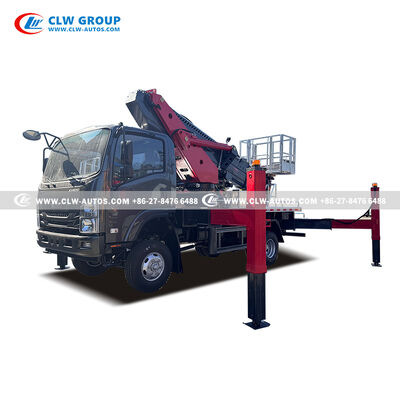

Rock-solid stability is ensured through a sophisticated Front V-type and Rear H-type hydraulic outrigger system designed for varied terrain conditions.
  • Front outrigger span: Up to 5,370 mm
  • Rear outrigger span: Up to 4,975 mm
  • Individual adjustability for uneven ground
  • Bi-directional hydraulic locks and automatic interlock system
Reliable ISUZU Powertrain & Chassis
Built on the globally respected ISUZU KV600 chassis known for durability, fuel efficiency, and low maintenance requirements.
  • ISUZU 4KB1-TCG60 diesel engine: 130 horsepower
  • Euro 6 emission compliance for urban operation
  • ISUZU MSB 5-speed manual transmission
  • Compact chassis design for urban maneuverability
  • Global parts availability for minimal downtime
Comprehensive Safety Systems
Multiple redundant safety systems protect personnel and equipment during high-reach operations.
  • Emergency manual pump for controlled descent
  • Hydraulic safety locks and balance valves

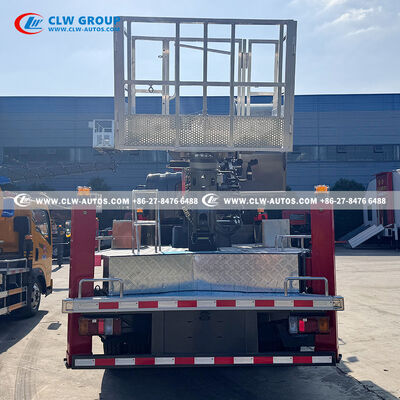

  • Platform safety features: guardrails, safety gate, non-slip surface
  • Operational interlocks and visual/audible alarms
Industry Applications
This versatile aerial work platform serves multiple industries including power and utility maintenance, municipal services, construction, landscaping, emergency services, industrial maintenance, and film production.
Technical Specifications
Specification Details
Overall dimensions 7450mm x 2250mm x 3800mm
Gross vehicle weight 8950kg
Wheel base 3815 mm
F/R track base 1110/1990mm
Engine ISUZU 4KB1-TCG60, 130HP
Max speed 95 km/h
Bucket capacity 200kg, 1200x750x1100mm
Boom type Four-section telescopic synchronous
Outrigger type H-type, 4000x4000mm
