FAW 10m³ LPG Bobtail Refueling Truck with Right-Hand Drive and Q345R Steel Tank for African Markets

Name: FAW 10m³ LPG Bobtail Refueling Truck with Right-Hand Drive and Q345R Steel Tank for African Markets
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 44,935.00 USD
Availability: InStock

Large Image : FAW 10m³ LPG Bobtail Refueling Truck with Right-Hand Drive and Q345R Steel Tank for African Markets

Product Details:

Contact Now

Detailed Product Description

Highlight:

10m³ Capacity LPG Bobtail Refueling Truck

Right-Hand Drive LPG Gas Tanker Truck

Q345R Steel Tank LPG Transport Truck

FAW 10m³ LPG Bobtail Refueling Truck | Right-Hand Drive

The FAW 10m³ LPG Bobtail Refueling Truck is a factory-built right-hand drive LPG transport solution specifically engineered for African markets. With 10,000 liters of capacity and a 5-ton payload, this vehicle is designed to meet the growing demand for safe, efficient LPG distribution across Kenya, Tanzania, Zambia, Zimbabwe, and neighboring nations.

Built on the robust FAW Tigher V chassis and powered by a reliable Yuchai diesel engine, this LPG tanker combines heavy-duty construction with comprehensive safety systems. The Q345R steel tank features 10mm body thickness and 12mm heads, with a design pressure of 1.61 MPa suitable for hot African climates. Complete with pump, flow meter, 15-meter delivery hose, and cylinder filling head, this bobtail is ready to work from day one.

Key Features

Right-Hand Drive Configuration: Factory-built for Kenya, Tanzania, Zambia, Zimbabwe, and other RHD African nations. All controls are positioned for intuitive operation, improving driver comfort and eliminating costly aftermarket conversions.
Yuchai Diesel Engine: The proven Yuchai YC4E160-33 delivers reliable performance and excellent fuel economy, with a reputation for durability in demanding African operating conditions.
8-Speed Transmission: Shaanxi Gear 8JS75TC transmission with synchronizers provides smooth shifting and optimal gearing for both highway transport and low-speed maneuvering.
Q345R Pressure Vessel Tank: Manufactured from specialized steel with 10mm body thickness and 12mm reinforced heads, designed specifically for LPG transport applications.
Engineered for Hot Climates: With 1.61 MPa design pressure and 1mm corrosion allowance, the tank is specifically designed for safe operation in high ambient temperatures common in Africa.
Comprehensive Safety Valves: DN80 safety valve for over-pressure relief plus DN50 liquid-phase and DN25 gas-phase emergency shut-off valves that automatically close in hose failure or fire conditions.
Complete LPG Transfer System: Heavy-duty LPG vane pump, precision volume flow meter, and percentage float-ball level gauge enable accurate, efficient product transfer.
15-Meter Delivery Hose with Reel: LPG-grade hose with manual reel provides convenient reach for various delivery points and cylinder filling operations.
Cylinder Filling Capability: One cylinder filling head is included, enabling direct bottle-filling at customer locations or distribution points.
Aluminum Alloy Toolbox: Roller-shutter door design provides secure, weatherproof storage for tools, PPE, and delivery supplies.
3M Reflective Markings: Enhanced visibility and safety during nighttime operations, with reflective markings on all sides of the vehicle.
Rugged Chassis Construction: Strengthened leaf springs (10/10+9), 10.00R20 18-ply tires, and 200-liter fuel tank handle rough terrain and long-distance routes.
Exhaust & Air Brakes: Exhaust brake provides downhill control while air-operated parking brakes ensure secure parking on slopes.
Fire Extinguisher Included: One fire extinguisher with mounting bracket is supplied as standard equipment for emergency preparedness.

Applications

LPG Refilling Stations: Transport bulk LPG from depots to retail stations for cylinder exchange and auto-gas dispensing.
Gas Delivery Companies: Primary delivery vehicle for distributors serving residential, commercial, and industrial customers.
Industrial Users: Deliver bulk LPG directly to factories, hotels, restaurants, and hospitals.
Cylinder Filling Operations: Direct filling of LPG cylinders at customer locations or distribution points.
Rural Energy Supply: Reliable LPG delivery to remote communities and businesses.

Technical Specifications

Chassis	FAW Tigher V Flat-Top Extended Cab
Drive Position	Right-Hand Drive
Engine	Yuchai YC4E160-33 Diesel
Transmission	Shaanxi Gear 8JS75TC (8-Speed)
Wheelbase	4,700 mm
Tank Capacity	10 m³ (10,000 Liters)
Tank Material	Q345R Steel
Body Thickness	10 mm
Head Thickness	12 mm
Design Pressure	1.61 MPa
Safety Valve	DN80
Emergency Valves	DN50 (Liquid) / DN25 (Gas)
Pump	LPG Vane Pump
Flow Meter	Volume Flow Meter
Delivery Hose	15 Meters with Reel
Tires	10.00R20 18-Ply
Fuel Tank	200 Liters (Iron)
Brakes	Exhaust + Air Parking

Why This LPG Bobtail?

Purpose-Built for Africa: Right-hand drive, high-temperature design, rugged construction—engineered specifically for African conditions.
Complete Safety Package: From emergency valves to fire extinguishers, safety is integrated throughout.
Ready to Work: Pump, meter, hose, reel, and filling head included—operational immediately.
Built to Last: Q345R steel, 10/12mm thickness, and 1mm corrosion allowance ensure long service life.
Factory Direct Support: Direct manufacturer support, genuine parts, and competitive pricing.

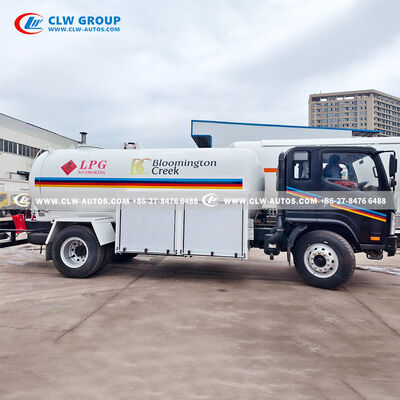

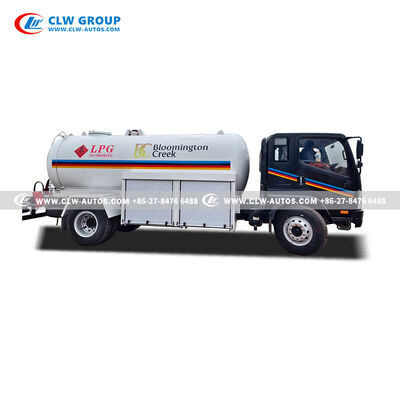

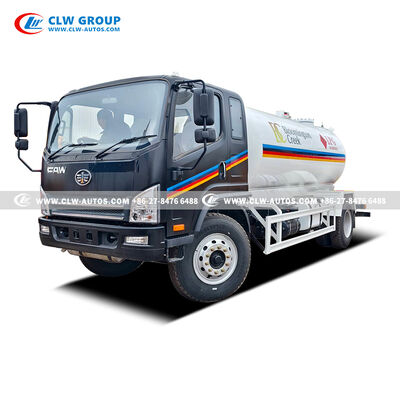

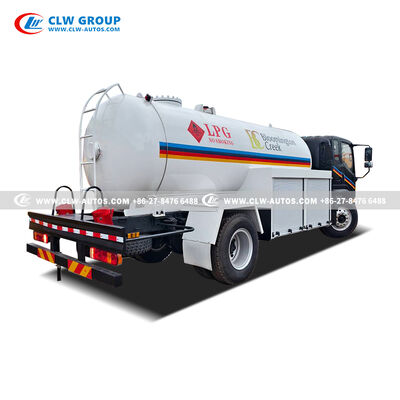

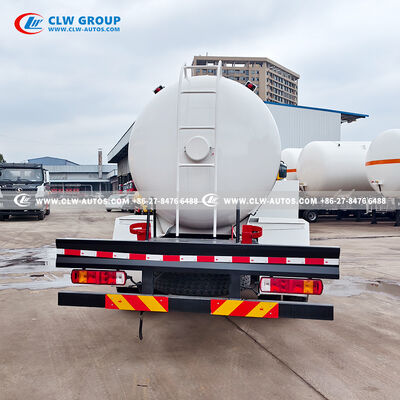

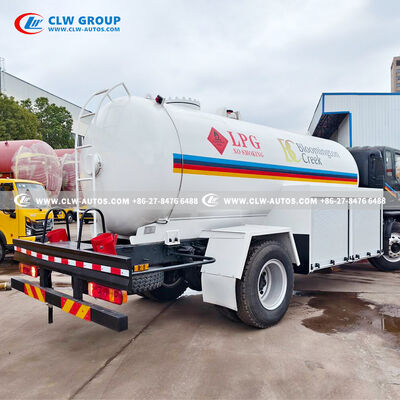

Product Gallery
