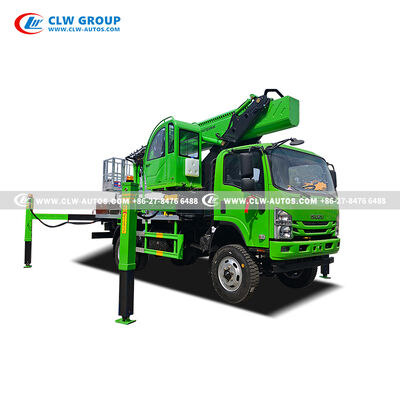

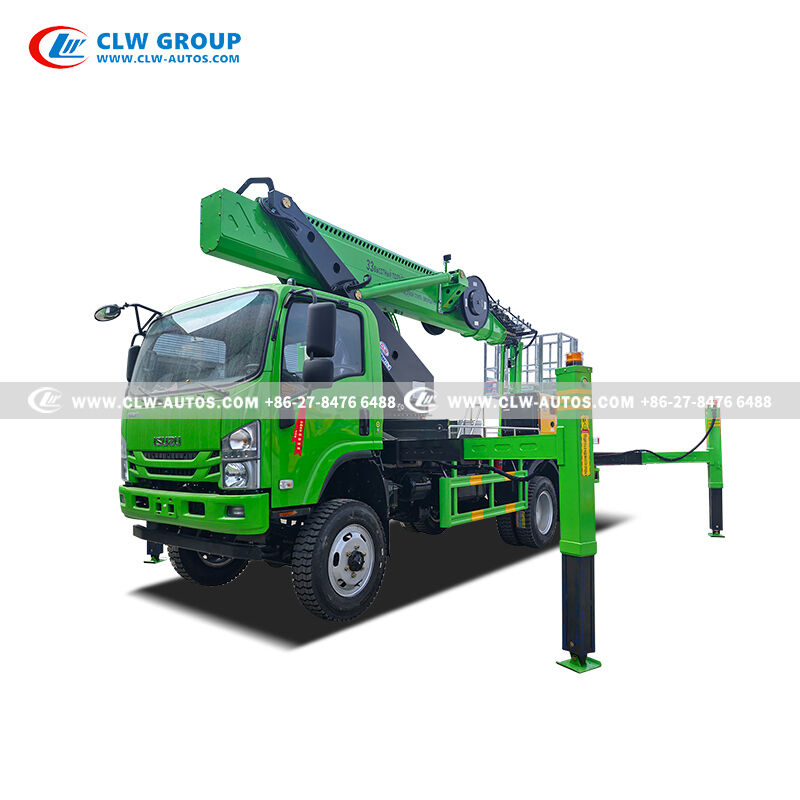

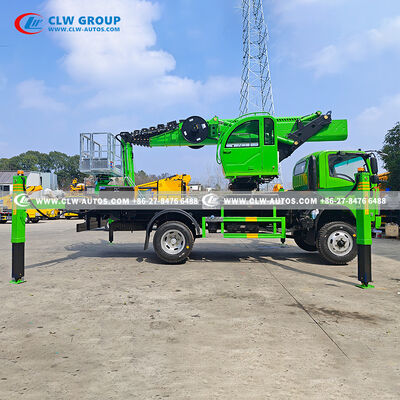

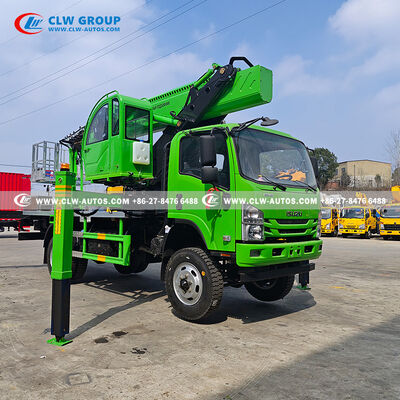

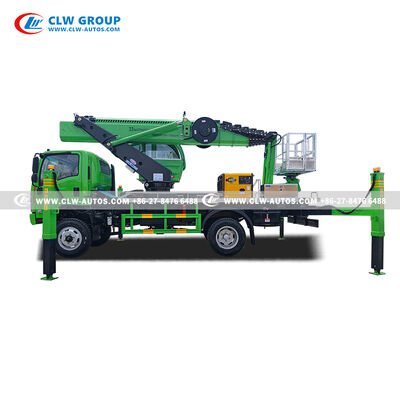

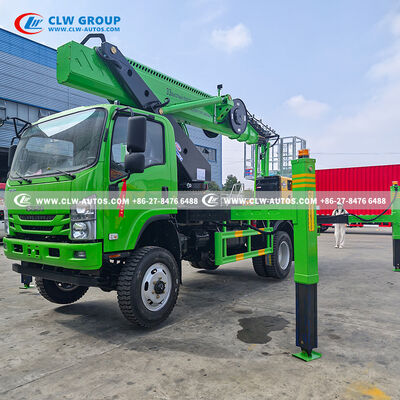

ISUZU 4×4 33-Meter Telescopic Cherry Picker Truck

Name: ISUZU 4×4 33-Meter Telescopic Cherry Picker Truck
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 19,885.00 USD
Availability: InStock

Large Image : ISUZU 4×4 33-Meter Telescopic Cherry Picker Truck

Product Details:

Contact Now

Detailed Product Description

Highlight:

ISUZU 4x4 telescopic cherry picker

33-meter aerial lift truck

telescopic boom truck with warranty

ISUZU 4*4 33-Meter Telescopic Cherry Picker Truck

Need to reach extreme heights in places where roads don't go? The ISUZU 4*4 Telescopic Boom Aerial Work Platform delivers 33 meters of straight-line reach with true off-road capability. Built on an ISUZU 4*4 chassis and equipped with an insulated dielectric bucket, this cherry picker is designed for utility crews, telecom technicians, and industrial teams who work where conventional aerial platforms can't follow.

What It Does

This vehicle is engineered for one purpose: safely transporting workers to extreme heights in challenging terrain. Whether maintaining power lines on mountain ridges or servicing cell towers deep in forests, the ISUZU 4*4 Telescopic Cherry Picker delivers reliable performance.

The telescopic boom extends straight up to 33 meters, providing direct vertical access without complex articulation systems. This design enables faster deployment, precise positioning, and the ability to work between obstacles efficiently.

Built on an ISUZU 4*4 chassis, this truck navigates mud, uneven ground, and remote access roads that would stop standard bucket trucks. The all-wheel drive system ensures mobility, reducing transit time and maximizing productive work hours.

The insulated dielectric bucket is engineered for live-line electrical work, allowing utility crews to safely maintain energized power lines. Combined with emergency descent controls and tilt sensors, this platform provides comprehensive safety protection even at maximum extension.

Key Strengths

33 Meters of Straight-Line Reach: Telescopic boom design delivers direct vertical access without complex articulation for faster deployment and precise positioning
True 4*4 Off-Road Capability: Built on ISUZU 4*4 chassis with all-wheel drive to access mountainous terrain, muddy construction zones, and remote forest locations
Insulated Bucket for Live-Line Work: Dielectrically insulated bucket enables safe maintenance of energized power lines for utility crews and rural electric cooperatives
Comprehensive Safety Systems: Emergency descent controls, tilt sensors, and load monitoring ensure safe operation and protect workers at height
Precision Controls for Detailed Work: Intuitive boom controls and clear visibility from the operator station enable accurate placement every time

Applications

Utility Line Maintenance: Direct vertical access to high-voltage transmission structures and distribution networks with insulated bucket for live-line maintenance
Telecommunications Infrastructure: Straight-line reach to cell towers, microwave links, and broadcast towers for antenna installation and equipment servicing
Remote & Off-Road Utility Access: Reaches power lines in mountainous terrain and rural distribution networks where standard bucket trucks cannot travel
Industrial & Infrastructure: Access to bridges, high-rise facades, chimneys, stacks, and wind turbines with 33-meter working height
Mining & Oil & Gas Operations: Elevated access in surface mines, remote well sites, and processing plants with 4*4 chassis for challenging conditions
Emergency Services: Rapid elevated access for high-angle rescue, post-disaster assessment, and infrastructure restoration with insulated safety features

Specifications

Item	Unit	Data
Chassis
Chassis Model		Isuzu KV100
Engine Model		4KH1CN6LB
Displacement	L	3
Power	kW / hp	88 / 120
Dimensions
Overall Length	mm	5995
Overall Width	mm	2090
Overall Height	mm	3160
Wheelbase	mm	3360
Front Overhang	mm	1130
Rear Overhang	mm	1565
Outrigger Span	mm	5800
Weights & Capacity
Curb Weight	kg	6200
Working Basket Payload	kg	200
Performance
Maximum Working Height	m	30
Maximum Working Range	m	23
Maximum Speed	km/h	90

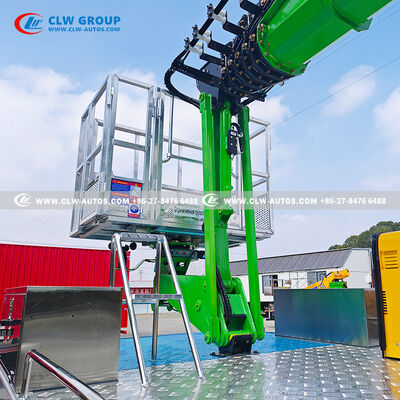

Working Basket
Basket Dimensions (LxWxH)	mm	1600 x 700 x 1000 (customizable)
Material		High-strength aluminum alloy
Rotation		360° continuous rotation
Arm & Boom
Arm Type		Six hexagonal working arms, synchronous telescopic

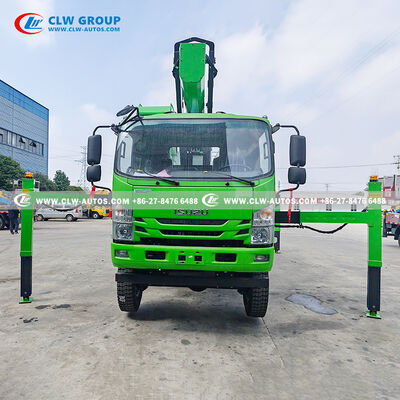

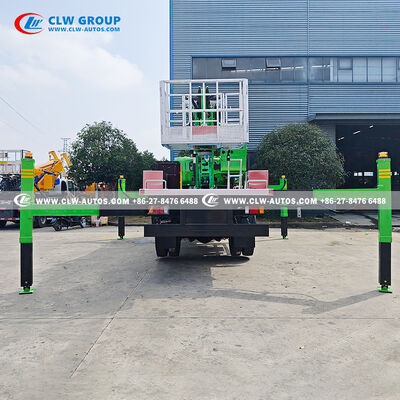

Outriggers
Type		Front V-shape, rear V-shape, double section, individually adjustable
Span	mm	5600

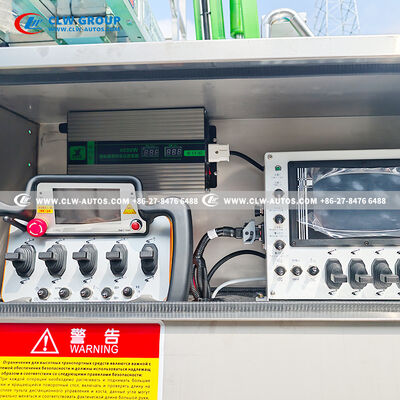

Control & Operation
Operation Modes		Work platform control / Ground remote control
Control System		Electro-hydraulic proportional control, stepless speed regulation
Power Take-Off		Mechanized operation
Safety & Features
Leveling System		Electro-hydraulic proportional
Horizontal Detection		Real-time vehicle level detection
Emergency System		Emergency electric pump (returns operator to ground if engine/main pump fail)
Night Safety		Engineering strobe lights, LED lighting
Fence & Walkway		Stainless steel fence, anti-slip walkway board
Tires
Tire Specification		7.00R16
