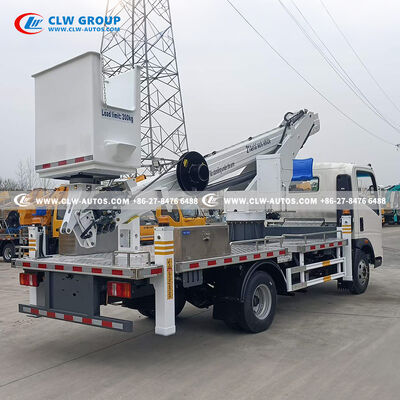

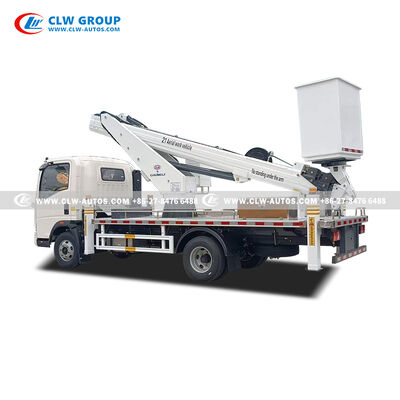

HOWO 21m Aerial Work Platform with 360-Degree Rotation and 200kg Load Capacity for High-Reach Applications

Name: HOWO 21m Aerial Work Platform with 360-Degree Rotation and 200kg Load Capacity for High-Reach Applications
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 19,885.00 USD
Availability: InStock

Large Image : HOWO 21m Aerial Work Platform with 360-Degree Rotation and 200kg Load Capacity for High-Reach Applications

Product Details:

Contact Now

Detailed Product Description

Highlight:

21m Working Height Aerial Work Platform

360-Degree Continuous Rotation Aerial Lift Truck

200kg Load Capacity Truck Mounted Boom Lift

HOWO 21m Aerial Work Platform – Stable, Safe, and Precise High-Reach Solution

Experience unparalleled stability and control with the HOWO 21m Aerial Work Vehicle, a comprehensive elevated access solution engineered for demanding municipal, construction, and utility applications. Combining a robust HOWO chassis with advanced hydraulic boom technology, a versatile outrigger system, and dual-control operation, this vehicle delivers exceptional reach, precise positioning, and comprehensive safety features that ensure operator confidence and productivity at heights up to 21 meters.

Product Overview

The HOWO 21m Aerial Work Vehicle is a purpose-built elevated access platform designed to meet the demanding requirements of professionals who work at height. From municipal maintenance crews to construction contractors, utility workers to event production teams, this vehicle provides a stable, safe, and efficient platform for a wide range of aerial work applications.

The vehicle's design integrates the proven durability of the HOWO chassis with advanced aerial work technology, creating a reliable solution that delivers consistent performance day after day.

Key Features & Benefits

Versatile HOWO Chassis with Multiple Configurations: Available in double row, single row, and one-and-a-half row cab configurations with both left-hand and right-hand drive options for international markets.
Exceptional Reach with Five-Section Synchronized Telescopic Boom: Maximum working height of 21 meters and working radius of 10+ meters with smooth, synchronized telescopic design for minimal wear.
Versatile Platform with Full Rotation Capability: 200kg load capacity, 360-degree continuous rotation, and 80-degree maximum working angle for precise positioning.
Advanced Outrigger System for Unmatched Stability: Four hydraulic telescopic outriggers (V-type front, H-type rear) with individual adjustment and simultaneous deployment capabilities.
ZYK Bus Control System with Dual-Operation Capability: Electro-hydraulic proportional control with turntable-mounted and wireless remote control options for optimal positioning.
Comprehensive Safety Systems for Operator Protection: Emergency manual pump, outrigger interlocks, automatic limit switches, stainless steel safety fence, and anti-skid stepping board.
360-Degree Continuous Slewing for Full Operational Coverage: Two-way continuous rotation providing complete access around the vehicle without repositioning.

Technical Specifications

Chassis Specifications

Cab Configuration	HOWO Double row cabin / Single row cabin / One and half row cabin with A/C
Drive Configuration	Right hand drive / Left hand drive
Engine	95-130hp Diesel
Emission Standard	Euro 3, 4, 5
Tire Options	7.00R16, 7.50R16
Wheelbase	3360mm, 3800mm
Transmission	6-speed manual (6 forwards, 1 reverse)

Superstructure Specifications

Working Height	21 Meters
Platform Height from Ground	≥12m
Maximum Operating Range	≥10m
Operating Height at Max Range	≥14.3m
Maximum Working Angle	80°
Rated Load Capacity	200kg
Boom Structure	Five-section working arm, synchronized telescopic
Slewing Capability	Two-way 360-degree continuous rotation

Outrigger System

Configuration	Front: V type, Rear: H type
Quantity	4 hydraulic telescopic legs
Control	Individually adjustable or linked
Front Leg Lateral Span	3685mm
Front Leg Inclination	120°
Rear Outrigger Lateral Span	3780mm

Applications

Municipal Services: Street lighting maintenance, traffic signal repair, signage installation, tree trimming, and infrastructure maintenance
Construction and Building Maintenance: Exterior building maintenance, façade repairs, window cleaning, painting, and construction applications
Utility Work: Electrical utility maintenance, power line inspection, telecommunications tower work, and utility applications
Industrial Maintenance: Facility maintenance, equipment servicing, warehouse rack access, and industrial applications
Event Production: Stage setup, lighting rigging, sound system installation, and event production applications

Standard Configuration

Operating height 15 meters, four hydraulic telescopic legs (eight cylinders total), front V and rear H type outriggers, emergency pump, 360-degree working bucket rotation, wireless remote control, and other factory standard configurations.

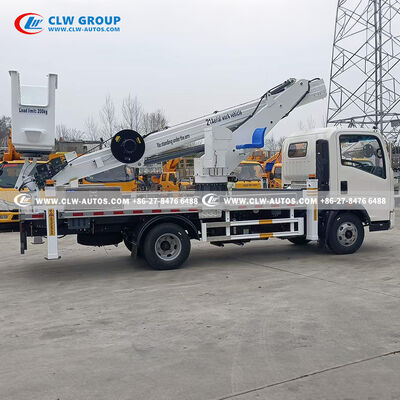

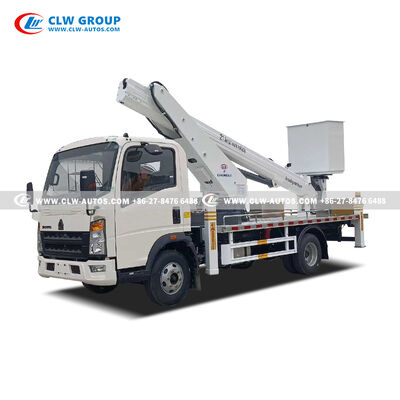

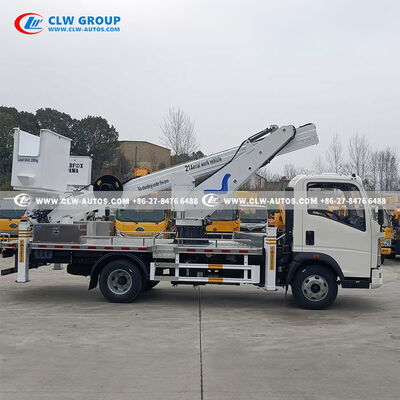

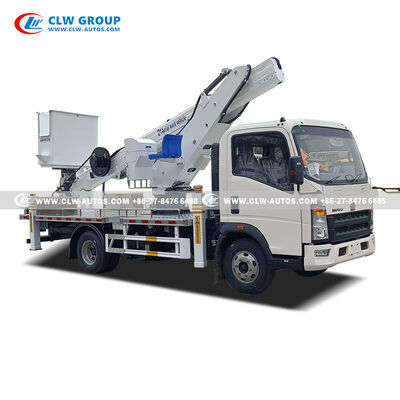

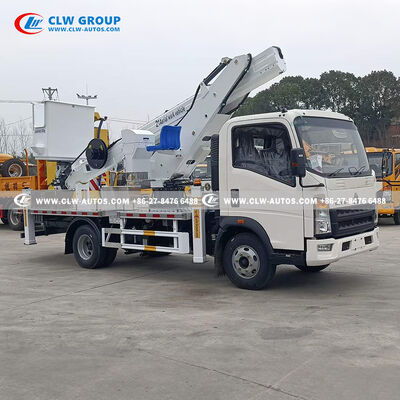

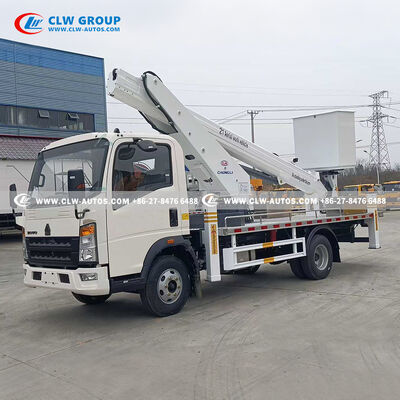

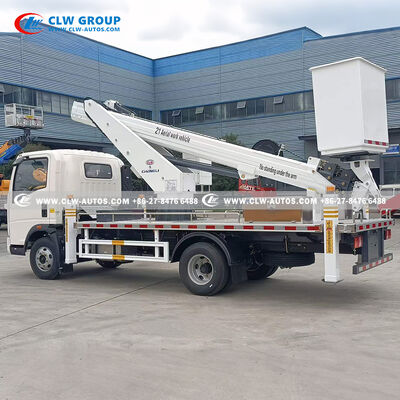

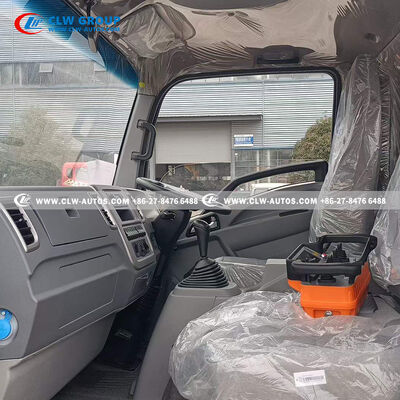

Product Images
