FAW JK6 Combined Jetting Truck with 310HP Weichai Engine High-Strength Carbon Steel Tank and One-Key Switching for Efficient Sanitation

Name: FAW JK6 Combined Jetting Truck with 310HP Weichai Engine High-Strength Carbon Steel Tank and One-Key Switching for Efficient Sanitation
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 44,830.00 USD
Availability: InStock

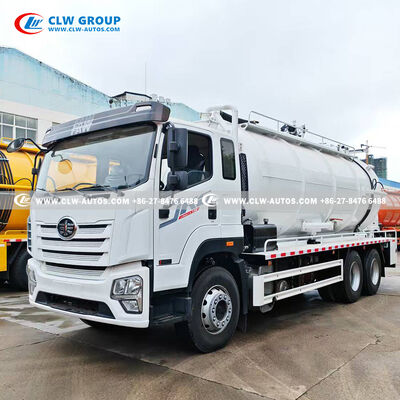

Large Image : FAW JK6 Combined Jetting Truck with 310HP Weichai Engine High-Strength Carbon Steel Tank and One-Key Switching for Efficient Sanitation

Product Details:

Contact Now

Detailed Product Description

Highlight:

310HP Weichai Engine Combined Jetting Truck

High-Strength Carbon Steel Tank Vacuum Suction Truck

One-Key Switching Dual-Function Sanitation Truck

FAW JK6 Combined Jetting & Vacuum Truck

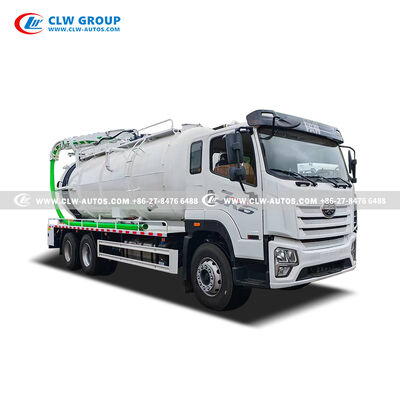

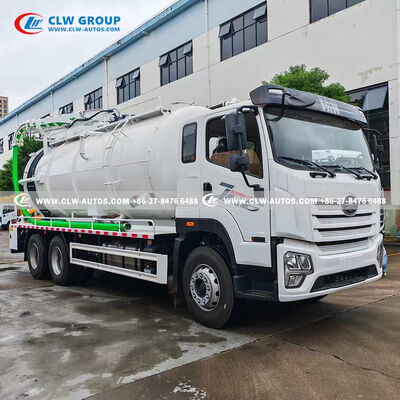

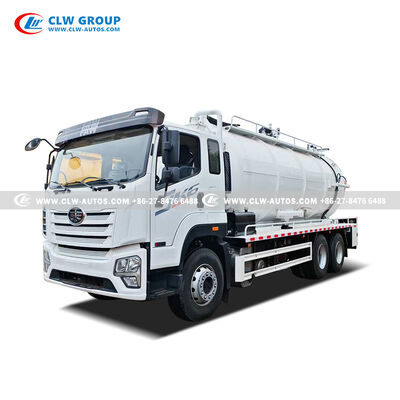

Transform your municipal sanitation operations with the FAW JK6 Combined Jetting Truck, a versatile dual-function vehicle that combines high-pressure pipeline cleaning with powerful vacuum extraction in a single, efficient platform. Built on the reliable FAW Jiefang JK6 chassis and powered by a 310HP Weichai engine, this truck delivers exceptional performance for sewer maintenance, industrial waste handling, and environmental emergency response.

Product Overview

The FAW JK6 Combined Jetting Truck is a purpose-built sanitation vehicle designed to meet the diverse needs of modern municipal environmental management. This dual-function platform combines high-pressure pipeline cleaning and vacuum waste extraction into a single, cost-effective solution that reduces fleet complexity, lowers operational costs, and maximizes productivity.

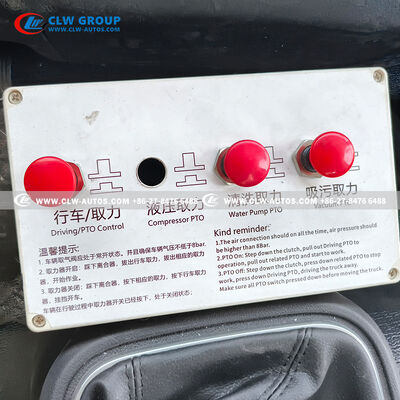

Built on the reliable FAW Jiefang JK6 chassis with a 310HP Weichai 6-cylinder diesel engine, this vehicle provides ample power for both highway travel and demanding PTO-driven systems. The one-key switching capability allows operators to seamlessly transition between suction, cleaning, and discharge modes, minimizing downtime and maximizing efficiency.

Key Features

Dual-Function Jetting and Vacuum System: Integrated system combines high-pressure water jetting for pipeline cleaning with powerful vacuum extraction for sewage and sludge removal. One-key switching between suction, cleaning, and discharge modes maximizes operational versatility.
FAW Jiefang JK6 Chassis with 310HP Weichai Engine: Built on the iconic FAW JK6 platform, renowned for reliability and cost-effective performance. The 310HP Weichai 6-cylinder diesel engine with 7.7L displacement delivers exceptional power for both driving and PTO-driven equipment.
Versatile Vacuum Pump Options: Available with Chinese brand pumps for reliable performance or international brands including Jurop (Italy), MORO KAISER (Italy), and HIBON (France) for enhanced performance in demanding applications.

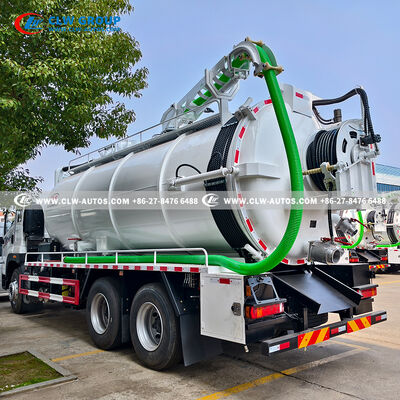

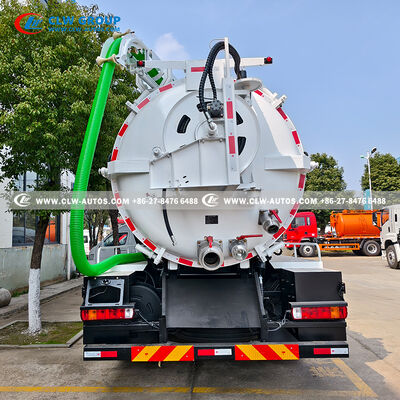

High-Strength Carbon Steel Tank: Constructed from high-strength carbon steel with durable anti-corrosion coating, designed to withstand corrosive sewage and industrial waste. Large capacity design reduces disposal frequency.

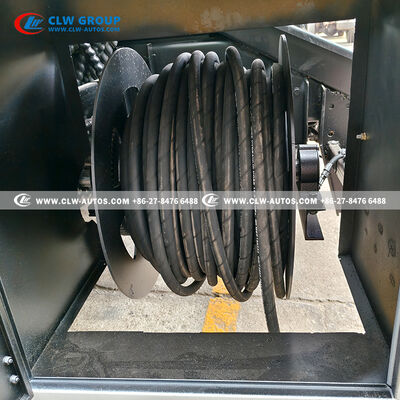

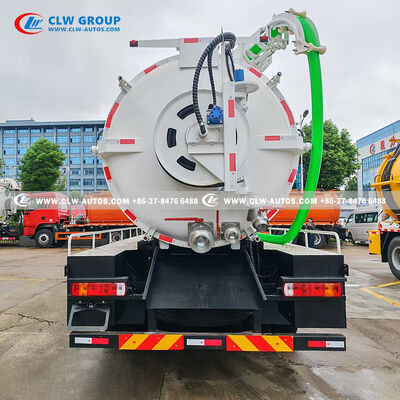

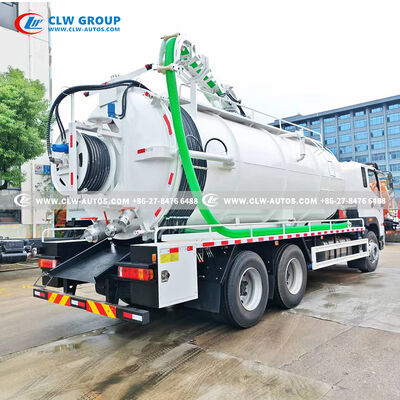

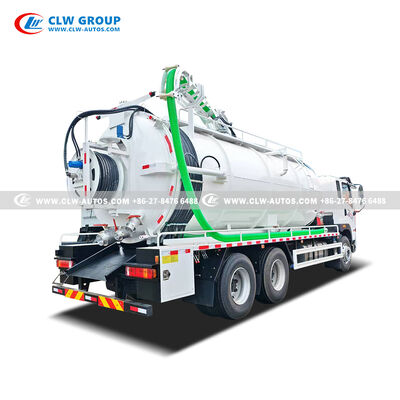

High-Pressure Jetting System: Rear-mounted high-pressure hose reel with spray gun for targeted cleaning operations. Delivers water at optimized pressures for effective pipeline cleaning and blockage removal.
Hydraulic System: Powers tank lifting, rear door operation, and hose reel retraction for effortless operation and reduced operator fatigue.

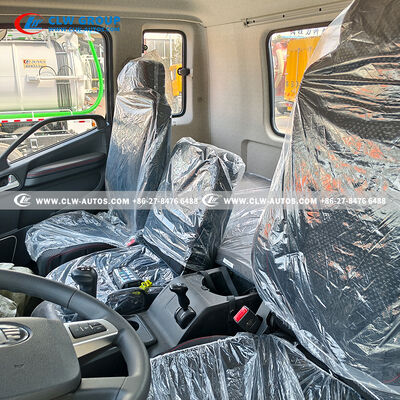

Ergonomic Cab Design: Jiefang JK6 cab features air conditioning, power windows, and multi-functional steering wheel for comfortable extended shifts.
Comprehensive Safety Systems: Includes anti-overflow alarm, vacuum pressure gauge, ABS braking system, and safety interlocks to prevent unsafe operation.

Applications

Municipal Sanitation: Urban sewer cleaning, manhole maintenance, septic tank servicing, rainwater pipeline cleaning
Industrial Waste Handling: Sludge extraction from factories, wastewater transport, chemical residue removal
Environmental Emergency Response: Rapid containment and removal of sewage leaks, oil spills, and pollution incidents
Agricultural Operations: Fecal waste removal from large-scale farms, irrigation pipeline maintenance
Public Utility Support: Pipeline inspection and maintenance for water supply, drainage, and gas utility systems

Technical Specifications

Specification	Details
Condition	New condition/Left hand drive/6x4
Chassis Brand	FAW
Curb Weight	12500 kg
Wheelbase	4600+1350 mm
Dimensions	955025003750 mm
Front Axle Load	5000 kg
Rear Axle Load	2*13000 kg
Max Driving Speed	90 km/h
Clutch	Reinforced diaphragm clutch
Brakes	Air brake
Steering	Power assistant

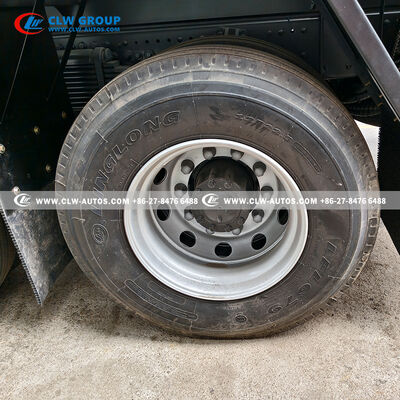

Tires	10 pcs with one spare tire, 12R22.5

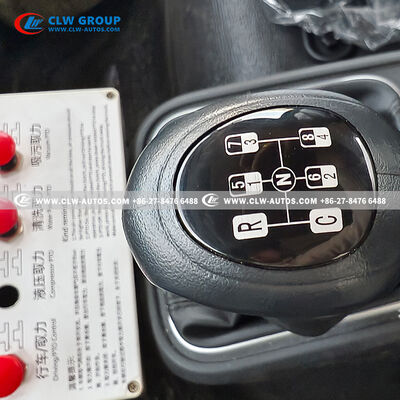

Transmission	Manual type, 9JSD135T, 9 Forwards and 1 Reverse
Engine Brand	Xichai
Engine Model	CA6DL1-31
Horsepower	310 HP
Emission Standard	Euro 2
Displacement	7.7 L
Cylinder Quantity	6 pcs
Fuel Tank	400L Aluminum alloy tank
Water Tank Capacity	4 m³ / 4,000 liters
Sewage Tank Capacity	8 m³ / 8,000 liters
Tank Material	Q235 carbon steel, 6 mm thickness
Vacuum Pump Model	2BEA204-0 (Chinese brand)
Max Vacuum	92%
Rate Flow Rate	1200 m³/h
High Pressure Pump	Pinfl UV36
Max Pressure	≥220 Bar / 22.0 MPa
Rate Flow	215 L/min
High Pressure Hose	60 meters, 19mm inner diameter
