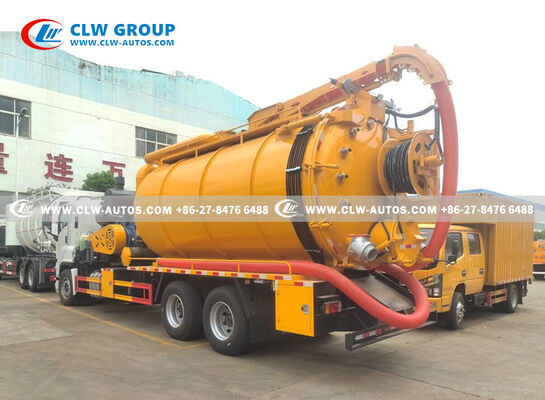

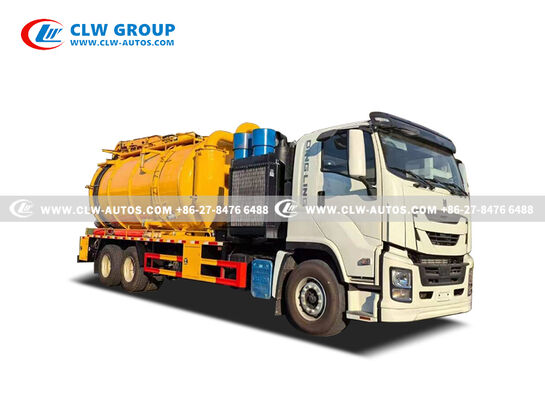

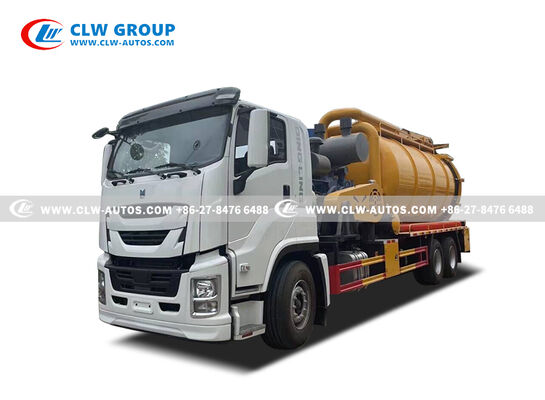

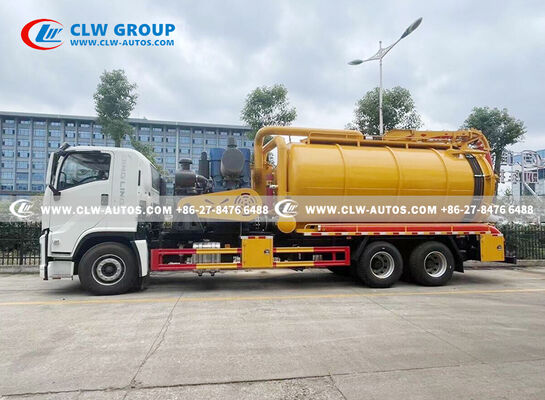

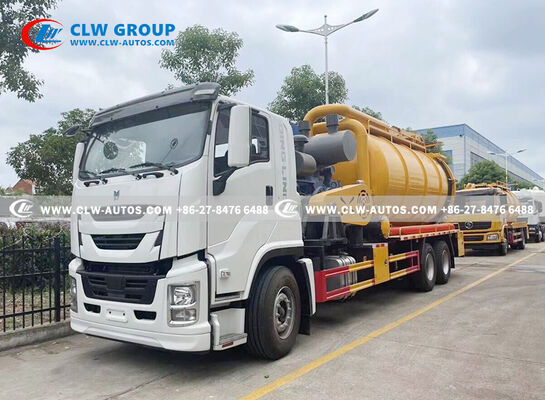

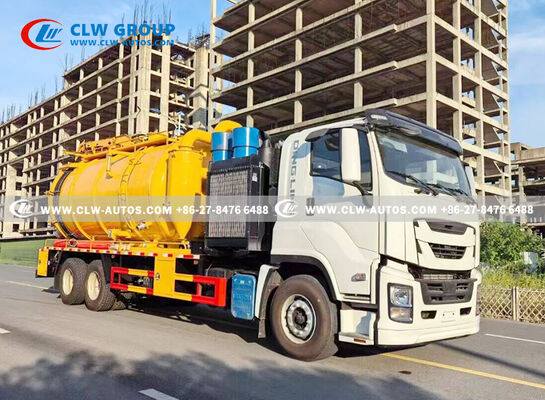

Isuzu 6x4 Sewer Cleaning Truck with 20 m³ Tank Capacity and Cold-Weather Resilience for Municipal Sanitation

Name: Isuzu 6x4 Sewer Cleaning Truck with 20 m³ Tank Capacity and Cold-Weather Resilience for Municipal Sanitation
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 44,830.00 USD
Availability: InStock

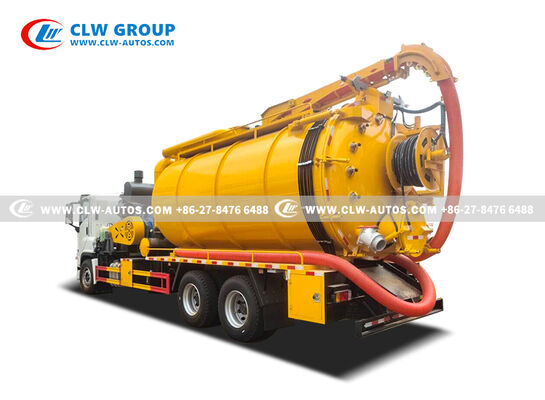

Large Image : Isuzu 6x4 Sewer Cleaning Truck with 20 m³ Tank Capacity and Cold-Weather Resilience for Municipal Sanitation

Product Details:

Contact Now

Detailed Product Description

Highlight:

20 m³ Tank Capacity Vacuum Suction Truck

Cold-Weather Resilience Sewer Cleaning Truck

6x4 Drive Configuration Municipal Sanitation Truck

Isuzu 6x4 Sewer Cleaning and Vacuum Truck – Winter-Ready Municipal Sanitation Solution

Designed specifically for Russia's demanding climate and infrastructure, the Isuzu 6x4 Sewer Cleaning and Vacuum Truck integrates high-power cleaning, deep suction capabilities, and cold-weather resilience into a single, efficient unit. Built on a reliable Isuzu rear double-bridge chassis with 6x4 drive, this truck ensures stability and performance in extreme environments.

Comprehensive Overview

This comprehensive sanitation solution addresses the unique challenges of maintaining urban infrastructure in extreme climate conditions. The vehicle incorporates specialized cold-weather adaptations that ensure reliable operation throughout harsh Russian winters. From the robust Isuzu chassis with 6x4 drive for superior traction to the integrated air-blow anti-freeze system that prevents water from freezing in pipelines, every component is designed for year-round functionality.

Key Features & Benefits

Cold-Weather Optimized High-Pressure System: Pinfu high-pressure pump delivers 350 L/min flow rate at 180 bar pressure with integrated air-blow anti-freeze feature for uninterrupted winter operations

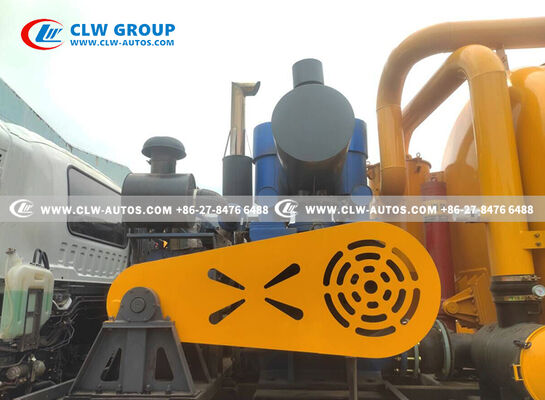

High-Efficiency Vacuum Suction: Dedicated Weifang 420 HP auxiliary engine powers 6000 L/H Roots blower with ≥8 meters suction depth and DN200 inlet/outlet pipes for large-particle waste handling
Substantial 20 m³ Tank Capacity: 6 m³ clean water tank and 14 m³ sewage tank constructed from 8mm thick carbon steel with anti-corrosion treatment and polished surfaces

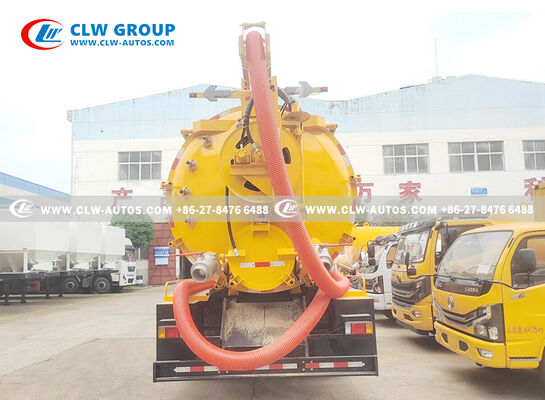

Hydraulic Liftable Tank: Features hydraulic lift capability with rear-opening door and 600mm small access panel for efficient waste discharge and simplified maintenance
Operator-Friendly Controls: Hydraulic crane with remote control, rear night working lights, arrow indicator lights, transparent inspection window, and pressure gauge for real-time monitoring
Reliable Isuzu 6x4 Chassis: Rear double-bridge design with 6HK1-TCG60 engine providing exceptional traction, stability, and fuel efficiency on snow-covered roads
Flexible Discharge Options: Dual-purpose water-sewage interconnection and DN150 self-draining outlet accommodate various disposal site requirements

Applications

Municipal sewer maintenance for storm drains, sewage pipelines, and pump stations in Russian cities
Industrial waste management handling toxic liquids, oil sludge, and chemical residues from factories and mines
Emergency response for floodwater, spill contamination, and accidental blockages in harsh climates
Public sanitation including river sludge removal and road cleaning in sub-zero temperatures

Technical Specifications

Chassis Configuration

Specification	Details
Condition	ISUZU, factory brand new 2025
Wheelbase	4350+1370 mm
Cab	ISUZU cabin, LHD, 1+2 seats, Electric AC, Cooling Fan
Engine	ISUZU 6KH1-TCG60, 300hp, Diesel, Euro 6 emission
Transmission	Manual type, FAST, 9 speeds forward and 2 reverse
Front axle loading	7,000kg
Rear axle loading	10,000kg
Tyre	295/80R22.5 18PR, 10pcs with one spare

Upper Structure Configuration

Component	Specification
Tank volume capacity	20 m³ (20,000 litres)
Clean water tank	6 m³ (6,000 litres)
Sewage tank	14 m³ (14,000 litres)
High-pressure jetting pump	PINFL 350L/min
Vacuum pump	Roots Blower (6000 L/H) + Weifang 420 HP
Horizontal suction range	50 m
Drive system	HP pump driven by Sandwich PTO, Vacuum pump driven by Side PTO
Filtration	Dual-stage filtration protects pump from debris
Anti-overflow system	Primary + cyclone secondary valve
Dumping mechanism	Front-mounted hydraulic lift
Accessories	Top platform, filter ports, ladder
Reel	Rear-mounted hydraulic reel, 160° hydraulic swing
Discharge	Side-mounted Ø100mm suction valve
Work platforms	Both extended side platforms + toolboxes
