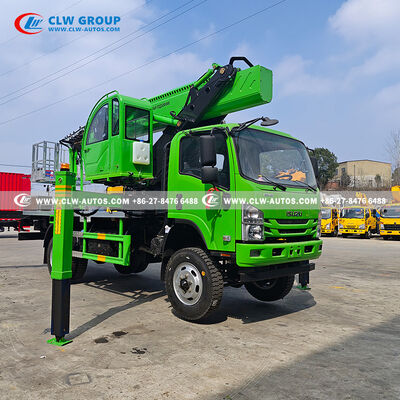

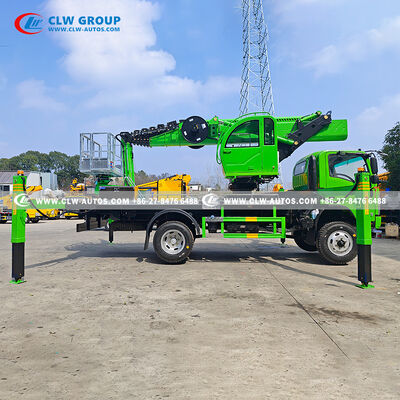

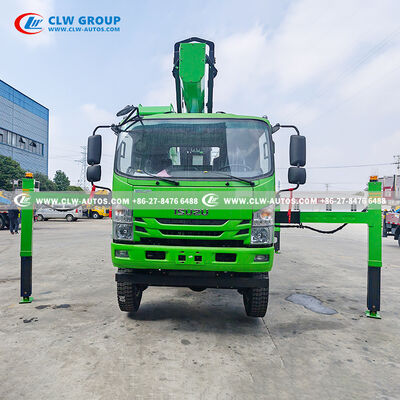

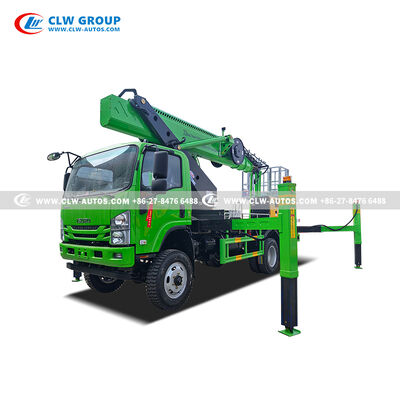

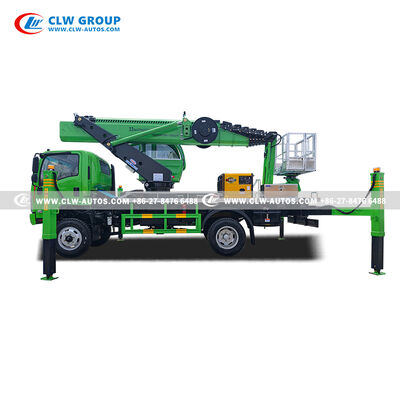

ISUZU 700P 4x4 AWD 190HP 33m Telescopic Boom Lift Truck Aerial Work Platform

Large Image : ISUZU 700P 4x4 AWD 190HP 33m Telescopic Boom Lift Truck Aerial Work Platform

Product Details:

Brand Name:	CLW GROUP
Model Number:	700P

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Highlight:

33m Telescopic Boom Aerial Lift Truck

190HP Engine Aerial Work Platform

4x4 AWD Telescopic Boom Lift Truck

ISUZU 700P AWD LHD 4x4 190HP 33m Telescopic Boom Lift Truck

Applications

Building facade construction and maintenance (painting, cleaning, installation)
Municipal engineering (street lamp maintenance, billboard installation, tree trimming)
Emergency rescue (high-altitude rescue, fire support)
Venue construction and equipment installation (stage, venue lighting, monitoring devices)
Power line maintenance and repair (cable erection, inspection, emergency repair)

Truck Chassis Specifications

Condition	Brand new/Left hand drive/4x4
Cab Type	700P Cab, single row cabin, 3 seats
Cab Features	Air conditioner, central locking
Chassis Brand	ISUZU 700P
Overall Dimensions	7750 × 2400 × 3300 mm
Gross Vehicle Weight	10550 kg
Curb Weight	10315 kg
Wheelbase	3815 mm
Front Axle Loading	4000 kg
Rear Axle Loading	7000 kg
Front/Rear Suspension	Front: 1130mm; Rear: 2470mm
Approach/Departure Angle	21°/10°
Rear Axle Speed Ratio	4.1
Max Driving Speed	124 km/h
Engine Model	4HK1-TCG61
Fuel Type	Diesel
Displacement	5.193 L
Power	139 kw
Horsepower	190 HP
Max Torque	507 N·m
Cylinder Number	In-line 4 cylinders
Emission Standard	Euro VI
Transmission Model	MLD-6Q
Number of Speeds	6 Forwards and 1 reverse
Operation	Manual type
Tire Specification	235/75R17.5 16PR
Tire Quantity	6 pcs with one spare
Fuel Tank	200L / Aluminum alloy material

Super Structure Specifications

Working Bucket

Max Work Height	33 meters
Dimensions	1200 × 750 × 1150 mm
Bucket Material	High-strength aluminum alloy, anti-slip floor
Rated Load Capacity	200 kg
Operator Capacity	2 People
Rotation Angle	360° Hydraulic Rotation
Hoardings and Walkways	Aluminum plate

Telescopic Boom

Number of Boom Sections	1 main boom + 5 telescopic boom
Max Horizontal Reach	Approx. 19 m
Boom Material	High-strength Steel
Driving Method	Hydraulic drive
Boom Lift Time (Full Extend)	Approx. 150 s

Outtriggers

Outtriggers Type	Front V + rear H outrigger (Four Independent Outriggers)
Outtriggers Span	Front 5500mm Back 6200mm
Adjustment	Adjusted separately, or controlled in a coordinated manner
Supporting Leg Control Mode	Manual hydraulic operation
Hydraulic Lock	Two-way hydraulic lock for four legs
Strobe Light on Legs	Yellow lights

Safety & Control Features

Automatic Hydraulic Leveling

The linkage mechanism composed of the main cylinder at the boom base and the slave cylinder under the basket ensures that the work platform remains horizontal during the lifting and lowering of the boom.
