In the rapidly growing energy market of East Africa, establishing a reliable and safe Liquefied Petroleum Gas (LPG) distribution network is crucial. For entrepreneurs in Uganda looking to capitalize on the increasing demand for clean cooking fuel, investing in an LPG Skid Mounted Filling Station for Uganda is the fastest and most efficient solution. At CLW Group, we do not just sell equipment; we provide a complete, ready-to-operate gas bottling plant solution.
While many suppliers compete on price, we compete on safety, durability, and functionality. We are proud that our skid-mounted LPG station is not the cheapest on the market, but rather the safest and most robust option for the challenging Ugandan environment.
Key Product Highlights

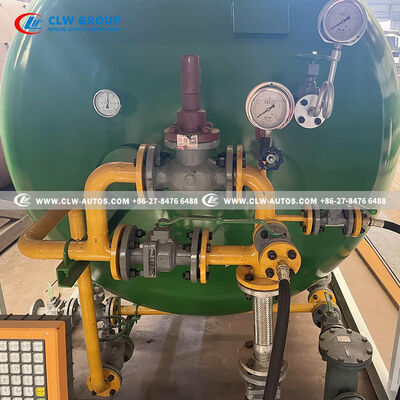

- Design: Safest pipeline system with safety valves and shock-proof discharge
- Filling Capacity: Equipped with 2 sets of 2026 New Type High-Quality LPG Filling Scales
- Core Safety: Integrated water sprinkler system, gas leakage detector, and EX-proof LED lamps
- Tank Volume: Available in 20CBM and 25CBM (20,000 Liters - 25,000 Liters)
- Application: Cylinder filling (bottling) and bobtail offloading
- Material: Carbon Steel Q345R pressure vessel with 10mm shell thickness
Why This LPG Skid Station is the Best Choice for Uganda
The Ugandan market requires equipment that can withstand high temperatures, rough handling, and continuous operation. Our LPG filling station is engineered specifically to meet these demands.
The Safest Design for Peace of Mind
Safety is our non-negotiable priority. We integrate features that other manufacturers often list as "optional" or ignore entirely.
- Active Fire Protection: An overhead water sprinkler system is pre-installed, allowing for immediate cooling in case of temperature rise
- Leak Detection: A sensitive gas leakage detector with an English panel ensures any fugitive emissions are detected instantly, triggering alarms

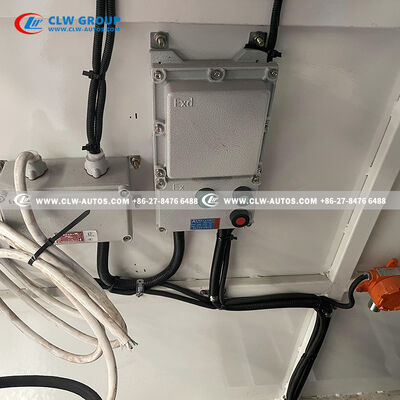

- Explosion Proofing: All electrical components, including the EX-proof LED lamp, are rated for hazardous areas, eliminating ignition risks
- Secure Infrastructure: The skid features a lockable filling room with a rolling door to protect your high-quality filling scales and equipment from theft and weather damage
Durable Construction for Long-Term ROI
We focus on longevity to ensure your investment pays off for years.
- Pump Protection: We have installed a shock-proof discharging pipeline at the inlet and outlet of the pump. This absorbs vibration and hydraulic shocks, significantly extending the pump's lifetime
- Impurity Defense: A strainer valve before the pump inlet prevents rust or impurities from entering the pump, ensuring smooth operation and reducing maintenance costs
- Heavy-Duty Steel: Built with Q345R carbon steel, featuring a 10mm shell thickness and 12mm end plates, this tank is built to last

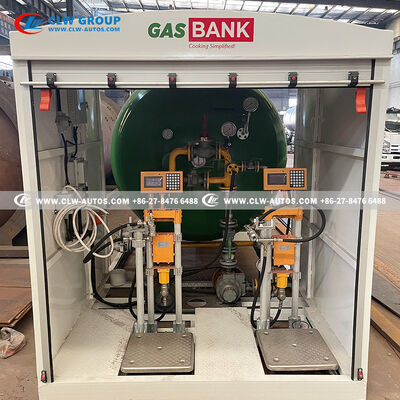

High-Quality Filling Components
The filling process is handled by our superior equipment.

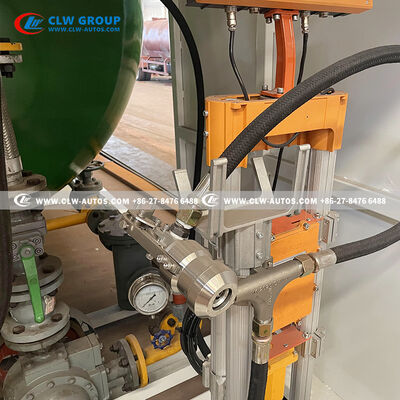

- 2026 New Type LPG Filling Scales: We insist on using top-quality filling scales. While we have access to cheaper scale types, we do not recommend them for serious commercial operations. High-quality scales ensure accuracy, speed, and durability
- Dual Nozzle Dispenser: The station is configured for efficient cylinder filling, allowing operators to work quickly during peak hours
Technical Specifications (Uganda Standard)
Understanding the technical build is vital for regulatory approval. Here are the critical parameters for our LPG skid station:
| Parameter |
Specification |
| Tank Volume |
20 CBM / 25 CBM (Standard for Uganda imports) |
| Filling Capacity |
Up to 10,000 kg |
| Dimensions (LxWxH) |
11400 x 2000 x 2310 mm |
| Design Pressure |
1.71 MPa |
| Hydraulic Test Pressure |
2.14 Mpa |
| Medium |
LPG (Propane/Butane Mix) |
| Key Interfaces |
DN50 Discharge Pipe, DN50 Inflow Pipe, DN80 Tank Safety Valve |
| Manufacturing Standard |
Compliant with Chinese Pressure Vessel Code (ASME standards available upon request) |
LPG Tank Dimensions
| Parameter |
Specification |
| Volume of Tank |
20CBM 25CBM |
| Filling Weight |
10,000 kg |
| Tank Weight |
4820 kg |
| Thickness of Shell (mm) |
10 mm |
| Thickness of End plate (mm) |
12 mm |
| Tank Diameter (mm) |
1800 mm |
| External Dimensions of skid station (mm) (length x width x height) |
11400*2000*2310 mm |
| Material of Tank |
Carbon Steel Q345R |
| Filling Medium |
Liquefied Petroleum Gas (Propane) |
| Design Pressure |
1.71 MPa |
| Hydraulic testing pressure |
2.14 Mpa |
| Corrosion Allowance |
1 mm |
| Medium Density |
420 kg/cbm (50 ℃) |
Application Scenarios in Uganda
This skid-mounted unit is a multi-functional asset for your gas business:
- Cylinder Filling (Bottling): The primary use. Transfer LPG from the storage tank into domestic and commercial cylinders via the high-quality scales and dispenser
- Bobtail Offloading: Use the powerful 5.5KW pump to transfer gas from a transport truck (bobtail) directly into the skid tank for storage
- Remote Retail Points: Because it is skid-mounted, the entire unit can be transported and installed in remote upcountry locations with minimal civil work
Why Choose CLW Group as Your Supplier?
Selecting the right manufacturer is as important as selecting the right machine. Here is why CLW Group is the preferred partner for LPG filling stations in Uganda:
- We Don't Cut Corners: Our motto is simple: We are not proud that our skid station is the cheapest, but that it is the safest. We refuse to compromise on wall thickness, valve quality, or safety systems to win a bid
- Transparency in Options: If you request a lower budget, we are honest. We offer alternative, cheaper filling scales, but we will always advise you on the performance trade-off. We believe in informed buying
- Comprehensive Integration: We are a one-stop shop. We provide the tank, the pump, the high-quality scales, the piping, and the safety system all in one unit. This ensures compatibility and saves you the hassle of sourcing parts separately
- Global Export Experience: We understand the logistics of shipping heavy equipment to Mombasa and trucking to Kampala. Our designs consider the shipping dimensions and handling requirements
- After-Sales Support: We provide detailed manuals, English panel displays, and responsive technical support to ensure your team in Uganda can operate and maintain the station effectively

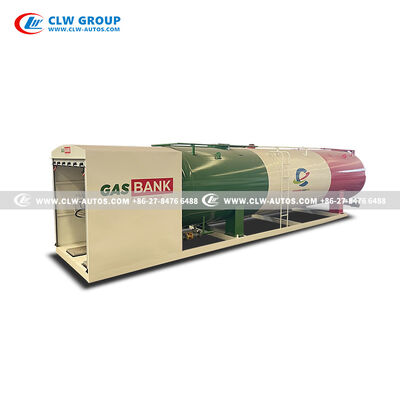

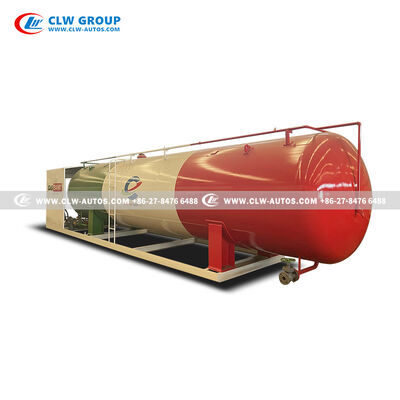

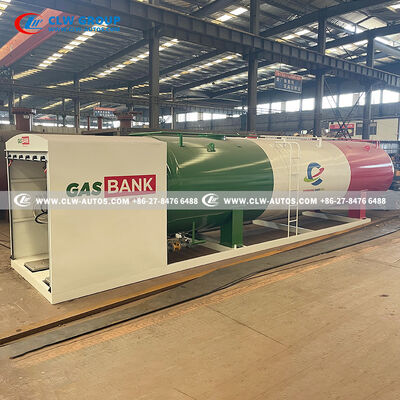

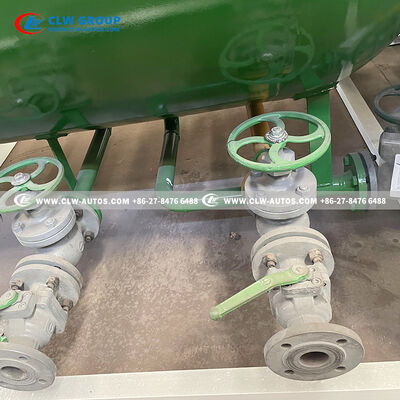

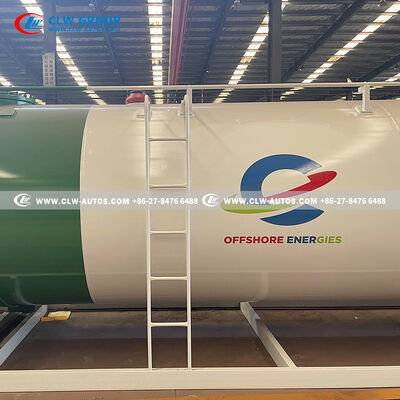

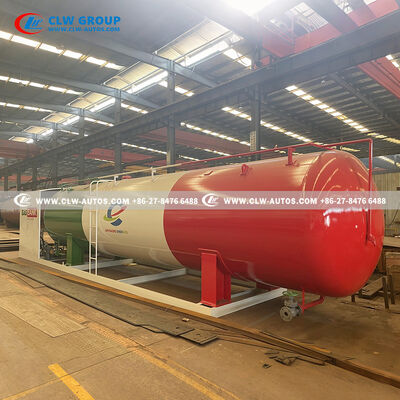

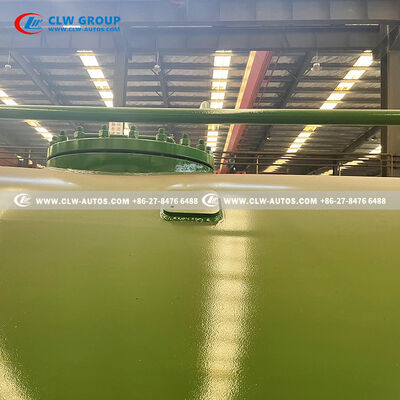

Product Images
