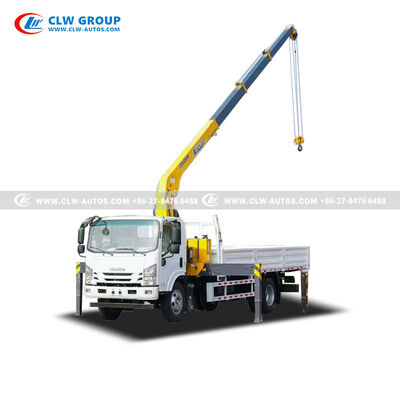

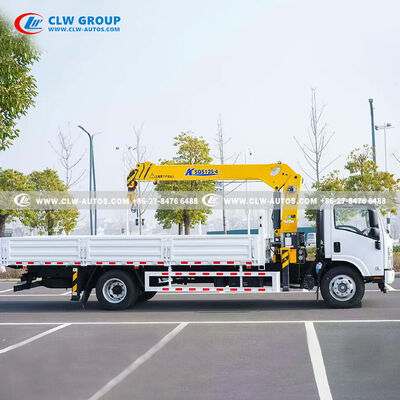

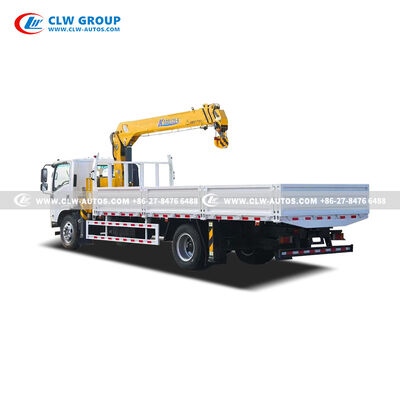

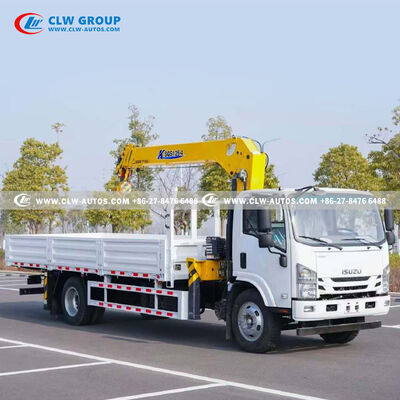

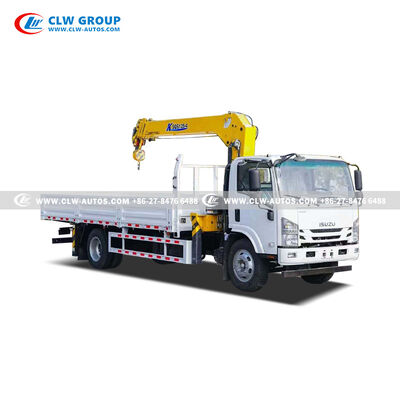

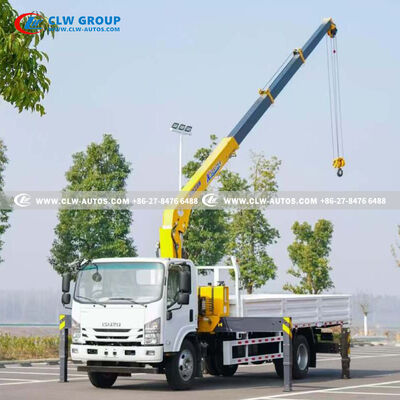

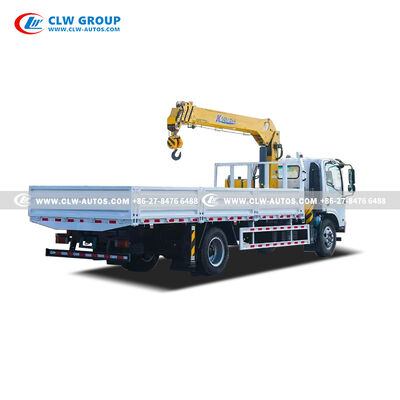

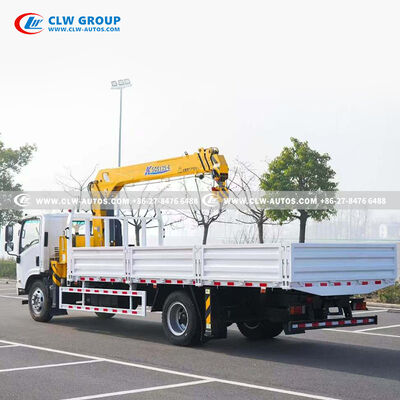

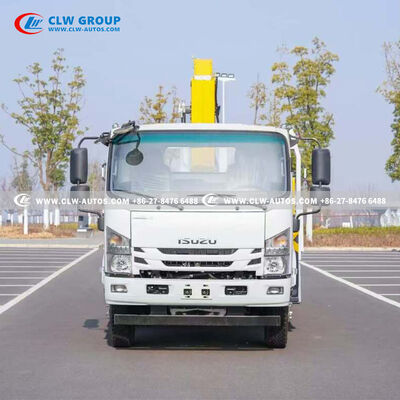

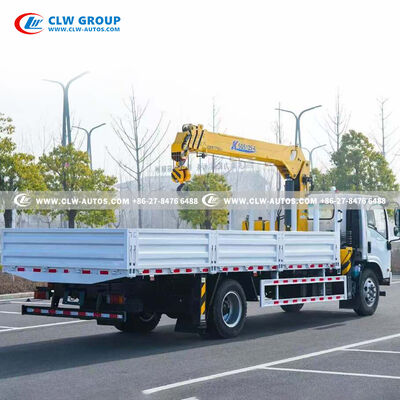

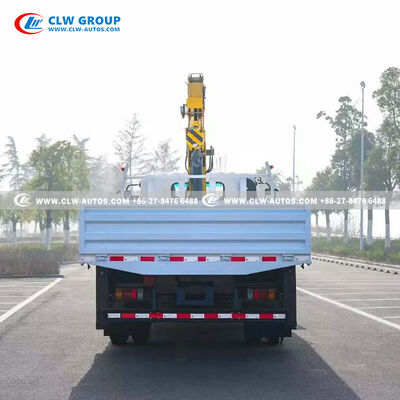

Isuzu 700P 5-Ton Crane Truck with 5,000kg Lifting Capacity, 360° Rotation, and 10.5m Lifting Height for Construction and Logistics

The Isuzu 700P 5-Ton Crane Truck is a versatile material handling vehicle that combines a reliable Isuzu 4x2 chassis with a powerful 5,000kg hydraulic crane. Featuring 360° continuous rotation, 8.5m maximum extension, and 10.5m lifting height, this truck is ideal for construction sites, logistics centers, and industrial facilities. Powered by a 190hp Euro 5 Isuzu engine, it delivers efficient, reliable performance for loading, unloading, and positioning heavy materials.

The Isuzu 700P Crane Truck is a purpose-built vehicle designed for applications requiring both cargo transport and on-site lifting capability. Built on the proven Isuzu 700P 4x2 chassis with 4,175mm wheelbase, this vehicle features a 190hp Euro 5 diesel engine (4HK1-TC51, 5,190ml displacement) and a 6-forward, 1-reverse transmission. The truck-mounted hydraulic crane has a maximum lifting capacity of 5,000kg and a lifting moment of 12.5 t*m, with 360° continuous rotation for flexible operation.

• Isuzu 700P Reliable Chassis: 4x2, LHD, A/C, 2 seats. Wheelbase 4,175mm. GVW 10,500kg, tare 6,500kg. 235/75R17.5 tires (6+1 spare)
• 190hp Euro 5 Engine: 4HK1-TC51, 5,190ml displacement. 6-forward, 1-reverse transmission. Meets Euro 5 emission standards
• 5,000kg Hydraulic Crane: Max lifting capacity 5,000kg (5 tons). Lifting moment 12.5 t*m. 360° continuous rotation
• Extended Reach: Max extension 8,500mm (8.5m). Max lifting height 10,500mm (10.5m). Max elevation 75°
• Efficient Hydraulic System: 18kW recommended power. 32 L/min max oil flow. 20 MPa max pressure. 90L oil tank capacity
• Durable Crane Construction: Crane weight 2,074kg. Installation space 900mm. Designed for long-term reliability

This 5-ton crane truck is ideally suited for construction material loading and unloading, logistics center cargo handling, industrial equipment positioning, warehouse and distribution operations, and utility infrastructure projects requiring both transport and on-site lifting capability.
