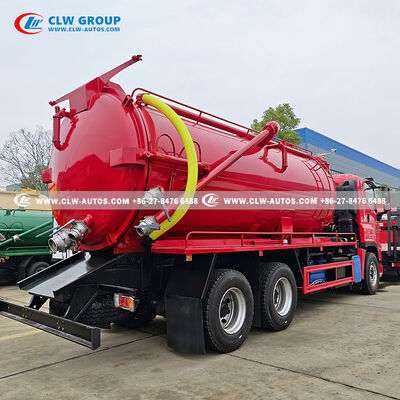

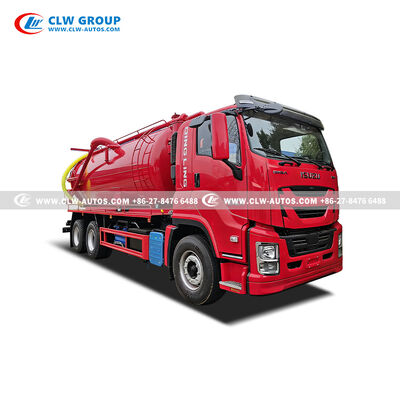

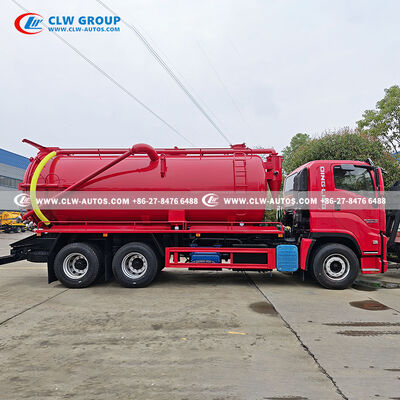

ISUZU 6x4 Sewage Suction Truck with 15-20m³ Tank and Water Cycle Suction Pump for Efficient Waste Management

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

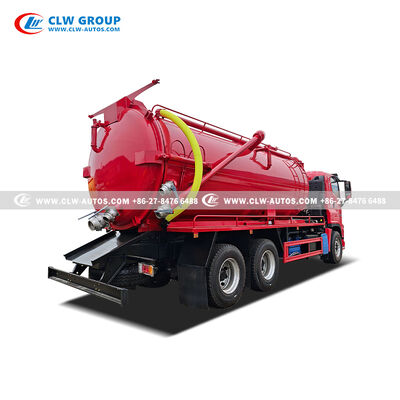

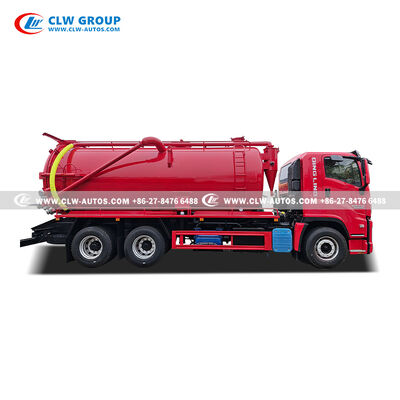

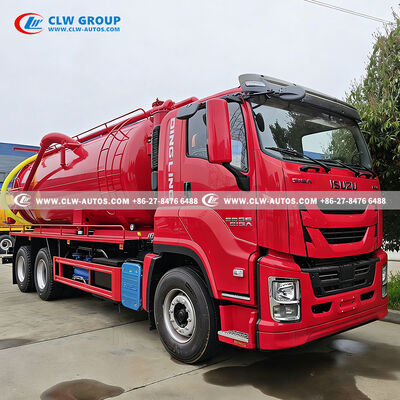

ISUZU 6x4 Sewage Suction Truck with 15-20m³ Tank and Water Cycle Suction Pump for Efficient Waste Management

Detailed Product Description
Tank Volume: 15-20m³

ISUZU 6x4 15-20m³ Sewage Suction Truck
Meet your municipal and industrial waste management needs with the ISUZU 6x4 Sewage Suction Truck, a high-performance sanitation vehicle designed for demanding sewage and sludge treatment applications. Featuring a 15-20m³ carbon steel tank, ISUZU 6x4 chassis with 500,000 km engine reliability, water cycle suction pump, and comprehensive safety systems, this truck delivers powerful suction, stable operation, and exceptional durability. The full red stylish appearance meets public service vehicle requirements in the Philippines, Saudi Arabia, Hong Kong, and other regions.
Overview
The ISUZU 6x4 Sewage Suction Truck is a professional-grade sanitation vehicle that has won high market demand in the Philippines, Saudi Arabia, Hong Kong, and other regions, becoming the preferred choice for municipal departments, environmental companies, and engineering contractors. Built on the world-renowned ISUZU 6x4 chassis with a high-performance diesel engine, this vehicle integrates powerful suction, efficient cleaning, and stable operation specifically for sewage and sludge treatment in urban and industrial areas. The 15-20 cubic meter carbon steel tank is professionally welded and sealed for excellent airtightness, effectively preventing leakage and secondary pollution. The water cycle suction pump provides high suction power with effective cooling, quickly extracting large volumes of sewage and sludge from septic tanks, manholes, and drainage systems. The full red body is not only eye-catching and majestic but also meets the visual needs of public service vehicles in many regions. With its cost-effective design, low operation costs, and easy maintenance, this truck is your reliable assistant in environmental protection work.
Key Features
  • Powerful & Reliable ISUZU 6x4 Chassis: The ISUZU 6x4 drive chassis is equipped with a high-performance diesel engine featuring strong power, low fuel consumption, and long service life. The engine provides stable power output even under full load, ensuring efficient operation of the vacuum suction system. ISUZU engines are famous for their reliability, with no major overhaul required within 500,000 km, significantly reducing maintenance costs and downtime.

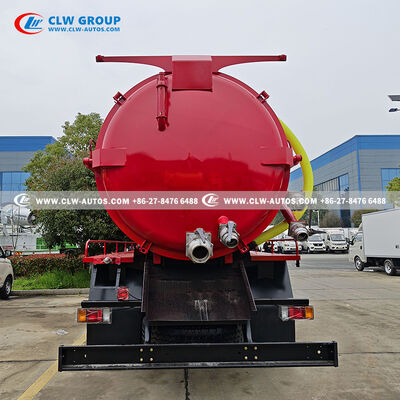

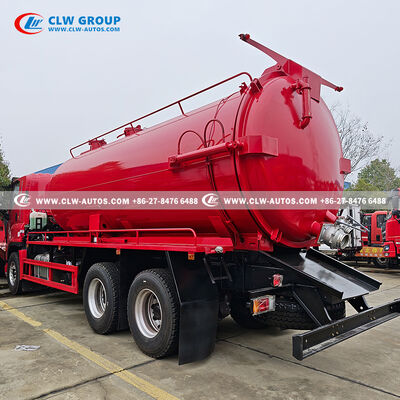

  • Large-Capacity & Durable 15-20m³ Tank: The tank is made of high-quality carbon steel with anti-corrosion, anti-impact, and pressure-resistant properties, capable of withstanding long-term erosion from sewage and sludge. Professional welding and sealing ensure excellent airtightness, effectively preventing leakage and secondary pollution. The reasonable tank design ensures uniform load distribution for stable driving.

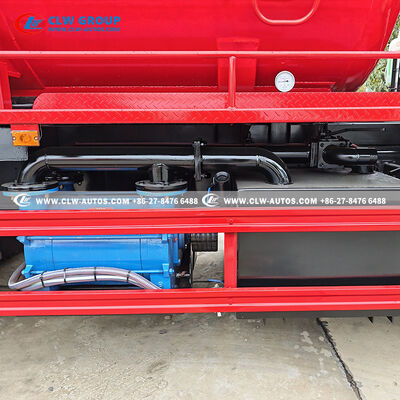

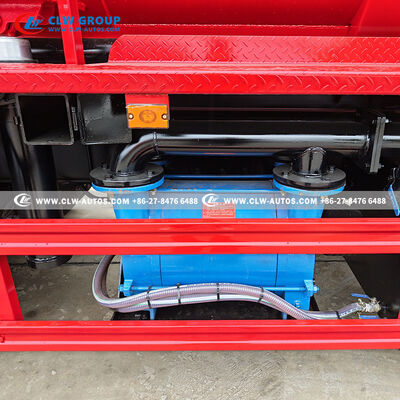

  • Water Cycle Sewage Suction Pump: The water cycle pump delivers high suction power with effective cooling for efficient extraction of sewage, sludge, and other impurities. It has a long service life and can quickly extract large volumes from septic tanks, manholes, and drainage systems, significantly improving work efficiency.
  • Stylish & Practical Full Red Appearance: The entire body is painted with high-quality full red paint that is bright, fade-resistant, and majestic in appearance. It conforms to the aesthetic preferences of public service vehicles in the Philippines, Saudi Arabia, Hong Kong, and other regions, while also being easily identifiable at work sites for improved safety.

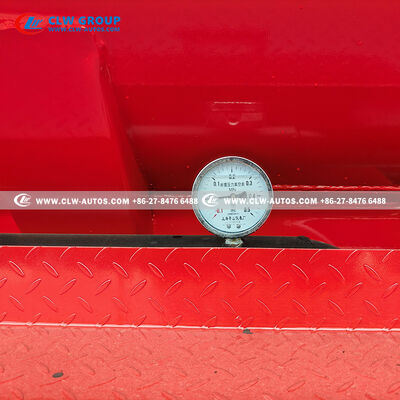

  • Vacuum Pressure Gauge for Real-Time Monitoring: The vacuum pressure gauge displays the internal pressure of the tank in real time, allowing operators to monitor the suction system status at any time. This feature prevents overpressure damage to the tank and ensures safe operation.
  • Comprehensive Safety Devices: The anti-overflow valve and pressure relief valve effectively protect the tank and suction system, preventing safety accidents caused by excessive pressure.

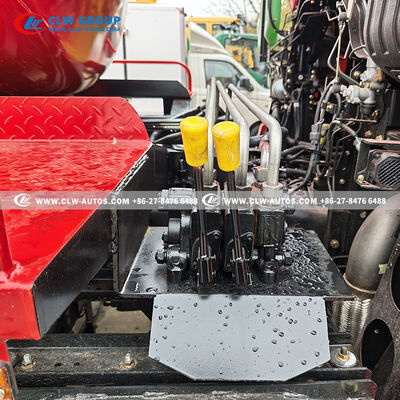

  • Remote Control Lever for Flexible Operation: The remote control lever allows operators to control suction and discharge from a safe distance, reducing labor intensity and improving operational safety.
  • Cost-Effective with Low Operation Costs: The vehicle uses mature, reliable mechanical solutions that avoid complex systems which could increase maintenance costs. The ISUZU engine delivers strong torque at low speeds, ideal for the frequent start-stop and idling conditions of sewage suction trucks, effectively reducing fuel consumption. Daily maintenance can be completed efficiently, minimizing downtime and operation costs.
Applications
  • Municipal Road Maintenance: Cleaning and maintaining urban sewer systems and drainage networks
  • Community Environmental Improvement: Servicing septic tanks and improving community sanitation
  • Industrial Waste Treatment: Managing industrial sludge and liquid waste from factories
  • Drainage System Cleaning: Regular maintenance of manholes and drainage infrastructure
  • Environmental Protection Operations: Supporting government and private environmental initiatives
Technical Specifications
Chassis Part
Condition ISUZU, factory brand new 2025
Wheelbase 4350+1370 mm
Cab ISUZU cabin, LHD, 1+2 seats, Electric AC, Cooling Fan
Engine ISUZU engine, 6KH1-TCG60
Horsepower 300hp
Fuel type Diesel
Emission standard Euro 6
Transmission Manual type, FAST, 9 speeds forward and 2 reverse
Front axle loading 7,000kg
Rear axle loading 10,000kg

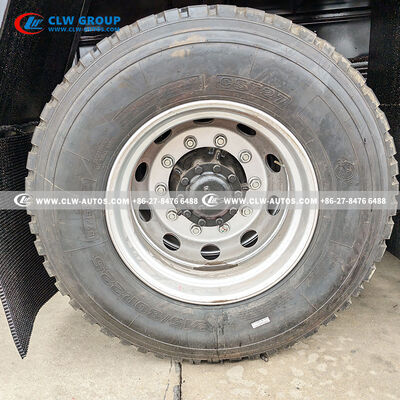

Tyre 295/80R22.5 18PR, 10pcs with one spare
Stainless Steel Upperstructure Configuration
Tank dimensions Tank volume capacity: 20 m3, 20,000 litres
Jetting system High-pressure jetting pump model: PINFL 350L/min
Vacuum system Vacuum pump model: Chinese brand Weilong Vacuum pump
Vacuum speed 68L/S at 800 rpm
Drive system HP pump driven by Sandwich PTO, Vacuum pump driven by Side PTO
Filtration Dual-stage filtration protects pump from debris

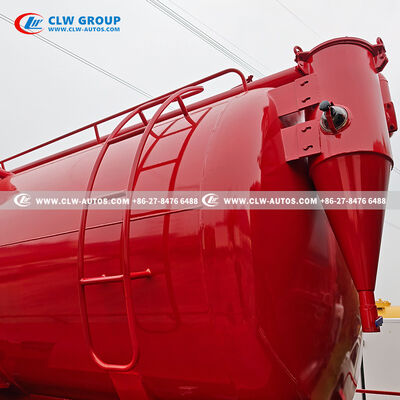

Tank assembly Anti-overflow system: Primary+ cyclone secondary valve
Dumping mechanism Front-mounted hydraulic lift
Accessories Top platform, filter ports, ladder
Reel Rear-mounted hydraulic reel, 160° hydraulic swing (deploy/ retract/ lateral positioning)
Discharge Side-mounted Ø100mm suction valve
Work platforms Both extended side platforms + toolboxs
Remarks Color is optional, LOGO painting as per customer request
