Dongfeng 6x4 10,000L Carbon Steel Tank Sewage Suction Truck with 375HP Diesel Engine & High-Pressure Washing System

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 6x4 10,000L Carbon Steel Tank Sewage Suction Truck with 375HP Diesel Engine & High-Pressure Washing System

Detailed Product Description
Chassis Type: Dongfeng 6x4 LHD Overall Dimensions: 9,600 × 2,500 × 3,690 Mm
Wheelbase: 4,350 + 1,350 Mm GVW: 25,000 Kg
Engine Power: 375 HP Max Speed: 90 Km/h
Tank Capacity: 10,000 L Tank Material: 5-6mm Carbon Steel
Vacuum Pump Efficiency: 99% Vacuum Suction Head: 6 Meters

Dongfeng 6x4 10,000L Sewage Suction & Cleaning Truck – 375HP High-Pressure Jetting & Vacuum Tanker
Product Overview

The Dongfeng 6x4 Sewage Cleaning & Suction Truck is a professional-grade dual-function sanitation vehicle designed for municipal sanitation departments, waste management companies, and industrial facilities. This robust vehicle combines powerful vacuum suction with high-pressure pipeline cleaning capabilities, built on a heavy-duty Dongfeng 6x4 chassis with comprehensive standard equipment and optional upgrades.

Key Features
  • Dongfeng 6x4 Heavy-Duty Chassis: LHD configuration, 4,350+1,350 mm wheelbase, 10 heavy-duty tires, GVW 25,000 kg, maximum speed 90 km/h
  • 375HP Diesel Engine: Dongfeng engine delivering up to 375 horsepower with Euro II/III/IV emission compliance
  • 10,000L Carbon Steel Tank: 5-6mm thickness construction, 10 m³ capacity with 14-16 m³ optional capacity available
  • High-Efficiency Vacuum Pump: 99% vacuum degree, 500 RPM operation, low noise design with 6m suction head
  • Integrated High-Pressure Washing System: PTO-driven hydraulic system for effective pipeline cleaning and tank maintenance
  • Complete Standard Equipment: Multi-way valve, pressure gauge, water-air separator, oil-air separator, hydraulic oil tank, level detection window, manual washing tank, and 6m suction hose
  • Optional Upgrades: Italian or Spanish vacuum pumps, stainless steel tank construction, internal anti-rust coating
  • Operator Cab: 2-person LHD cab with excellent visibility and ergonomic design
Applications
  • Municipal sewage collection and pipeline cleaning
  • Septic tank servicing and maintenance
  • Industrial waste management and sludge transport
  • Sewer jetting and pipeline unclogging
  • Environmental emergency response and spill cleanup
  • Construction site dewatering operations
Technical Specifications
Chassis Dongfeng 6x4 LHD
Overall Size 9,600 × 2,500 × 3,690 mm
Wheelbase 4,350 + 1,350 mm
GVW / Curb / Load 25,000 / 12,305 / 12,500 kg
Engine Dongfeng, up to 375 HP, Euro II/III/IV compliant
Max Speed 90 km/h
Tires 10.00-20 / 10.00R20 / 11.00-20 / 11.00R20 (10 pieces)
Cab 2 persons
Tank Capacity 10,000 L (10 m³) / 14-16 m³ optional
Tank Material 5-6mm carbon steel (stainless optional)
Vacuum Pump Chinese brand, 99% vacuum, 500 RPM
Suction Head 6 meters
Washing System High-pressure, PTO-driven
Standard Equipment Multi-way valve, pressure gauge, separators, hydraulic tank, level window, wash tank, 6m hose
Optional Features Italian/Spanish pump, stainless tank, anti-rust coating

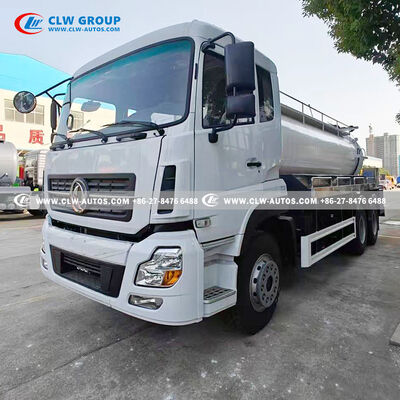

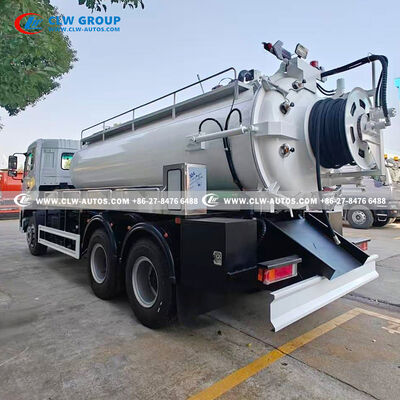

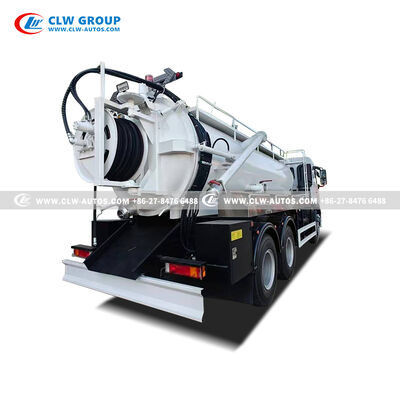

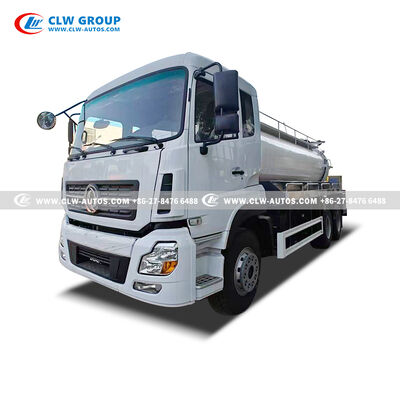

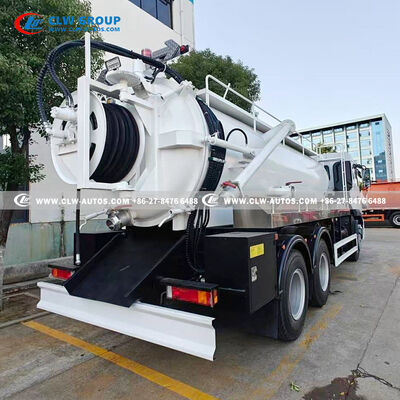

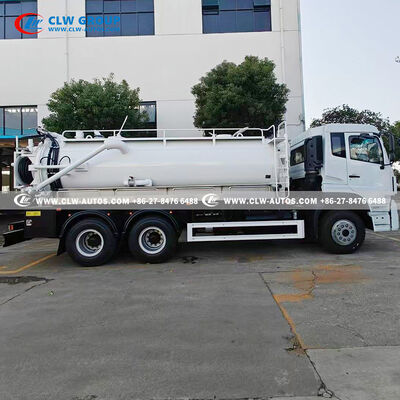

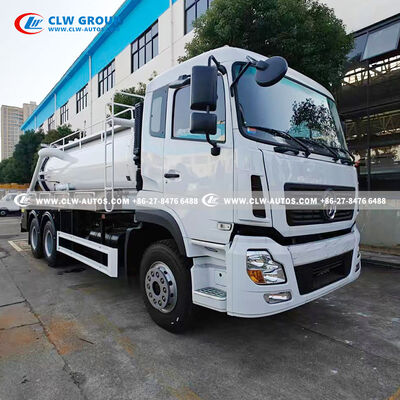

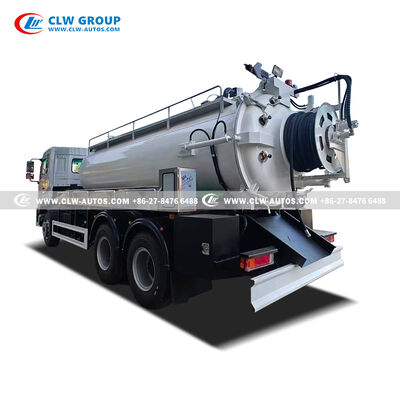

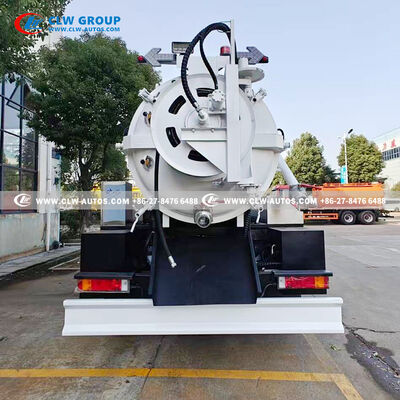

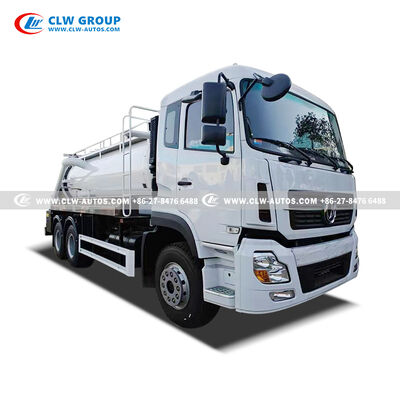

Product Gallery
