FAW 10CBM Fecal Vacuum Suction Truck with 260HP Engine and SK-12 Water Ring Pump for Heavy-Duty Waste Management

Large Image : FAW 10CBM Fecal Vacuum Suction Truck with 260HP Engine and SK-12 Water Ring Pump for Heavy-Duty Waste Management

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	FAW

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20600
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:

Carbon Steel

Engine Power:

260 HP

Highlight:

10CBM fecal vacuum suction truck

260HP vacuum suction truck

SK-12 water ring pump truck

FAW 10CBM Fecal Vacuum Suction Truck for Uganda

FAW 10CBM Vacuum Suction Truck

Special Edition for Uganda - High Performance & Durability

Designed for heavy-duty municipal sanitation and industrial waste management, this FAW-based vacuum truck is a robust solution for the toughest environments. Featuring a high-torque 260HP engine and an industrial-grade SK-12 vacuum system, it is built to deliver efficiency where others fail.

Technical Specifications

Category	Items	Detailed Parameters
Vehicle	Model	CLW-FAW Vacuum Sewage Suction Truck
Vehicle	Driving Type	4x2 (Left Hand Drive)
Vehicle	Overall Dimensions	Approx. 7,500 × 2,500 × 3,300 mm
Chassis	Chassis Brand	FAW (First Automobile Works)
	Engine Model	260 HP (Turbocharged, Intercooled)
	Fuel Type	Diesel
	Transmission	Manual, 6-speed / 8-speed forward
	Tire Specification	10.00R20 Steel Wire Tires
Chassis	Braking System	Air Brake with ABS
Tank Body	Effective Volume	10 Cubic Meters (10,000 Liters)
	Tank Material	Q235 High-tensile Carbon Steel (6mm thickness)
	Function	Rear door opens hydraulically; Full-tank tipping function
Suction System	Vacuum Pump Model	SK-12 (Water Ring Type)
	Vacuum Rate	-0.093 MPa (High Vacuum)
	Pump Motor Power	15 kW
	Suction Depth	≥ 8 Meters
	Full Suction Time	< 5 Minutes
Equipment	Suction Hose	8-meter high-quality reinforced hose (DN100)
	Control System	Manual or Hydraulic control valve (Side mounted)
	Safety Device	Anti-overflow valve (Secondary protection)
Customization	Color & Logo	Black (Uganda customized decals)

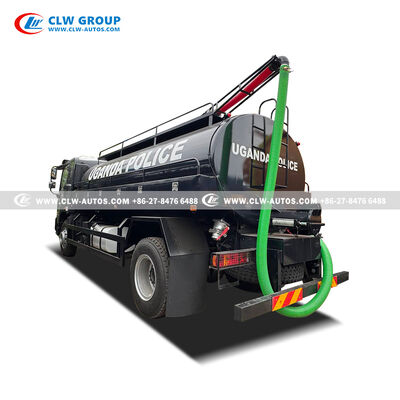

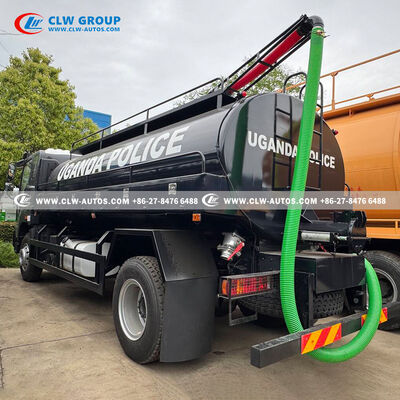

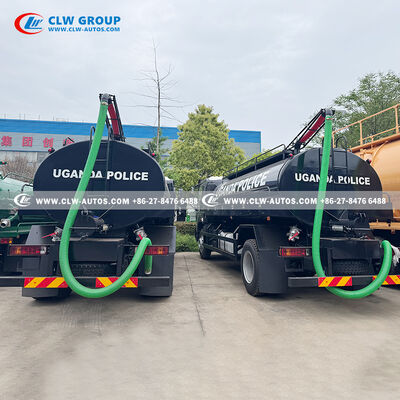

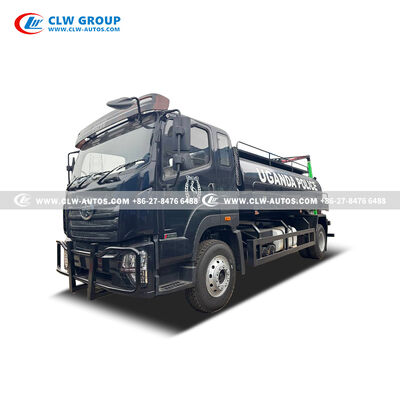

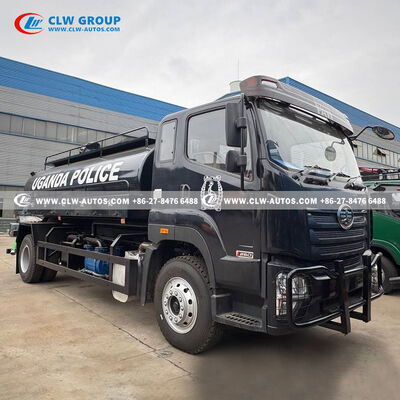

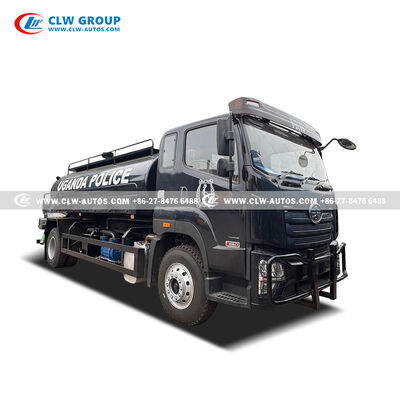

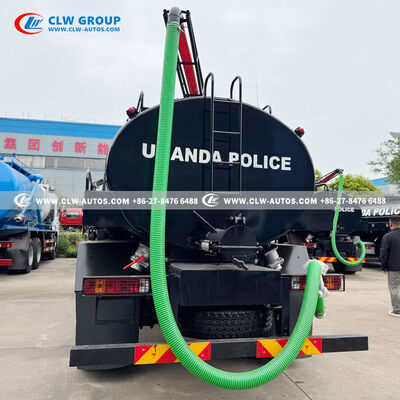

Product Gallery

Key Advantages

Pump Durability: Compared to common oil-cooled pumps, the SK-12 Water Ring Pump is maintenance-free for the vacuum chamber and can operate 24/7 in hot climates.
Chassis Power: The 260HP engine is oversized for a 10CBM truck, ensuring the vehicle has excellent gradeability (climbing ability) and a longer engine life.
Heavy-Duty Build: The 6mm tank wall is thicker than the industry standard (usually 5mm), providing better resistance against internal pressure and corrosion.
