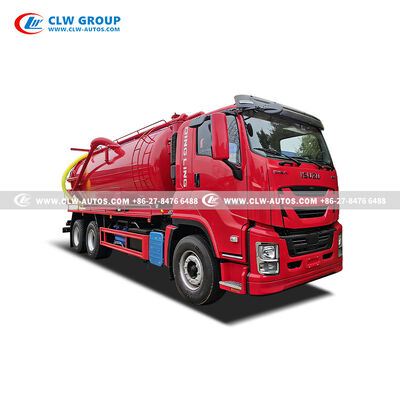

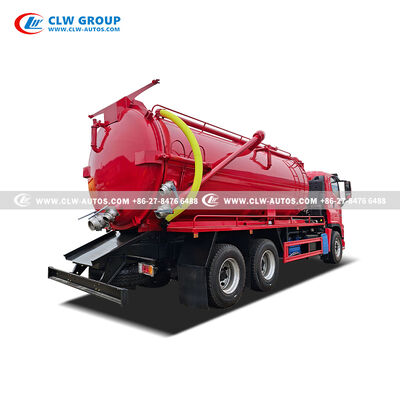

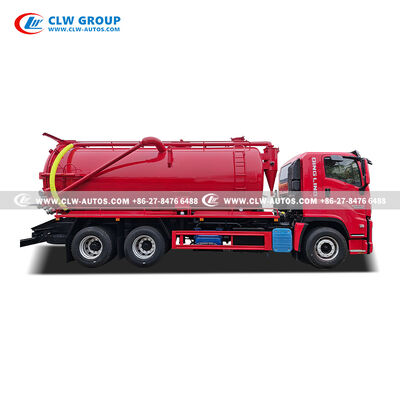

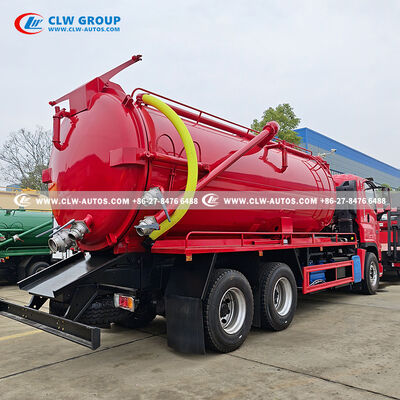

Isuzu FVZ 6x4 17m³ Combination Sewer Cleaner & Vacuum Truck with Water Ring Vacuum Pump and Crane Boom for Municipal Sanitation

Clean sewers and extract waste efficiently with the Isuzu FVZ Combination Sewer Cleaning & Vacuum Truck - a 17m³ dual-function vehicle featuring a 7m³ water tank, 10m³ sewage tank, 300HP Euro 6 Isuzu engine, water ring vacuum pump (1,200m³/h, 9-12m suction), XO high-pressure pump (330L/min, 20 Bar), crane boom for manhole cover lifting, and 100m hydraulic hose reel. Built on the Isuzu FVZ 6x4 4650+1370mm wheelbase chassis, this truck delivers heavy-load capacity and reliable pipeline maintenance.

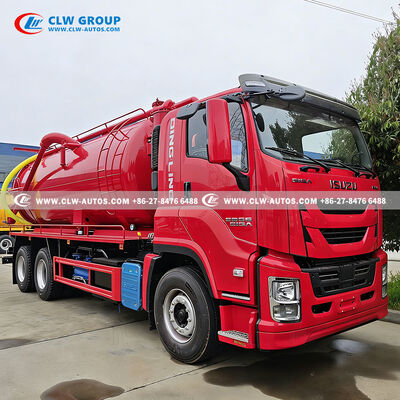

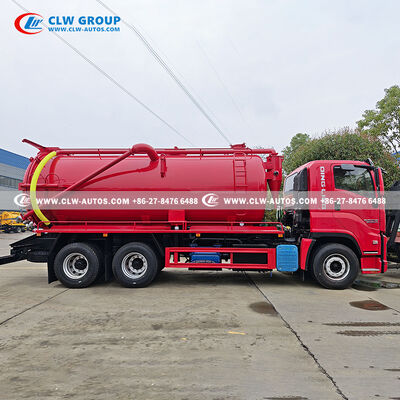

The Isuzu FVZ Combination Sewer Cleaning & Vacuum Truck is a professional-grade dual-function sanitation vehicle designed for municipalities, industrial facilities, and environmental contractors demanding both high-pressure pipeline cleaning and powerful vacuum extraction. Built on the robust Isuzu FVZ 6x4 chassis with 4650+1370mm wheelbase (three-axle dual-rear-axle design), this vehicle provides exceptional load capacity of up to 25,000kg GVW, specifically tailored for large-capacity tanks.

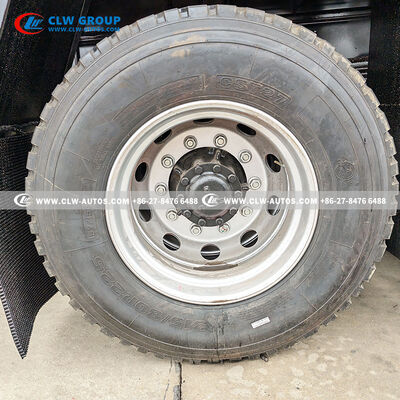

• Isuzu FVZ 6x4 Heavy-Duty Chassis with Dual Rear Axles: 4650+1370mm long wheelbase combined with dual rear axle design for large-capacity tanks up to 17m³, offering better tire traction and higher driving stability when fully loaded.
• 300HP Euro 6 Isuzu Engine with Power Redundancy: Ensures strong starting and climbing capabilities under heavy loads and provides ample PTO output power for high-power vacuum pumps and high-pressure water pumps.

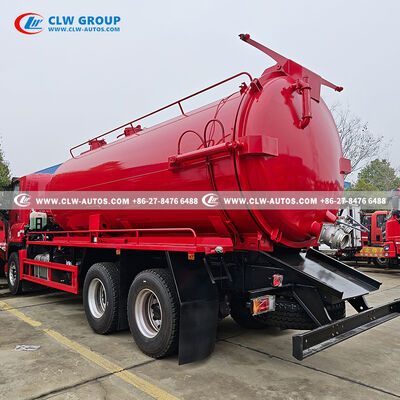

• Scientific 7:10 Water-to-Sewage Tank Ratio: 7m³ water tank + 10m³ sewage tank configuration conforms to actual working conditions, ensuring sufficient water supply for long-distance dredging while providing enough space for returned sludge.

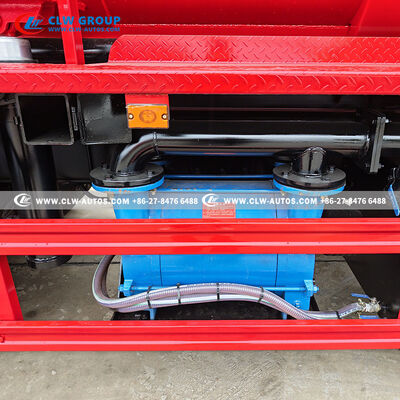

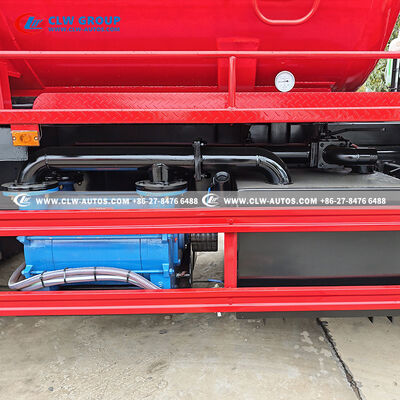

• Water Ring Vacuum Pump - High Temperature & Corrosion Resistance: Lower failure rate when pumping high-temperature sewage or municipal sludge containing mud, sand, and weak acids/alkalis with effective suction range of 9-12 meters.
• Crane Boom for Manhole Cover Lifting & Operational Safety: Easily lifts heavy, rusted manhole covers, significantly improving operational safety and efficiency, and serves as fall arrestor and lifting fulcrum.

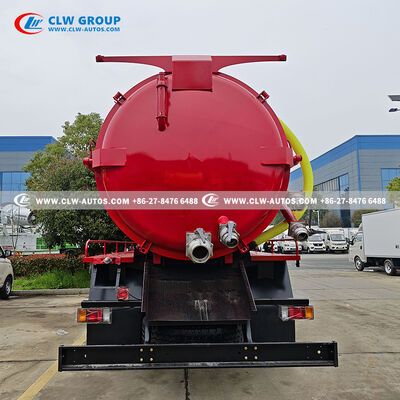

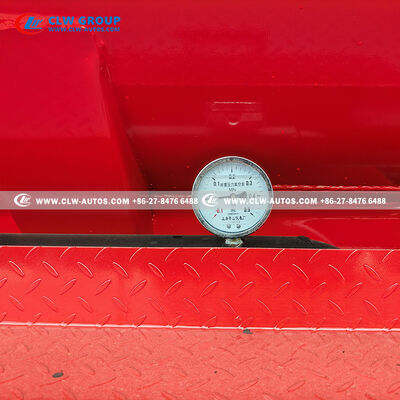

• Complete Equipment Package for Turnkey Operation: Includes 10m φ102 suction pipes (2 pcs), 150mm drain ball valve, 100mm suction port, hand-washing device, rear self-flowing outlet, sewage suction viewing window, pressure gauge, and 100m hydraulic hose reel.

• Municipal Sewer Line Cleaning & Unclogging
• Industrial Pipeline Maintenance
• Septic Tank Servicing
• Storm Drain & Culvert Cleaning
• Environmental Emergency Response
• Large-Diameter Long-Distance Pipeline Dredging
