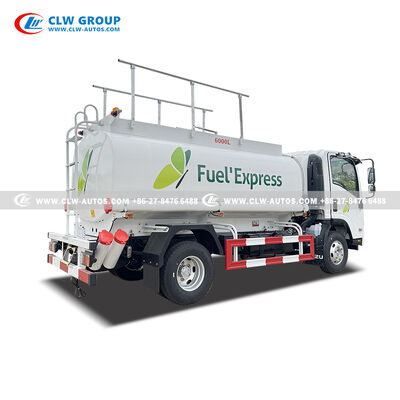

ISUZU NPR 6,000L Fuel Bowser with 150HP Euro V Engine and Integrated Fuel Dispenser for Commercial Refueling

Name: ISUZU NPR 6,000L Fuel Bowser with 150HP Euro V Engine and Integrated Fuel Dispenser for Commercial Refueling
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 33,935.00 USD
Availability: InStock

Large Image : ISUZU NPR 6,000L Fuel Bowser with 150HP Euro V Engine and Integrated Fuel Dispenser for Commercial Refueling

Product Details:

Contact Now

Detailed Product Description

Engine Power:	150 HP (110 KW)	Engine Type:	ISUZU 4KH1N6HD, Euro V
Tank Capacity:	6,000 L	Tank Material:	Q235 Carbon Steel, 4mm
Transmission:	MYY 6-speed Manual (6F+1R)	Wheelbase:	3,365 Mm
Overall Dimensions:	6,600 × 2,200 × 2,580 Mm	Hose Length:	20 - 36 M
Front Axle:	3,000 Kg	Rear Axle:	5,250 Kg

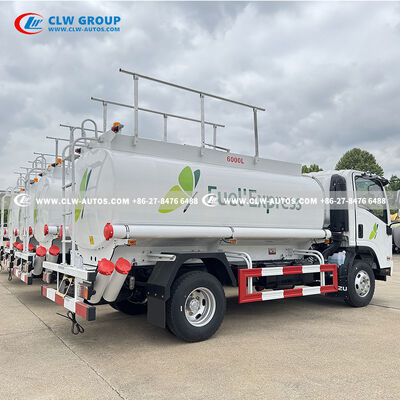

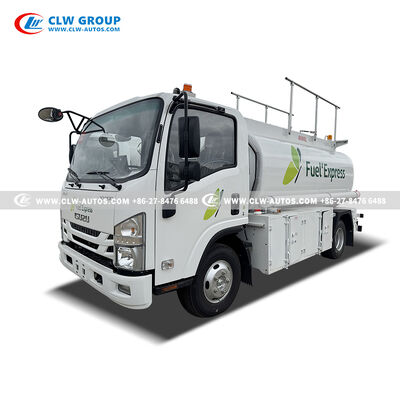

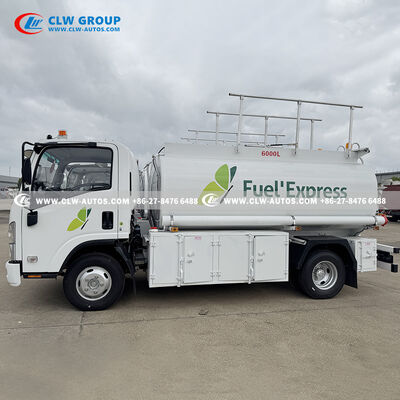

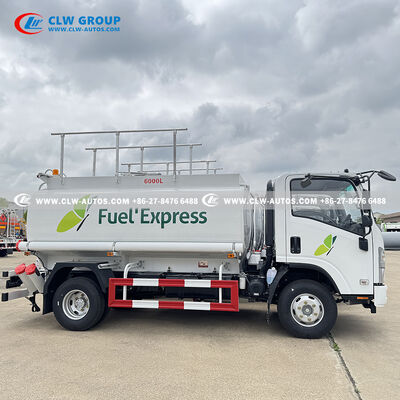

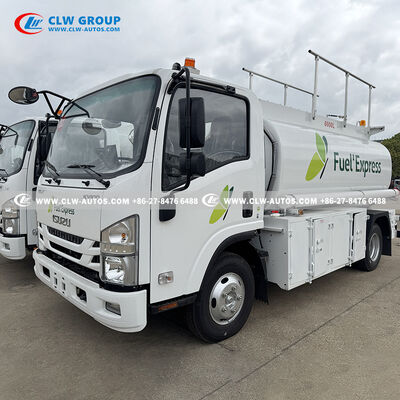

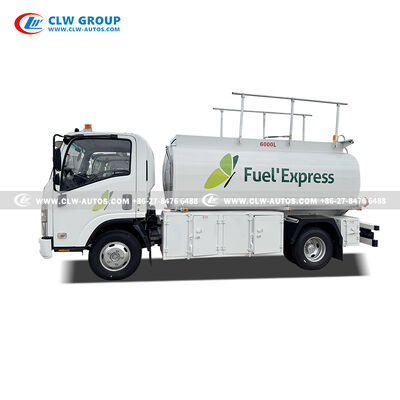

ISUZU NPR 6,000L Fuel Bowser – 150HP Diesel Tanker with Fuel Dispenser

Deliver fuel efficiently and refuel equipment on-site with the ISUZU NPR 6,000L Fuel Bowser - a light-duty diesel tanker built on the reliable ISUZU NPR 4x2 chassis. Featuring a 150HP ISUZU 4KH1N6HD Euro V engine, 6-speed manual transmission, 6,000-liter carbon steel tank (4mm), fuel pump, fuel dispenser with English control panel, 20-36m hose reel with refueling gun, submarine emergency shut-off valve, and complete safety equipment. Ideal for construction, agricultural, mining, and commercial fleet refueling operations in South American markets.

Product Overview

The ISUZU NPR 6,000L Fuel Bowser is a professional-grade light-duty fuel transport and dispensing vehicle designed for fuel distributors, construction contractors, agricultural operations, and commercial fleets requiring reliable, efficient fuel delivery. Built on the globally renowned ISUZU NPR 4x2 left-hand drive chassis with a 3,365mm wheelbase, this vehicle is specifically engineered for South American markets where reliability, fuel efficiency, and ease of maintenance are paramount.

The advanced ISUZU 4KH1N6HD diesel engine delivers 150HP (110kW) with Euro V emission compliance, featuring 4-cylinder inline, 4-stroke, water-cooled design with Japanese technology for exceptional durability and very low fuel consumption. The MYY 6-speed manual transmission (6 forward + 1 reverse) provides smooth, efficient power delivery for both urban and highway operation.

Key Features

Globally Renowned ISUZU NPR 4x2 Chassis: Trusted worldwide for exceptional durability, reliability, and low operating costs. The 3,365mm wheelbase provides excellent stability, while the 4x2 drive configuration offers superior maneuverability for urban and rural delivery routes.
150HP ISUZU 4KH1N6HD Euro V Diesel Engine: Advanced Japanese diesel technology delivering 150HP (110kW) with 5.19L displacement. Features very low fuel consumption, Euro V emission compliance, exceptional reliability, and 4-cylinder inline design for smooth operation.
6-Speed MYY Manual Transmission: Provides smooth, efficient power delivery for both urban stop-and-go driving and highway cruising, matched specifically to the engine for optimal performance and fuel economy.

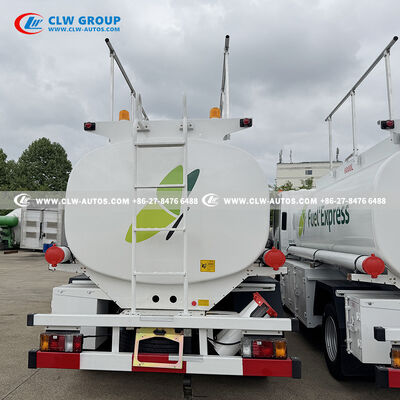

6,000-Liter Oval Shape Carbon Steel Tank: Oval shape design lowers center of gravity for improved driving stability. Constructed from Q235 high-tensile carbon steel with 4mm wall thickness for long-term structural integrity.

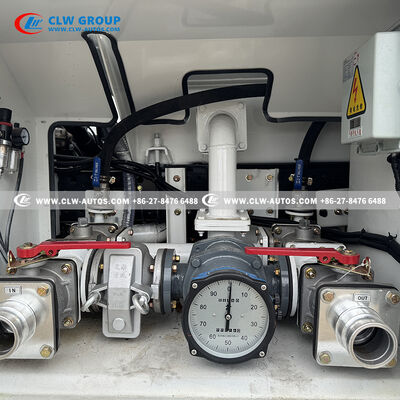

Integrated Fuel Pump with Pump-In/Pump-Out Functionality: Enables efficient loading from storage tanks, fast unloading to customer tanks, and direct fueling of vehicles and equipment.

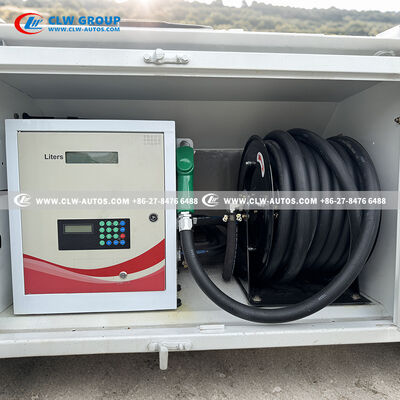

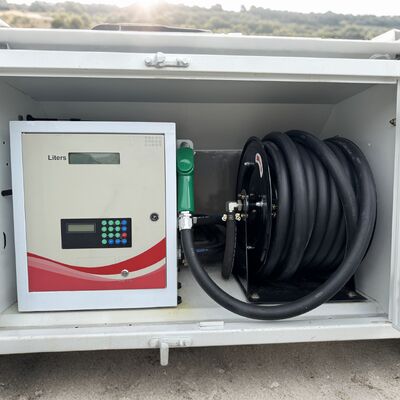

Fuel Dispenser with English Control Panel: Features English language display, accurate metering displaying liters delivered and amount, making it retail-ready for commercial refueling operations.
20-36m Automatic Hose Reel with Refueling Gun: Allows operators to reach multiple vehicles without repositioning, access difficult locations, with automatic rewind and high-flow nozzle for fast refueling.
Submarine Bottom Valve for Emergency Safety: Critical safety feature that automatically closes in accident or rollover scenarios, preventing fuel spillage. Can be manually activated from a safe distance and meets international standards.

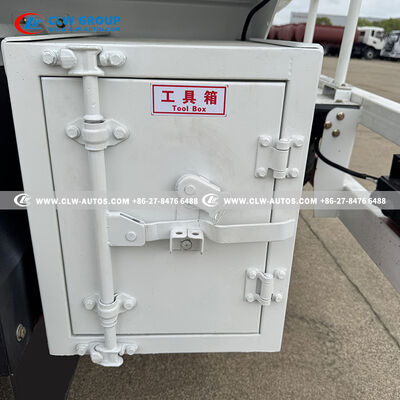

Complete Safety & Accessory Package: Includes manhole cover with breather valve, safety valve, aluminum alloy ball valve, fire extinguisher, toolbox, ladder, handrail, oil hose, and rear ladder.
Customizable for Customer Requirements: Optional features include multi-compartment tank, SS304 or aluminum alloy tank, stainless steel ball valve, and custom painting for brand identification.

Applications

Construction Site Refueling: On-site diesel delivery for excavators, loaders, bulldozers, and dump trucks. The 6,000L capacity reduces equipment downtime by eliminating travel to off-site fuel stations.
Agricultural Farm Supply: Transporting diesel and gasoline to farms for tractors, harvesters, irrigation pumps, and grain dryers. The truck's maneuverability allows access to farm buildings and fields.
Mining Operation Fuel Logistics: Fuel delivery for haul trucks, loaders, drills, and support equipment at remote mine sites.
Commercial Fleet Refueling: Bulk fuel delivery for trucking companies, bus operators, and logistics fleets at their home depots, with dispenser for individual vehicle refueling.
Fuel Distribution to Customers: Direct delivery of diesel, gasoline, and petrol to service stations, industrial customers, and commercial accounts.
Industrial Plant Fuel Supply: Supplying fuel for generators, boilers, and material handling equipment at factories and processing plants.

Technical Specifications

Feature	Specification
Chassis	ISUZU NPR / NQR ELF 700P 4x2 LHD
Wheelbase	3,365 mm
Overall Size	6,600 × 2,200 × 2,580 mm

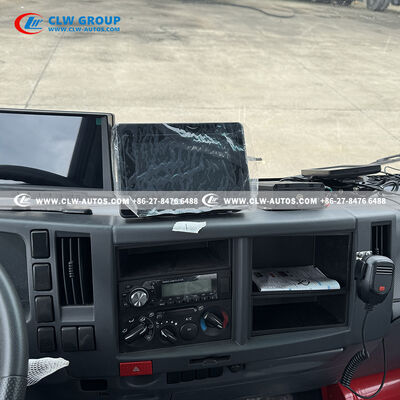

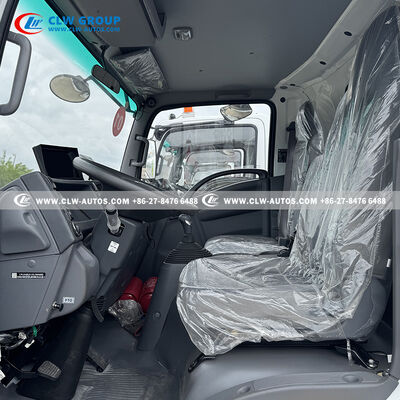

Cab	700P, 3 passengers, A/C optional
Engine	ISUZU 4KH1N6HD, 150 HP (110 kW), 5.19L, Euro V
Transmission	MYY 6-speed manual (6F+1R)
Front/Rear Axle	3,000 / 5,250 kg
Tires	7.50R16 (6 + 1 spare)
Tank Capacity	6,000 L
Tank Material	Q235 carbon steel, 4mm
Tank Shape	Oval
Pump	Integrated fuel pump
Dispenser	Fuel dispenser, English panel
Hose Reel	20 - 36 m with refueling gun
Safety	Submarine valve, safety valve, breather valve, fire extinguisher
Accessories	Toolbox, ladder, handrail, oil hose, rear ladder
Optional	Multi-compartment, SS304 tank, aluminum tank, stainless steel valve, custom paint
