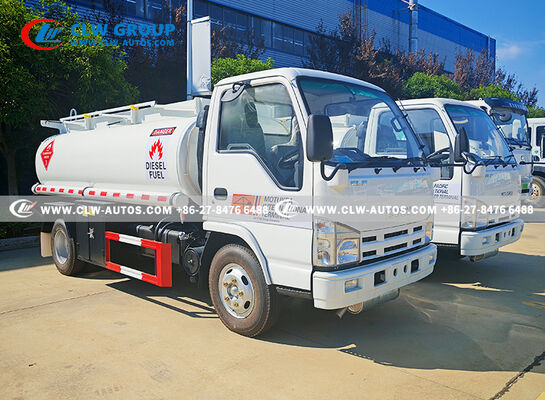

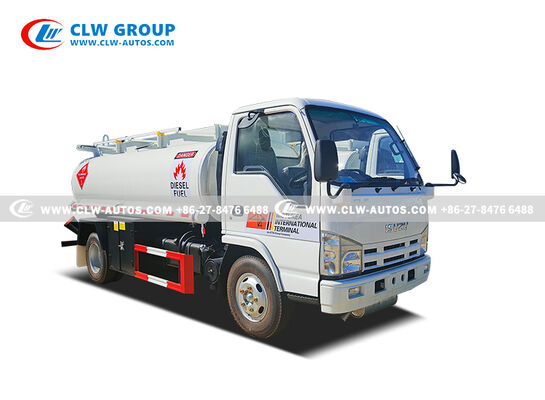

ISUZU 100P RHD 4x2 5,000L Fuel Tanker Truck with 120HP Engine and Anti-Corrosion Tank for Mobile Refueling

Name: ISUZU 100P RHD 4x2 5,000L Fuel Tanker Truck with 120HP Engine and Anti-Corrosion Tank for Mobile Refueling
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 33,935.00 USD
Availability: InStock

Large Image : ISUZU 100P RHD 4x2 5,000L Fuel Tanker Truck with 120HP Engine and Anti-Corrosion Tank for Mobile Refueling

Product Details:

Contact Now

Detailed Product Description

Engine Model:	ISUZU 4KH1CN6LB	Engine Power:	120HP
Displacement:	2300ml	Emission Standard:	EuroⅥ
Tank Capacity:	5,000L	Tank Material:	Carbon Steel/ Stainless Carbon/ Aluminum Alloy
Gross Weight:	8000kg	Payload:	4500kg
Wheelbase:	3360/3815mm	Tire Size:	7.00R16
Highlight:	ISUZU 100P fuel tanker truck , light-duty diesel bowser truck , mobile refueling fuel delivery truck

ISUZU 100P RHD 4x2 5,000L Fuel Tanker Truck – Light-Duty Diesel Bowser for Mobile Refueling & Distribution

The ISUZU 100P RHD Fuel Tanker Truck is a 5,000-liter light-duty diesel bowser built on the proven ISUZU 100P 4x2 RHD chassis, featuring a 120HP ISUZU 4KH1CN6LB engine (CN6), anti-corrosion tank with internal anti-surge baffles, ABS braking, 7.00R16 tires, 2-2.5T front axle, 4-4.8T rear axle, and driver-friendly cab (A/C, power steering, central locking, power windows, LCD dashboard). Standard safety includes grounding strap and fire extinguisher. Optional fuel meter, hose reel, electric pump, and automatic shut-off. Ideal for mobile refueling, fuel distribution, construction, mining, agriculture, and emergency supply in UK, Australia, Southeast Asia, and other RHD markets.

Product Overview

The Isuzu 100P Series 5-cubic meter diesel refueling truck is a specialized vehicle designed for safe, efficient, and versatile fuel transportation and on-site refueling operations. Built on Isuzu's proven commercial chassis and configured with right-hand drive for global markets, this model integrates power, safety, and functionality to meet the demands of modern fuel logistics.

Key Features

ISUZU 100P RHD 4x2 Chassis: Right-hand drive for UK, Australia, Southeast Asia. Proven durability. 4x2 for urban/rural maneuverability.
120HP ISUZU 4KH1CN6LB Engine: Reliable, fuel-efficient, CN6 emission compliant. Strong torque for fully loaded operation.
5,000L (5m³) Anti-Corrosion Tank: Internal anti-surge baffles minimize sloshing and improve stability. Anti-corrosion materials. Grounding strap and fire extinguisher included.
Safety & Stability: ABS braking, front axle 2-2.5T, rear axle 4-4.8T, 7.00R16 tires.
Driver-Friendly RHD Cab: Single-row (700mm), A/C, power steering, central locking, power windows, LCD dashboard.
Flexible Options: Fuel meter, hose reel, electric pump, automatic shut-off.
Applications: Mobile refueling, fuel distribution, construction, mining, agriculture, emergency supply, remote communities.

Applications

Mobile refueling services (construction machinery, agricultural equipment, generator sets, fleet vehicles)
Fuel distribution (depots to remote locations, gas stations, mining sites, industrial plants)
Emergency and backup supply (disaster relief, remote area support, infrastructure projects)
Aviation and marine support (ground support refueling at small airports or docks)
Construction and mining sites (continuous fuel supply in challenging terrains)
Agriculture and forestry (farming operations, remote forestry projects)
Transportation fleets (refueling trucks and buses at depots or along routes)
Isolated communities and islands (reliable fuel delivery to off-grid communities)

Chassis Technical Parameters

Driving mode	ISUZU 100P 4X2
Dimension	680024003000mm
Gross weight	8000kg
Curb weight	3500kg
Payload	4500kg
Wheelbase	3360/3815mm
Cabin	Steering wheel \| Left hand drive or right hand drive
Configuration	With air conditioning, Steering power, Central locking, Electric door and window
Engine	Engine brand: ISUZU 4KH1CN6LB, Horsepower: 120HP, Displacement: 2300ml, Emission standard: Diesel, EuroⅥ, Type: 4 stroke, 4-cylinders in line, water cooling
Transmission	ISUZU 5 forward gears and 1 reverse, Manual
Tire	7.00R16
Front axle loading	2000-2500kg
Rear axle loading	4000-4800kg

Upper Structure Parameters

Fuel tank capacity	5m³/5,000liters
Tank material	Carbon steel/ Stainless carbon/ Aluminum alloy
Compartment No.	ONE

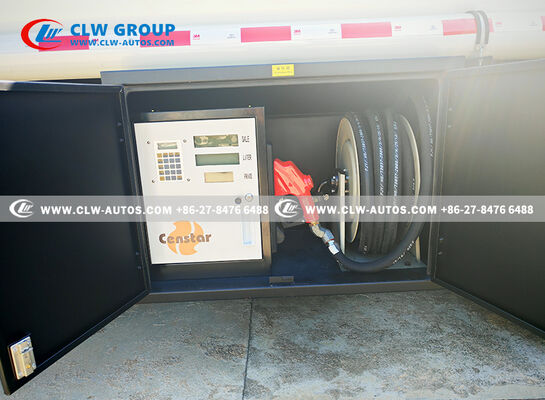

Fuel dispenser	2 sets, flow rate at 70L/min, English operation panel, Showing unit price/ filling volume/ total price
Oil pump	2 Nos of 2.5" Oil pumps, driven by TPO, Independent pump in and pump out for each compartment
Filling hose	1 inch and 15 meters, 2 sets for diesel and petrol separately
Filling hose reel	2 Nos
Filling nozzle	2 Nos
Manhole cover	2 sets with breath valves
Bottom valve	2 sets of APL aluminum pneumatic bottom valves
Level gauge	Each tank top is equipped with an electronic level meter

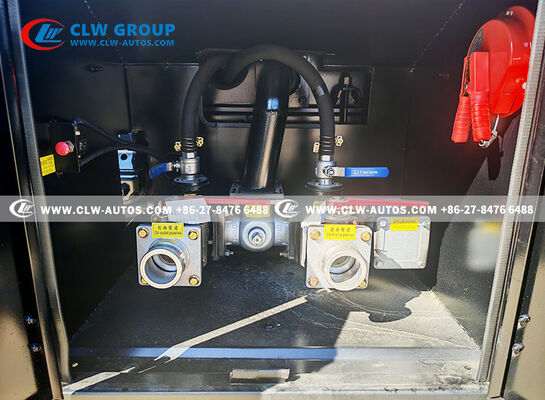

Operation compartment	Located at rear of truck with aluminum alloy door
Control system	Power on/off, Lighting, Fuel pump on/off, Fuel dispenser on/off, Main valve on/off, Fuel level digital display
Others	2 sets of 4kg extinguishers, 1 set of static belt
Painting	Color and design as customer's requirement
Special design	Tank body is covered by carbon steel van
