55m Telescopic Aerial Work Platform Truck With 400kg Bucket

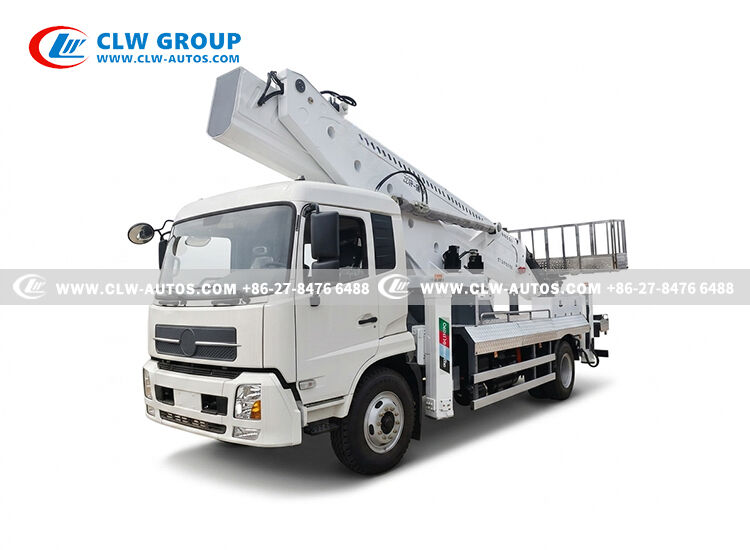

Large Image : 55m Telescopic Aerial Work Platform Truck With 400kg Bucket

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	Dongfeng

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35600
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Max Height:	55m

55m Telescopic Aerial Work Platform Truck

Product Overview

This 55-meter telescopic aerial work vehicle is manufactured by Hubei Ruili Automobile Co., Ltd., built on reliable Dongfeng Kinland National V chassis. Equipped with 8-section 16-sided lightweight boom, triple hydraulic outriggers, independent upper operation cabin and wireless remote control system, it delivers stable, safe and high-efficiency aerial operation.

Widely used for building maintenance, street lamp repair, window cleaning, engineering installation, power maintenance, advertising hoisting and emergency rescue.

Core Advantages

Super Working Height

Max working height 55m (including operator), horizontal outreach up to 7800mm, longitudinal span 8600mm, wide operation coverage.

Heavy-Duty Chassis

Dongfeng Kinland 4*2 chassis, Yuchai 220HP engine, 5000mm wheelbase, 10.00R20 steel wire tires, front axle 5t / rear axle 10t, strong bearing capacity.

Dual Control System

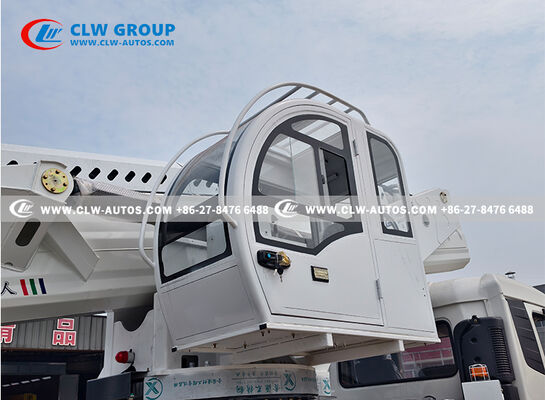

Independent air-conditioned upper operation cabin with LCD intelligent control panel + portable wireless remote controller, flexible operation both on basket and turret.

Premium Working Platform

3m foldable stainless steel work basket, equipped with load detector, wind speed sensor, 220V external power socket for on-site electric tools.

Stable Safety Configuration

Triple full hydraulic outriggers with soft leg protection function, dual hydraulic reducer, large center rotary support, hydraulic oil radiator, automatic safety interlock protection.

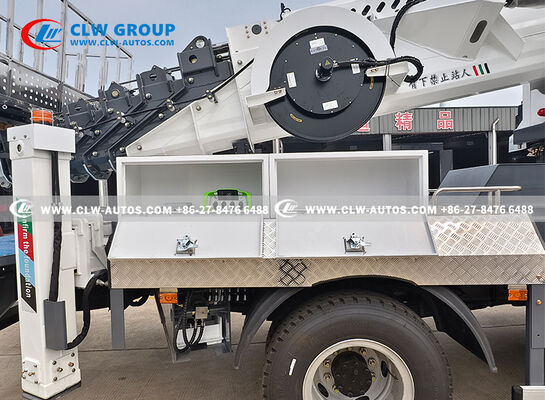

Durable Hydraulic Cable Reel

ENTIREEL brand hydraulic cable reel, 210bar working pressure, 45m cable length, stable power transmission during boom extension/retraction.

Technical Specifications

Item	Specification
Vehicle Model	Telescopic Aerial Work Truck
Chassis Brand	Dongfeng Kinland (National V Emission Standard)
Engine Model	Yuchai 220HP Diesel Engine
Wheelbase	5000mm
Tire Spec	10.00R20 Steel Wire Tire
Axle Load	Front Axle 5 Ton, Rear Axle 10 Ton
Gearbox	8-speed Manual Transmission, Air Brake
Max Working Height	55m (with operator)
Boom Structure	8-section 16-sided Lightweight Telescopic Boom
Horizontal Outreach	7800mm
Longitudinal Outrigger Span	8600mm
Outrigger Type	Triple Full Hydraulic Outriggers with Soft Leg Protection
Work Basket Material	304 Stainless Steel, 3m Foldable Basket
Control Mode 1	Upper Independent Operation Cabin (Air Condition, Electric Windows, LCD Intelligent Control)
Control Mode 2	Portable Wireless Remote Controller
Standard Auxiliary Devices	Basket Load Detector, Wind Speed Sensor, Hydraulic Oil Radiator, 220V External Power Socket
Hydraulic Cable Reel Brand	ENTIREEL
Cable Reel Working Pressure	210bar
Cable Length of Reel	45m
Auxiliary Configuration	Dual Lifting Cylinders, Large Rotary Support, Dual Hydraulic Reducer
Manufacturing Factory	Hubei Ruili Automobile Co., Ltd.

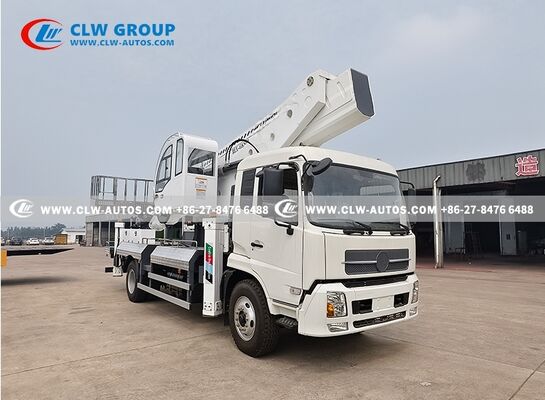

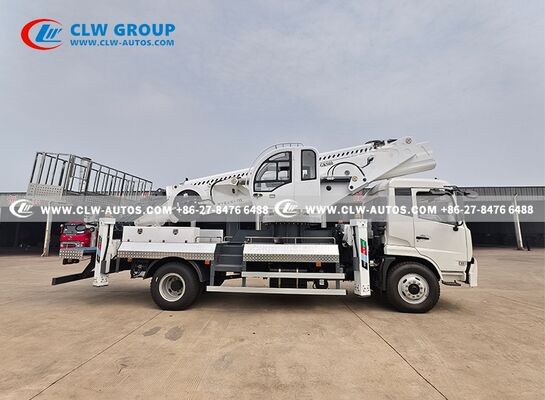

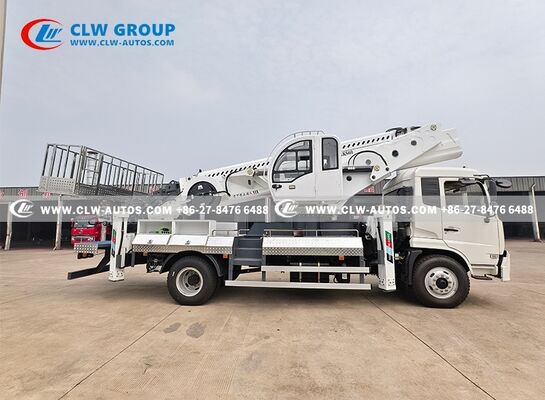

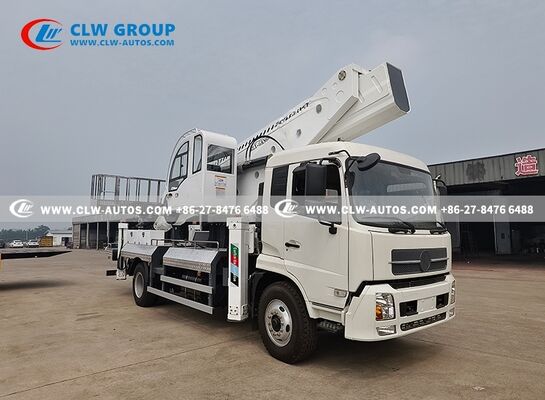

Product Gallery

Application Scenarios

Municipal Street lamp maintenance, traffic signal installation, bridge inspection
Construction High-rise exterior wall cleaning, curtain wall installation, building renovation
Power & Comm High-voltage line maintenance, communication tower construction
Advertising Large billboard installation & maintenance
Emergency High-rise rescue, fire auxiliary operation
Industrial Equipment maintenance, hangar inspection
