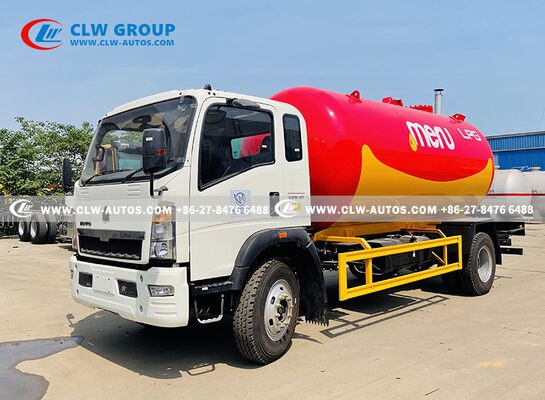

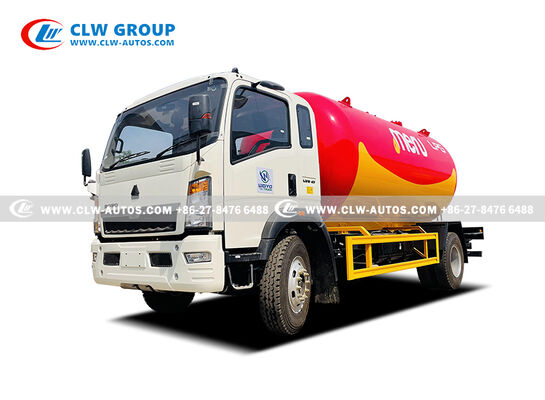

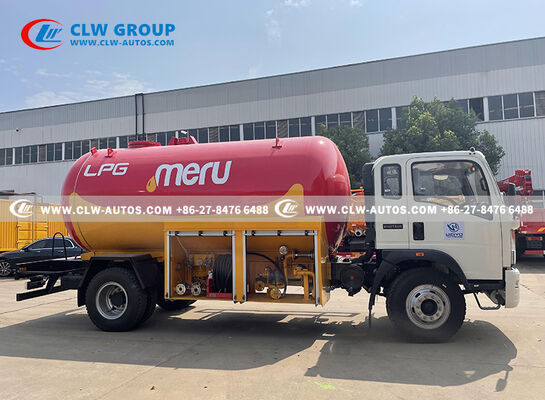

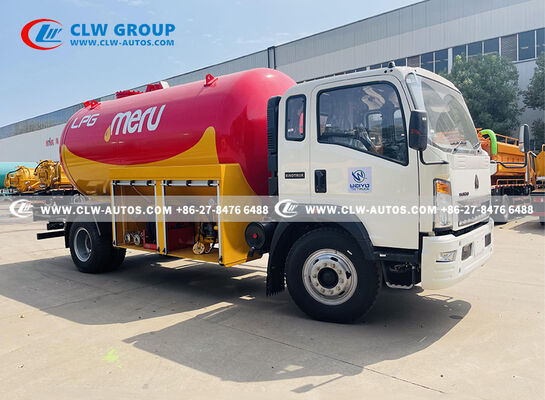

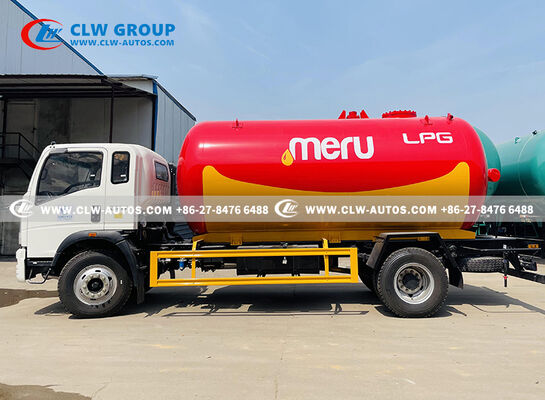

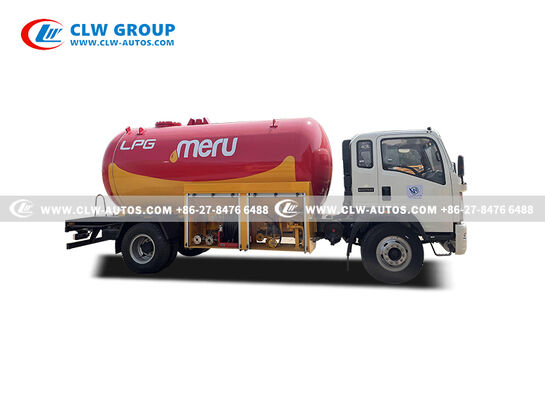

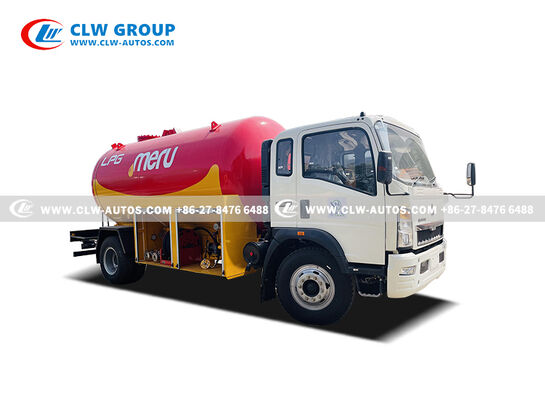

Sinotruk HOWO 4x2 15,000L LPG Bobtail Truck with CORKEN Z2000 Pump and Q345R Steel Tank for Heavy-Duty Propane Delivery

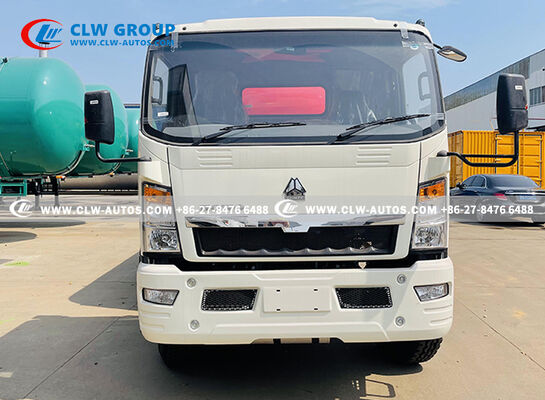

The Sinotruk HOWO 4x2 LPG Bobtail Truck is a specialized commercial vehicle designed for safe and efficient transportation and on-site refueling of liquefied petroleum gas (LPG). Built on the robust HOWO 4x2 chassis with HOWO 2080-type cabin (one row and one half with A/C), this vehicle features advanced engineering for reliable propane delivery operations.

• Sinotruk HOWO 4x2 Chassis: 4,700mm wheelbase, GVW 16,000kg, payload 7,000kg. HOWO 2080-type cabin with A/C. 9.00R20 tires (6+1 spare). Front axle 3,600kg, rear axle 10,500kg. Max speed 95 km/h.
• YUCHAI 160hp Euro III Engine: YC4E160-33, 160 HP (118 kW), 4,260 ml, Euro III compliant. DC6J65TC 6-speed manual transmission (6F+1R).

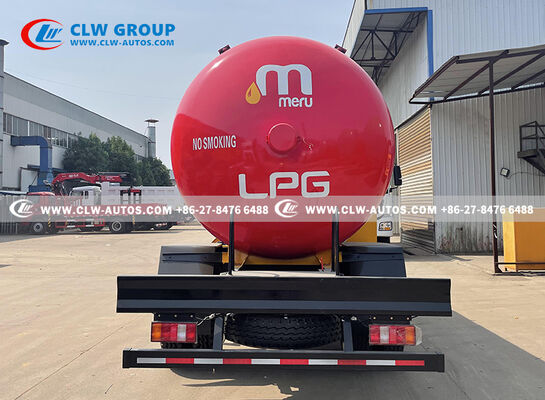

• 15,000L Q345R Steel Tank: 15m³ capacity, Q345R steel construction, 10mm thickness, 2,000mm diameter. Design pressure 1.61MPa, hydraulic test 2.21MPa. Working temperature range -20~50°C.

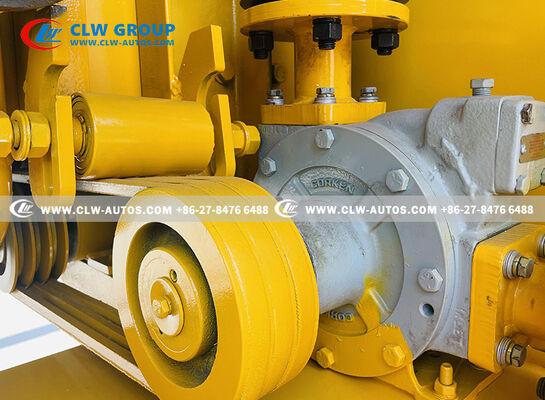

• CORKEN Z2000 LPG Pump: PTO-driven high-flow dispensing system. Single-nozzle dispenser with English remarks, 15m filling hose.

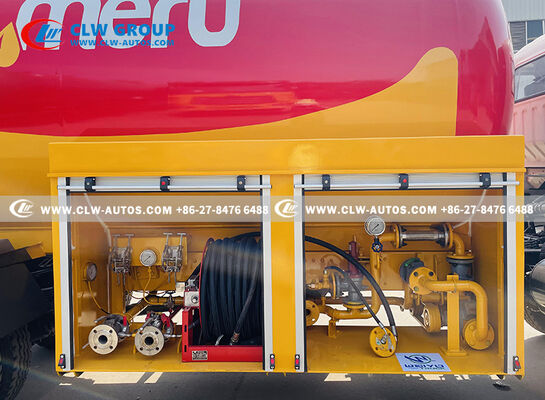

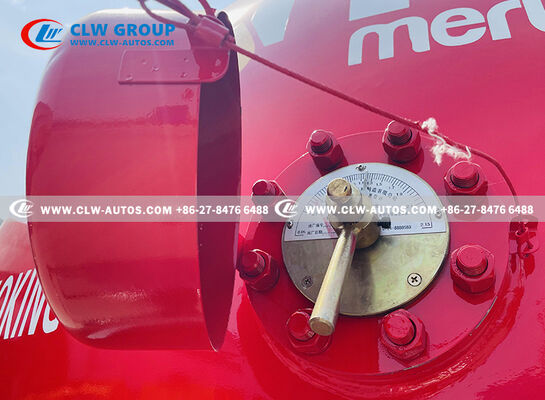

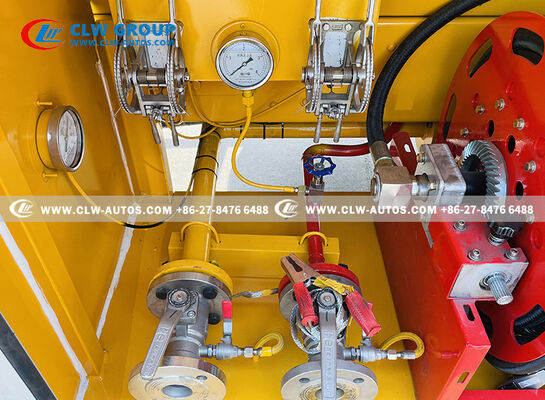

• Comprehensive Safety Systems: DN80 safety valve, float ball level gauge (±2% accuracy), emergency valves, pressure gauge, thermometer, dual fire extinguishers, exhaust shaft at front of cabin.
• Regulatory Compliance: GB150.1-2011 design code. NFPA 58 / ASME standards compliant.
• Dual-Phase Operation: Liquid-phase dispensing + vapor-phase recovery capability.

• Industrial zones (factories, welding shops, forklift fleets)
• Agricultural support (crop dryers, irrigation pumps, greenhouse heating)
• Remote communities (off-grid household refueling)
• Emergency response (pipeline outages, natural disasters)
• Bulk LPG transport from terminals to storage/retail stations
• Direct-to-customer doorstep refueling services
