Sinotruk Howo Sewage Suction Truck with Jurop PN155 Vacuum Pump

Name: Sinotruk Howo Sewage Suction Truck with Jurop PN155 Vacuum Pump
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: HOWO
Price: 44,830.00 USD
Availability: InStock

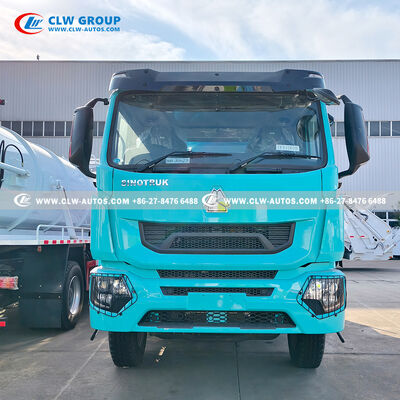

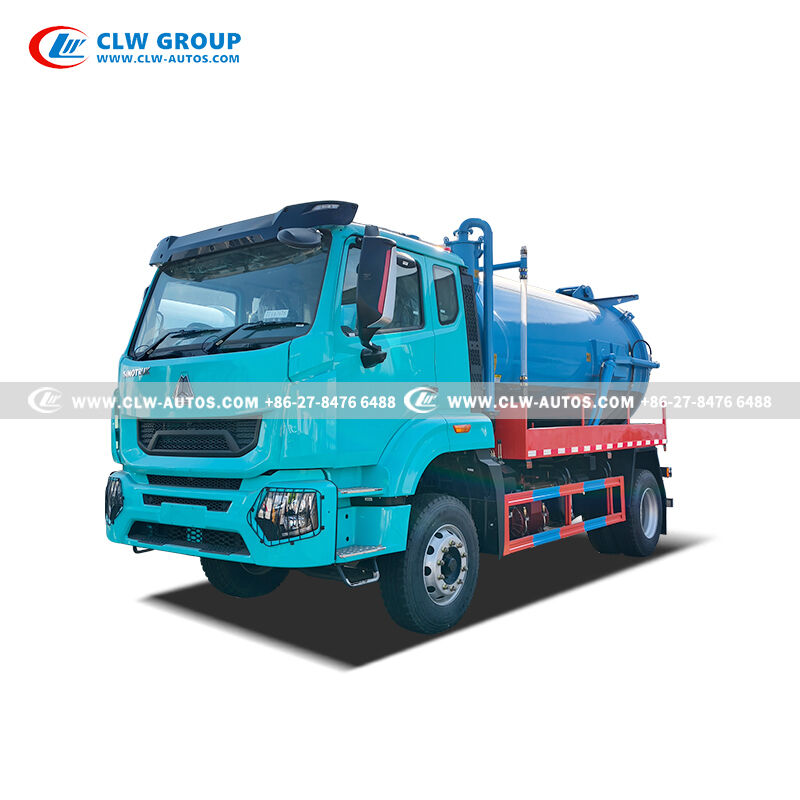

Large Image : Sinotruk Howo Sewage Suction Truck with Jurop PN155 Vacuum Pump

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	HOWO

Contact Now

Detailed Product Description

Rated Power:	220 HP

Sinotruk Howo Sewage Suction Truck with Jurop PN155 Vacuum Pump

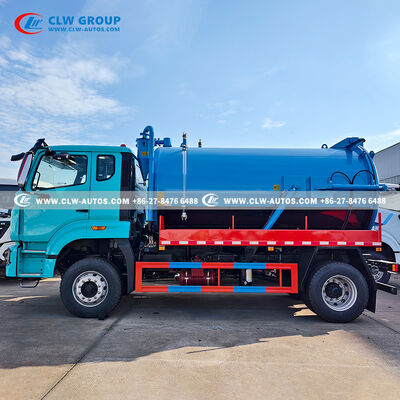

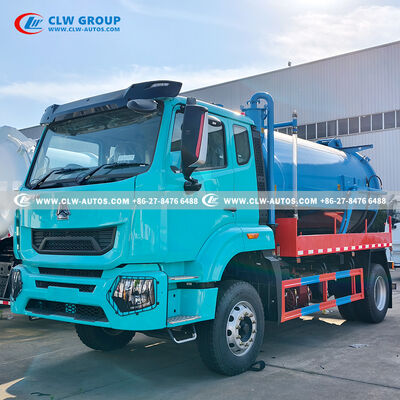

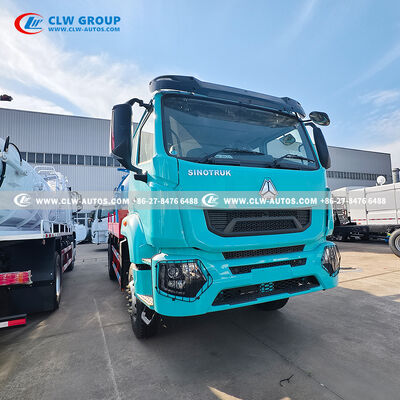

This HOWO 4x2 right-hand drive sewage suction truck is built on the reliable ZZ5168K561NC1R heavy-duty chassis, equipped with a 220HP high-torque diesel engine and 8-speed manual transmission, perfectly suited for municipal sewage cleaning, septic tank emptying, sludge transportation, sewage waste collection and environmental sanitation projects in right-hand traffic countries.

Technical Specifications

Item	Specification
Vehicle Model	HOWO 4x2 Right Hand Drive (RHD) Sewage Suction Truck
Chassis Brand	SINOTRUK HOWO
Drive Type	4x2, Right Hand Drive
Rated Power	220 HP
Transmission	8 Forward + 2 Reverse Manual Gearbox
Gross Vehicle Weight (GVW)	18500 KG
Tire Specification	295/80R22.5 Heavy-duty Tires

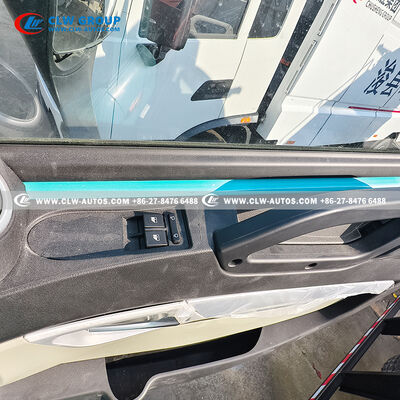

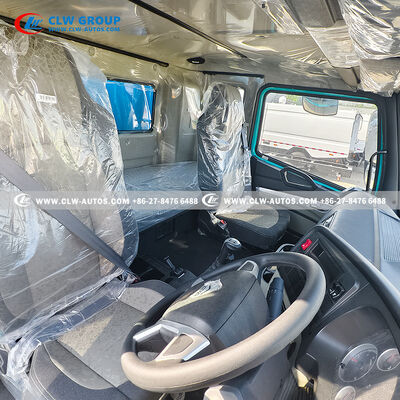

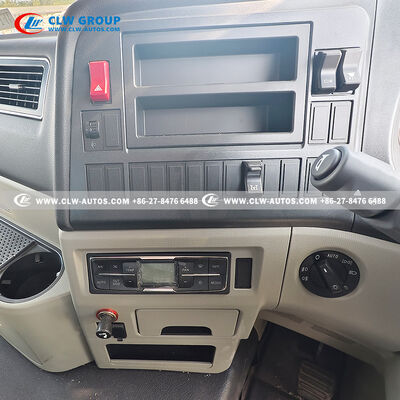

Cab Configuration	Air conditioning, Double seats, Integrated control panel
Core Vacuum Pump	Original Jurop PN155 Vacuum Pump (Imported)
Pump Feature	High flow, strong vacuum suction, low noise, anti-blocking, durable for heavy-duty sludge & sewage suction
Discharging Method	Middle hydraulic cylinder lifting & full-tank self-discharging
Hydraulic System	Manual double hydraulic valve control, stable lifting, no deformation under full load
Tank Material	Thickened carbon steel with anti-corrosion treatment
Tank Port Configuration	Rear large-caliber aluminum alloy ball valves (suction & discharge), quick-connect pipeline, leak-proof design
Auxiliary System	Front cyclone filter, side transparent liquid level observation tube
Working Function	Suction & transportation of sewage, septic waste, sludge, muddy water and industrial waste liquid
Application Scenarios	Municipal sanitation, community pipeline cleaning, factory sewage treatment, rural cesspit cleaning, construction site mud recovery
Customization	Tank volume, body color, pipeline size can be customized
Factory Test	Strict vacuum suction test & hydraulic lifting test before delivery

Superstructure Key Configuration

Jurop PN155 Vacuum Sewage Pump

Original imported Jurop PN155 high-flow rotary vane vacuum pump, strong suction power, stable vacuum pressure, low noise and long service life. It can quickly suck up thick sludge, fecal sewage, muddy water and industrial waste liquid without easy blockage, meeting high-frequency daily operation demands.

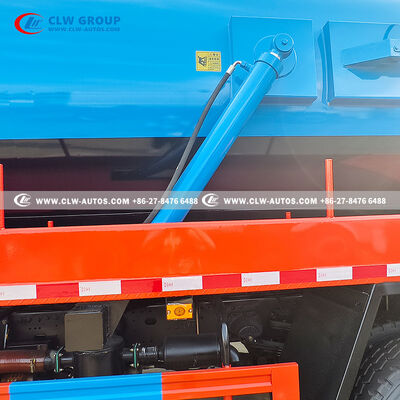

Hydraulic Tipping Tank with Middle Lift Cylinder

The sewage tank adopts thickened carbon steel anti-corrosion treatment. A single middle hydraulic lifting cylinder is installed at the tank belly, which supports full tank tipping and self-discharging of waste materials. The hydraulic system is controlled by double manual hydraulic valves, easy to operate, stable lifting and no tank deformation under full load.

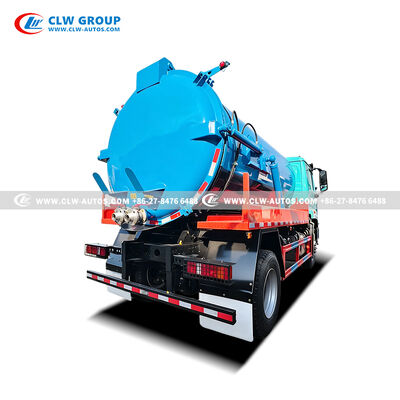

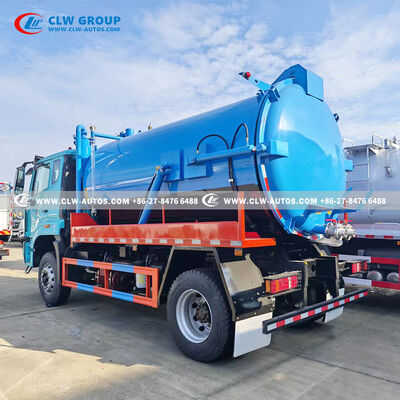

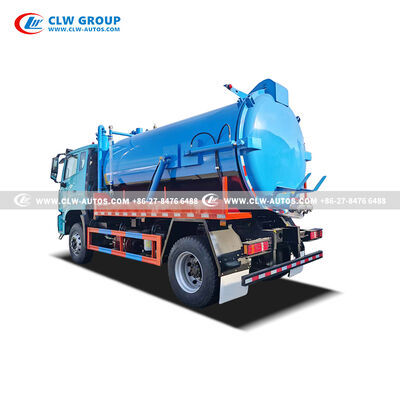

Dual Standard Ports: Sewage Inlet & Sewage Outlet

Two large-caliber aluminum alloy ball valves at the tank rear, marked sewage inlet for suction operation and sewage outlet for waste discharge. Quick-connect pipeline design for fast hose assembly and disassembly, good sealing performance to avoid liquid leakage.

Auxiliary Filtration & Liquid Level Observation System

Front cyclone filter tank effectively isolates solid impurities to protect the vacuum pump from damage; transparent liquid level observation tube on tank side lets operators check internal sewage volume in real time to prevent overfilling.

Main Application Scenarios

Municipal sanitation: Septic tank cleaning, community pipeline sewage suction
Industrial park: Waste liquid, sludge, chemical sewage collection
Rural area: Livestock manure transportation, cesspit cleaning
Road & construction site: Mud, sediment and wastewater recovery

Product Advantages

RHD HOWO chassis mature and durable, easy to source spare parts globally
Imported Jurop PN155 pump delivers powerful, reliable vacuum suction performance
Middle hydraulic tipping cylinder for smooth full-load self-dumping
Complete sealed pipeline system, anti-leakage design for clean operation
Comfortable air-conditioned cabin, 8-speed transmission for strong climbing ability
All superstructure parts undergo anti-rust painting, long service life under harsh working conditions
