59.5 CBM LPG Tank Trailer with Filling Reel

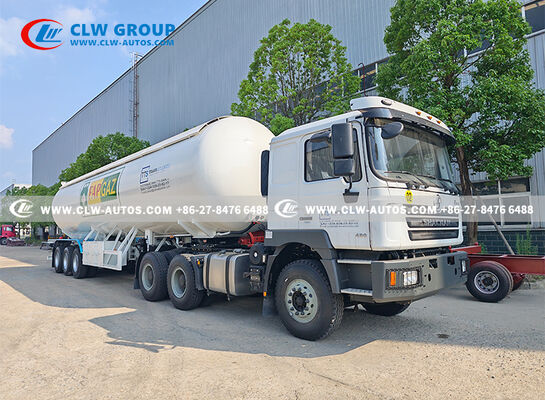

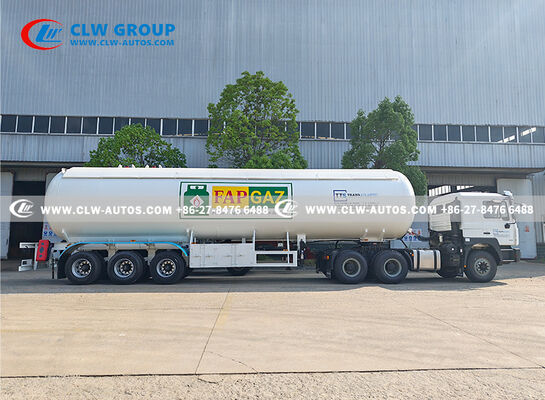

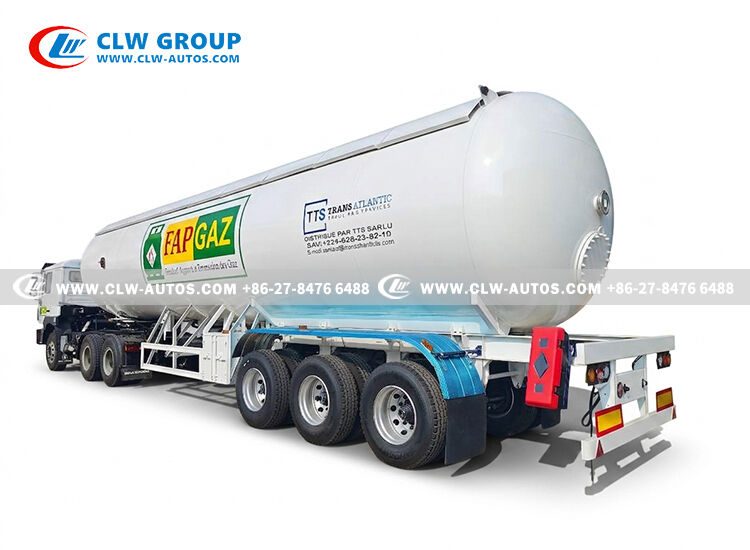

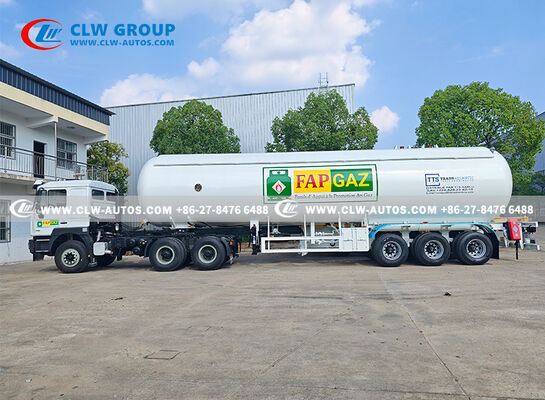

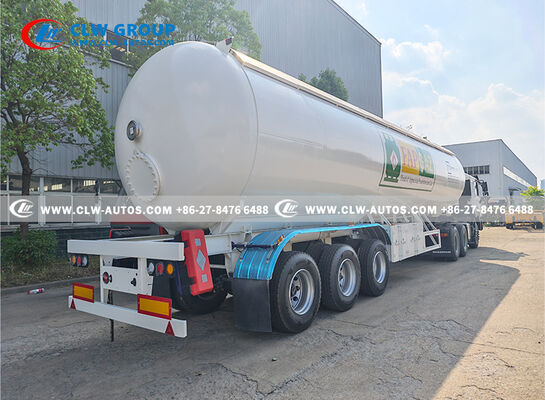

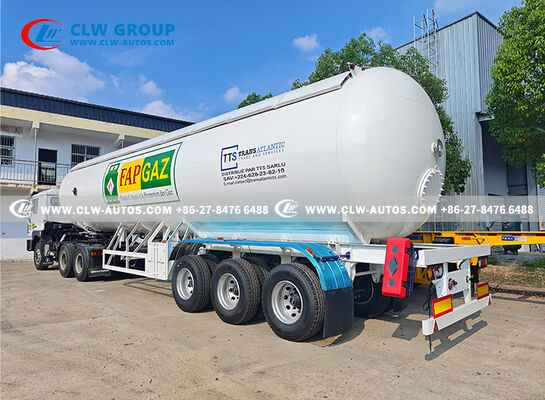

Large Image : 59.5 CBM LPG Tank Trailer with Filling Reel

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	LPG trailer

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20000
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Effective Volume:	59.5 CBM (59500 Liters)

59.5 CBM LPG Tank Trailer

Our 59.5 CBM LPG semi-trailer combines large capacity pressure tank and integrated filling metering system, serving as both long-distance bulk gas transport tanker and mobile mini LPG filling station.

Tank Parameter: 59.5m³ Q345R pressure vessel tank, 1.61MPa design pressure, fitted with level gauge, pressure & temperature monitoring meters and full leak-proof valve pipelines.
Dispensing Unit: Complete flow meter cabinet with print function, control valves and retractable filling hose reel, support direct LPG retail on site.
Running Gear: 3 heavy load axles, 315/80R22.5 tubeless tires, ABS brake system, stable driving on all kinds of road conditions.
Safety Kit: Standard flammable gas warning cabinet, emergency shut-off valves, fire protection fittings, full reflective marks to meet international dangerous goods transport standards.

Support OEM logo customization, full export certificates, 1-year warranty & 24h online after-sale service, widely exported to Africa, Middle East gas markets.

Technical Specifications

Product Name	59.5 Cubic Meter LPG Tank Semi Trailer / Propane Butane Transport Semi Trailer
Effective Volume	59.5 CBM (59500 Liters)
Design Pressure	1.61 MPa
Design Temperature	-20℃ ~ +50℃
Medium	LPG, Propane, Butane, Liquefied Petroleum Gas
Tank Material	Q345R Pressure Vessel Steel
Tank Surface Treatment	Sand blasting + Anti-rust primer + Anti-corrosion top coat
Testing Standard	100% NDT flaw detection, Hydrostatic test & Air tightness test
Axle Quantity	3 Axles (FUWA / BPW Optional)
Tire Specification	315/80R22.5 Tubeless Tire × 12 pcs
King Pin	90# / 50# JOST Standard King Pin
Landing Gear	JOST Heavy-duty Double-speed Landing Leg
Brake System	Full Air Brake + ABS Anti-lock Braking System
Measuring & Dispensing System	High-precision flow meter, Ticket printing device, Control valve group, Retractable hose reel
Monitoring Device	Pressure gauge, Temperature gauge, Mechanical liquid level gauge
Safety Configuration	Emergency shut-off valve, Safety relief valve, Fire extinguisher, Static grounding belt, Hazardous goods warning signs, LED signal lights
Overall Dimension	12500×2500×3950 mm (Customizable)
Load Capacity	28-30 Ton
Compliance Standard	ADR, ISO, Dangerous Goods Transport Standard
Customization	Tank size, valve layout, logo painting, dispensing system configuration
Warranty	1 year warranty for core components, 24/7 online after-sales support

Tank Vessel & Pipeline System

Nominal capacity: 59.5 cubic meters, designed for loading propane, butane and mixed liquefied petroleum gas
Tank shell & elliptical head adopt thickened Q345R pressure vessel steel, anti-corrosion high-gloss exterior paint for long outdoor service life
Bottom integrated complex pipeline network, dual liquid/gas phase inlet & outlet interfaces to meet bidirectional loading and unloading demands

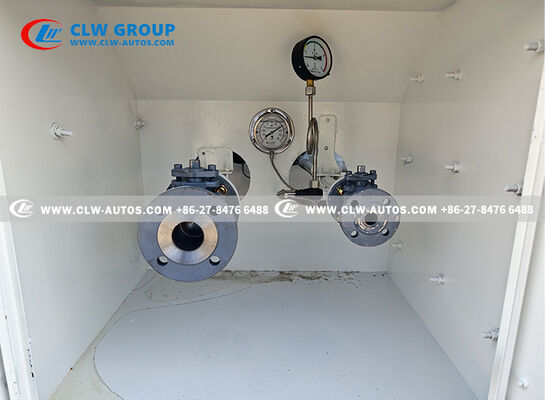

Independent dual-valve operation cabinet equipped with pressure & temperature dual monitoring meters, easy daily operation inspection
Mechanical direct reading level indicator with red-green warning scale, effectively prevent overcharge safety accidents
All pipeline connections adopt high-pressure flange ball valves, high sealing performance, zero leakage under long continuous operation

Reliable Trailer Chassis & Travel Assembly

Three-axle heavy-duty semi-trailer frame with thickened structural steel welding:

Optional international famous brand BPW/FUWA 13-ton axles, heavy suspension with excellent shock absorption

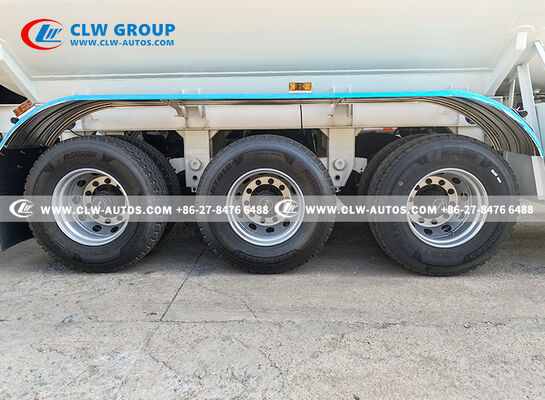

Standard 315/80R22.5 all-terrain tires, strong wear resistance for long haul transportation
JOST landing gear and heavy-duty king pin, matched with full air brake + ABS system to guarantee driving safety

Complete Standard Safety Fittings

Equipped with full set LPG dangerous goods transport matching parts: emergency cut-off valve, safety valve, fire fighting tool cabinet, static conductive belt, full reflective warning signs and rear signal lamp assembly, fully compliant with international ADR dangerous goods transport regulations.

Export & Custom Service

Custom tank internal fittings, pipeline layout, brand painting are acceptable. All trailers pass factory strict pressure inspection, we provide complete set of export certification documents to simplify customs clearance for Africa, Middle East, Southeast Asia markets. Professional technical support and one-year warranty service are available.
