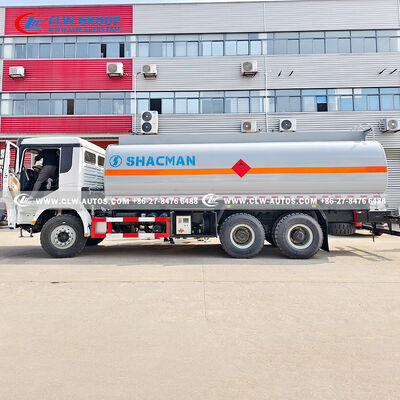

SHACMAN 6x4 25,000L Fuel Tanker Truck – High-Capacity Petroleum Bowser with Censtar Dispenser & Emergency Shut-Off Alarm
The SHACMAN 6x4 25,000L Fuel Tanker Truck is a high-capacity petroleum transport and dispensing vehicle built on the SHACMAN X3000 6x4 chassis, featuring a WEICHAI 380HP Euro II engine, 12F+2R transmission, 25m³ single-compartment anti-static/explosion-proof tank, Censtar fuel dispenser with automatic hose reel, HAKJ-19A emergency shut-off valve alarm (DC24V, -30°C~+60°C, 0.5-0.8MPa), API valve system, GB 7258-2017 compliance, and complete standard equipment.
Product Overview

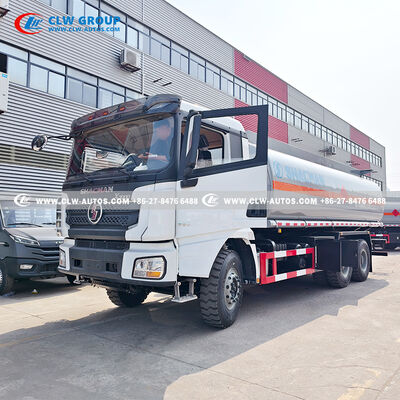

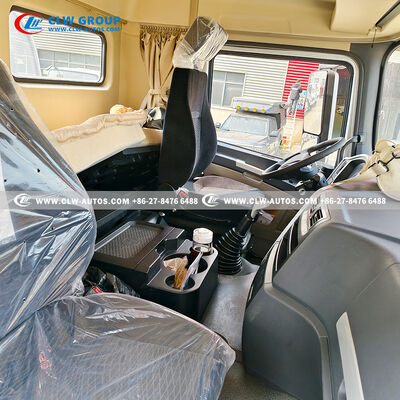

The SHACMAN 6x4 Fuel Tanker Truck is a professional-grade high-capacity petroleum transport and dispensing vehicle designed for fuel distributors, construction contractors, mining companies, and industrial facilities requiring reliable bulk fuel delivery and on-site refueling. Built on the robust SHACMAN X3000 6x4 heavy-duty chassis with 4,575+1,400mm wheelbase, left-hand drive, and high-roof sleeper cab (2 seats + 1 sleeper, A/C, air suspension driver seat, electric windows), this vehicle features a WEICHAI WP10.380E22 engine delivering 380HP (Euro II) with a 12-forward, 2-reverse manual transmission.

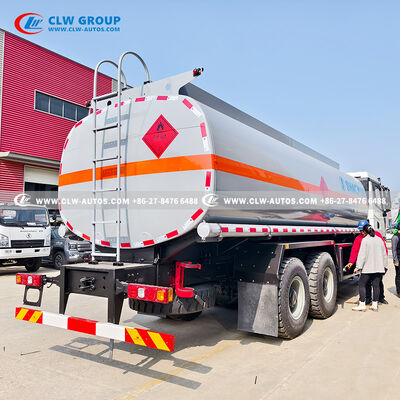

The 25,000-liter (25m³) single-compartment tank features no internal partitions, ensuring smooth liquid flow and easy cleaning, with anti-static and explosion-proof treatment for flammable petroleum product transport. The integrated Censtar fuel dispenser with automatic hose reel provides accurate metering and fast refueling with real-time display of sales amount, liter count, and unit price. The HAKJ-19A emergency shut-off valve alarm triggers alerts and cuts off pipelines during abnormal pressure or accidents.
Key Features

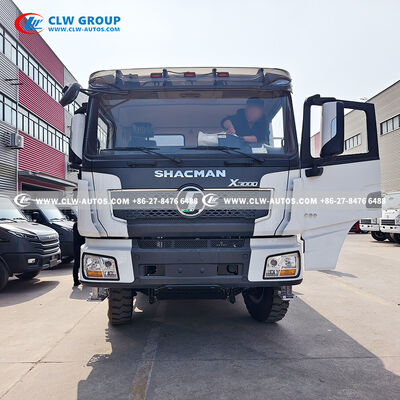

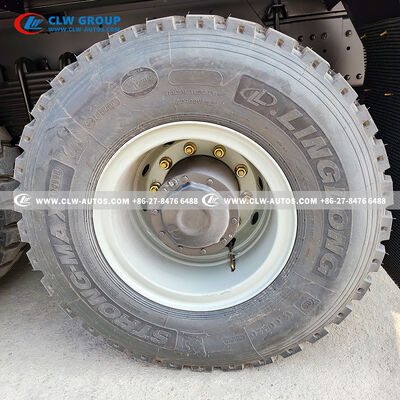

- SHACMAN X3000 6x4 Chassis: High-roof sleeper cab, 2 seats + 1 sleeper, LHD, A/C, air suspension driver seat, electric windows. 4,575+1,400mm wheelbase. GVW 26,000kg. 12.00R20 tires (10 + 1 spare)
- WEICHAI 380HP Euro II Engine: WP10.380E22, 380HP, 12F+2R transmission. Proven reliability and long service life

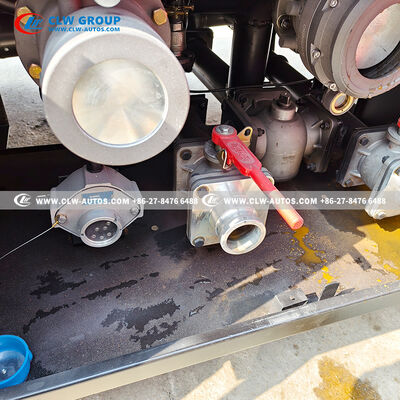

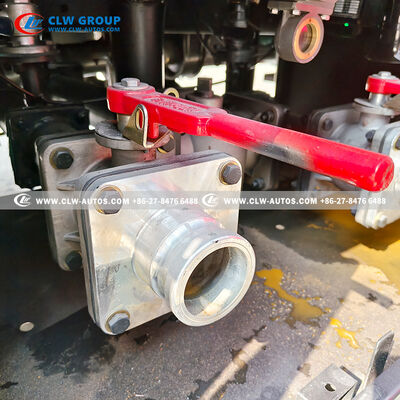

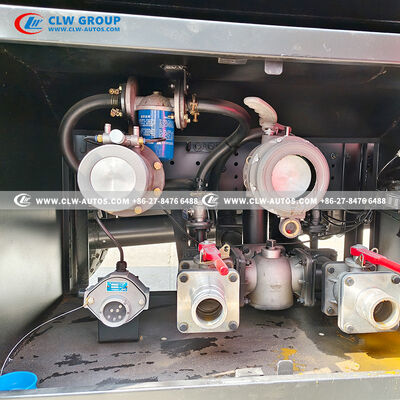

- 25,000L Single-Compartment Tank: No internal partitions. Anti-static, explosion-proof, flame-resistant. API valve system

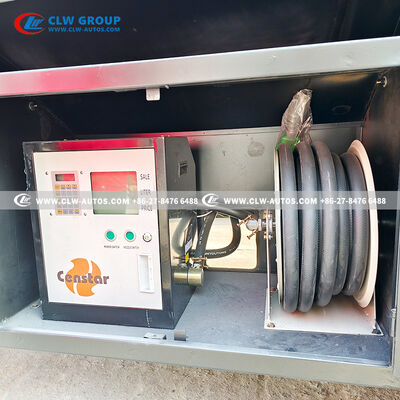

- Censtar Fuel Dispenser: Automatic hose reel. Real-time display of amount, liter count, unit price. Data recording

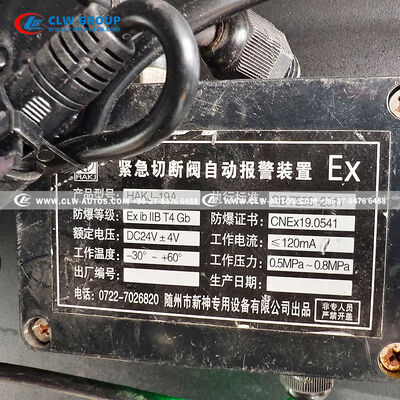

- HAKJ-19A Emergency Alarm: Automatic cut-off on abnormal pressure/accident. DC24V, -30°C~+60°C, 0.5-0.8MPa
- Safety Compliance: GB 7258-2017. Explosion-proof electrical components, anti-overflow valves, emergency exhaust system

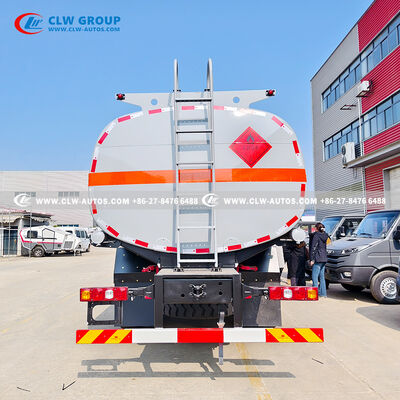

- Standard Equipment: Rear ladder, spare tire, anti-static wire, 2 fire extinguishers, 2 discharge hoses
Applications
- Construction on-site refueling for heavy machinery
- Refined oil transport between depots and service stations
- Mining and remote area central fuel supply
- Factory private oil storage and supply for industrial parks
Technical Specifications
| Specification |
Details |
| Product Name |
SHACMAN 6x4 Fuel Tanker Truck |
| Chassis |
SHACMAN X3000 6x4 |
| Cab |
High-roof sleeper, 2 seats + 1 sleeper, LHD, A/C, air suspension driver seat, electric windows |
| Wheelbase |
4,575 + 1,400 mm |
| GVW |
26,000 kg |
| Front Axle |
7,000 kg |
| Rear Axle |
19,000 kg × 2 |
| Engine |
WEICHAI WP10.380E22, 380 HP, Euro II |
| Transmission |
12 forward + 2 reverse |
| Tires |
12.00R20 (10 + 1 spare) |
| Tank Capacity |
25,000 L (25 m³) |
| Tank Design |
Single compartment, no partitions |
| Tank Safety |
Anti-static, explosion-proof, flame-resistant |
| Fuel Dispenser |
Censtar with automatic hose reel |
| Emergency Alarm |
HAKJ-19A |
| Safety Compliance |
GB 7258-2017 |
| Standard Equipment |
Rear ladder, spare tire, anti-static wire, 2 fire extinguishers, 2 discharge hoses |
| Applications |
Construction, oil transport, mining, industrial |
Product Gallery
