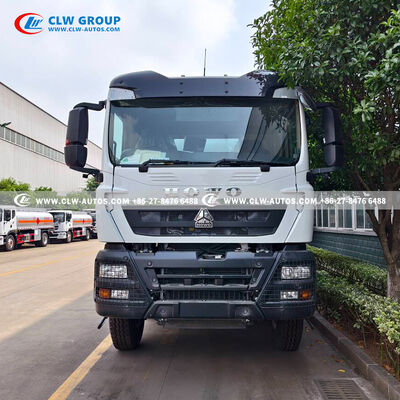

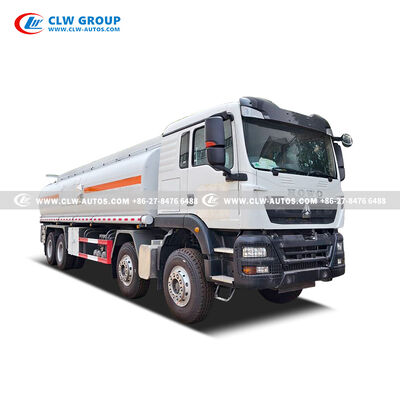

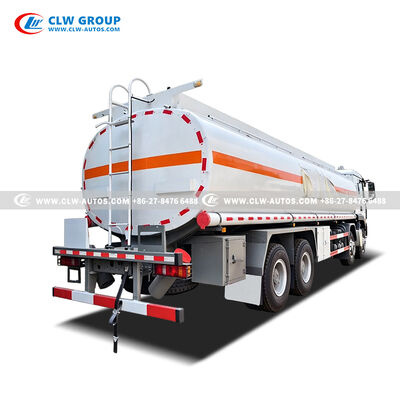

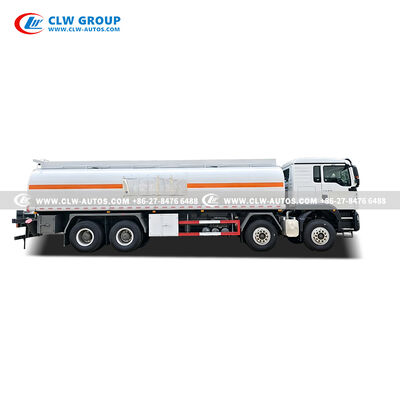

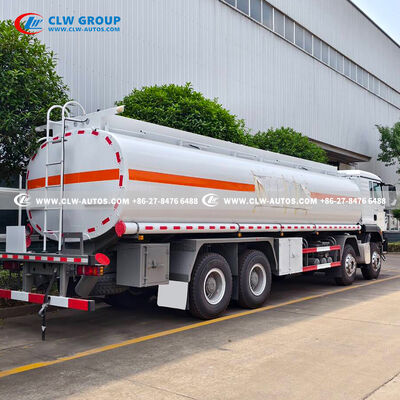

HOWO 8X4 30,000L Refueling Truck with Intelligent Dispenser and Dual-Way Metering System for Fuel Delivery

The HOWO 8X4 30m³ Refueling Truck is a premium, heavy-duty hazardous material transport vehicle engineered for high-frequency, mid-to-long-distance fuel distribution and mobile on-site refueling. Built on the rugged Sinotruk HOWO 8X4 chassis and powered by a high-torque 371HP engine, this vehicle features a 30,000L carbon steel tank with an internal anti-corrosion lining, making it fully compatible with gasoline, diesel, and lubricants.

Equipped with a dual-way pump/metering system and an Ocheng smart explosion-proof dispenser with an automatic hose reel, it seamlessly transitions from a high-capacity bulk transporter to a precise mobile refueling station for mining, construction, and fleet logistics.

1. Versatile 30m³ Anti-Corrosion Tank & Advanced Safety
   The 30,000L tank is treated with a specialized internal anti-corrosion lining, allowing fleets to switch safely between gasoline, diesel, and industrial lubricants without cross-contamination or chemical wear. The rear end employs a hydraulic-formed dish head that drastically enhances structural rigidity, preventing weld seams from cracking under extreme sloshing or unexpected rear collisions.
2. Mobile Refueling & Intelligent Smart Metering
   Housed safely in the side control box is the Ocheng smart dispenser system. Featuring a digital LCD screen (displaying volume, total price, and unit price), a preset volume/amount keypad, and a 15-meter automatic rewinding hose reel with a shut-off gun, it serves as a retail-ready mobile fueling station.
3. Dual-Way Flow Meter & Integrated Filtration
   The heavy-duty pipe network features a bi-directional pump that enables fast self-priming (loading) and high-volume gravity or pumped discharge (unloading). A mechanical dual-counter flow meter tracks fuel movement with precision, while a blue-coated Y-strainer with a stainless steel filter mesh screens out mechanical impurities before fluid reaches the meter, extending component lifespan and guaranteeing fuel cleanliness.
4. Heavy-Duty Chassis with Cam-Action Security
   The chassis is optimized for rough off-road terrain, pairing a 371HP engine with an 8X4 multi-axle layout and a reinforced rear steel leaf-spring suspension. To protect your valuable fueling assets, all terminal valves, couplers, and meters are enclosed in a thick steel control box secured by a container-style cam-action locking bar that resists dust, heavy rain, and tampering.
5. Full Environmental & Operational Compliance
   The tank top is equipped with a full-length longitudinal walkway utilizing a high-traction diamond anti-slip matrix alongside a raised spill-proof coaming that drains accidental spills through inner tubes. Combined with rear underrun bumpers, reflective conspicuity tape, LED safety lighting, and quick-extract weather-sealed fire extinguisher holders, this truck complies with strict international hazardous material regulations.

• Anti-Corrosion Painting: Multi-layer anti-rust primer with custom color finish (Vibrant Green, Safety White, or custom corporate branding).
• Export Shipping Protection: Marine-grade wax coating applied to the entire vehicle to protect against seawater corrosion during RORO (Roll-on/Roll-off) or Bulk Cargo shipping.
• OEM/ODM Customization: Multi-compartment split configurations (e.g., 15m³ + 15m³ for simultaneous diesel and petrol transport), customized toolboxes, and specific brand dispenser installations are available upon request.
