ISUZU FVR 4x2 12m³ Sweeper Truck with 240HP Euro VI Engine, Full-Width Magnetic Strip, and 65km/h Sweeping Speed for Highways & Airports

Name: ISUZU FVR 4x2 12m³ Sweeper Truck with 240HP Euro VI Engine, Full-Width Magnetic Strip, and 65km/h Sweeping Speed for Highways & Airports
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 41,435.00 USD
Availability: InStock

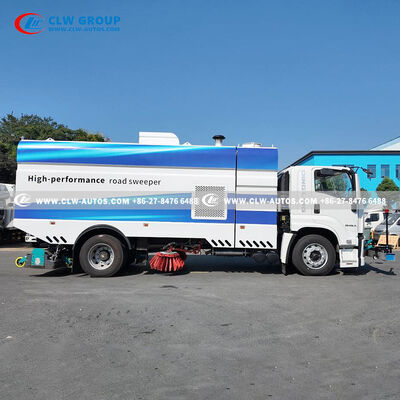

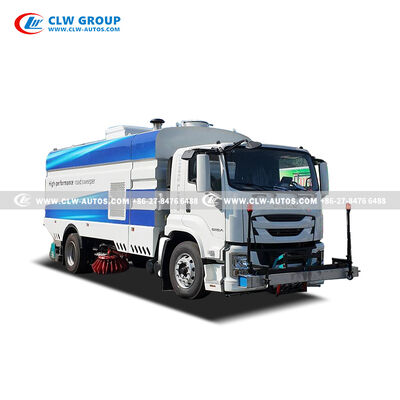

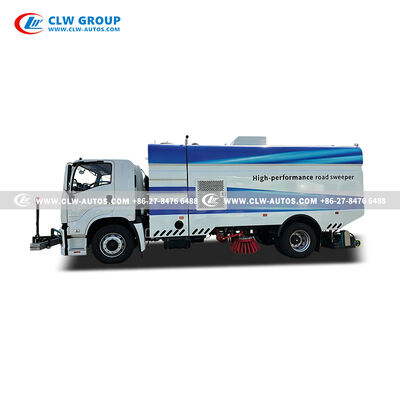

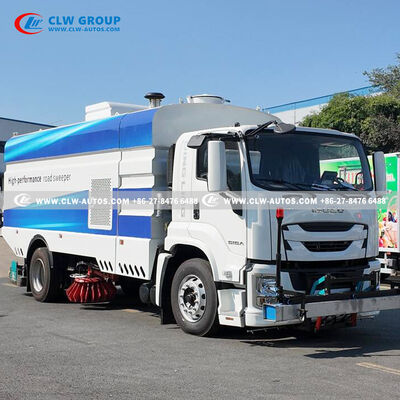

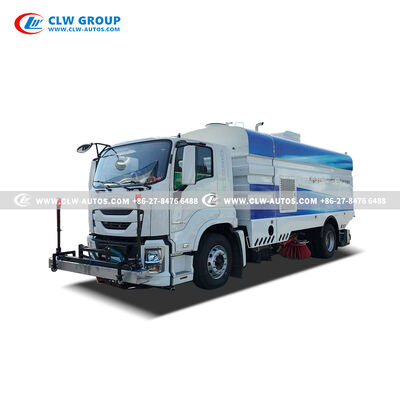

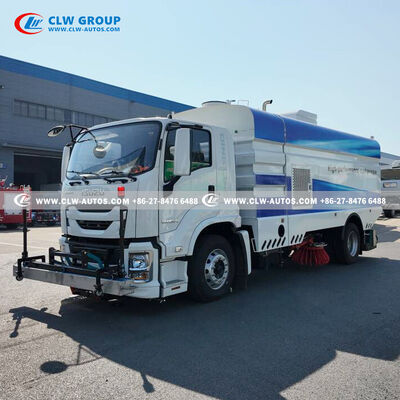

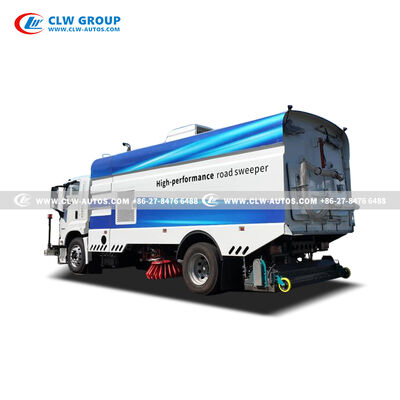

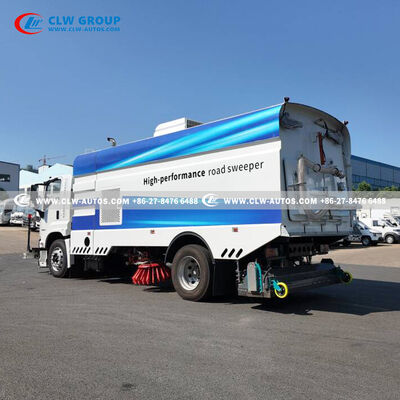

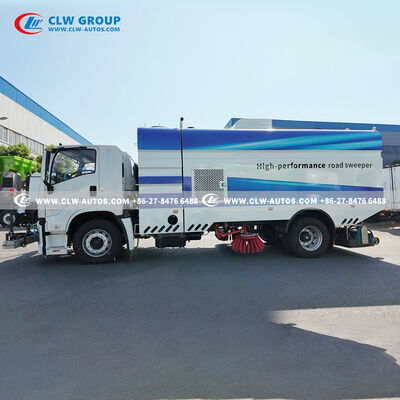

Large Image : ISUZU FVR 4x2 12m³ Sweeper Truck with 240HP Euro VI Engine, Full-Width Magnetic Strip, and 65km/h Sweeping Speed for Highways & Airports

Product Details:

Contact Now

Detailed Product Description

Engine Power:	240HP	Engine Displacement:	7,790ml
Transmission Type:	FAST 8-speed Manual	Water Tank Volume:	3m³
Garbage Tank Volume:	9m³	Auxiliary Engine Power:	260hp
Sweeping Speed:	65km/h	Sweeping Capacity:	150,000 M²/h
Working Width:	2.8-3.5m	Tire Size:	295/80R22.5

ISUZU FVR 4x2 12m³ Sweeper Truck – Full-Width Magnetic Strip & High-Speed Sweeping for Highways & Airports

The ISUZU FVR Sweeper Truck features a 240HP ISUZU Euro VI engine, FAST 8-speed transmission, 3m³ stainless steel water tank, 9m³ stainless steel garbage tank, 260hp auxiliary engine, front-mounted permanent magnetic strip (liftable), dual side steel wire brooms (2.8-3.5m width), central vacuum suction nozzle, 65km/h sweeping speed, and 150,000 m²/h sweeping capacity. Ideal for highways, airport runways, industrial parks, and construction sites. Removes nails, steel slag, sand, leaves, and dust in one pass.

Overview

The ISUZU FVR Sweeper Truck is a high-performance sanitation vehicle specifically designed for highways, airport runways, industrial parks, and urban arterial roads. Built on the reliable ISUZU GIGA 4x2 medium-duty chassis with a 5,000mm wheelbase and FVR cab (LHD, A/C, 3 passengers), this vehicle features an ISUZU 6HK1-TCG61 diesel engine delivering 240HP (7,790ml, Euro VI) with a FAST 8-speed manual transmission. The front-mounted permanent magnetic strip adsorbs nails, screws, and steel slag. The integrated tank structure includes a 3m³ stainless steel water tank and 9m³ stainless steel waste tank. The 260hp auxiliary engine powers the high-pressure centrifugal fan. Dual side steel wire brooms (700mm thickness) with 2.8-3.5m working width and central vacuum suction provide 65km/h sweeping speed with 150,000 m²/h capacity.

Key Features

ISUZU FVR 4x2 Chassis: 5,000mm wheelbase, FVR cab LHD with A/C, 3 passengers. GVW 18,000kg, curb 13,800kg. 295/80R22.5 tires (6+1 spare). Full 24V electrical system.
ISUZU 240HP Euro VI Engine: 6HK1-TCG61, 240HP, 7,790ml. FAST 8-speed manual transmission (8F+1R).

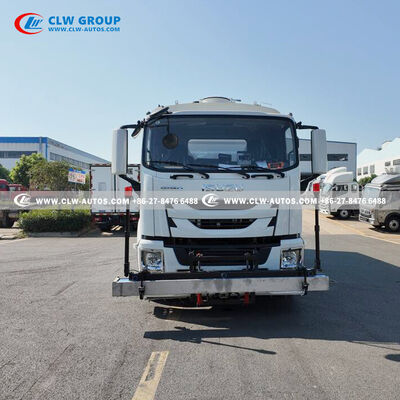

Front-Mounted Permanent Magnetic Strip: Liftable black magnetic strip on front bumper with red warning lights. Adsorbs nails, screws, steel slag. Protects tires, brooms, and fan impellers. Hydraulically liftable.
12m³ Tank Structure: 3m³ stainless steel water tank. 9m³ stainless steel garbage tank. Built-in sedimentation layering.
260hp Auxiliary Engine: Powers high-pressure centrifugal fan for vacuum suction.
Dual Side Brooms: 2 pcs steel wire brushes (700mm thickness). Hydraulically extendable/liftable. Working width 2.8-3.5m. Integrated spray rings for dust suppression.
Central Vacuum Suction Nozzle: Self-adapts to potholes and manhole covers. Sealing strips prevent suction loss.
Performance: Sweeping speed 65km/h. Max sweeping capacity 150,000 m²/h. Max drive speed 60-80 km/h.
Applications: Highways, airports, industrial parks, construction sites.

Applications

Urban arterial roads and national highways
Airport runways and aprons
Industrial parks and logistics hubs
Construction sites
Metal debris removal and wet/dry sweeping

Technical Specifications

Chassis Specification
Chassis Model	QL18
Driving Model	4X2
Cab	ISUZU FVR cabin, Left hand drive, With air conditioner, Allowed 3 Passengers
Dimension	10000 x 2500 x 3500 mm
Wheelbase	5000 mm
Gross Vehicle Weight	18000 kg
Curb Vehicle Weight	13800 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Tire	295/80R22.5 (6 pcs with 1 spare tire)
Engine
Type	ISUZU diesel engine, 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start
Model	6HK1-TCG61
Horse Power	240 HP
Displacement	7790 ml
Emission Standard	Euro 6
Transmission	Model: FAST, 8 Forward & 1 Reverse
Brakes	Air brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Garbage Tank Material	Stainless steel
Garbage Tank Volume	9m³
Water Tank Material	Stainless steel
Water Tank Volume	3m³
Auxiliary Engine	diesel engine, 260hp
Brush Number	2 pcs
Brush Material	Steel wire
Brush Thickness	700mm
Working Area	2.8~3.5 m (＞90inches)
Sweeping Speed	65km/h
Max. Sweeping Capacity	150,000 m²/h
Max. Drive Speed	60~80 km/h
Fan Model	8.5a
High Pressure Pump Brand	BOTUO
Electro-hydraulic system assembly	XHR-ES2610
Suction Cup Form	The suspended suction cup is equipped with a wire roller brush
