Sinotruk HOWO 8x4 20-Ton Knuckle Boom Crane Truck with 360° Rotation and Multi-Segment Articulated Folding Boom

Name: Sinotruk HOWO 8x4 20-Ton Knuckle Boom Crane Truck with 360° Rotation and Multi-Segment Articulated Folding Boom
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 54,740.00 USD
Availability: InStock

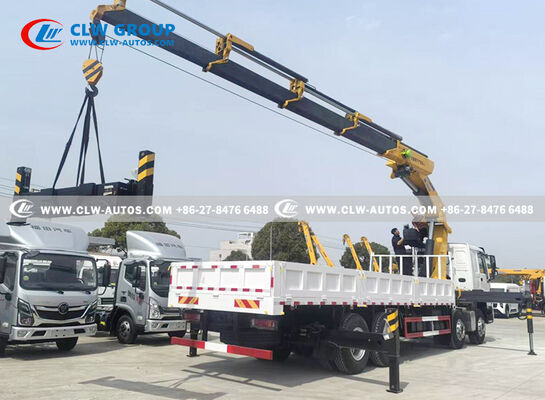

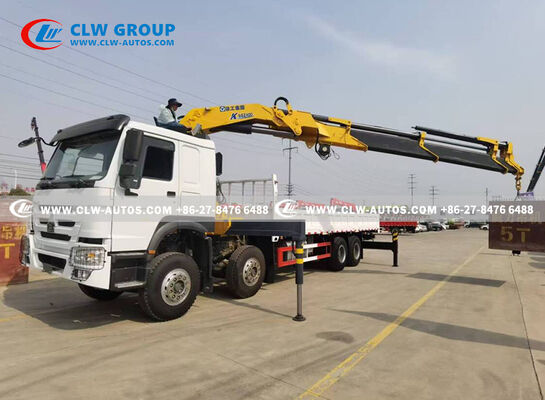

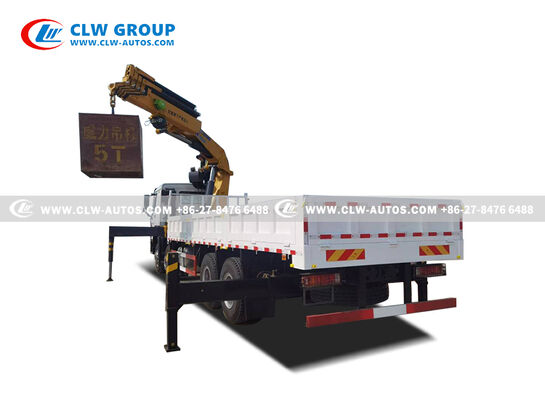

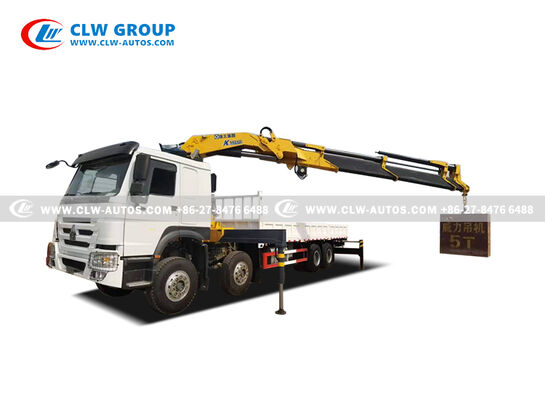

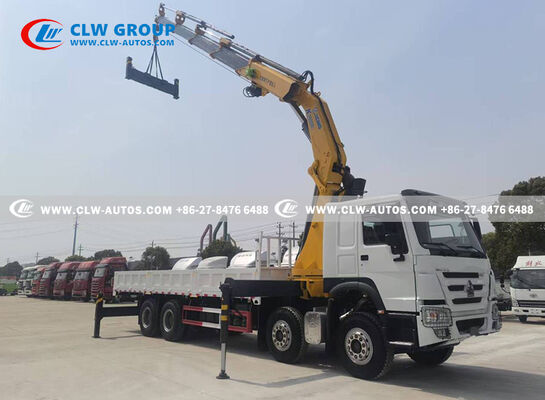

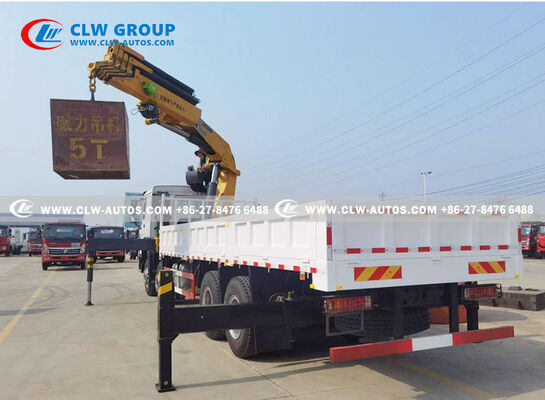

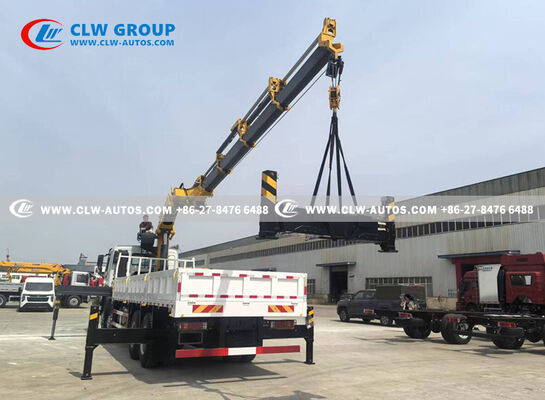

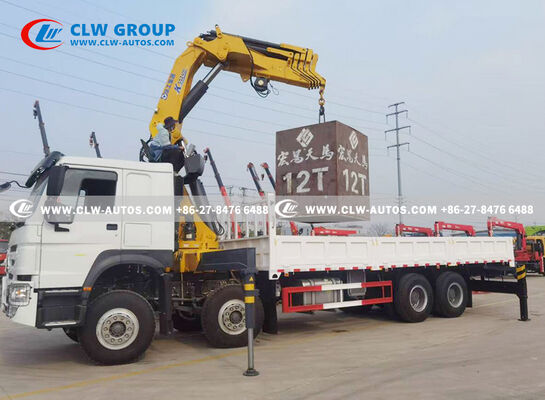

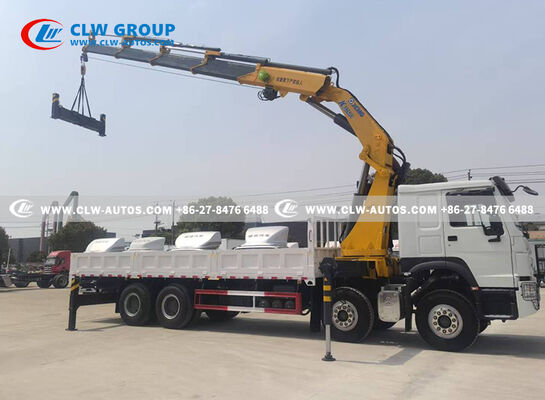

Large Image : Sinotruk HOWO 8x4 20-Ton Knuckle Boom Crane Truck with 360° Rotation and Multi-Segment Articulated Folding Boom

Product Details:

Contact Now

Detailed Product Description

Engine Power:	400HP	Engine Displacement:	11,596ml
Transmission Type:	HW19710 10F+2R	Crane Capacity:	20,000kg @ 2.0m
Max Lifting Height:	14m	Working Radius:	11.81m
Cargo Body Dimensions:	7,500×2,400×550mm	Cargo Body Capacity:	30-ton
Wheelbase:	1,800+4,600+1,350mm	Fuel Tank Capacity:	400L

Sinotruk HOWO 8x4 20-Ton Knuckle Boom Crane Truck – XCMG Folding Crane for Construction & Logistics

Product Overview

The Sinotruk HOWO 8x4 Crane Truck is a heavy-duty integrated lifting and transport vehicle designed for construction sites, logistics operations, scrap steel recycling, and emergency rescue. Built on the robust HOWO 8x4 chassis with 1,800+4,600+1,350mm wheelbase and HW76 cabin (LHD/RHD with A/C), this vehicle features a Weichai WP12S4 diesel engine delivering 400HP (11,596ml, Euro II) with an HW19710 10-speed manual transmission (10 forward + 2 reverse).

The XCMG SQZ400 knuckle boom crane delivers 20,000kg effective lifting capacity at 2.0m with a 400 t*m lifting moment, 14m maximum lifting height, 11.81m working radius, and 360° continuous rotation. The multi-segment articulated boom (1 main + 5 extendable booms) can be flexibly folded for compact storage.

Key Features

Sinotruk HOWO 8x4 Chassis: 1,800+4,600+1,350mm wheelbase, HW76 cabin LHD/RHD with A/C. GVW 31,000kg, curb 10,350kg. Front 9,500×2 kg / Rear 16,000×2 kg. 12.00R20 18PR tires (12+1 spare). 400L fuel tank.
Weichai 400HP Euro II Engine: WP12S4, 400HP, 11,596ml. HW19710 10-speed manual transmission (10F+2R).
XCMG SQZ400 20-Ton Knuckle Boom Crane: 20,000kg @ 2.0m. 400 t*m moment. 14m height. 11.81m radius. 360° rotation. 1 main + 5 extendable booms. 5,420kg crane weight.
Multi-Segment Articulated Folding Boom: Flexible folding for compact storage. Works in narrow/confined spaces.
H-Shape Hydraulic Outriggers: 4 pcs, 4,400-11,810mm span. 63 L/min flow @ 31.5 MPa.
Cargo Body: 7,500×2,400×550mm, Q235 steel. Bottom 5mm / Side 3mm. 30-ton loading capacity.
Multi-Functional: Grapples, clamps, hooks, aerial platforms available.
Optional: Hydraulic tipper box, remote controller, custom color/logo.

Applications

Construction sites (steel beams, precast concrete, formwork lifting)
Logistics parks (container and cargo loading/unloading)
Scrap steel recycling (heavy scrap metal handling)
Emergency rescue (fast clearing in narrow spaces)
Equipment installation and positioning
Wood handling and log transport

Technical Specifications

Chassis Specifications

Parameter	Specification
Chassis Model	ZZ1317
Driving Model	8x4
Cab	HW76 cabin, Right/Left hand drive, With air conditioner
Dimension	12000 x 2500 x 3900 mm
Wheelbase	1800 + 4600 + 1350 mm
Gross Vehicle Weight	31000 kg
Curb Weight	10350 kg
Front Axle Loading Capacity	9500 x2 kg
Rear Axle Loading Capacity	16000 x2 kg
Axle Number	4
Tire	12.00R20 18PR (12pcs with 1 spare tire)
Fuel Tank Capacity	400L

Engine Specifications

Parameter	Specification
Engine Type	Weichai diesel engine
Configuration	6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start
Model	WP12S4
Horse Power	400 HP
Displacement	11596 ml
Emission Standard	Euro 2
Transmission	Model: HW19710 (10 Forwards & 2 Reverses)

Cargo Box Specifications

Parameter	Specification
Size (L×W×H)	7500 × 2400 × 550 mm
Loading Capacity	30 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel

Crane Specifications

Parameter	Specification
Model	SQZ400
Working Platform	360° turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 5 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 20000 kg at 2.0 meters
Max. Working Radius	11.81 meters
Max. Lifting Height	14 meters
Max. Lifting Moment	400 T.m
Max. Oil Flow of Hydraulic System	63 L/min
Max. Pressure of Hydraulic System	31.5 Mpa
Crane Weight	5420 kg
Landing Leg	4 Pcs hydraulic handing leg
