Compact Mini 3 Ton Integrated Wrecker Tow Truck for Narrow Road Rescue

Large Image : Compact Mini 3 Ton Integrated Wrecker Tow Truck for Narrow Road Rescue

Product Details:

Place of Origin:	china
Brand Name:	clw group
Model Number:	Dongfeng

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Wheelbase:	2800 Mm

Mini 3 Ton Integrated Wrecker Tow Truck

Product Overview

This Dongfeng light-duty integrated tow wrecker truck is compact, flexible and cost-effective, specially designed for urban roadside rescue, parking lot vehicle towing, small accident car recovery and daily road breakdown assistance. Equipped with 3-ton integrated lifting & towing working device, left-hand drive cabin, it supports optional automatic wheel clamping fixture, perfectly fits narrow city streets, community roads and underground parking garages.

Technical Specifications

Chassis Core Parameters
Product Name	3 Ton Road Rescue Truck (Dongfeng Chassis)
Driving Type	Left Hand Drive (LHD)
Application	Rescue of broken/stalled cars in narrow urban roads, underground parking lots and community environments
Cab Configuration	Single row cabin, built-in manual Air Conditioning (A/C)
Wheelbase	2800 mm
Engine Model	Q23-95E60 Diesel Engine
Rated Horsepower	95HP
Emission Standard	Euro 6
Gearbox	5-speed Manual Transmission (5 Forwards + 1 Reverse)
Gross Vehicle Weight (GVW)	4495 kg
Curb Weight	3600 kg
Rated Loading Weight	565 kg
Front/Rear Axle Rated Loading	1500kg / 3000kg
Tire Specification	185R15 Steel Radial Tires, 6 pcs + 1 full-size spare tire
Wrecker Superstructure (Body) Parameters
Rated Towing & Lifting Capacity	3 Ton (Integrated tow & lift dual function)
Underlift System	Integrated high-strength lifting boom + 2-section underlift arm; Optional hydraulic auto-grip (auto wheel clamping) system: no manual strapping required, completes wheel clamping within 1-2 minutes
Winch & Rope System	Standard 3-ton heavy-duty hydraulic winch; 25-meter high-tensile steel wire rope, cable routed through boom top sheave block with safety hook, supports off-road vehicle pulling
Control System	Dual-side linked manual hydraulic multi-way control valves, supports independent upper structure operation from either side of the body; Recessed control panels prevent external accidental bumps
Hydraulic System	Full hydraulic drive, leak-proof pipeline design, stable and low-noise operation, long service life
Standard Accessories	2 auxiliary dollies, hand-washing tank, strapping ratchets; Maintenance-free battery with protective casing and handle; LED night working lights
Operation Mode	Single-person operable, side manual control, easy to master for daily rescue work
Body Platform	Anti-slip patterned steel plate, integral welding molding, durable for long-term frequent towing operations

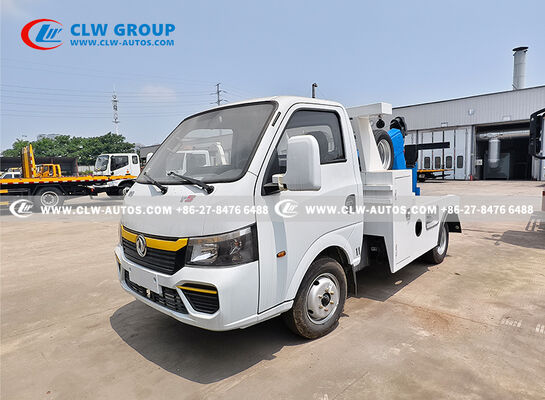

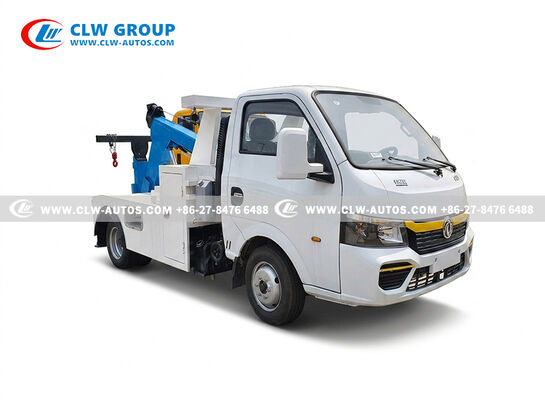

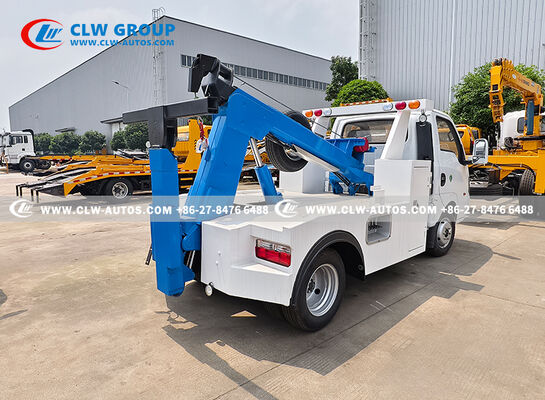

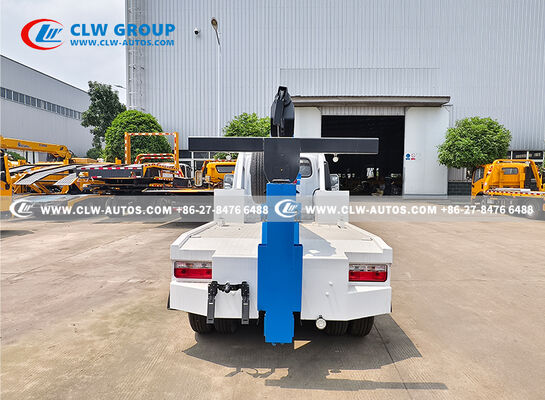

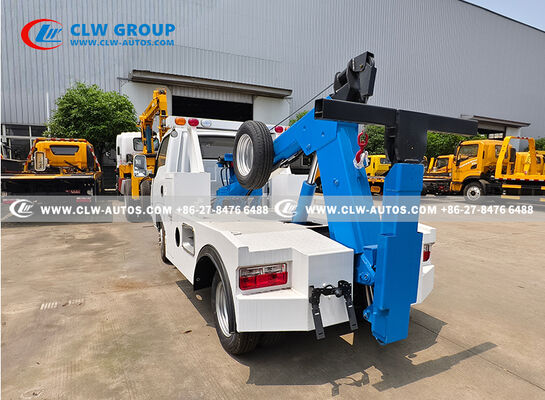

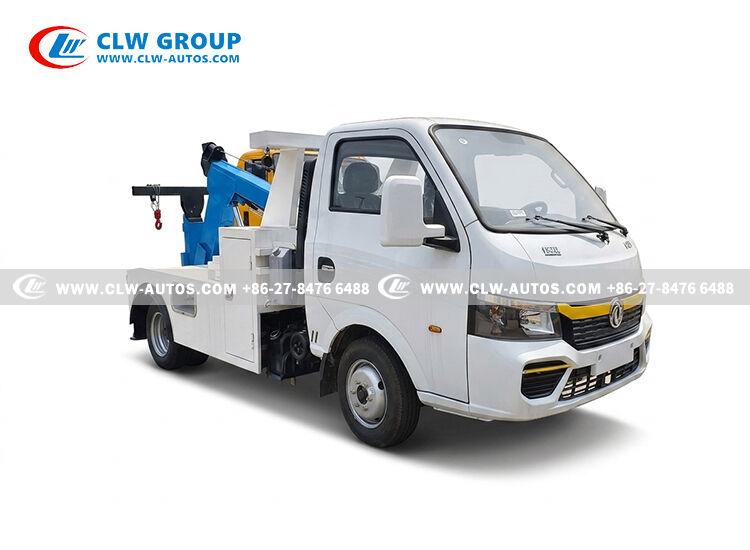

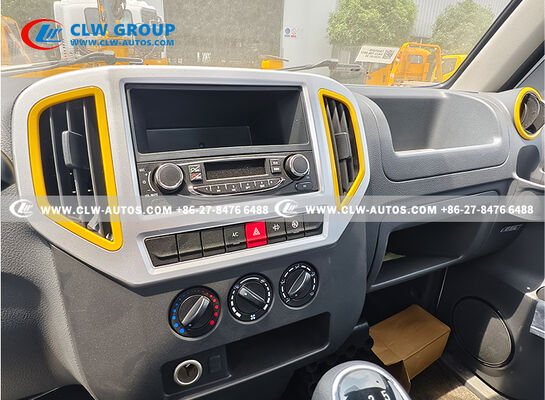

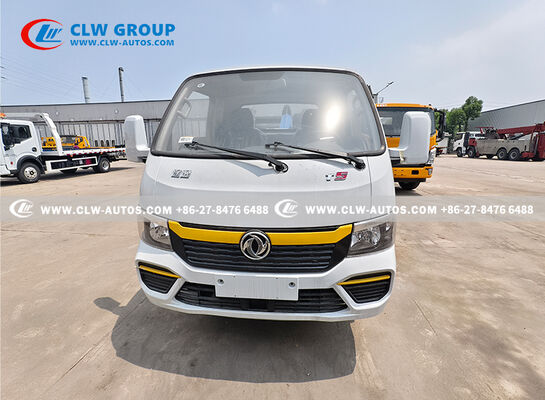

Product Images

Core Advantages

Compact Mini Size: Small overall dimension, outstanding flexibility for urban narrow road rescue, low transportation cost compared with medium-large wreckers
Integrated Tow & Lift Design: One machine realizes lifting, dragging and hoisting functions, multi-scene application
Left Hand Drive Standard: Meet global left-traffic market demand, driving vision is clear
Customizable Optional Parts: Automatic tire clamping fixture, rear warning light board, LED work light, backup camera available
Complete After-sales Support: CLW Group factory direct supply, spare parts supply, overseas technical service support
Solid Craftsmanship: Whole vehicle shot blasting + anti-rust paint treatment, hydraulic pipelines with leak-proof design, long service life
