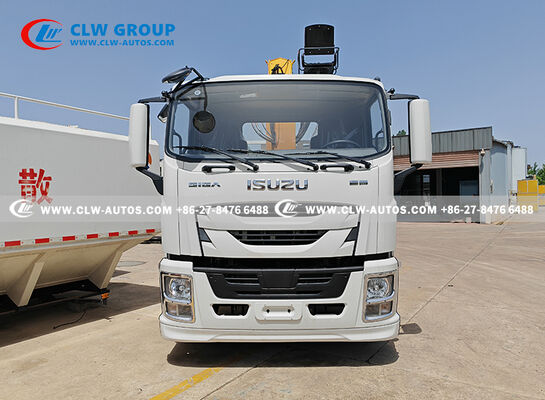

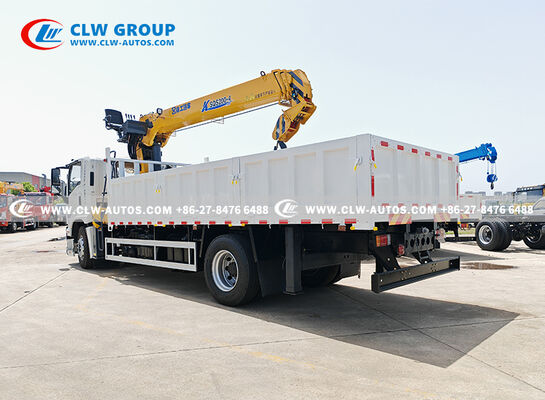

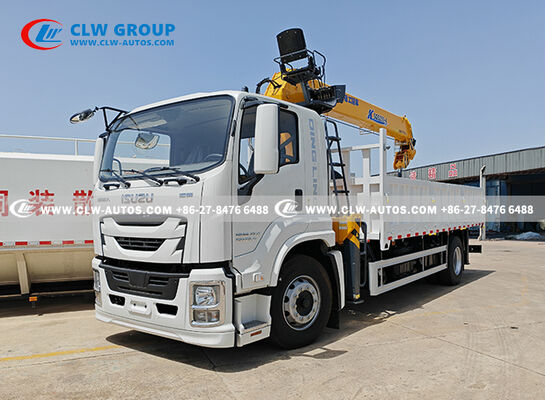

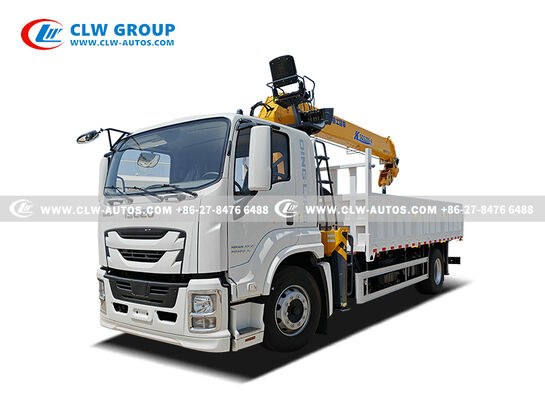

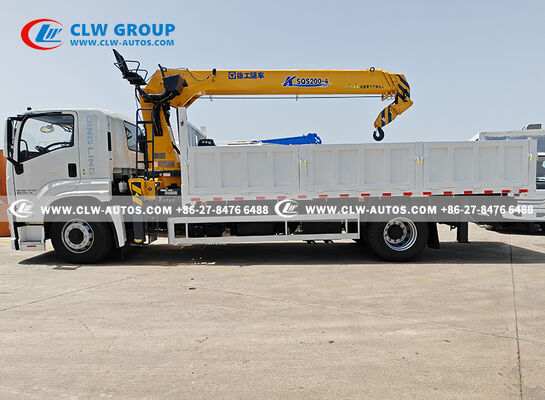

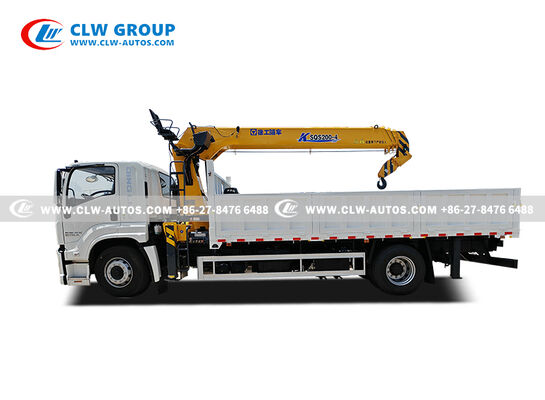

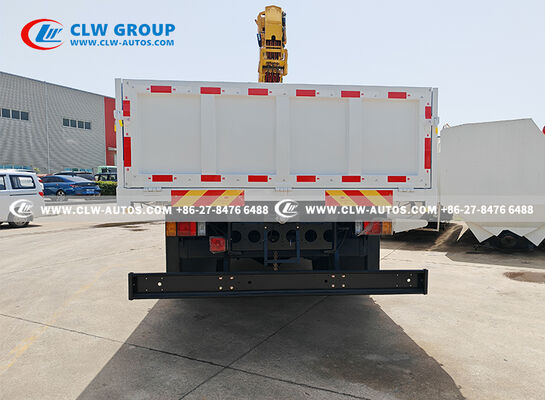

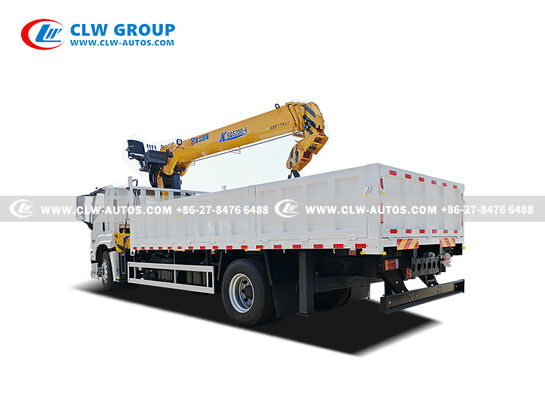

ISUZU GIGA 8x4 16-Ton Straight Boom Crane Truck with 360° Rotation and 350HP Euro IV Engine

The ISUZU GIGA 8x4 16-Ton Straight Boom Crane Truck is a purpose-built heavy-duty vehicle designed for construction sites, logistics operations, and industrial facilities requiring both high-capacity transport and powerful on-site lifting. Built on the reliable ISUZU GIGA 8x4 chassis with double cab (3 passengers, LHD with A/C) and 1,850+4,600+1,400mm wheelbase, this vehicle features an ISUZU 350HP (231kW) Euro IV diesel engine with FAST 12-speed manual transmission. The XCMG straight boom crane delivers 16,000kg max lifting capacity with 25 t*m lifting moment, 12m lifting height, 360° rotation, and 30m working radius.

• ISUZU GIGA 8x4 Heavy-Duty Chassis: Double cab, LHD, 3 passengers, A/C. 1,850+4,600+1,400mm wheelbase. GVW 24,900kg, curb 15,800kg. 11.00R20 tires. Max speed 90 km/h.
• ISUZU 350HP Euro IV Engine: 6-cylinder inline, 231kW, 8,300ml, EGR. Euro IV compliant. FAST 12-speed transmission (12F+2R).
• XCMG 16-Ton Straight Boom Crane: 4-arm telescopic, 16,000kg capacity, 25 t*m moment, 12m height, 360° rotation, 30m radius. Crane weight 3,800kg.
• Cargo Body: 8,600×2,300×550mm, Q235 carbon steel, side 1.5mm / bottom 2.5mm.
• H-Type Outriggers: 2.28-5.9m span for stable lifting.
• Hydraulic System: 18MPa pressure, 70L capacity, 63 L/min flow, 160L oil tank.
• Dual-Side Control: Operator convenience for crane operation.
• Optional Equipment: Caution light, A/C, inlet valve, medicine tray, pneumatic valve, cylinder.

• Construction material handling and equipment positioning
• Heavy machinery transport and installation
• Logistics and warehouse cargo handling
• Industrial equipment maintenance and installation
• Infrastructure and utility projects
• Scrap yard and recycling material handling
