Dongfeng 4x2 4-Ton Flatbed Wrecker Truck with 4-Ton Hydraulic Winch, 2.5-Ton Rear Towing Arm & Complete Rescue Tools

Detailed Product Description
Engine Power: 140HP Transmission Type: 6-speed Manual
Flatbed Dimensions: 5,565×2,380mm Flatbed Material: 5mm Steel Plate
Winch Capacity: 4-ton Hydraulic Steel Wire Rope: 20m Long
Rear Towing Arm: 2.5-ton Capacity Wheelbase: 3,800mm
Tire Specification: 7.50R16 (6+1 Spare) GVW: 7,360kg

Dongfeng 4x2 4-Ton Flatbed Wrecker Truck

The Dongfeng 4-Ton Flatbed Wrecker is a light-duty recovery vehicle built on the Dongfeng Dolica 4x2 chassis, featuring a Yuchai 140HP Euro II engine, 6-speed transmission, and comprehensive recovery capabilities with a 4-ton hydraulic winch and 2.5-ton rear towing arm.

Overview

This professional light-duty recovery vehicle is designed for roadside breakdown assistance, accident vehicle recovery, new car delivery, and urban illegal car clearance. Built on the reliable Dongfeng Dolica 4x2 chassis with 3,800mm wheelbase and single-row cab (LHD with A/C), this vehicle provides comprehensive recovery capability with dual-side linkage hydraulic control for single-person operation.

Key Features
  • Dongfeng Dolica 4x2 Chassis: 3,800mm wheelbase, single-row cab LHD with A/C. GVW 7,360kg, curb 5,200kg, loading 2,160kg. 7.50R16 tires (6+1 spare)
  • Yuchai 140HP Euro II Engine: Fuel-efficient, 6-speed manual transmission (6F+1R)
  • 5,565 × 2,380mm Flatbed: 5mm steel plate with anti-slip patterned or pressed steel options. Full sliding & tilting with low-gradient flat tow arm to prevent bumper damage
  • 4-Ton Hydraulic Winch: Built-in overload protection with 20m high-tensile steel wire rope
  • 2.5-Ton Rear Towing Arm: Flat sliding tow arm for lifting broken-down vehicles
  • Dual-Side Linkage Hydraulic Control: Single-person operation from both sides
  • Complete Standard Rescue Accessories: Lockable toolbox, auxiliary moving trolley, ratchet binding straps, wheel brackets, chains, shackles, and snap hooks
  • Warning Device: Standard yellow electronic warning light (optional siren)
Applications
  • Roadside breakdown assistance
  • Accident vehicle recovery
  • New car delivery and transport
  • Urban illegal car clearance
  • Parking lot enforcement
  • Auto repair shop vehicle movement
Technical Specifications
Item Detailed Specification
Flatbed Loading Capacity 4-ton wrecker flatbed, 1-to-2 tilt tray truck
Flatbed Size 5565 mm (Length) × 2380 mm (Width)
Flatbed Plate 5mm thick steel plate, two optional materials: Anti-slip patterned diamond steel plate or one-time pressed formed steel plate
Flatbed Structure Full sliding & tilting flatbed, low-gradient flat tow arm design, no damage to vehicle bumpers during loading
Main Winch (Hoist) 4-ton heavy-duty hydraulic winch, built-in overload protection
Steel Wire Rope 20m long high-tensile steel wire rope, wear-resistant, rust-proof
Control System Dual-side linkage hydraulic operation, control handles on both sides of the chassis, single-person independent operation

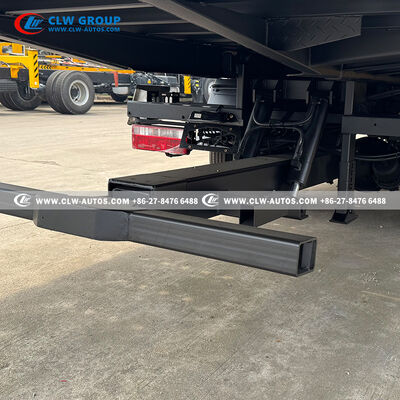

Rear Towing Arm Flat sliding tow arm; maximum lifting capacity: 2.5 tons; can lift and tow the front/rear end of broken-down vehicles
Hydraulic Cylinders Heavy-duty lifting and sliding cylinders; optional upgrade: Haili brand high-performance hydraulic cylinders
Hydraulic Valve Group Standard domestic valve block; optional upgrade: imported hydraulic valve group for stable oil pressure and longer service life
Standard Rescue Accessories Lockable sealed metal side toolbox, auxiliary moving trolley, heavy-duty ratchet binding straps, L-type wheel holding brackets, towing chains and shackles, wheel fixing snap hooks
Warning Device Standard: Yellow electronic warning light on the cab roof. Optional: Upgraded multi-function alarm light bar with siren
Hydraulic Pipeline High-pressure explosion-proof rubber hoses with metal protective sleeves
Frame of Wrecker Body Thickened high-strength carbon steel beam, welded with full penetration welding, anti-torsion and durable
Surface Treatment Sandblasting + anti-rust primer + top finish paint, anti-corrosion for long-term outdoor work
Product Images

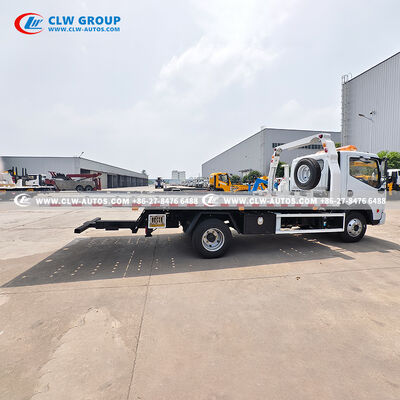

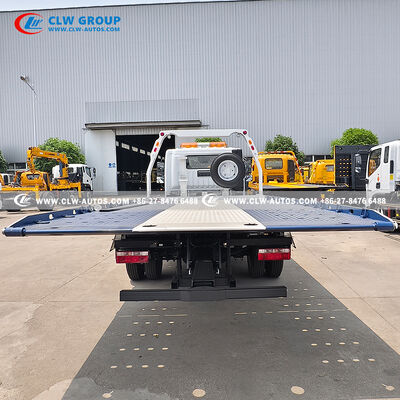

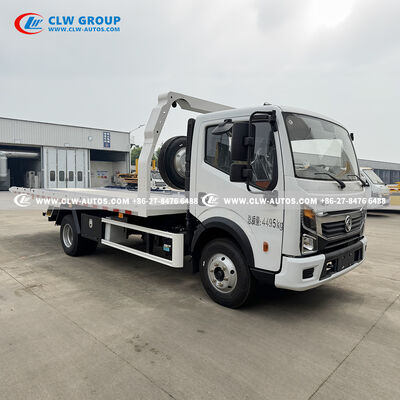

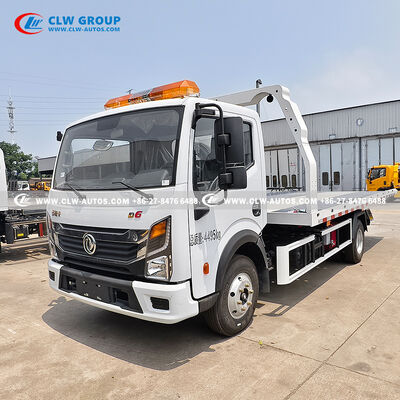

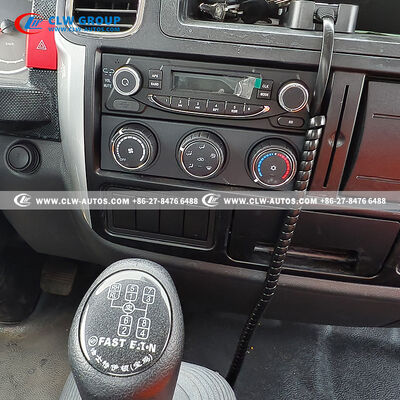

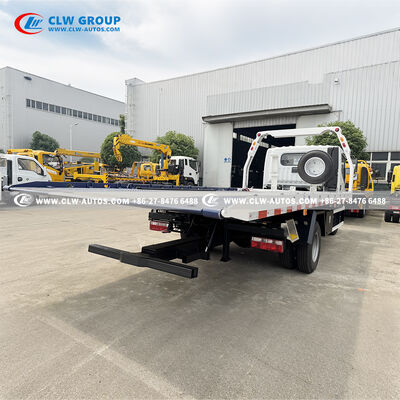

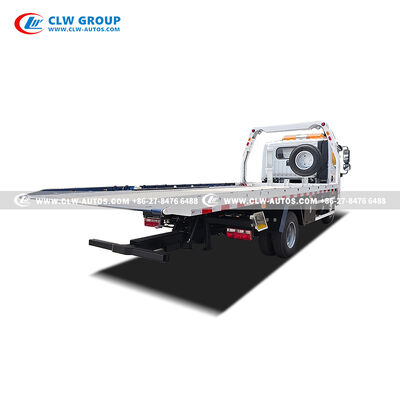

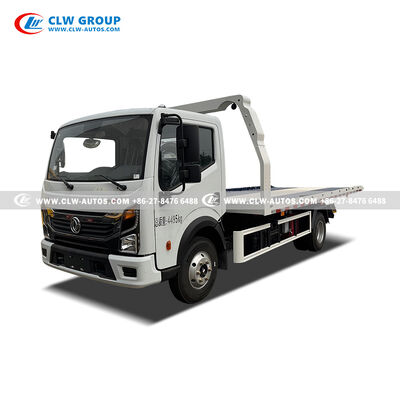

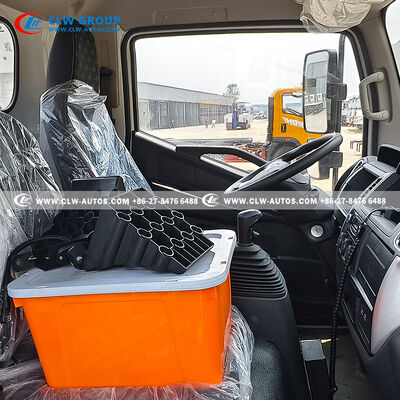

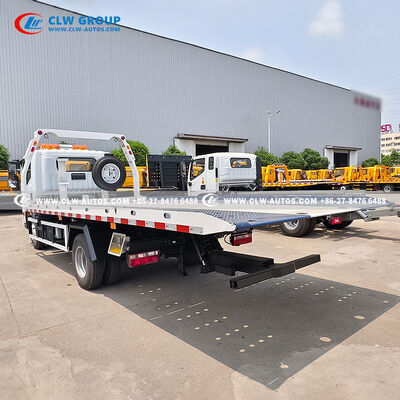

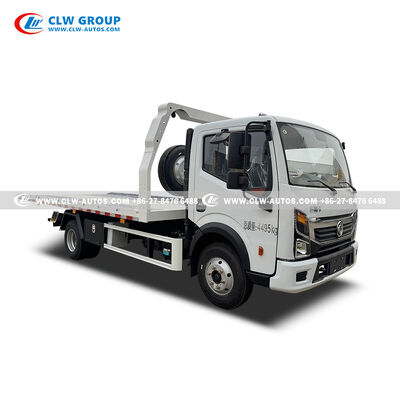

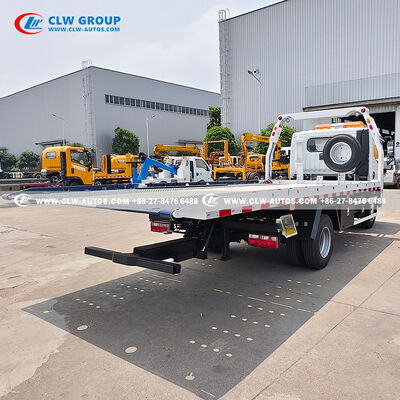

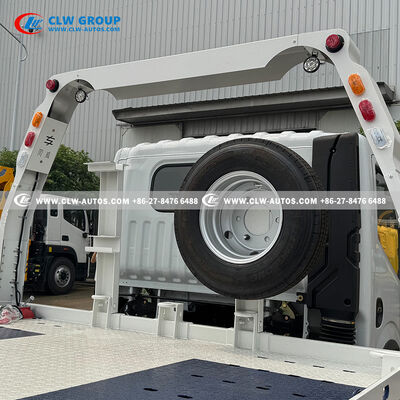

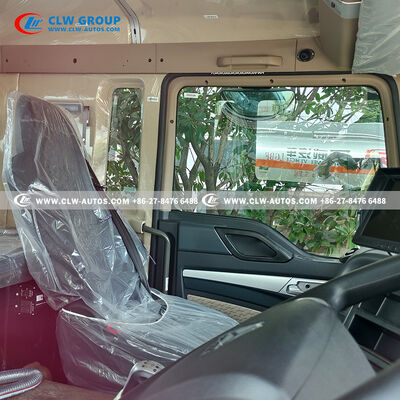

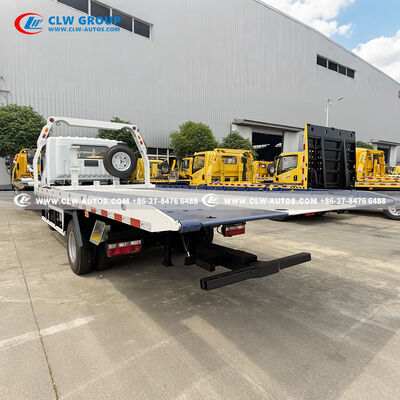

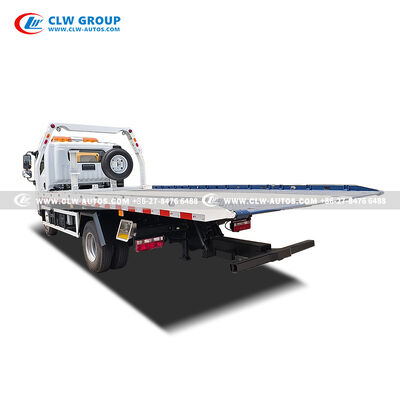

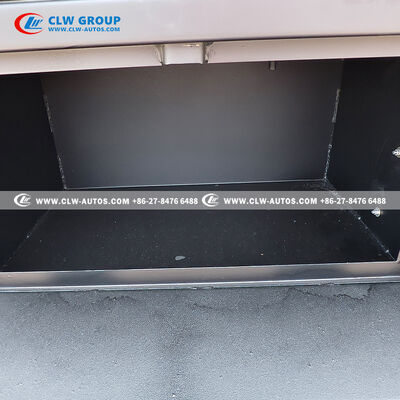

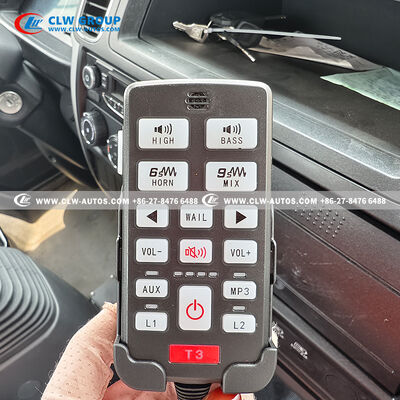

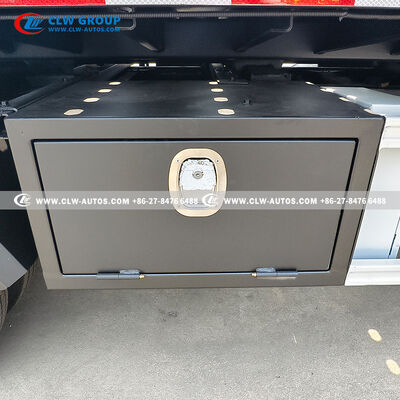

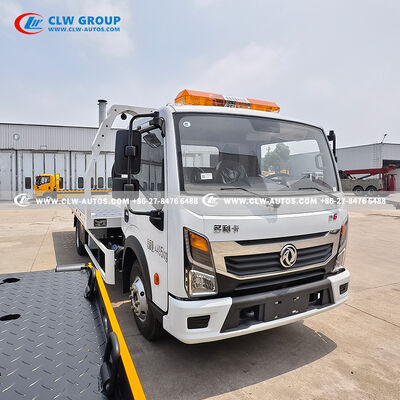

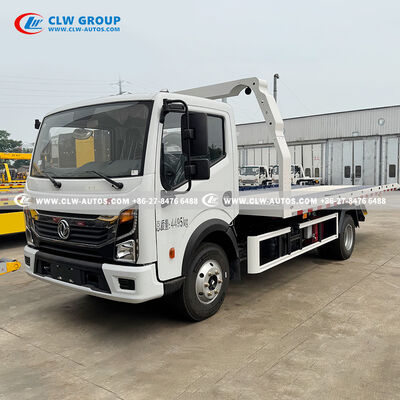

Dongfeng 4-ton flatbed wrecker truck front view Dongfeng wrecker truck side profile Wrecker truck flatbed and towing mechanism Close-up of hydraulic winch system Rear towing arm and recovery equipment Wrecker truck control panel and handles Vehicle interior and cab features Warning light and safety equipment Toolbox and rescue accessories storage Wheel brackets and towing chains Hydraulic cylinder and valve group detail Flatbed surface and anti-slip pattern Wrecker truck in operational position Vehicle recovery demonstration Tire and chassis details Engine compartment and mechanical components Hydraulic pipeline and protective sleeves Frame construction and welding details Surface treatment and paint finish Complete wrecker truck package overview Additional operational features Safety and warning systems Customization options available Professional recovery equipment setup Final product showcase and delivery
