ISUZU GIGA 6x4 15-Ton Wrecker Truck with 460HP Engine and XCMG 10-Ton Crane

Name: ISUZU GIGA 6x4 15-Ton Wrecker Truck with 460HP Engine and XCMG 10-Ton Crane
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 54,740.00 USD
Availability: InStock

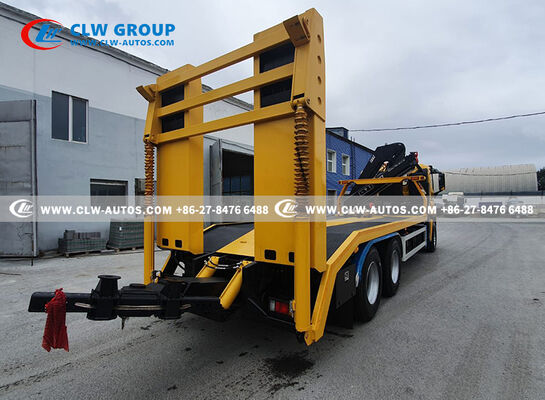

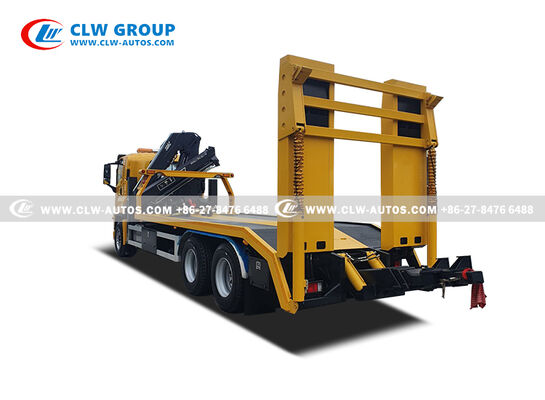

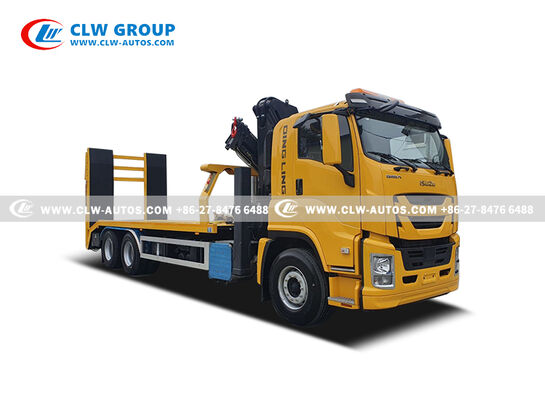

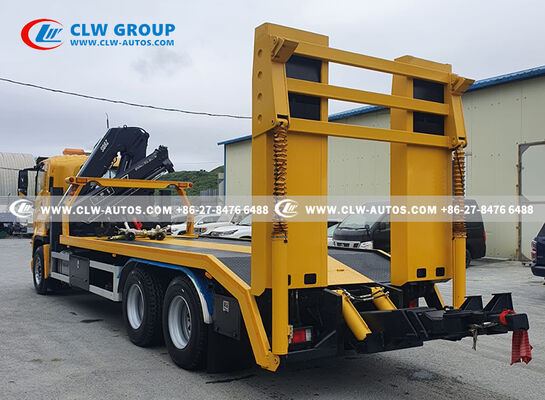

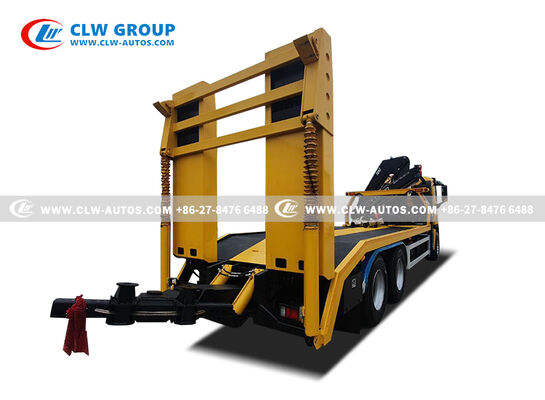

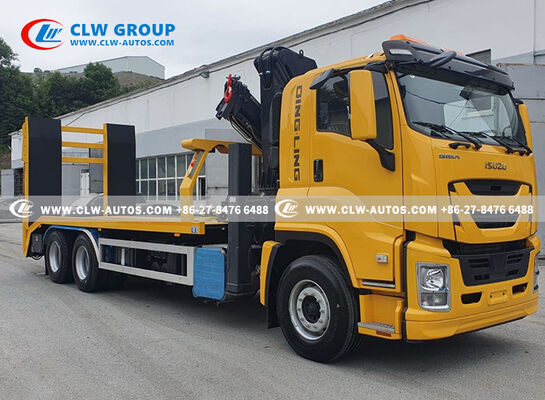

Large Image : ISUZU GIGA 6x4 15-Ton Wrecker Truck with 460HP Engine and XCMG 10-Ton Crane

Product Details:

Contact Now

Detailed Product Description

Engine Model:	6WG1-TCG61	Engine Power:	460 HP
Engine Displacement:	15681 Ml	Emission Standard:	Euro 6
Transmission Type:	FAST Manual 12F+2R	Wheelbase:	5200+1370 Mm
Gross Vehicle Weight:	35000 Kg	Flatbed Size:	8000 X 2500 Mm
Flatbed Capacity:	20 Ton	Crane Capacity:	4000 Kg @ 2.5m

ISUZU GIGA 6x4 15-Ton Wrecker Truck – 460HP Recovery Vehicle with XCMG 10-Ton Crane

Product Overview

The ISUZU GIGA 6x4 Wrecker Truck is a professional-grade heavy-duty recovery vehicle designed for towing companies, highway maintenance departments, municipal fleets, and industrial facilities. Built on the proven ISUZU GIGA 6x4 chassis with 5,200+1,370mm wheelbase and VC66 cab (LHD with sleeper, A/C, pneumatic seat, electric doors/windows), this vehicle features an ISUZU 6WG1-TCG61 diesel engine delivering 460HP (15,681ml, Euro VI) with a FAST 12-speed manual transmission (12F+2R).

The 8,000×2,500mm flatbed platform is constructed with 6mm checker plate and 16mm manganese frame, offering 20-ton loading capacity with telescoping mechanism for flexible loading. The 15-ton hydraulic winch and 10-ton rear lifting arm provide comprehensive recovery capability. The XCMG 10-ton folding boom crane (4,000kg @ 2.5m, 12.4m radius, 15.4m height) with 360° rotation and H-shape outriggers provides versatile lifting. The hydraulic back platform (2,400×2,500mm) facilitates safe loading/unloading.

Key Features

ISUZU GIGA 6x4 Chassis: 5,200+1,370mm wheelbase, VC66 cab LHD with sleeper, A/C, pneumatic seat, electric windows. GVW 35,000kg. 385/65R22.5 front / 315/80R22.5 rear tires (10+1). 400L fuel tank. Air brakes with ABS.
ISUZU 460HP Euro VI Engine: 6WG1-TCG61, 460HP, 15,681ml. FAST 12-speed manual transmission (12F+2R).
8,000 ×2,500mm Flatbed: 6mm checker plate, 16mm manganese frame. 20-ton loading capacity. Telescoping mechanism for flexible loading.
15-Ton Winch & 10-Ton Rear Lifting Arm: Comprehensive recovery capability.
XCMG 10-Ton Folding Boom Crane: 4,000kg @ 2.5m, 12.4m radius, 15.4m height, 360° rotation. H-shape legs with 2 hydraulic outriggers.
Aluminum Alloy Box Plate: Lightweight, corrosion-resistant.
Hydraulic Back Platform: 2,400×2,500mm for safe loading/unloading.

Applications

Heavy truck and commercial vehicle recovery
Bus and coach towing
Construction equipment transport
Municipal fleet vehicle recovery
Highway accident scene clearance
Industrial equipment relocation

Chassis Specifications

Chassis Model	QL5350
Driving Model	6X4
Cab	ISUZU GIGA VC66 Cabin, with one sleeper
Features	Left Hand Drive, Air Conditioner, Pneumatic Seat, Electric doors and Windows
Dimension	11500 x 2500 x 3900 mm
Wheelbase	5200+1370 mm
Gross Vehicle Weight	35000 kg
Front Axle Loading Capacity	9000 kg
Rear Axle Loading Capacity	13000 kg x2
Axle Number	3
Engine	ISUZU diesel engine, 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start
Engine Model	6WG1-TCG61
Horse Power	460 HP
Displacement	15681 ml
Emission Standard	Euro 6
Transmission	FAST Manual Type, 12 Forward & 2 Reverse
Tire	Front: 385/65R22.5, Rear: 315/80R22.5, 10 Pcs with one spare tire
Fuel Tank Capacity	400L
Brakes	Air brake, With ABS

Upper Body Specifications

Flatbed Platform	Size: 8000 x 2500 mm, Thickness: 6mm checked plate, Loading Capacity: 20 Ton, Frame: 16 mm Thick manganese plate
Winch	15 Ton
Rear Lifting Arm	10 Ton
Box Plate	Material: Aluminum Alloy
Hydraulic Back Platform	2400 x 2500 mm

10-Ton Folding Boom Crane Specifications

Working Platform	360° turning (left or right), H-shape legs 360°
Max. Lifting Capacity	Effectively: 4000 kg at 2.5 meters
Max. Working Radius	12.4 meters
Max. Lifting Height	15.4 meters
Outrigger	2 Pcs hydraulic outrigger with lifting function
