FAW Jiefang Tiger VR 4x2 2,200L Mini Fuel Tanker with 95-130HP Diesel Engine and Anti-Corrosion Coating

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

FAW Jiefang Tiger VR 4x2 2,200L Mini Fuel Tanker with 95-130HP Diesel Engine and Anti-Corrosion Coating

Detailed Product Description
Wheelbase: 2,800 - 3,300 Mm Overall Size: 4,800 × 1,900 × 2,100 Mm
GVW: 4,495 Kg Engine Power: 95 - 130 HP
Engine Standard: Euro III/IV/V Transmission: 5-speed / 6-speed Manual
Tire Size: 7.00R16 (6 + 1 Spare) Tank Capacity: 2,200 L (2.2 M³)
Tank Material: Carbon Steel With Anti-corrosion Coating Cargo Medium: Gasoline, Diesel, Petroleum Products

FAW Jiefang Tiger VR 4x2 2,200L Mini Fuel Tanker – Light-Duty Gasoline & Diesel Transport Vehicle
Product Overview

The FAW Jiefang Tiger VR Mini Fuel Tanker is a professional-grade light-duty fuel transport vehicle designed for small-scale fuel distribution, agricultural fuel delivery, construction site refueling, and remote area fuel supply. Built on the proven FAW Jiefang Tiger VR 4x2 light-duty chassis with 2,800-3,300mm wheelbase and single-row cab (LHD with A/C), this vehicle features a 95-130HP diesel engine with Euro III/IV/V compliance, paired with a 5-speed or 6-speed manual transmission.

The 2,200-liter (2.2m³) tank is constructed from high-quality carbon steel with anti-corrosion treatment. The integrated oil pump and flow meter provide efficient loading and unloading with accurate measurement. Comprehensive safety features include anti-static grounding, fire extinguisher, emergency shut-off valve, and manhole cover with breather valve. With a GVW of 4,495kg and compact dimensions, this mini fuel tanker is ideal for navigating narrow streets, rural roads, and confined job sites.

Key Features
  • FAW Jiefang Tiger VR 4x2 Chassis: 2,800-3,300mm wheelbase, single-row cab with A/C, LHD. GVW 4,495kg. 7.00R16 tires (6+1 spare)
  • 95-130HP Diesel Engine: Euro III/IV/V compliant. 5/6-speed manual transmission. Fuel-efficient and reliable
  • 2,200L Carbon Steel Tank: 2.2m³ capacity, anti-corrosion coating. Single compartment (multi optional). Suitable for gasoline, diesel, petroleum products
  • Integrated Oil Pump & Flow Meter: Efficient loading/unloading. Accurate measurement for billing and inventory
  • Safety Equipment: Anti-static grounding, fire extinguisher, emergency shut-off valve, manhole cover, reflective markings
  • Compact Design: Lightweight, excellent maneuverability for narrow streets and rural roads
  • Applications: Agriculture, construction, small commercial fleet, remote area supply
Applications
  • Agricultural fuel delivery to farms (tractors, harvesters, irrigation pumps)
  • Small construction site refueling (excavators, loaders, generators)
  • Small commercial fleet refueling (vans, light trucks)
  • Remote area fuel supply for off-grid communities
  • Fuel distribution to small gas stations and retail outlets
Technical Specifications
Chassis FAW Jiefang Tiger VR 4x2 LHD
Wheelbase 2,800 - 3,300 mm
Overall Size 4,800 × 1,900 × 2,100 mm (approx.)
GVW 4,495 kg
Engine FAW diesel, 95 - 130 HP, Euro III/IV/V
Transmission 5-speed / 6-speed manual
Tires 7.00R16 (6 + 1 spare)
Tank Capacity 2,200 L (2.2 m³)
Tank Material Carbon steel with anti-corrosion coating
Cargo Medium Gasoline, diesel, petroleum products
Pump Integrated oil pump
Flow Meter Accurate measurement
Safety Anti-static grounding, fire extinguisher, emergency shut-off valve, manhole cover, reflective markings
Applications Agriculture, construction, small commercial fleet, remote area supply

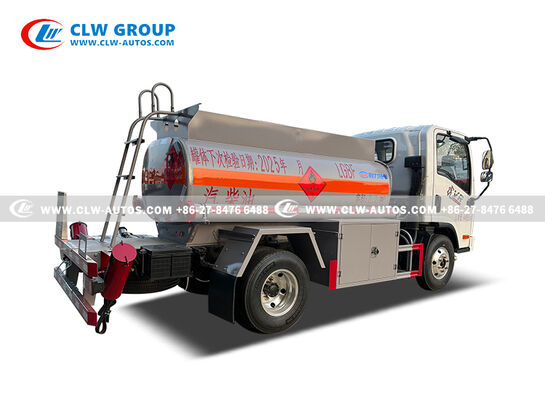

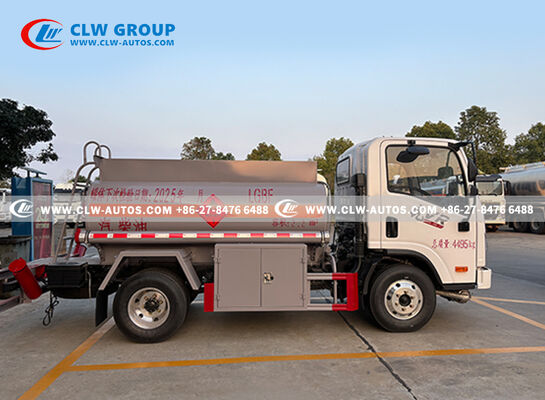

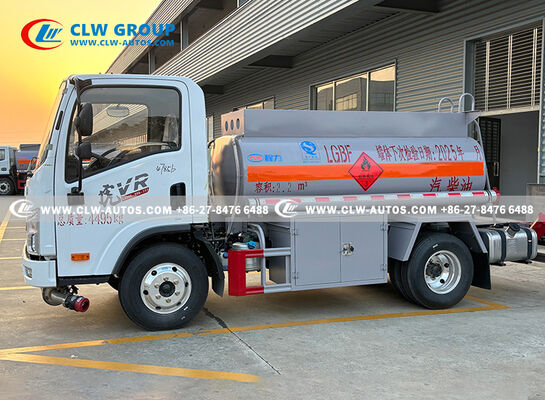

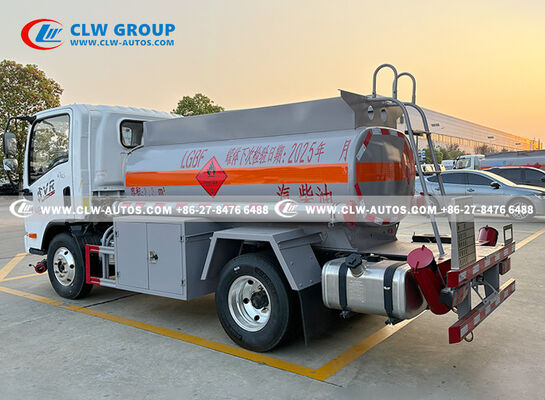

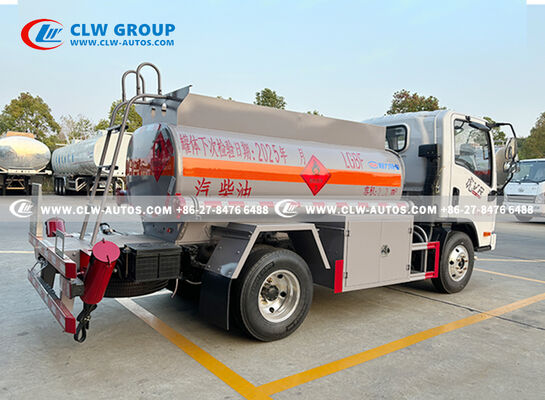

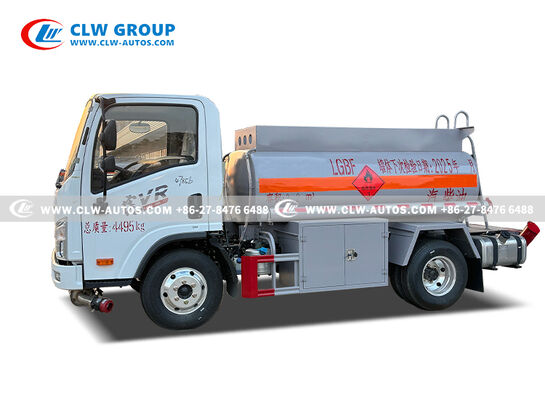

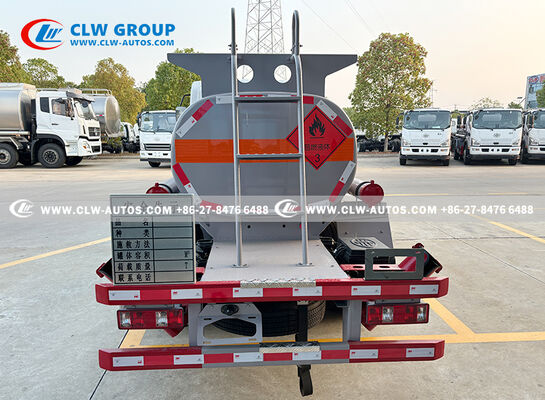

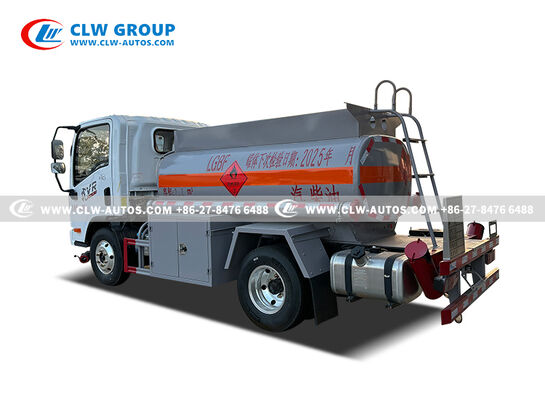

Product Gallery
