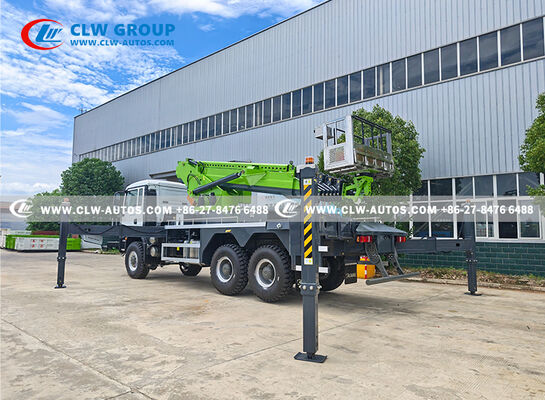

HOWO 6×6 All-Wheel Drive 45m Working Height Aerial Work Truck with 360° Continuous Rotation

Name: HOWO 6×6 All-Wheel Drive 45m Working Height Aerial Work Truck with 360° Continuous Rotation
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: HOWO
Price: 19,885.00 USD
Availability: InStock

Large Image : HOWO 6×6 All-Wheel Drive 45m Working Height Aerial Work Truck with 360° Continuous Rotation

Product Details:

Brand Name:	CLW Group
Model Number:	HOWO

Contact Now

Detailed Product Description

Vehicle Total Length:

9950 Mm

Highlight:

6×6 All-Wheel Drive Aerial Work Truck

45m Working Height Aerial Lift Truck

360° Continuous Rotation Telescopic Boom Lift Truck

HOWO 6*6 45m All-Terrain Aerial Work Truck

Product Overview

Built on heavy-duty HOWO 6*6 all-wheel drive off-road chassis, this 45m telescopic aerial work truck integrates off-road mobility, high-lifting performance and full safety interlock systems. It is engineered for harsh mountain, mining, wilderness and off-grid field high-altitude operations, far exceeding standard 4*2 urban aerial vehicles in cross-country capacity, stability and adaptability.

Technical Specifications

Parameter Category	Item	Unit	Specification
Overall Dimension	Vehicle Total Length	mm	9950
	Vehicle Total Width	mm	2650
	Vehicle Total Height	mm	3900
Weight & Capacity	Gross Vehicle Weight	kg	18600
Weight & Capacity	Allowed Operators (Including Driver)	person	3
Working Performance	Max Working Height	m	45
	Full 360° Continuous Turntable Rotation	°	360
	Working Platform Rotation	°	360 optional
	Max Longitudinal Outrigger Span	mm	8800
	Arm Luffing Time	s	165-190
Off-Road Capability	Approach Angle	°	24
Off-Road Capability	Departure Angle	°	14

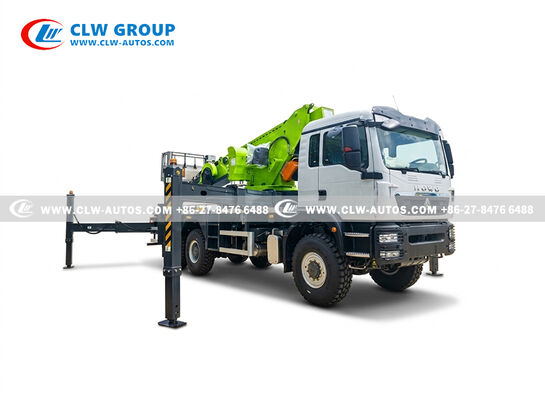

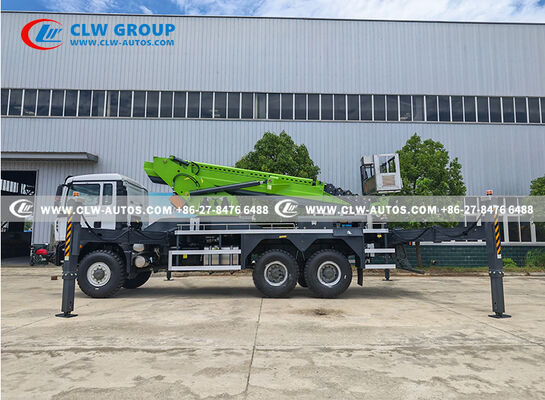

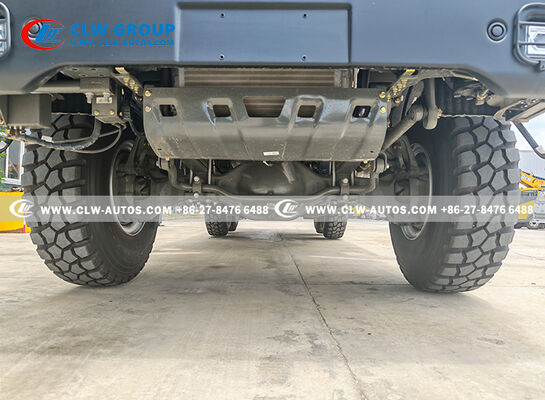

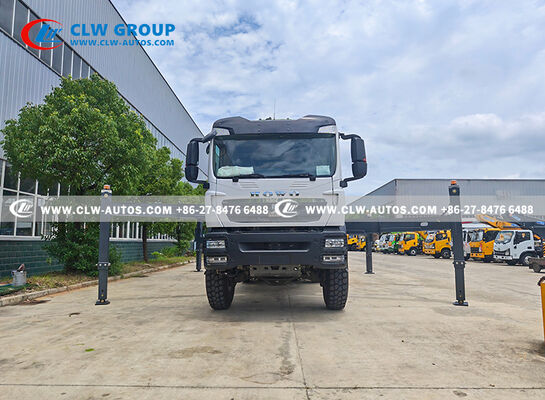

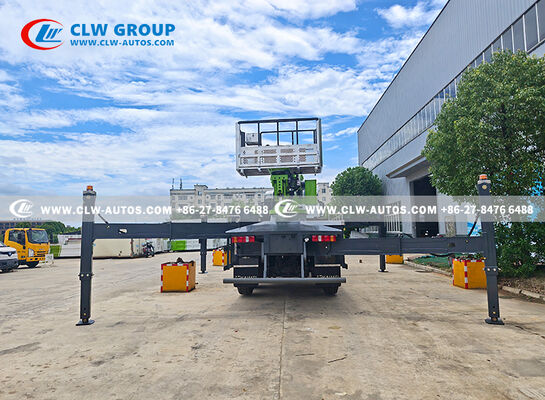

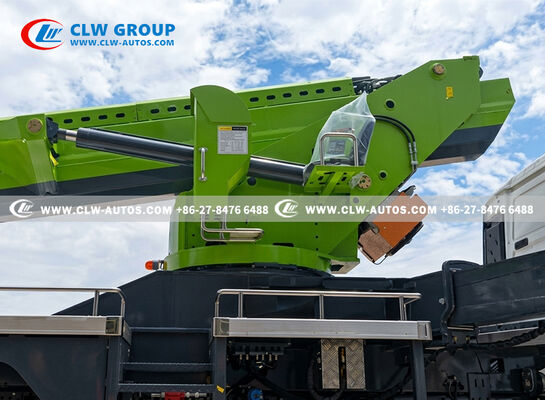

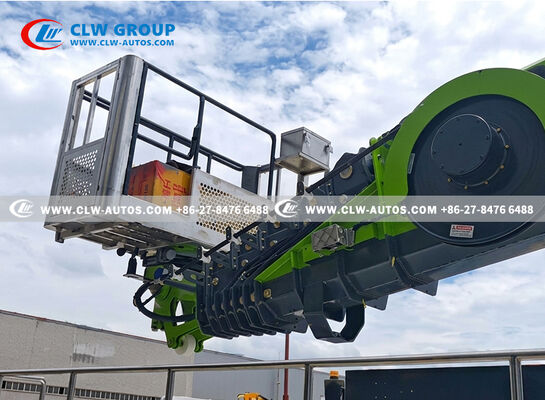

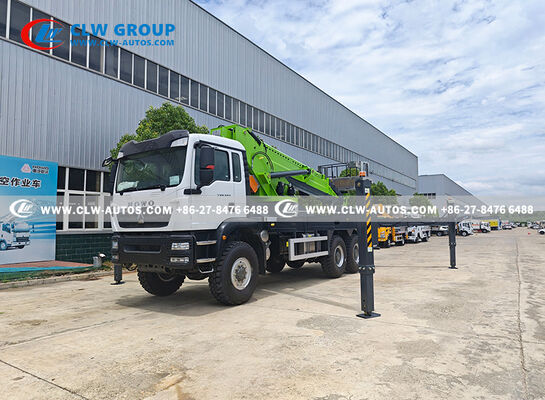

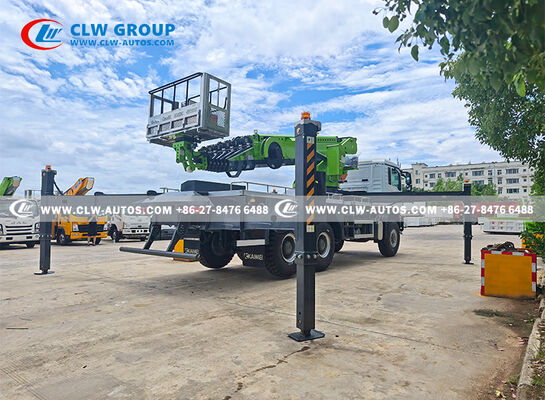

Product Images

Safety Protection Systems

Soft leg detection alarm: Real-time monitoring of outrigger bearing status to prevent tipping on soft ground
Upper & lower operation interlock: Only one control terminal can work at a time to avoid misoperation conflict
Three independent emergency stop buttons (turntable, remote controller, platform) to cut all hydraulic actions instantly
Automatic working limit protection: Restricts boom outreach & height within safe load curves
Vehicle tilt angle monitoring: Detects transverse & longitudinal inclination; locks lifting if over safety threshold
Engine remote control: Start / shut down engine via turntable panel or wireless remote box
Multi-language safety warning labels customizable for global export markets

Core Advantages

HOWO 6*6 full all-wheel drive: Superior off-road performance for mountains, mines, forest areas and unpaved construction sites

45m ultra-high working height: Covers power maintenance, mountain photovoltaic installation, outdoor rescue, high-rise exterior renovation

Triple control + wireless remote: Flexible operation for narrow or hard-to-reach working zones

Reinforced off-road outrigger & chassis: Stable lifting on sloped, rugged terrain where ordinary aerial trucks cannot access

Complete emergency safety system: Dual power supply & multi-layer anti-tip protection for field unattended operations

Onboard 3000W inverter (optional): Supplies 220V AC power for electric tools, lighting and construction equipment without external power

Application Scenarios

Mountain power line overhaul, photovoltaic project maintenance, forest engineering, mine equipment inspection, high-altitude emergency rescue, outdoor large billboard installation, remote infrastructure construction, municipal high-altitude maintenance in suburban & rugged areas.

Optional Upgrades
