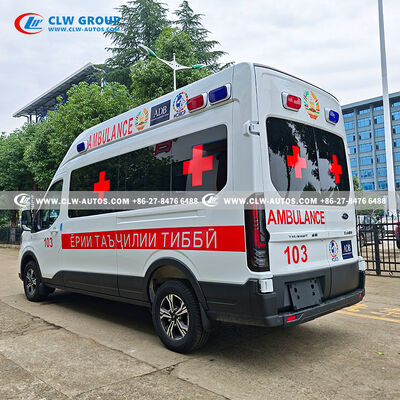

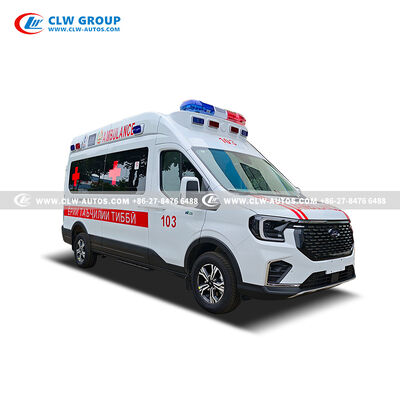

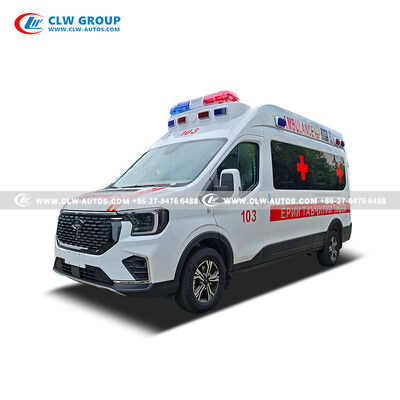

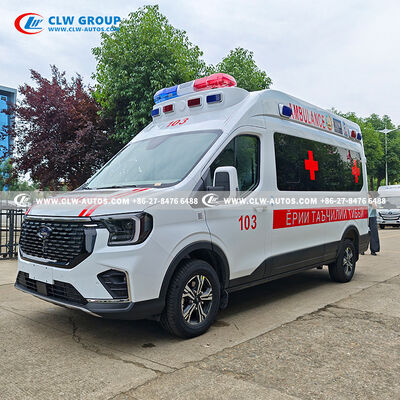

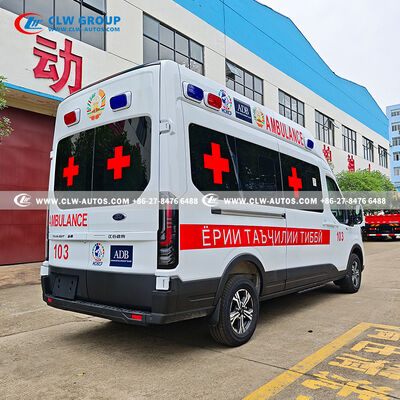

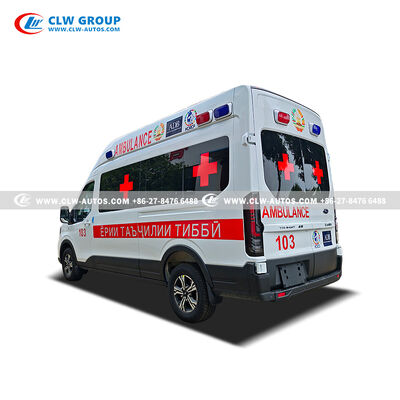

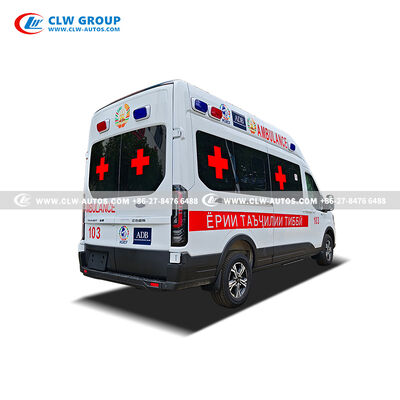

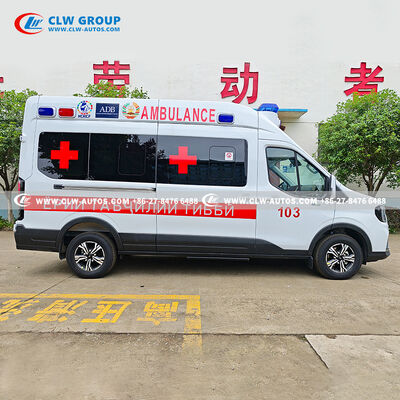

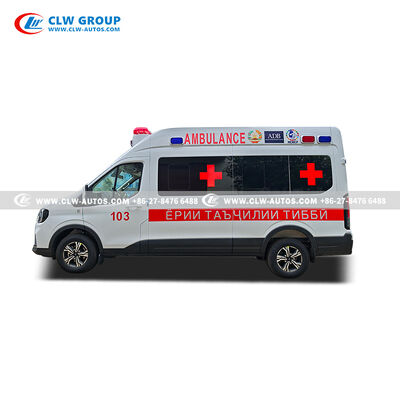

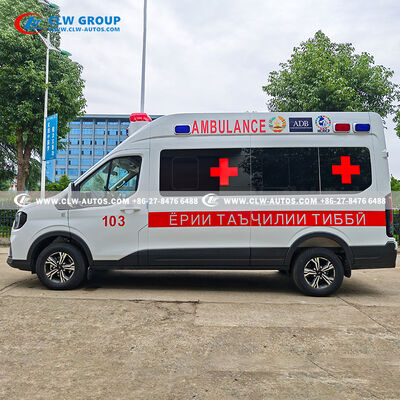

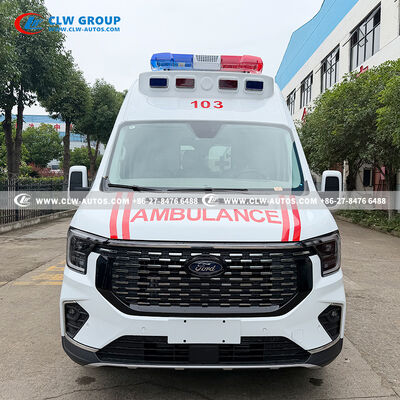

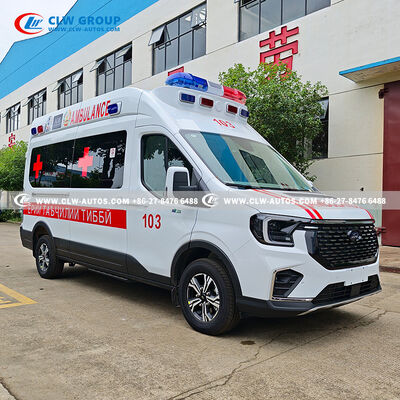

Ford Transit T8 4x2 ICU-Grade Ambulance with Negative Pressure System and Ford 2.3T Diesel Engine

The Ford Transit T8 Ambulance is a state-of-the-art emergency medical vehicle designed for hospitals, emergency medical service providers, and public health institutions. Built on the all-new Ford Transit T8 platform with 68 reinforced boron steel points and industry-leading 5.25-ton load capacity, this vehicle features a Ford 2.3T diesel engine delivering 128-175HP with Euro VI compliance, paired with a 6-speed manual or 8-speed automatic transmission.

The high-top medical cabin is constructed with antibacterial composite materials, featuring ICU-grade medical equipment including multi-parameter ECG monitors, ventilators, defibrillators, and dual 10L oxygen cylinders. The optional negative pressure isolation system provides filtration efficiency exceeding 99.995% for particles of 0.3 microns, preventing cross-infection. Comprehensive safety systems include ABS, EBD, ADAS, 360° panoramic camera, and driver monitoring system. With GVW of 4,100kg and 70L fuel tank, this ambulance delivers reliable emergency response capability.

• Ford Transit T8 4x2 Chassis: High-strength body with 68 reinforced boron steel points. 5.25-ton load capacity, 13m³ cargo space. 3,300-3,750mm wheelbase. 70L fuel tank. Lowest fuel consumption 7.5L/100km.
• Ford 2.3T Engine: 128-175HP, Euro VI, 430 Nm torque. 6-speed manual / 8-speed automatic transmission. 30% slope capability, 46dB idle noise.

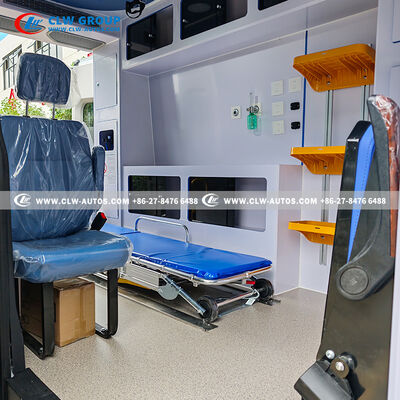

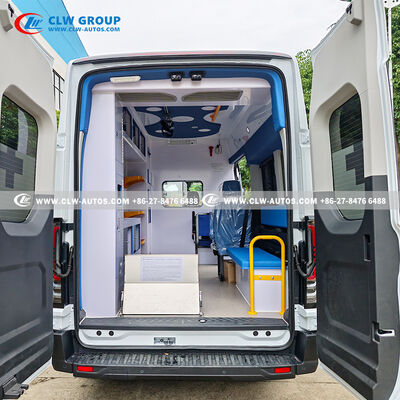

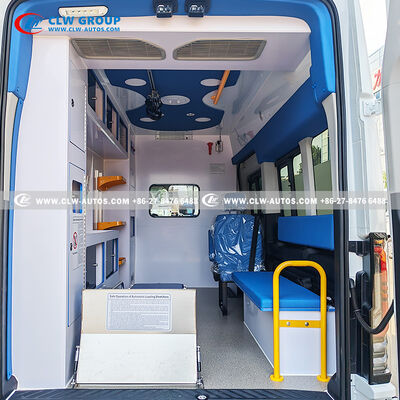

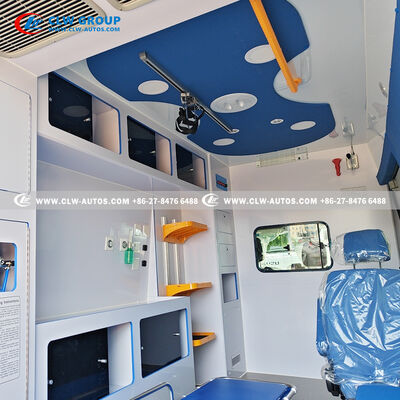

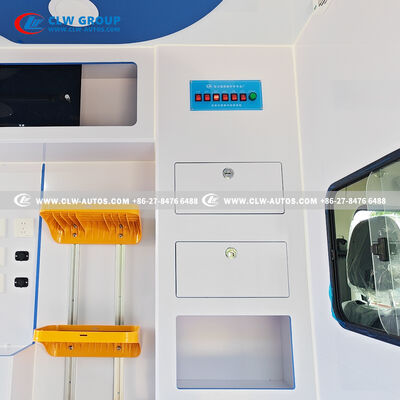

• High-Top Medical Cabin: Antibacterial composite interior with sealed seams. Medical-grade anti-slip flooring. UV disinfection lamps. Medical storage cabinets. 4-6 person seating.
• ICU-Grade Equipment: Multi-parameter ECG monitor, ventilator, defibrillator, suction device. Dual 10L oxygen cylinders (15MPa) with central oxygen supply system. Guide rail infusion rack.
• Negative Pressure Isolation (Optional): Directional airflow, -30Pa to -10Pa cabin pressure. 99.995% filtration efficiency for 0.3μm particles. Prevents cross-infection.
• Safety Systems: ABS, EBD, four-wheel disc brakes. ADAS, 360° camera, lane departure warning, DMS, RMI, BSD.

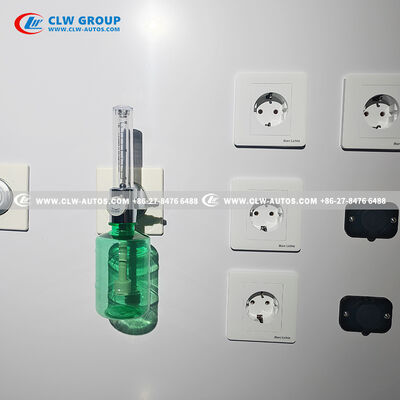

• Power Supply: 2KVA UPS inverter. Multiple 220V power outlets. Intelligent battery management.

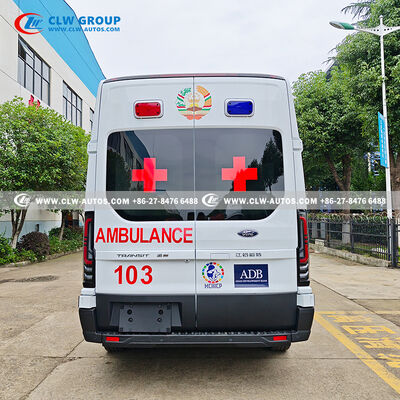

• Warning Systems: Roof-mounted light bar, strobe warning lights, 100W speaker.

• Hospital emergency patient transport and critical care
• Pre-hospital emergency medical services
• Infectious disease patient transport (with negative pressure)
• Patient transfer between medical facilities
• Mass casualty incident response
• Event medical standby support
