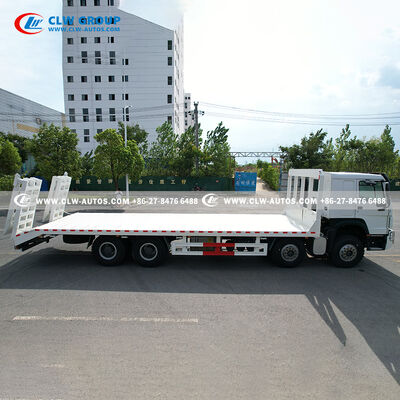

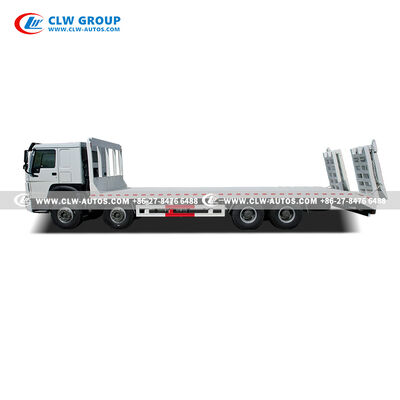

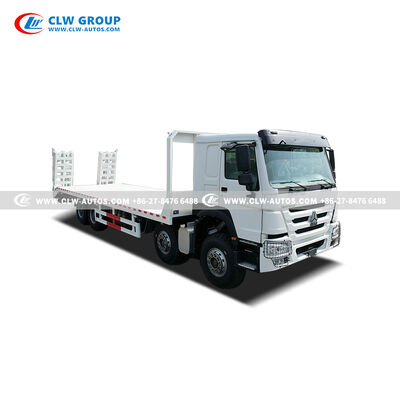

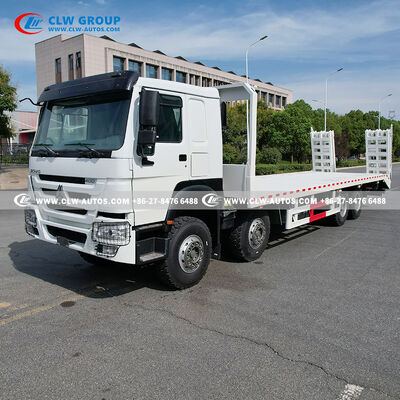

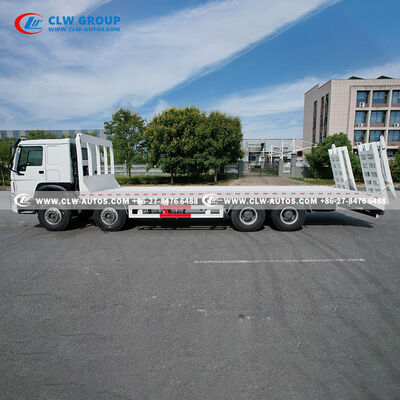

Sinotruk HOWO 8x4 400HP Flatbed Truck with 9m Manganese Steel Deck and Hydraulic Ramp for Heavy Machinery Transport

Name: Sinotruk HOWO 8x4 400HP Flatbed Truck with 9m Manganese Steel Deck and Hydraulic Ramp for Heavy Machinery Transport
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Price: 54,740.00 USD
Availability: InStock

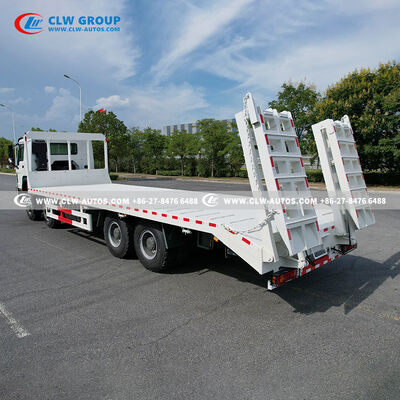

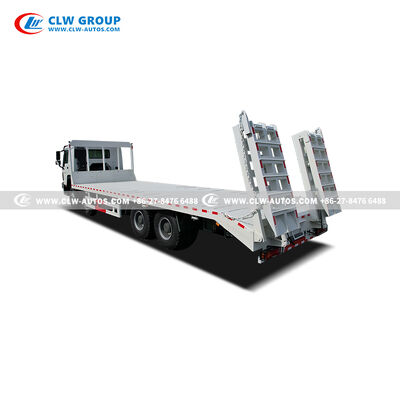

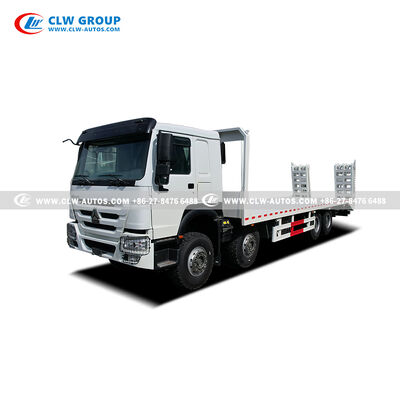

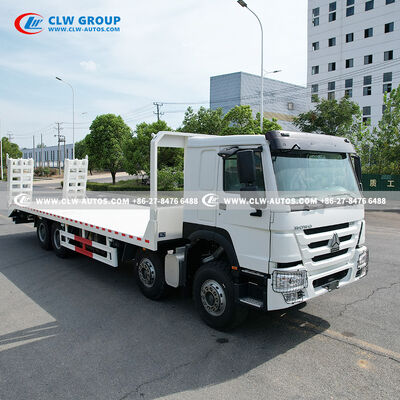

Large Image : Sinotruk HOWO 8x4 400HP Flatbed Truck with 9m Manganese Steel Deck and Hydraulic Ramp for Heavy Machinery Transport

Product Details:

Contact Now

Detailed Product Description

Engine Power:	400 HP	Engine Model:	WP12S400E201
Displacement:	12L	Transmission Type:	Manual, HW19710, 10F+2R
Max Speed:	95 Km/h	Flatbed Dimensions:	9,000 × 3,000 Mm
Flatbed Material:	Manganese Steel, Anti-slip Pattern Plate	Hydraulic Ramp Dimensions:	3,800×800mm
Fuel Tank Capacity:	400L + 600L	Tire Specification:	12.00R20 18PR
Highlight:	400HP Engine Flatbed Truck , 9m Manganese Steel Deck Heavy Equipment Carrier , Hydraulic Ramp Wrecker Tow Truck

HOWO 8x4 400HP Flatbed Truck with Hydraulic Ramp – 9m Manganese Steel Deck for Heavy Machinery Transport in Africa

Product Overview

The Sinotruk HOWO 8x4 Flatbed Truck with Hydraulic Ramp is a 400HP heavy equipment carrier built on the HOWO 8x4 chassis, featuring a Weichai WP12S400E201 Euro II engine, HW19710 10-speed manual transmission (10F+2R), a 9,000×3,000mm manganese steel flatbed (8mm anti-slip pattern plate), a 2-section hydraulic ramp (3,800×800mm), a reinforced 8x4 multi-wheel chassis (9.5-ton front axles / 16-ton rear axles), and a 400L + 600L fuel tank.

Ideal for hauling excavators, loaders, and oversized machinery on sandy desert tracks, bumpy unpaved mining roads, and remote rural construction routes in Mauritania and West Africa.

Key Features

Sinotruk HOWO 8x4 Reinforced Chassis: 8x4, left-hand drive. Front/Rear axle loading: 9,500/9,500/16,000/16,000 kg. Wheelbase: 2,250+5,400+1,350 mm. Max driving speed: 95 km/h. Reinforced diaphragm clutch.
Weichai 400HP Euro II Engine: WP12S400E201, 294 kW, 400 HP, 12L displacement. 4-stroke direct injection, 6-cylinder in-line. HW19710 manual transmission, 10F+2R.
9,000 ×3,000mm Manganese Steel Flatbed: 8mm thickness, anti-slip pattern plate. 3-4mm checkered plate front fence. Dense cross-member subframe. Multi-layer anti-rust and wear-resistant paint.

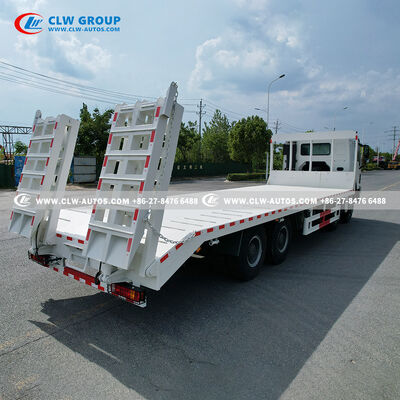

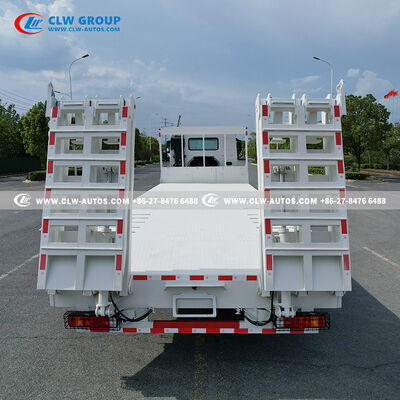

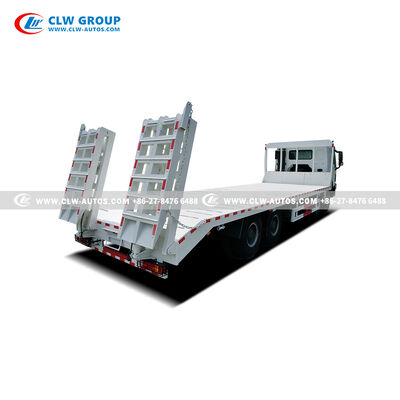

2-Section Hydraulic Ramp: 3,800×800mm. 1 unit hydraulic cylinder per ladder. PTO-driven. No extra crane required.
Long-Distance Fuel Capacity: 1 unit 400L + 1 unit 600L aluminum alloy tank.

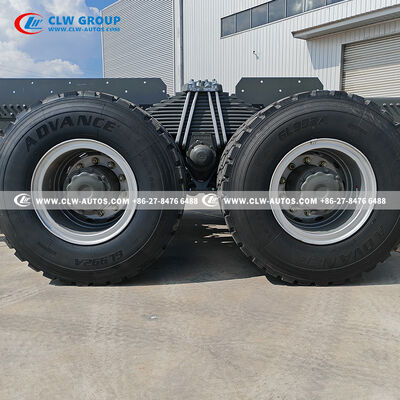

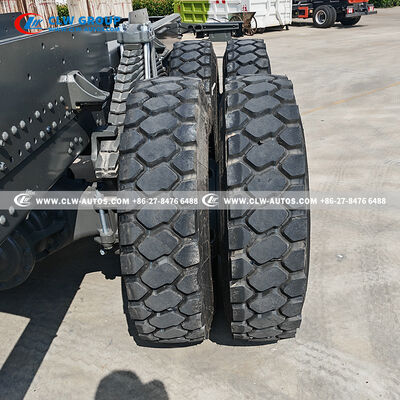

Off-Road Tires: 12.00R20 18PR, 12 pcs with one spare tire.

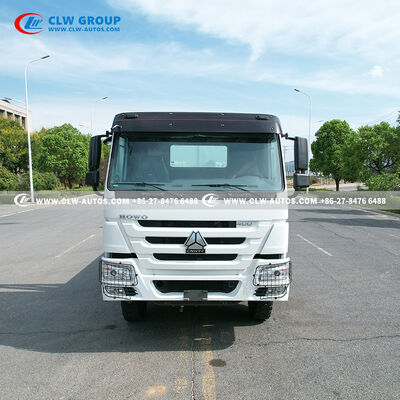

Operator Comfort Cabin: HW76 H76 cabin with one sleeper, factory air conditioning, left-hand drive.
Side-Mounted Tensioners: For securing transported machinery.
Safety Systems: Dual circuit compressed air brake, spring energy parking brake, engine exhaust brake, power steering.

Applications

Heavy machinery relocation (excavators, road rollers, wheel loaders, bulldozers)
Oversized cargo logistics (non-standard structural components)
Civil infrastructure development, open-pit mining operations, municipal engineering
Commercial heavy equipment rental fleets
Large-scale construction sites (highways, railways, airport terminals)

Technical Specifications

Specification	Details
Overall Length	Approx. 12,800 mm
Overall Width	2,550 mm
Overall Height	Approx. 3,890 mm
Tare Weight	Approximate 16,500 kg
Chassis Condition	New condition / Left hand drive / 8x4
Chassis Brand	SINOTRUK
Model	HOWO
Front/Rear Axle Loading	9,500 / 9,500 / 16,000 / 16,000 kg
Wheelbase	2,250 + 5,400 + 1,350 mm
Max. Driving Speed	95 km/h
Clutch	Reinforced diaphragm clutch
Brakes	Service: dual circuit compressed air; Parking: spring energy; Auxiliary: engine exhaust brake
Steering Gear	Power steering, hydraulic steering with power assistance
Tire	12.00R20 18PR, 12 pcs with one spare tire
Transmission	Manual, HW19710, 10 Forwards and 2 reverses
Cab	Cabin with one sleeper, Air-conditioner, safety belts
Fuel Tank	1 unit 400L with 1 unit 600L
Engine Model	WP12S400E201
Fuel Type	Diesel
Engine Type	4-stroke direct injection, 6-cylinder in-line, water cooling, turbo-charging, inter-cooling
Displacement	12L
Power	294 kW
Horsepower	400 HP
Cylinder Number	6
Emission Standard	Euro 2
Flatbed Dimension	9,000 × 3,000 mm
Flatbed Material	Manganese steel, anti-slip pattern plate
Flatbed Thickness	Bottom: 8 mm
Front Fence	3-4 mm Checkered Plate
Hydraulic Ladder Cylinder	1 unit per ladder
Hydraulic Ladder Dimension	Length 3,800 mm, width 800 mm
Applications	Mining, construction, heavy machinery relocation, oversized cargo logistics
